Wheel Alignment Specifications

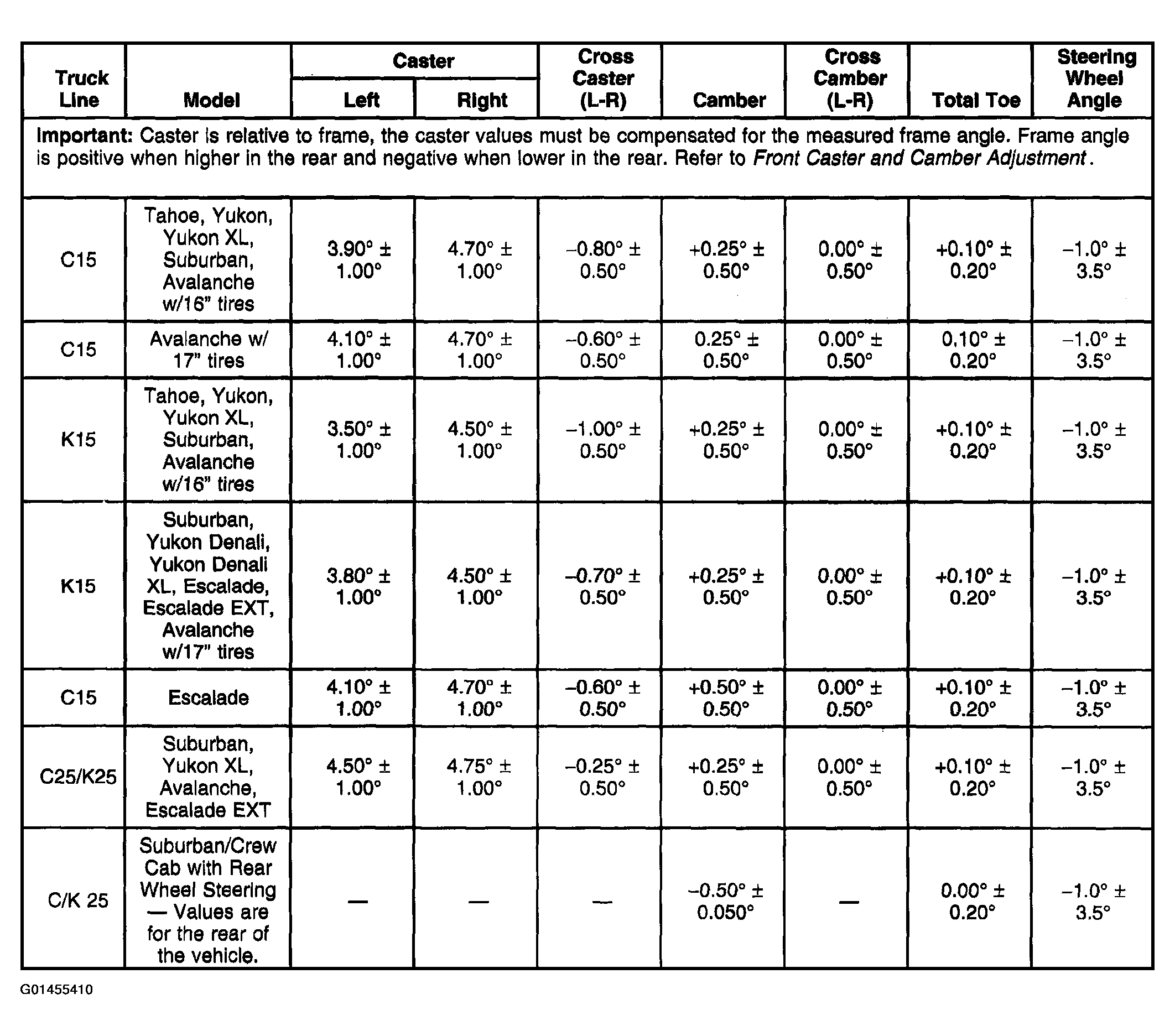

Fig 1: Wheel Alignment Specifications Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
