Automatic Transmission Shift Lock Control Connector End Views

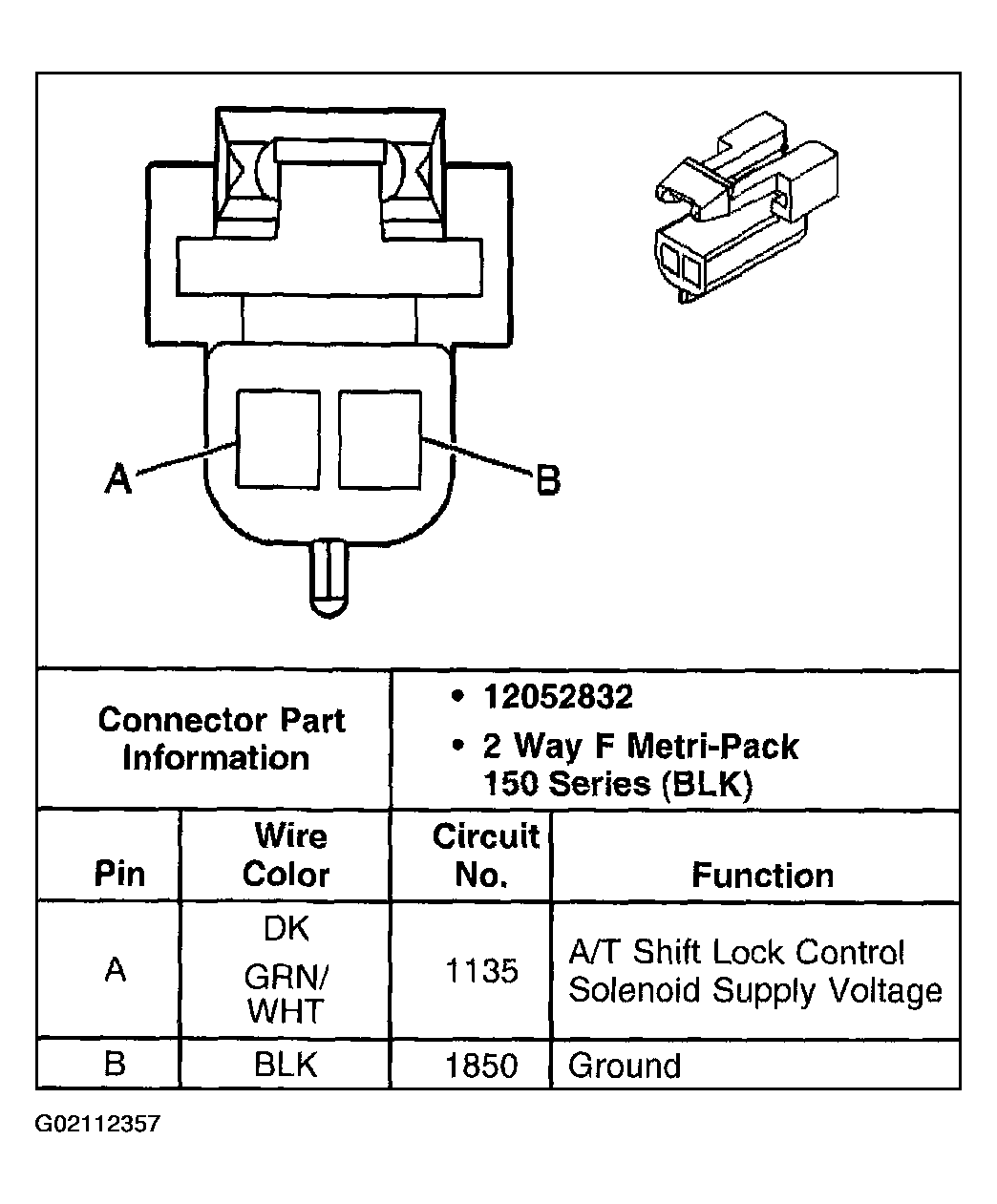

Fig 1: Identifying Transmission Shift Lock Control Actuator Connector
G02112357Courtesy of GENERAL MOTORS CORP.
