Removal Procedure
- Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3
in SIR.
- Remove the body control module (BCM). Refer to BODY CONTROL MODULE REPLACEMENT
in Body Control System.
- Put the shift lever clevis into the neutral position.
- Disconnect the electrical connector.

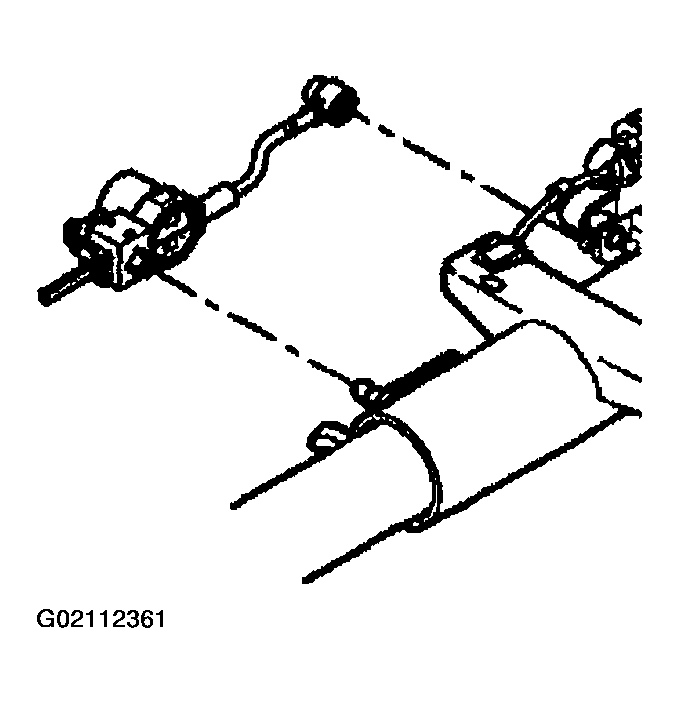

- Using a small screwdriver, pry the automatic transmission shift lock control actuator away from the steering column jacket and the cable shift cam.
- Remove the shift lock control actuator.
Courtesy of GENERAL MOTORS CORP.
