Cadillac
>>
2003
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Interlock System
>>
Schematic Wiring Diagrams
>>
Shift Lock Control Wiring Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock Control Wiring Schematics

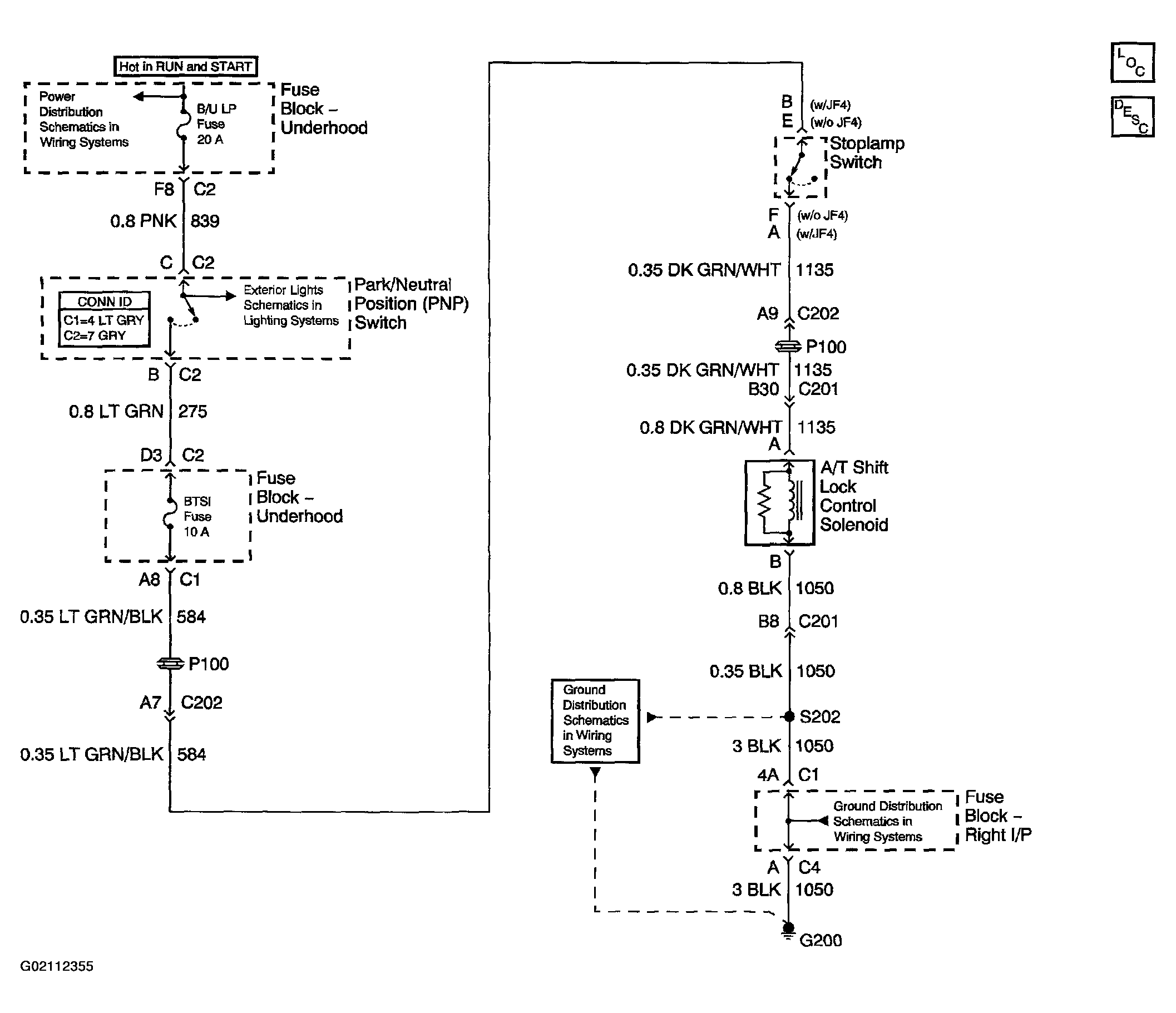

Fig 1: Automatic Transmission Shift Lock Control Schematic
Courtesy of GENERAL MOTORS CORP.
