Component Locations

NOTE: For component locations, see COMPONENT LOCATIONS  table. See Fig 1 -Fig 11 .
COMPONENT LOCATIONS

Component Location
Camshaft Position Sensor Right Rear Of Engine, In Cam Carrier
Cooling Fan Relays Rearward Of Radiator, Center Bottom Between Cooling Fans
Crankshaft Position Sensors Front Center Of Engine
Cruise Control Module Left Side Of Engine Compartment, On Left Strut Tower
Data Link Connector Under Instrument Panel, Near Steering Column
EGR Valve Left Rear Of Engine, Behind Throttle Body
Engine Coolant Temperature Sensor Left Rear Corner Of Engine, Below EGR Valve
Engine Oil Level Switch Bottom Front Of Engine, Near A/C Compressor
Engine Oil Pressure Switch Front Center Of Engine, Near Top Of Oil Filter
EVAP Canister Purge Solenoid Left Rear Of Engine, Next To Throttle Body
EVAP Canister Vent Solenoid Beneath Rear Compartment, On Left Side Of Vehicle
Fuel Injectors In Intake Manifold
Idle Air Control Valve Left Side Of Engine, In Front Of Throttle Body
Ignition Control Modules Under Intake Manifold Top Cover, On Front & Rear Camshaft Covers
Intake Air Temperature Sensor In MAF Sensor
Knock Sensor Center Top Of Engine, Under Intake Manifold Top Cover
Manifold Absolute Pressure Sensor Top Left Side Of Engine, On Throttle Body
Mass Airflow Sensor Left Side Of Engine Compartment, In Air Intake Tube
Post-Converter Oxygen Sensor Rear Of Catalytic Converter
Powertrain Control Module Left Front Of Engine Compartment, Under Air Cleaner Assembly
Pre-Converter Oxygen Sensors Center Front & Rear Of Engine Compartment, On Front & Rear Exhaust Manifold
Rear Oxygen Sensor Center Rear Of Engine, In Exhaust Manifold
Throttle Position Sensor Top Left Side Of Engine, On Throttle Body
Transaxle Range Switch Inside Transaxle
Underhood Junction Block In Engine Compartment, Forward Of Left Strut Tower
Vehicle Speed Sensor Right Center Of Engine Compartment, On Transaxle Case Extension

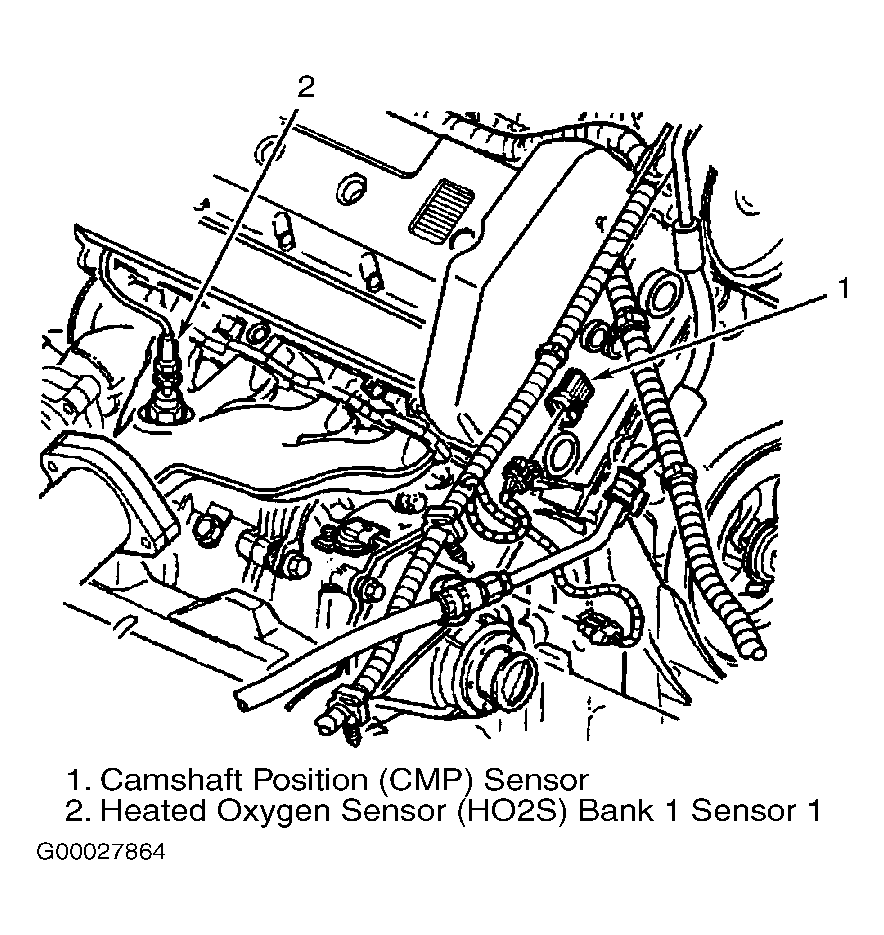

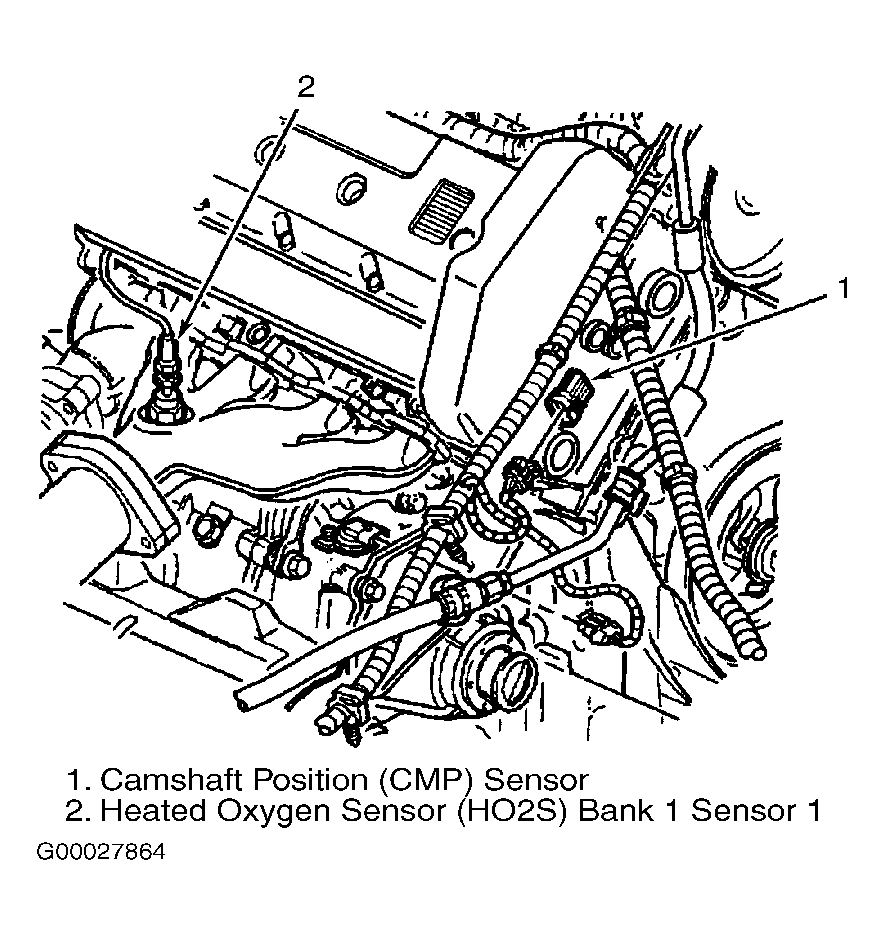

Fig 1: Locating Camshaft Position Sensor & HO2S Bank 1, Sensor 1
G00027864Courtesy of GENERAL MOTORS CORP.

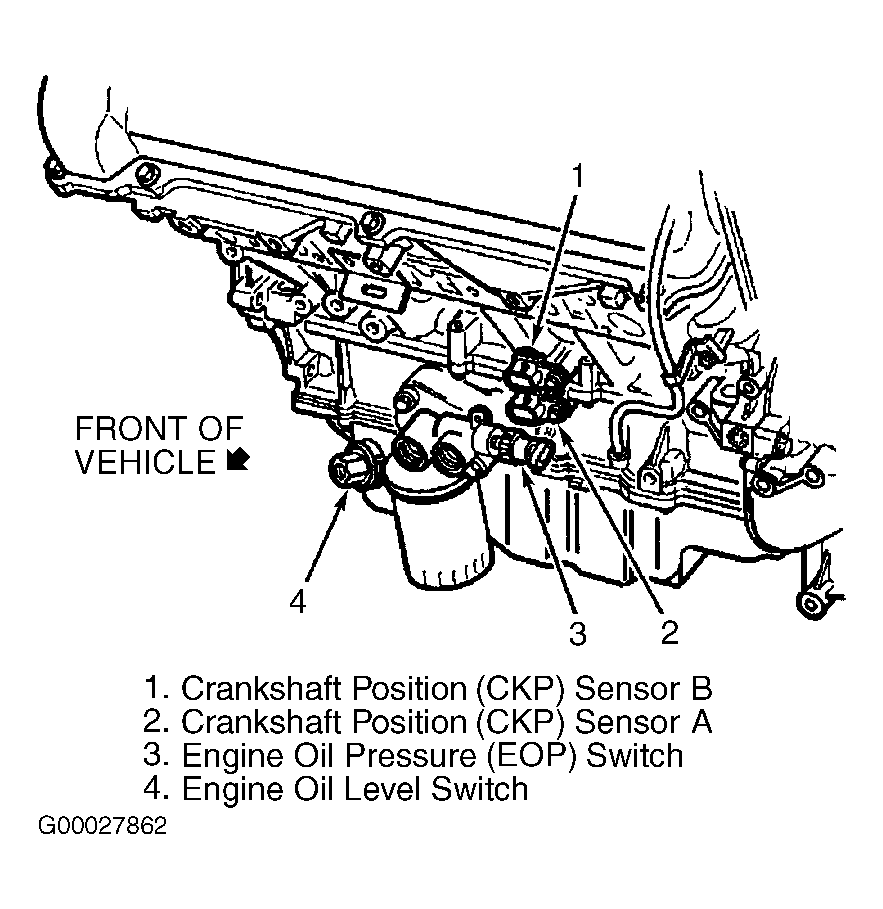

Fig 2: Locating Crankshaft Position Sensors, Engine Oil Level Switch & Engine Oil Pressure Switch
G00027862Courtesy of GENERAL MOTORS CORP.

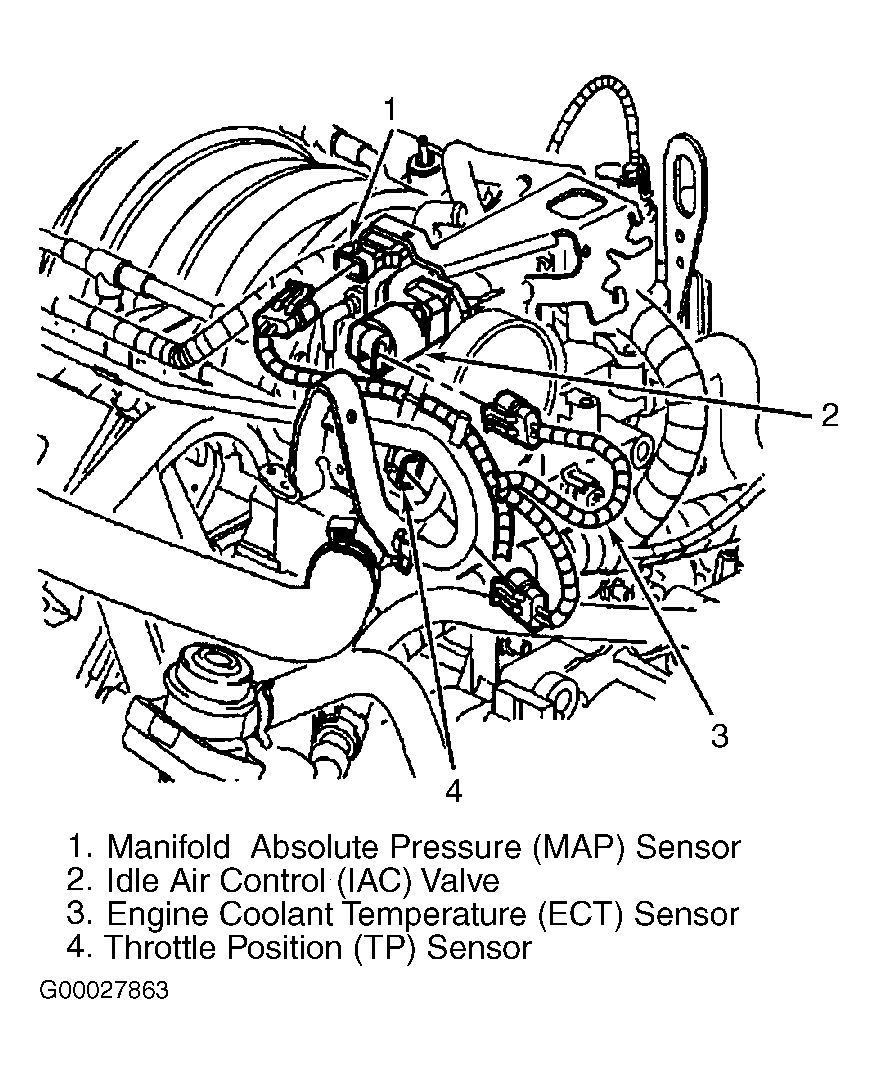

Fig 3: Locating Engine Coolant Temperature Sensor, Idle Air Control Valve, Manifold Absolute Pressure Sensor & Throttle Position Sensor
G00027863Courtesy of GENERAL MOTORS CORP.

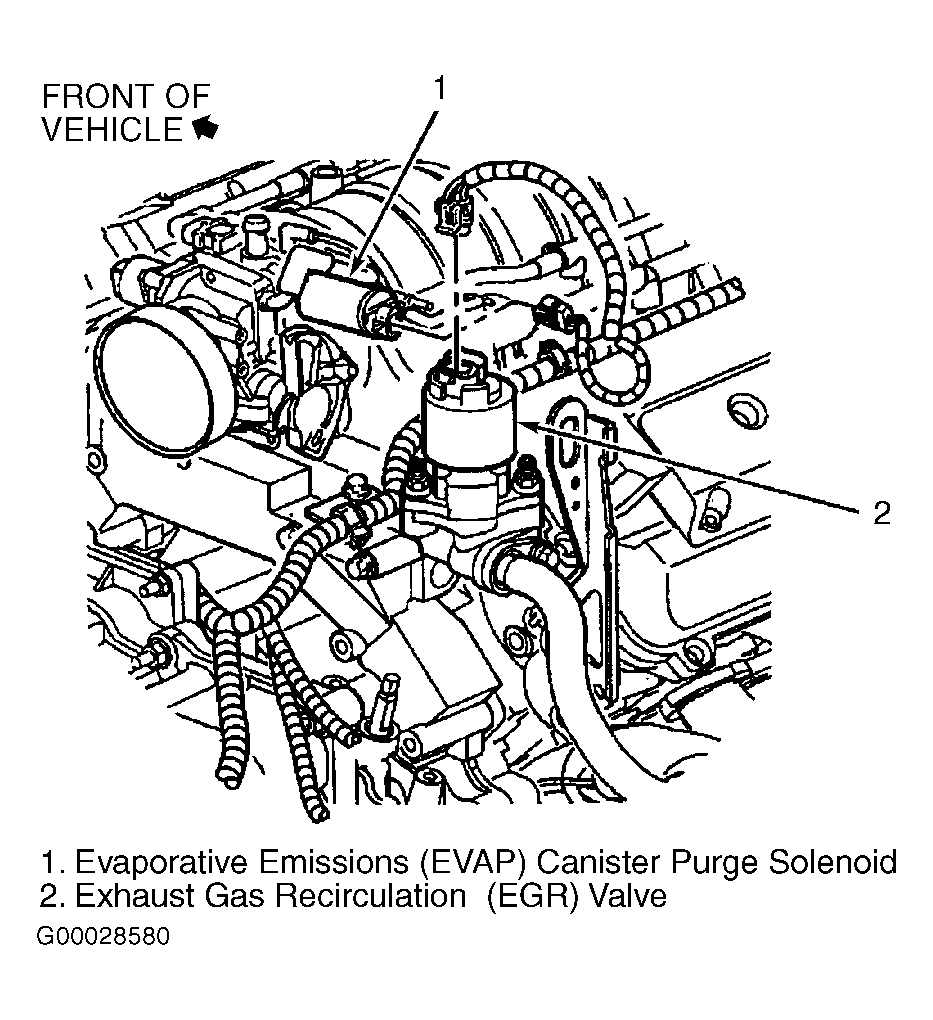

Fig 4: Locating EVAP Canister Purge Solenoid & EGR Valve
G00028580Courtesy of GENERAL MOTORS CORP.

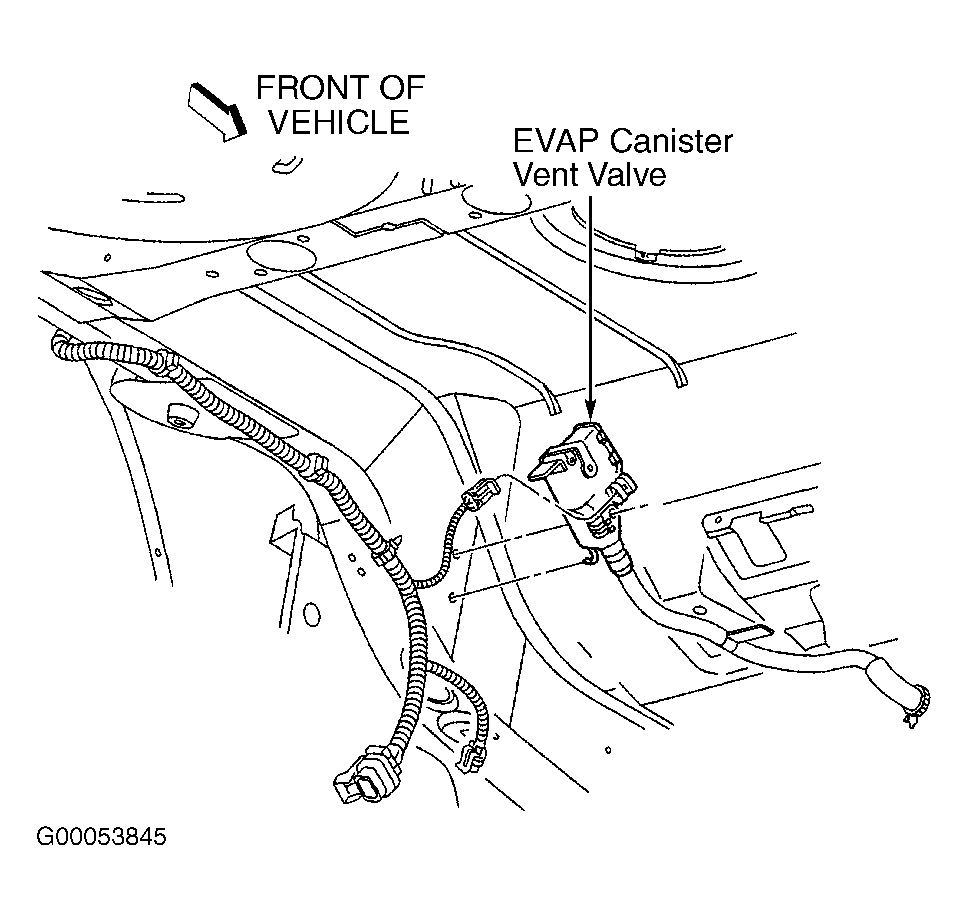

Fig 5: Locating EVAP Canister Vent Valve
G00053845Courtesy of GENERAL MOTORS CORP.

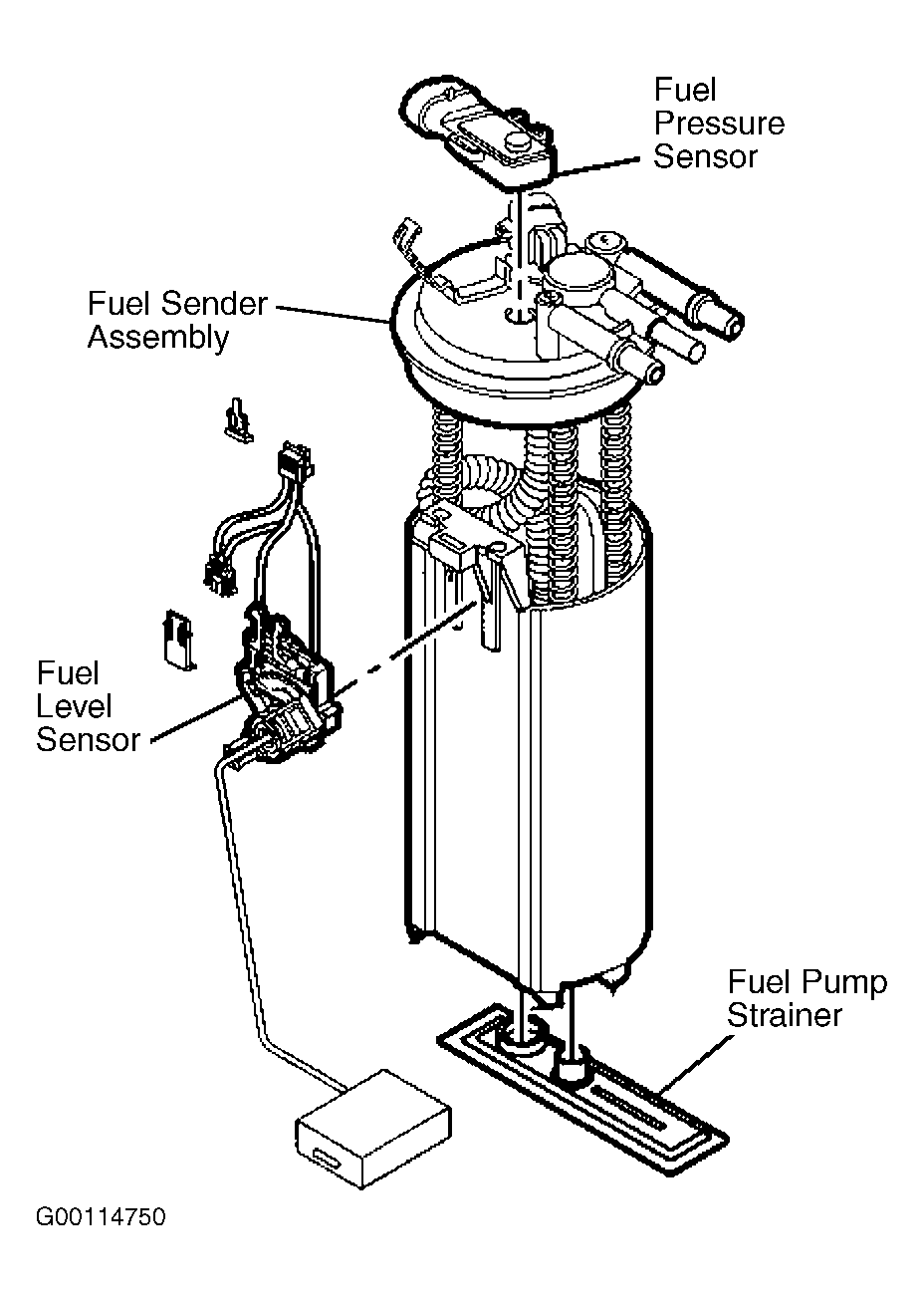

Fig 6: Locating Fuel Pressure Sensor
G00114750Courtesy of GENERAL MOTORS CORP.

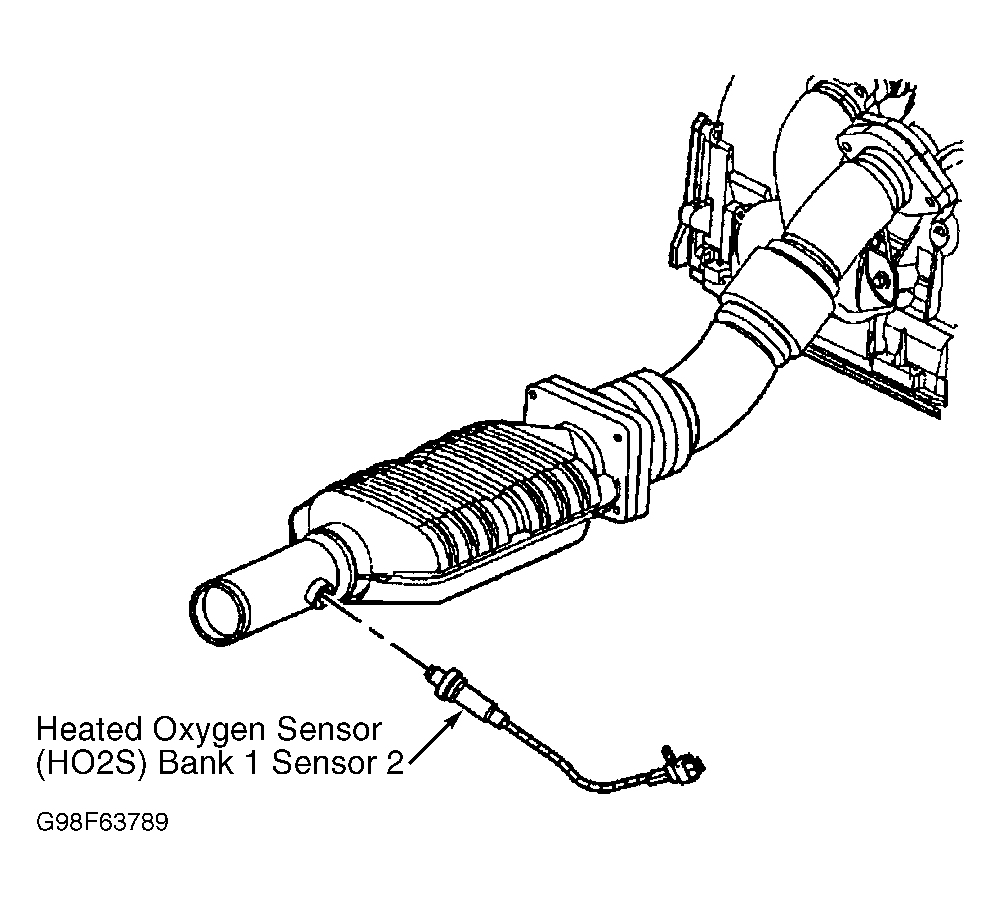

Fig 7: Locating HO2S Bank 1, Sensor 2
G98F63789Courtesy of GENERAL MOTORS CORP.

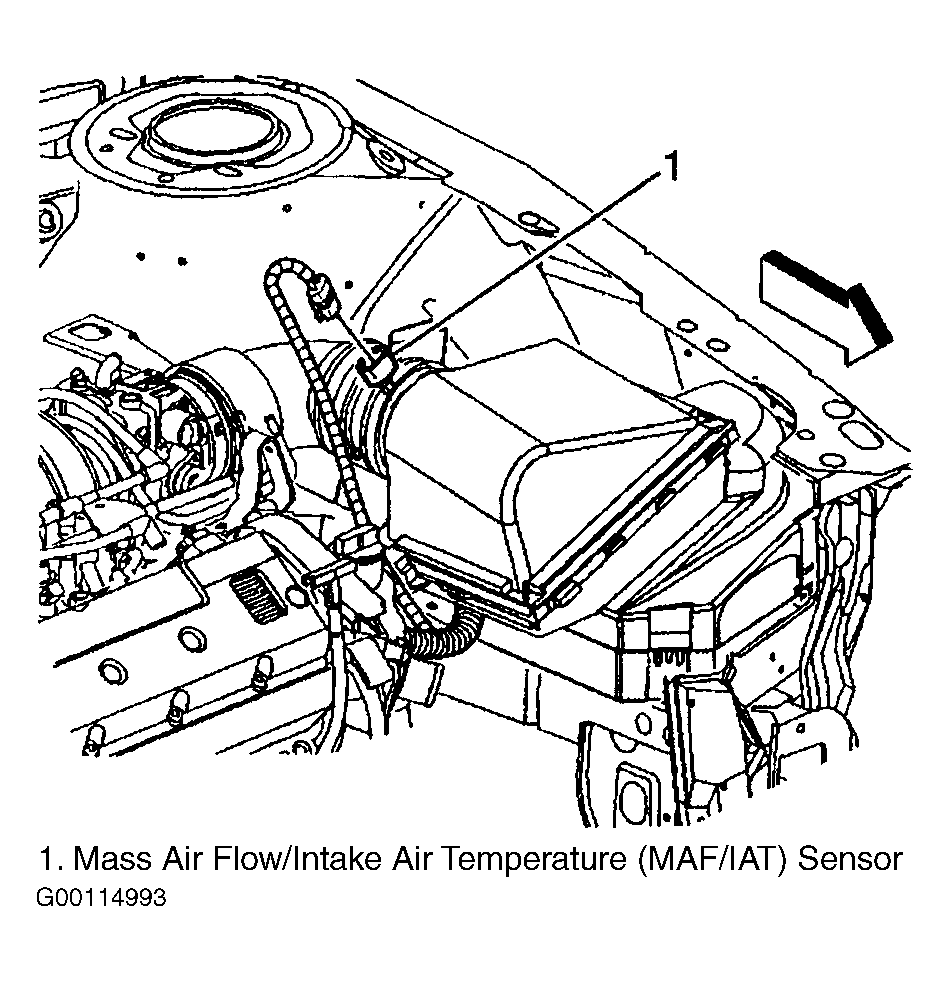

Fig 8: Locating Mass Airflow/Intake Air Temperature Sensor
G00114993Courtesy of GENERAL MOTORS CORP.

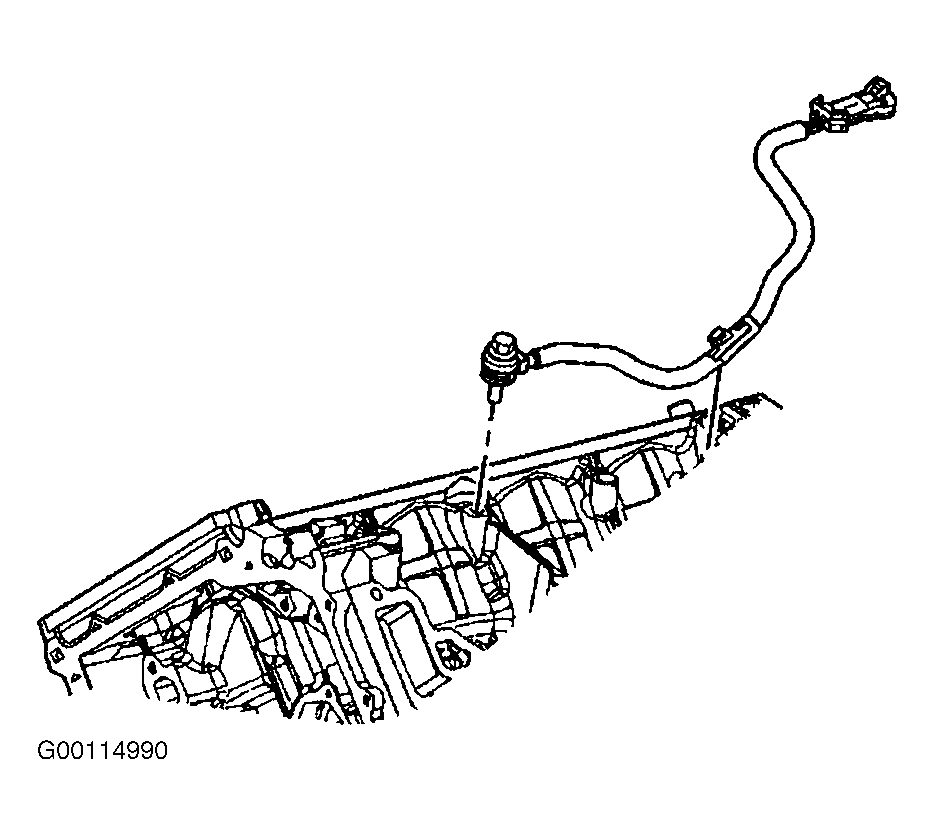

Fig 9: Locating Knock Sensor
G00114990Courtesy of GENERAL MOTORS CORP.

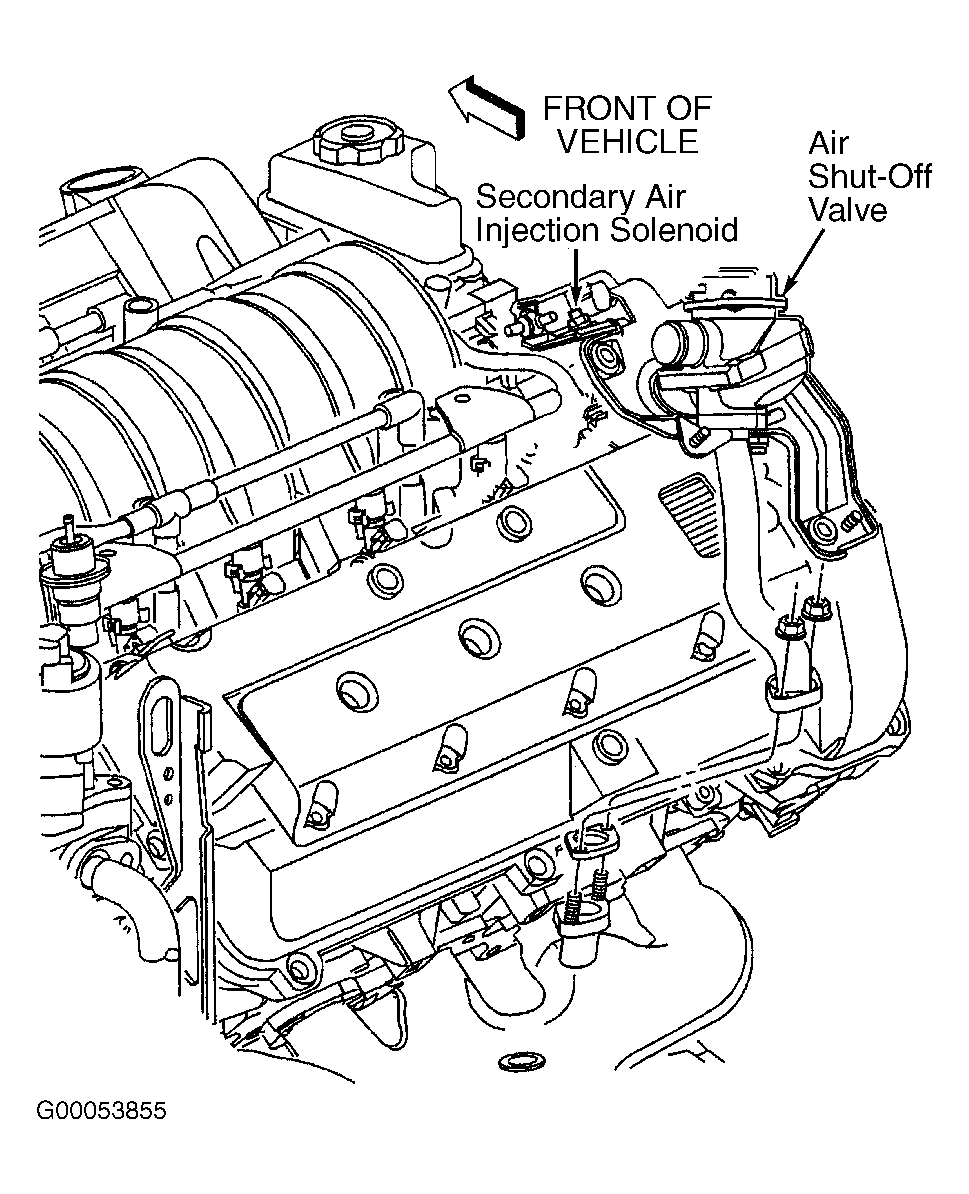

Fig 10: Locating Secondary AIR Injection Solenoid
G00053855Courtesy of GENERAL MOTORS CORP.

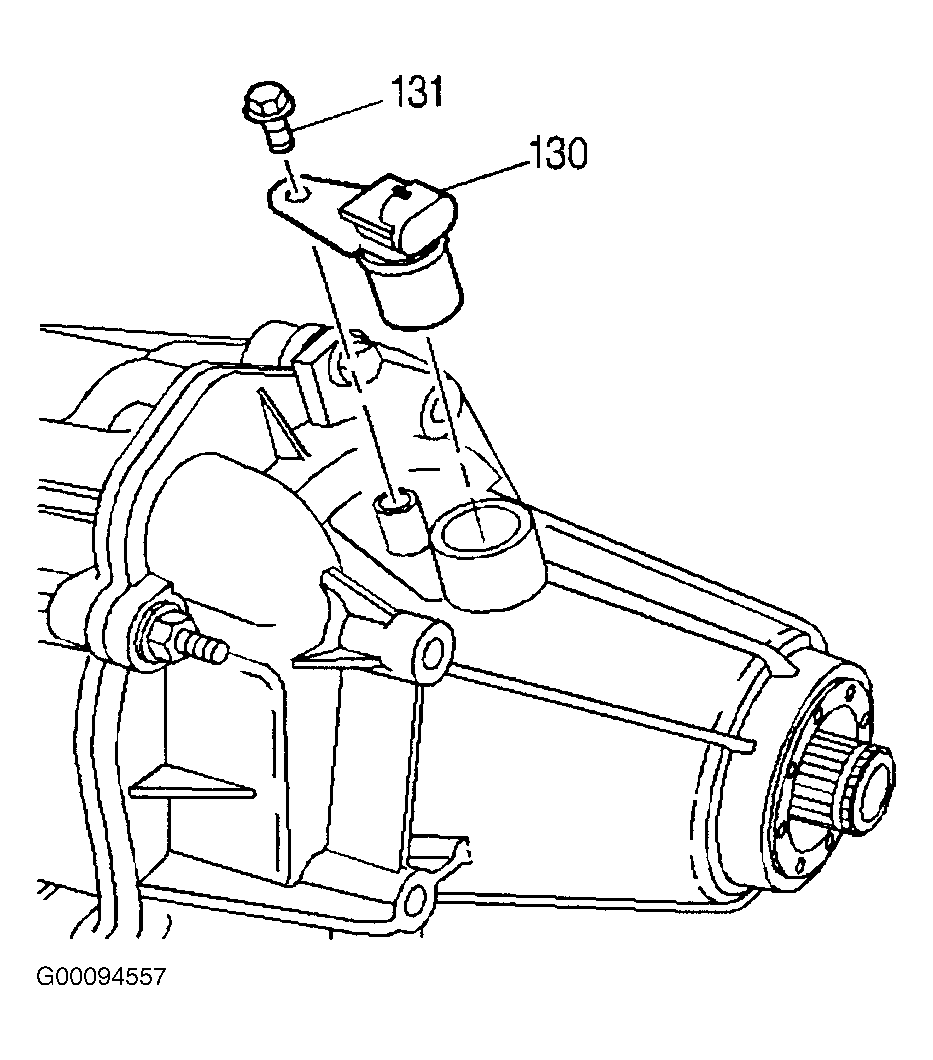

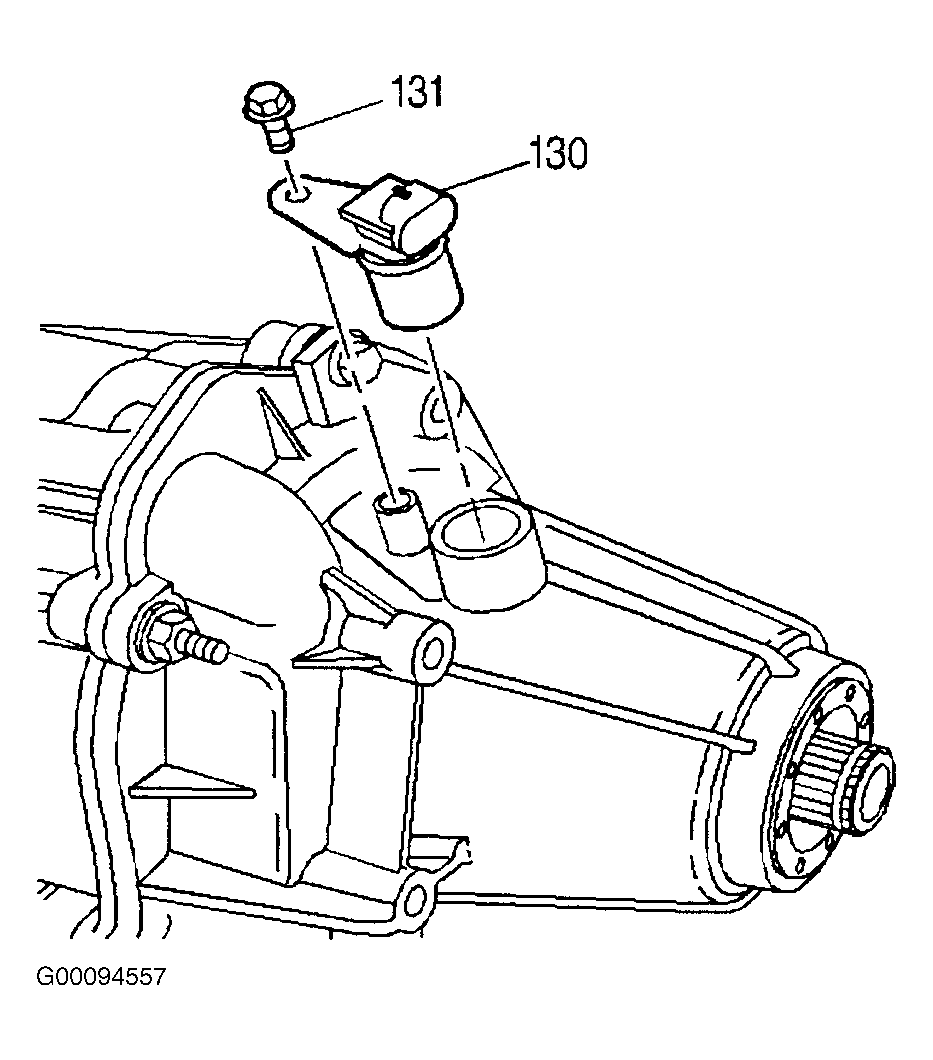

Fig 11: Locating Vehicle Speed Sensor
G00094557Courtesy of GENERAL MOTORS CORP.
