Vehicle Speed Sensor: Installation

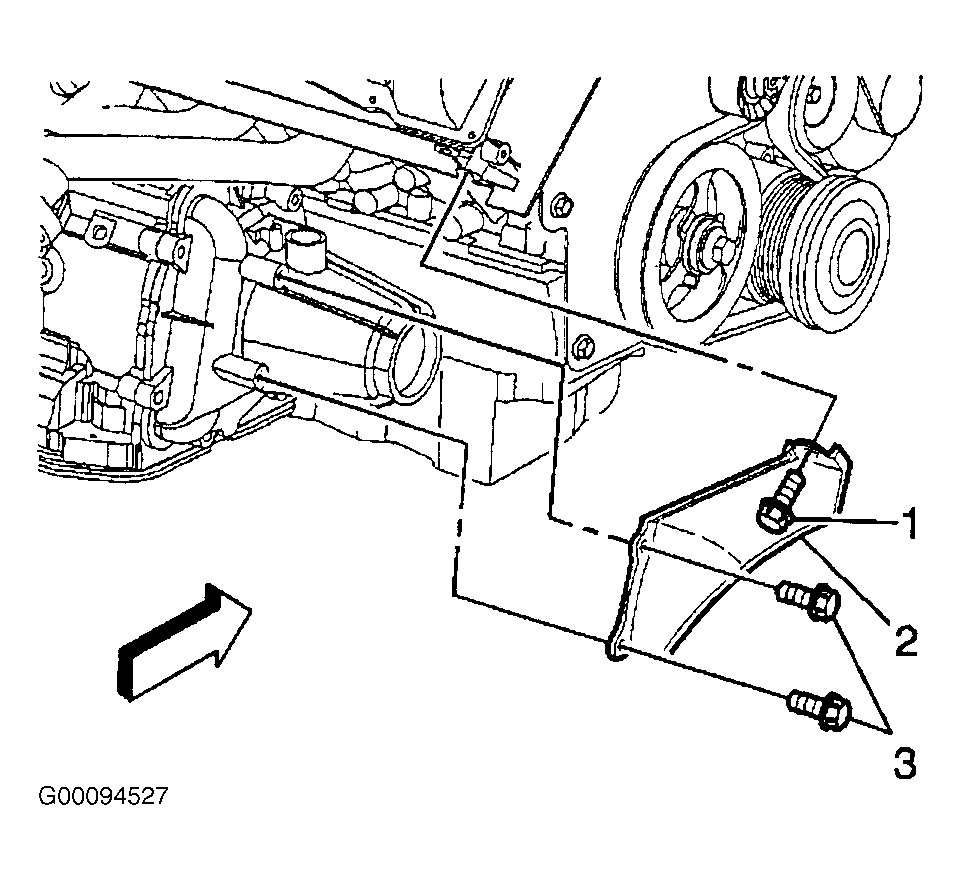

Install the vehicle speed sensor (130) and the retaining bolt (131). See Figure . Install a new O-ring seal on sensor if necessary. Tighten the bolt to specification. See TORQUE SPECIFICATIONS  . Install the electrical connector at the sensor. Install the bolts (1 and 3) securing the front transaxle brace (2) to the transaxle and right cylinder head. See Figure . Lower the vehicle.
