A/T Shift Lock Control Solenoid

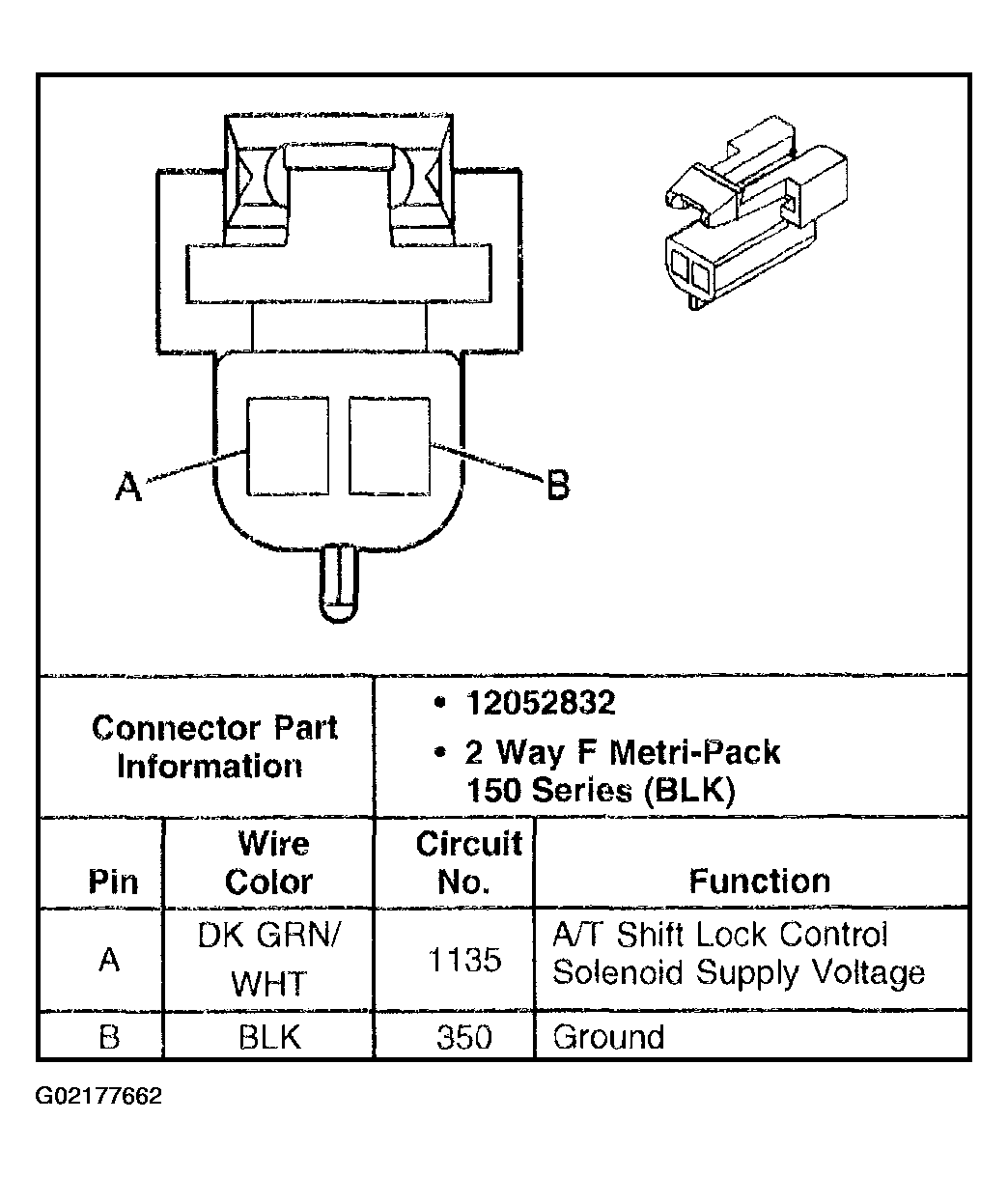

Fig 1: A/T Shift Lock Control Solenoid Connector End View
Courtesy of GENERAL MOTORS CORP.
