Installation Procedure

Turn the ignition switch to the run position.

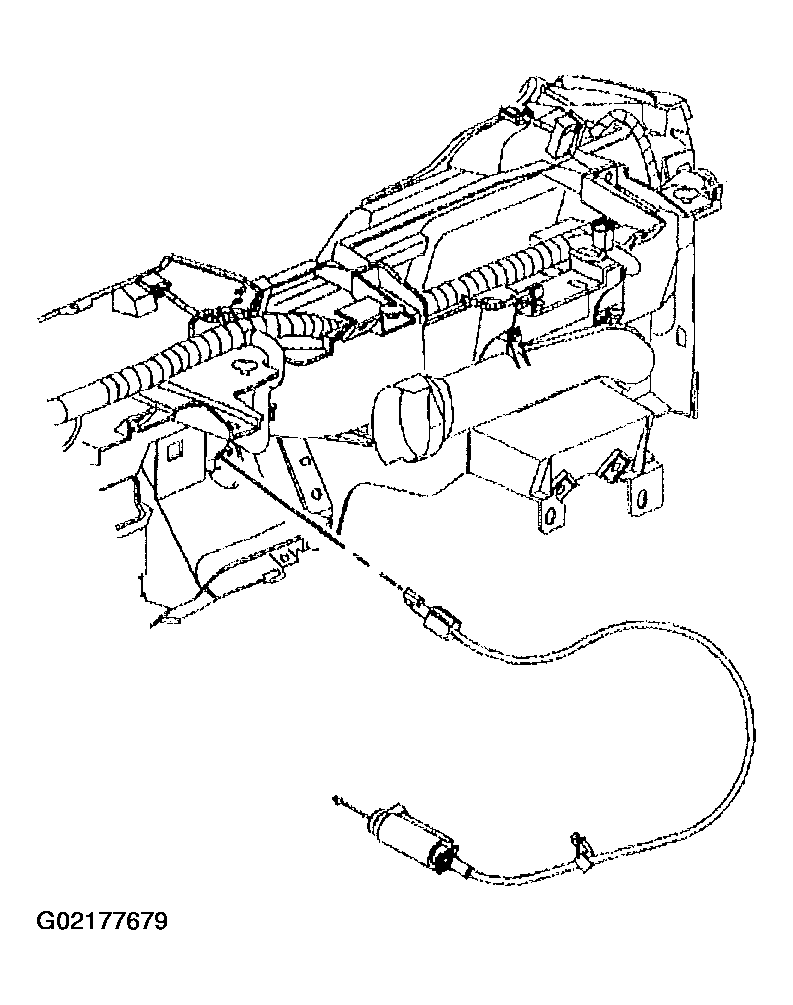

Install the park lock cable into the back of the I/P.

Fig 1: Installing Park Lock Cable
Courtesy of GENERAL MOTORS CORP.

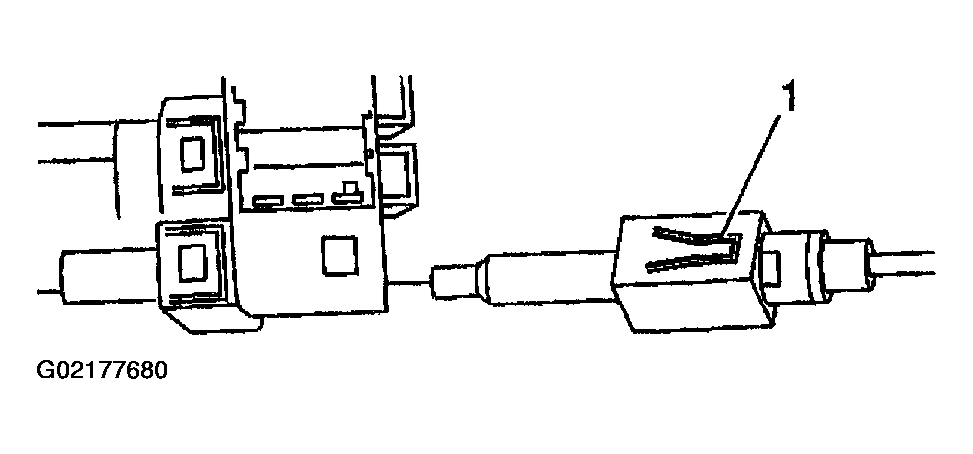

Align the park lock cable locking tab (1) with its slot in the ignition switch and snap the cable into the switch. The locking tab should be facing downward at the 6 o'clock position.

Fig 2: Aligning Park Lock Cable Locking Tab To Slot
Courtesy of GENERAL MOTORS CORP.
Route the park lock cable back to its original position.
Raise the steering column back into position. Refer to STEERING COLUMN REPLACEMENT in Steering Wheel and Column.
Connect the park lock cable to the park lock cam on the shifter and slide the cable housing into the shifter.

Fig 3: Connecting Automatic Transmission Shift Lock Actuator Wire Harness Connector
Courtesy of GENERAL MOTORS CORP.
If equipped with RPO Code (T1A), install the anti-theft plate and tamper proof fastener to the shifter using the J 43146 .

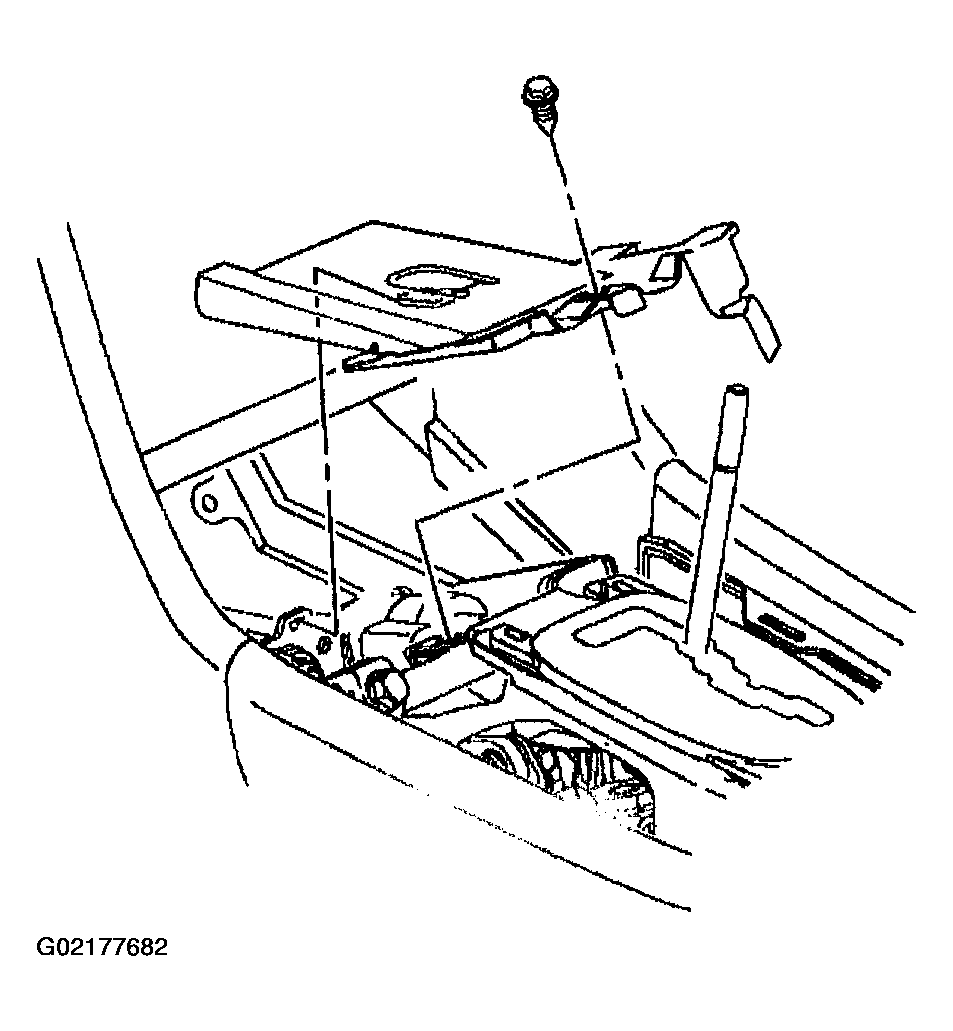

Install the console trim plate (1). Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.

Fig 4: Installing Console Trim Plate & Fastener
Courtesy of GENERAL MOTORS CORP.
