Installation Procedure

IMPORTANT: During installation ensure that the child tether anchor (1) is installed with the anti rotation tabs firmly seated in the anti rotation holes on the cross car beam. The anti rotation tabs face forward on both the left and the right sides. For the center child tether anchor (1), the anti rotation tabs face the rear of the vehicle

Install the child tether anchor (1) to the cross car beam.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the child tether anchor fastener (2).
Tighten

Tighten the fastener to 30 N.m (22 lb ft).

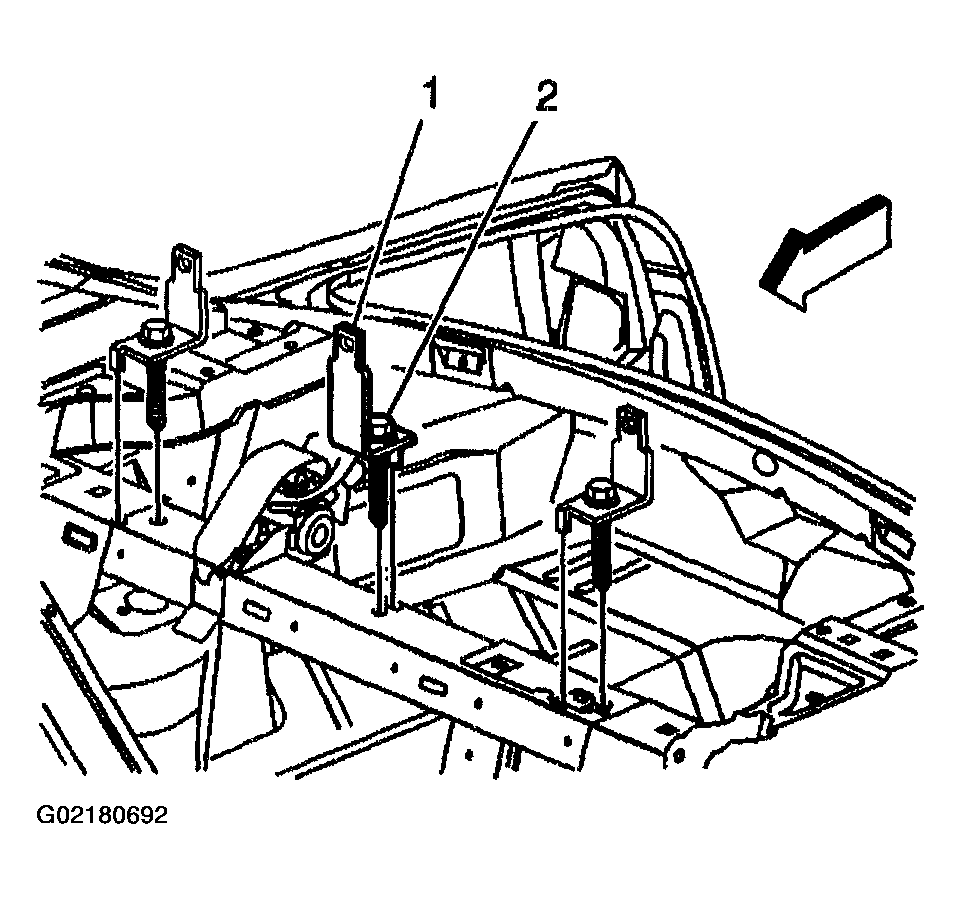

Fig 1: Installing Child Tether Anchor & Fastener
Courtesy of GENERAL MOTORS CORP.
Install the rear shelf panel reinforcement. Refer to INTERIOR TRIM in Interior Trim.
