Engine Controls Connector End Views
Accelerator Pedal Position (APP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PU | 1272 | Low Reference |
| B | L-BU | 1162 | APP Sensor 2 Signal |
| C | TN | 1274 | 5-Volt Reference |
| D | BN | 1271 | Low Reference |
| E | D-BU | 1161 | APP Sensor 1 Signal |
| F | WH/BK | 1164 | 5-Volt Reference |
Barometric Pressure (BARO) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 605 | 5-Volt Reference A |
| 2 | TN | 470 | Low Reference |
| 3 | OG/BK | 5266 | BARO Sensor Signal |

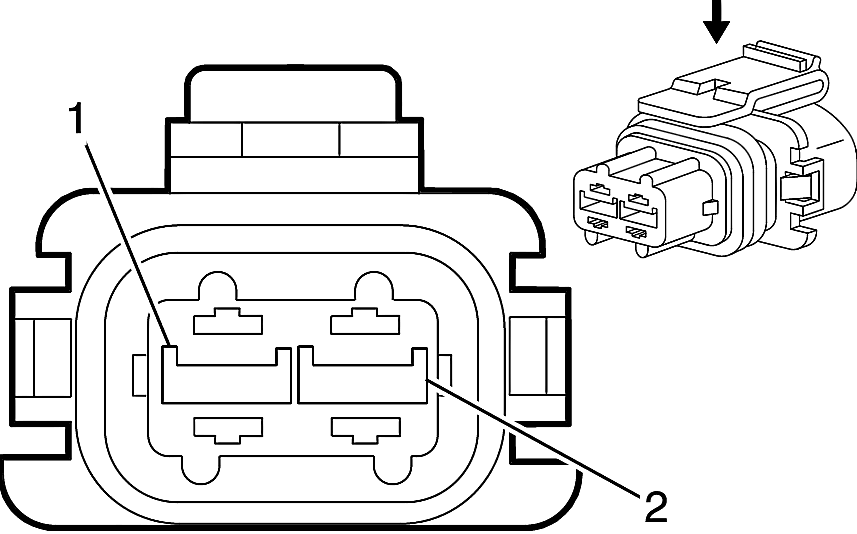

Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5293 | Ignition 1 Voltage |
| 2 | PK | 5284 | CMP Actuator Solenoid Control - Intake Bank 1 |
Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5293 | Ignition 1 Voltage |
| 2 | L-GN | 5282 | CMP Actuator Solenoid Control - Exhaust Bank 1 |
Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5293 | Ignition 1 Voltage |
| 2 | OG/BK | 5272 | CMP Actuator Solenoid Control - Intake Bank 2 |
Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5293 | Ignition 1 Voltage |
| 2 | WH/BK | 5283 | CMP Actuator Solenoid Control - Exhaust Bank 2 |

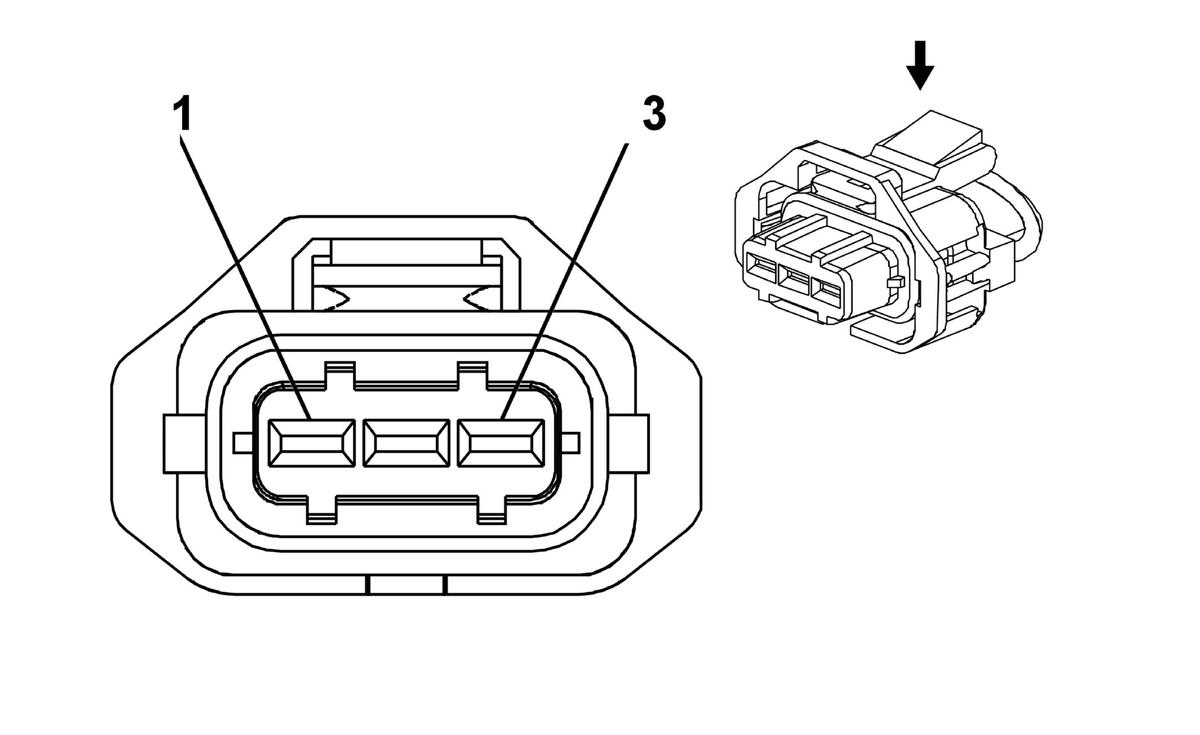

Camshaft Position (CMP) Sensor - Intake Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 470 | Low Reference |
| 2 | OG | 5275 | CMP Sensor Signal - Intake Bank 1 |
| 3 | GY | 705 | 5-Volt Reference B |
Camshaft Position (CMP) Sensor - Exhaust Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 470 | Low Reference |
| 2 | D-GN | 5273 | CMP Sensor Signal - Exhaust Bank 1 |
| 3 | GY | 705 | 5-Volt Reference B |
Camshaft Position (CMP) Sensor - Intake Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 470 | Low Reference |
| 2 | YE | 5276 | CMP Sensor Signal - Intake Bank 2 |
| 3 | GY | 705 | 5-Volt Reference B |
Camshaft Position (CMP) Sensor - Exhaust Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 470 | Low Reference |
| 2 | PU | 5274 | CMP Sensor Signal - Exhaust Bank 2 |
| 3 | GY | 705 | 5-Volt Reference B |
Crankshaft Position (CKP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 5024 | CKP Sensor Low Reference |
| 2 | WH/BK | 5039 | CKP Sensor Signal |
Engine Coolant Temperature (ECT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 410 | ECT Sensor Signal |
| 2 | TN | 470 | Low Reference |
Engine Oil Level/Temperature Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BN | 1174 | Oil Level Switch Signal |
| B | D-GN/WH | 357 | Oil Temperature Sensor Signal |
| C | TN | 470 | Low Reference |
Engine Oil Pressure (EOP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 470 | Low Reference |
| B | GY | 605 | 5-Volt Reference A |
| C | TN/BK | 231 | Oil Pressure Switch Signal |
Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH | 5293 | Ignition 1 Voltage |
| 2 | L-GN/WH | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 1539 | Ignition 1 Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |
Fuel Injector 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5291 | Ignition 1 Voltage |
| B | TN | 1744 | Fuel Injector 1 Control |
Fuel Injector 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5292 | Ignition 1 Voltage |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control |
Fuel Injector 3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5291 | Ignition 1 Voltage |
| B | PK/BK | 1746 | Fuel Injector 3 Control |
Fuel Injector 4
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5292 | Ignition 1 Voltage |
| B | L-BU/BK | 844 | Fuel Injector 4 Control |
Fuel Injector 5
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5291 | Ignition 1 Voltage |
| B | TN/WH | 845 | Fuel Injector 5 Control |
Fuel Injector 6
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | WH | 5292 | Ignition 1 Voltage |
| B | YE/BK | 846 | Fuel Injector 6 Control |
Fuel Pump and Sender Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 1937 | Fuel Level Sensor Signal - Primary |
| B | GY | 120 | Fuel Pump Supply Voltage |
| C | BK | 1050 | Ground |
| D | TN | 2759 | Low Reference |
Fuel Tank Pressure (FTP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 2759 | Low Reference |
| B | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GY | 2709 | 5-Volt Reference |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 1665 | HO2S Reference Voltage |
| 2 | WH | 5279 | HO2S Pump Current - Bank 1 Sensor 1 |
| 3 | WH | 5293 | Ignition 1 Voltage |
| 4 | GY/WH | 3113 | HO2S Heater Low Control - Bank 1 Sensor 1 |
| 5 | TN | 1664 | HO2S Low Reference |
| 6 | L-GN | 5278 | HO2S Input Pump Current - Bank 1 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 1669 | HO2S Low Reference |
| B | PU/WH | 1668 | HO2S Signal |
| C | - | - | Unavailable |
| D | PK/BK | 5294 | Ignition 1 Voltage |
| E | GY/WH | 3122 | HO2S Heater Low Control-Bank 1 Sensor 2 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 1666 | HO2S Reference Voltage |
| 2 | PU/WH | 5281 | HO2S Pump Current - Bank 2 Sensor 1 |
| 3 | WH | 5293 | Ignition 1 Voltage |
| 4 | L-GN | 3212 | HO2S Heater Low Control - Bank 2 Sensor 1 |
| 5 | TN | 1667 | HO2S Low Reference |
| 6 | OG | 5280 | HO2S Input Pump Current - Bank 2 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 1671 | HO2S Low Reference |
| B | PU | 1670 | HO2S Signal |
| C | - | - | Unavailable |
| D | PK/BK | 5294 | Ignition 1 Voltage |
| E | OG/WH | 3223 | HO2S Heater Low Control - Bank 2 Sensor 2 |

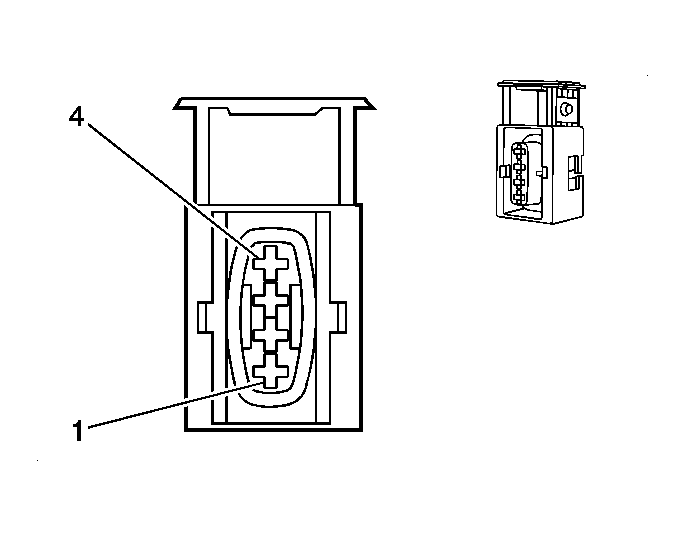

Ignition Coil 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 2121 | IC 1 Control |
| 2 | WH | 5291 | Ignition 1 Voltage |
| 3 | BK/WH | 1551 | Ground |
| 4 | BK | 1550 | Ground |
Ignition Coil 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG/WH | 2122 | IC 2 Control |
| 2 | WH | 5292 | Ignition 1 Voltage |
| 3 | BK/WH | 1451 | Ground |
| 4 | BK | 1450 | Ground |
Ignition Coil 3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 2123 | IC 3 Control |
| 2 | WH | 5291 | Ignition 1 Voltage |
| 3 | BK/WH | 1551 | Ground |
| 4 | BK | 1550 | Ground |
Ignition Coil 4
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN/WH | 2124 | IC 4 Control |
| 2 | WH | 5292 | Ignition 1 Voltage |
| 3 | BK/WH | 1451 | Ground |
| 4 | BK | 1450 | Ground |
Ignition Coil 5
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN | 2125 | IC 5 Control |
| 2 | WH | 5291 | Ignition 1 Voltage |
| 3 | BK/WH | 1551 | Ground |
| 4 | BK | 1550 | Ground |
Ignition Coil 6
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU/WH | 2126 | IC 6 Control |
| 2 | WH | 5292 | Ignition 1 Voltage |
| 3 | BK/WH | 1451 | Ground |
| 4 | BK | 1450 | Ground |

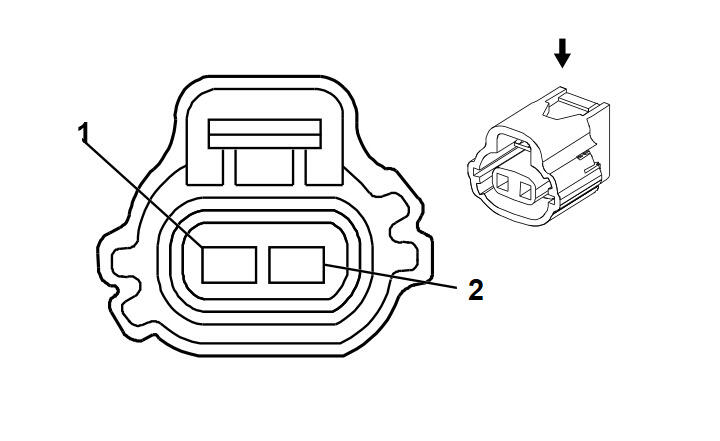

Intake Manifold Runner Control (IMRC) Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU/BK | 5041 | IMRC Solenoid Control |
| 2 | WH | 5293 | Ignition 1 Voltage |

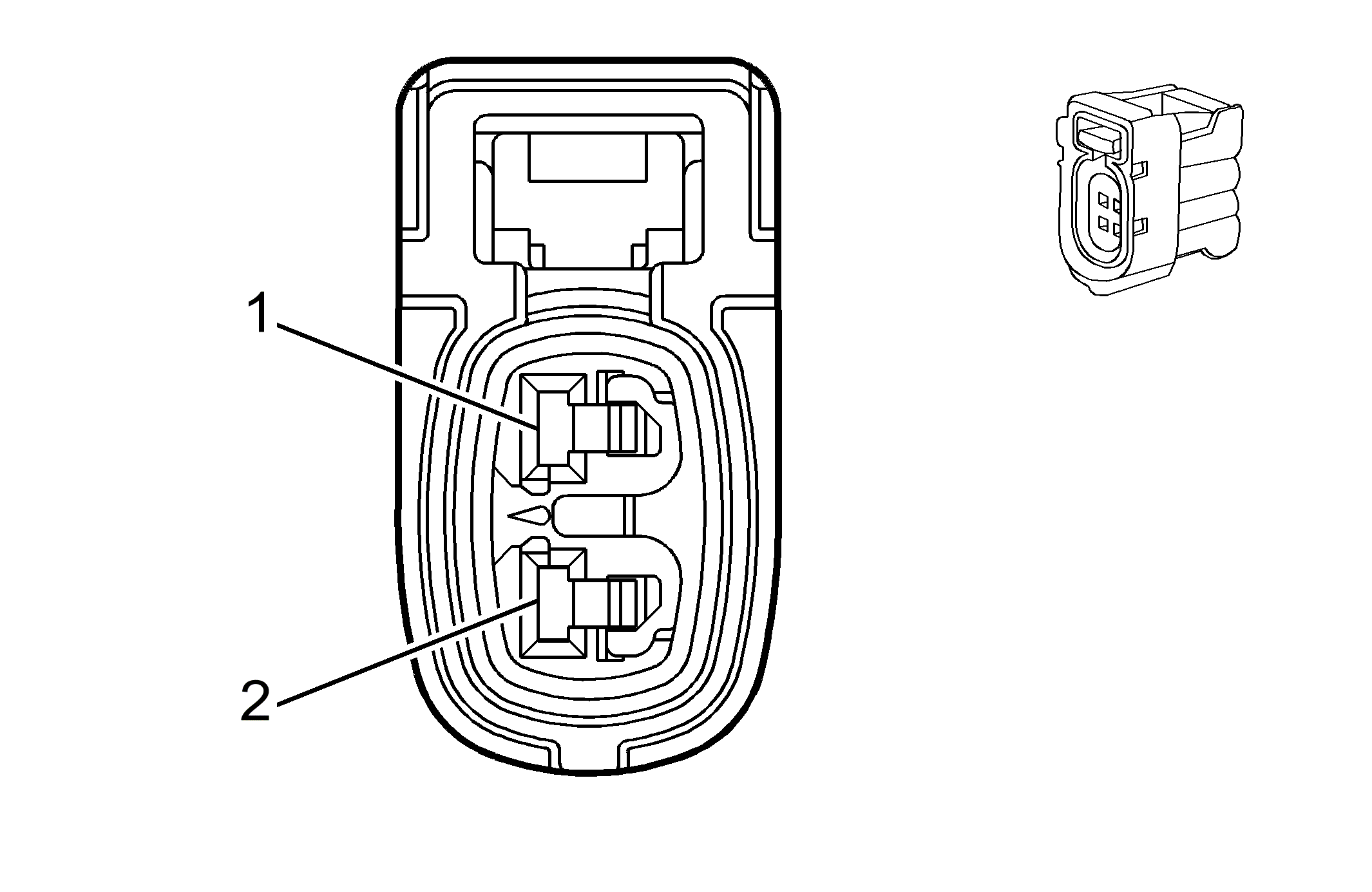

Knock Sensor (KS) Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | 496 | Knock Sensor 1 Signal |
| 2 | GY | 1716 | Low Reference |

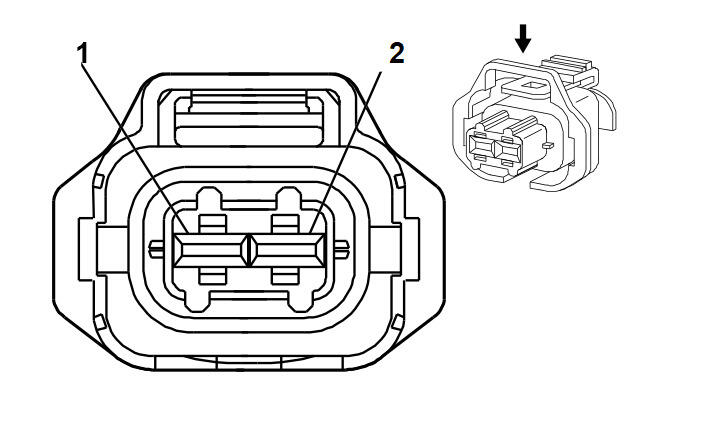

Knock Sensor (KS) Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 1876 | Knock Sensor 2 Signal |
| 2 | TN | 407 | Low Reference |

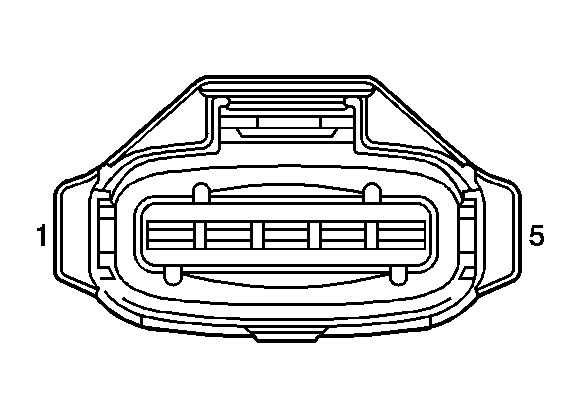

Mass Air Flow (MAF) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 472 | IAT Sensor Signal |
| 2 | PK | 739 | Ignition 1 Voltage |
| 3 | TN | 2760 | Low Reference |
| 4 | GY | 596 | 5-Volt Reference A |
| 5 | YE | 492 | MAF Sensor Signal |

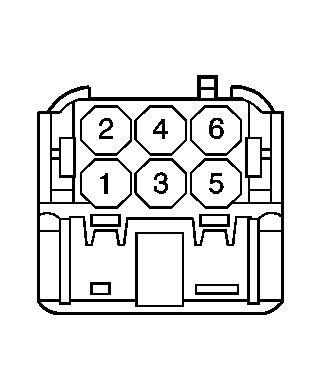

Throttle Body Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 581 | TAC Motor Control - 1 |
| 2 | TN | 2752 | Low Reference |
| 3 | GY | 2701 | 5-Volt Reference C |
| 4 | TN | 582 | TAC Motor Control -2 |
| 5 | PU | 486 | TP Sensor Signal 1 |
| 6 | D-GN | 485 | TP Sensor Signal 1 |
