Installation Procedure

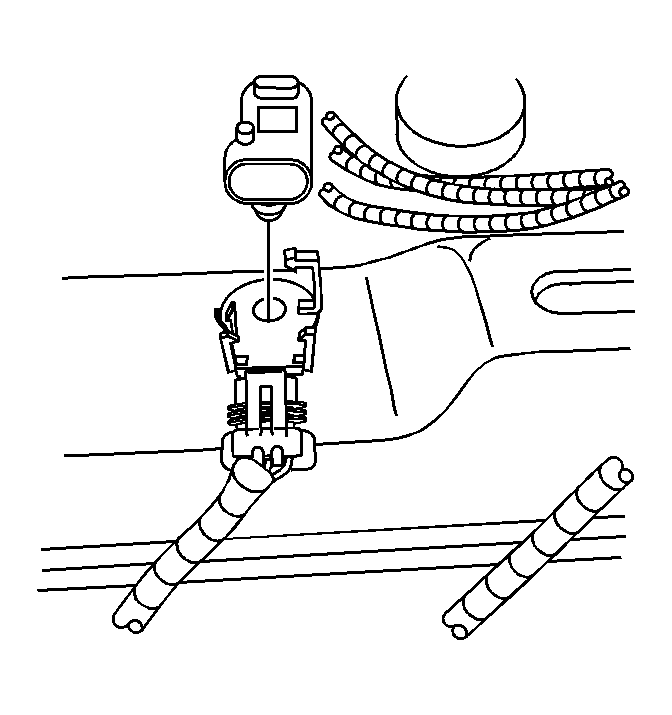

    Fig 1: Pressing Fuel Tank Pressure Sensor Into Fuel Tank
    GM802790Courtesy of GENERAL MOTORS CORP.
  1. Press the fuel tank pressure sensor into the fuel tank, until the locking tabs are fully seated.
  2. Close the retaining strap.
  3. Connect the electrical connector to the fuel tank pressure sensor.
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
