Engine Controls Schematics

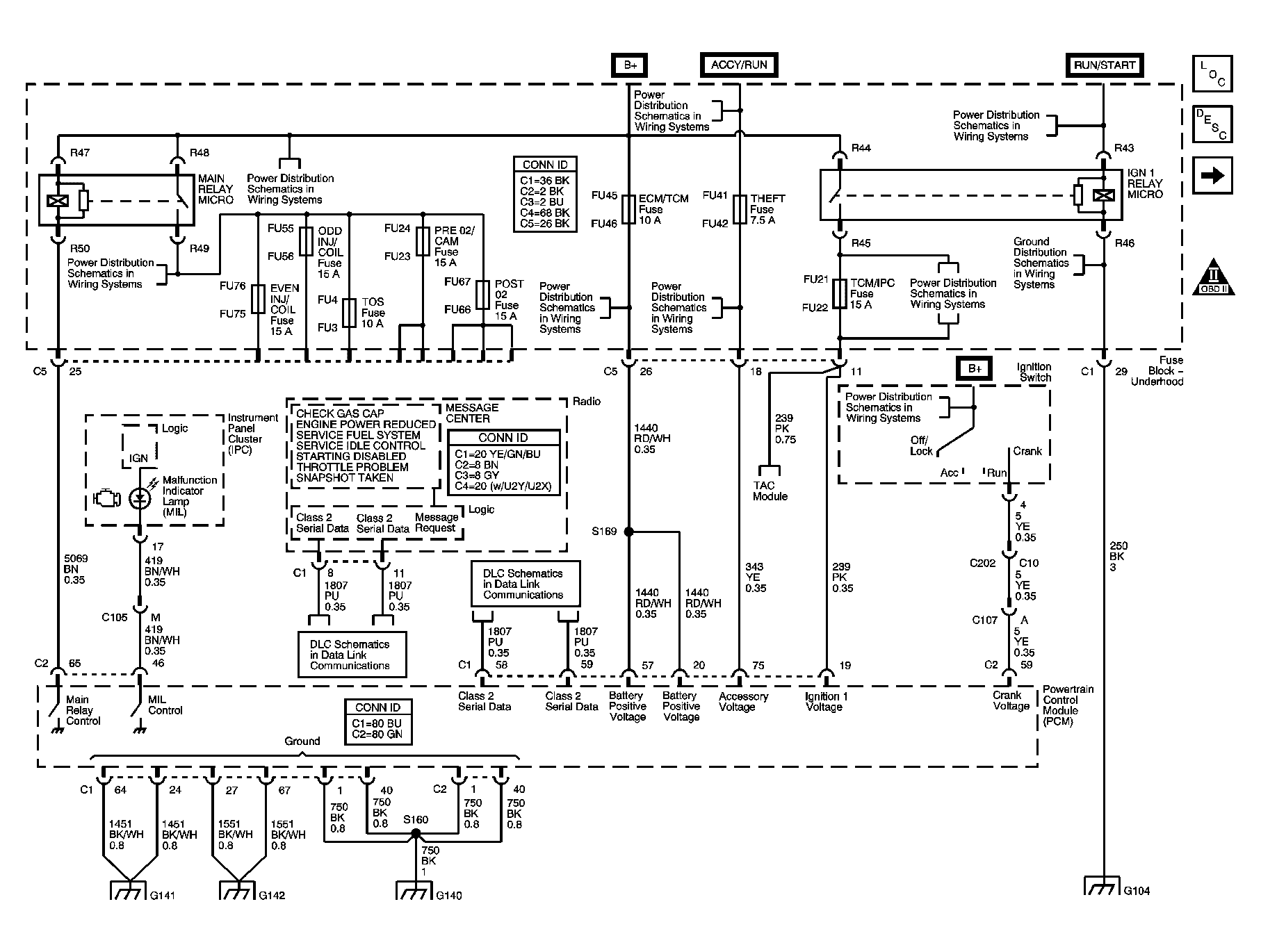

Fig 1: Power, Ground, Serial Data, DIC and Indicator

Courtesy of GENERAL MOTORS CORP.

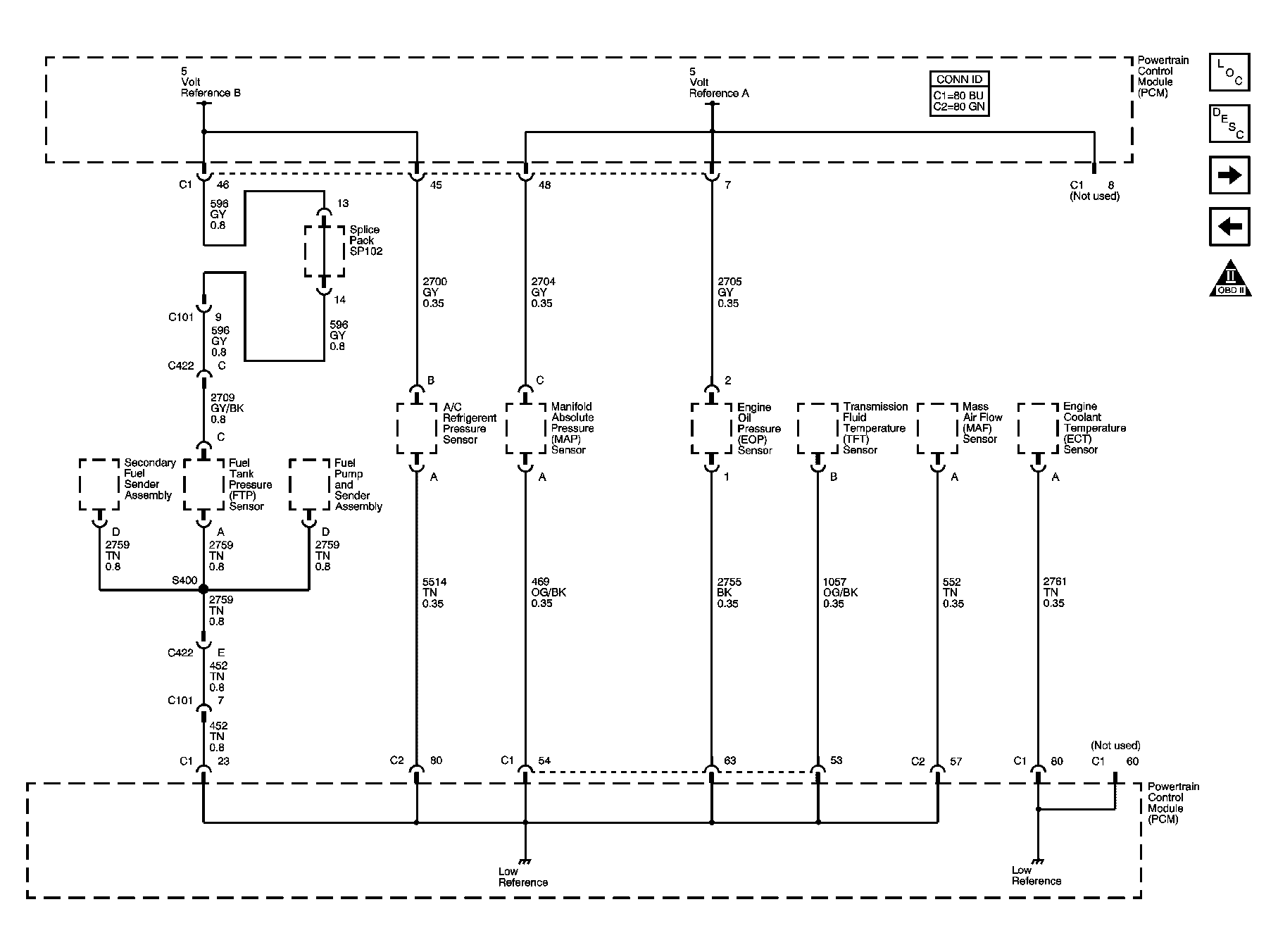

Fig 2: Engine Data Sensors - 5 Volt and Low Reference Buses

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - MAP, ECT, MAF and IAT Sensors

Courtesy of GENERAL MOTORS CORP.

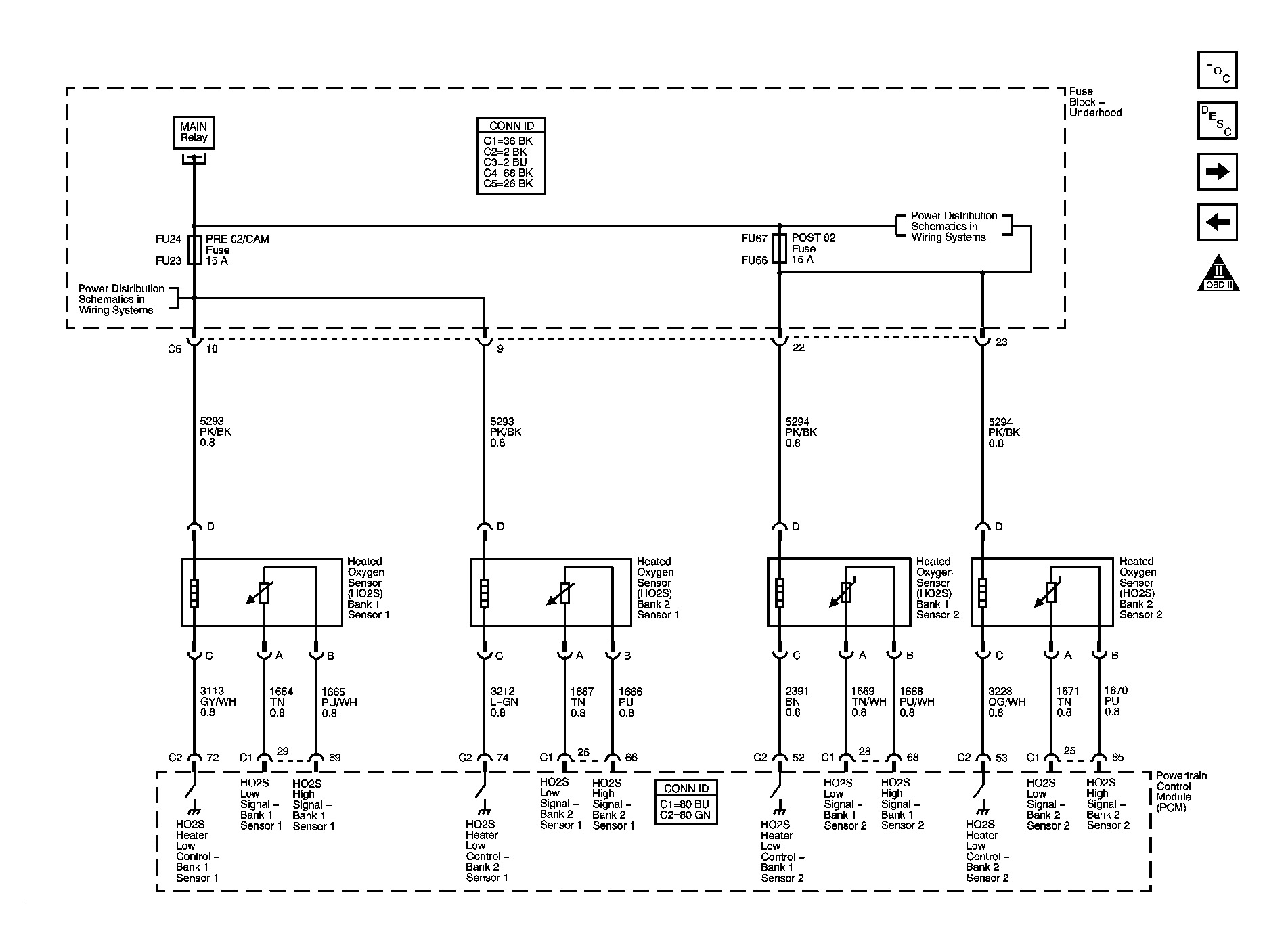

Fig 4: Engine Data Sensors - Heated Oxygen Sensors (HO2S)

Courtesy of GENERAL MOTORS CORP.

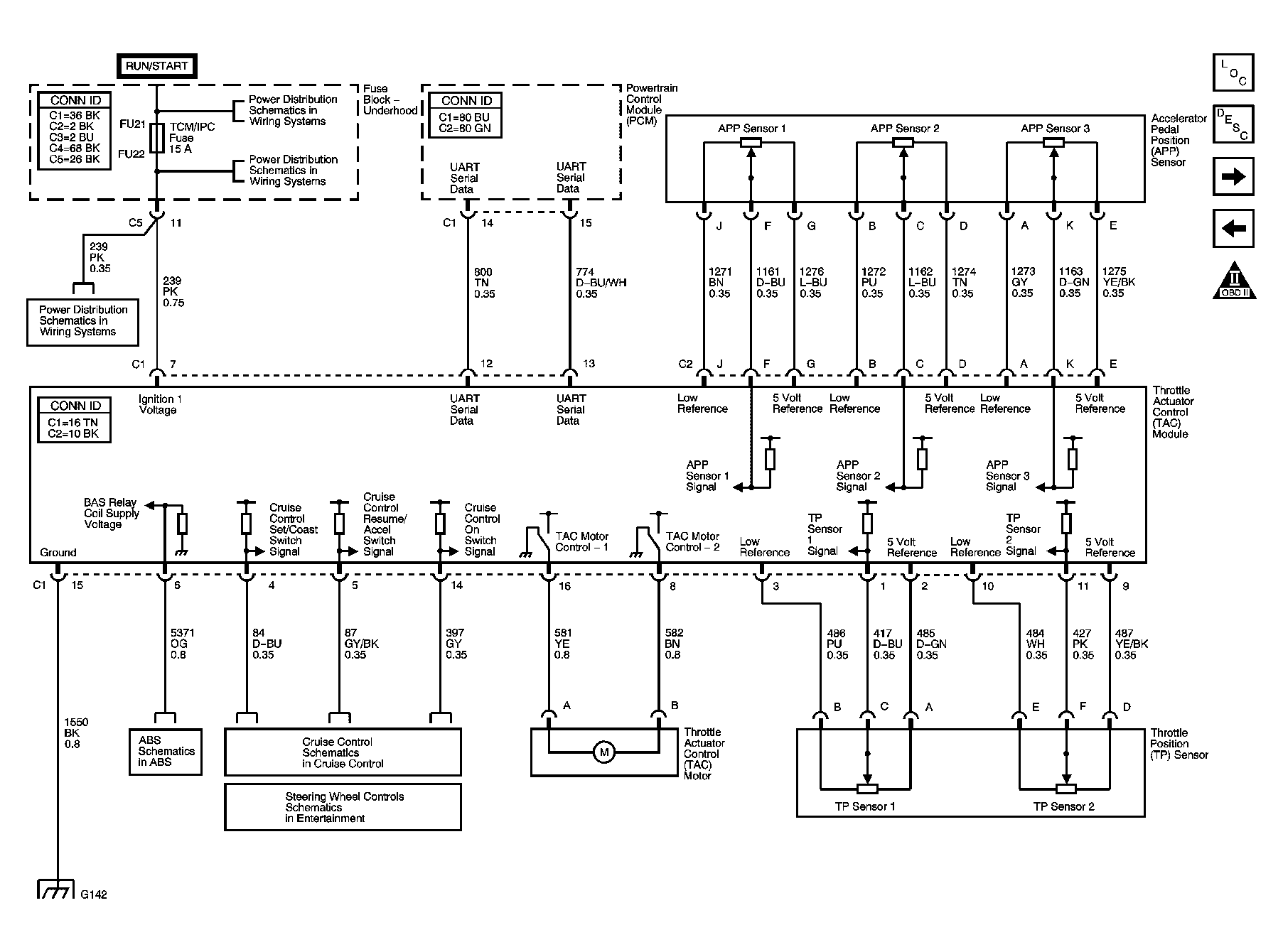

Fig 5: Engine Data Sensors - Throttle Actuator Control (TAC) System

Courtesy of GENERAL MOTORS CORP.

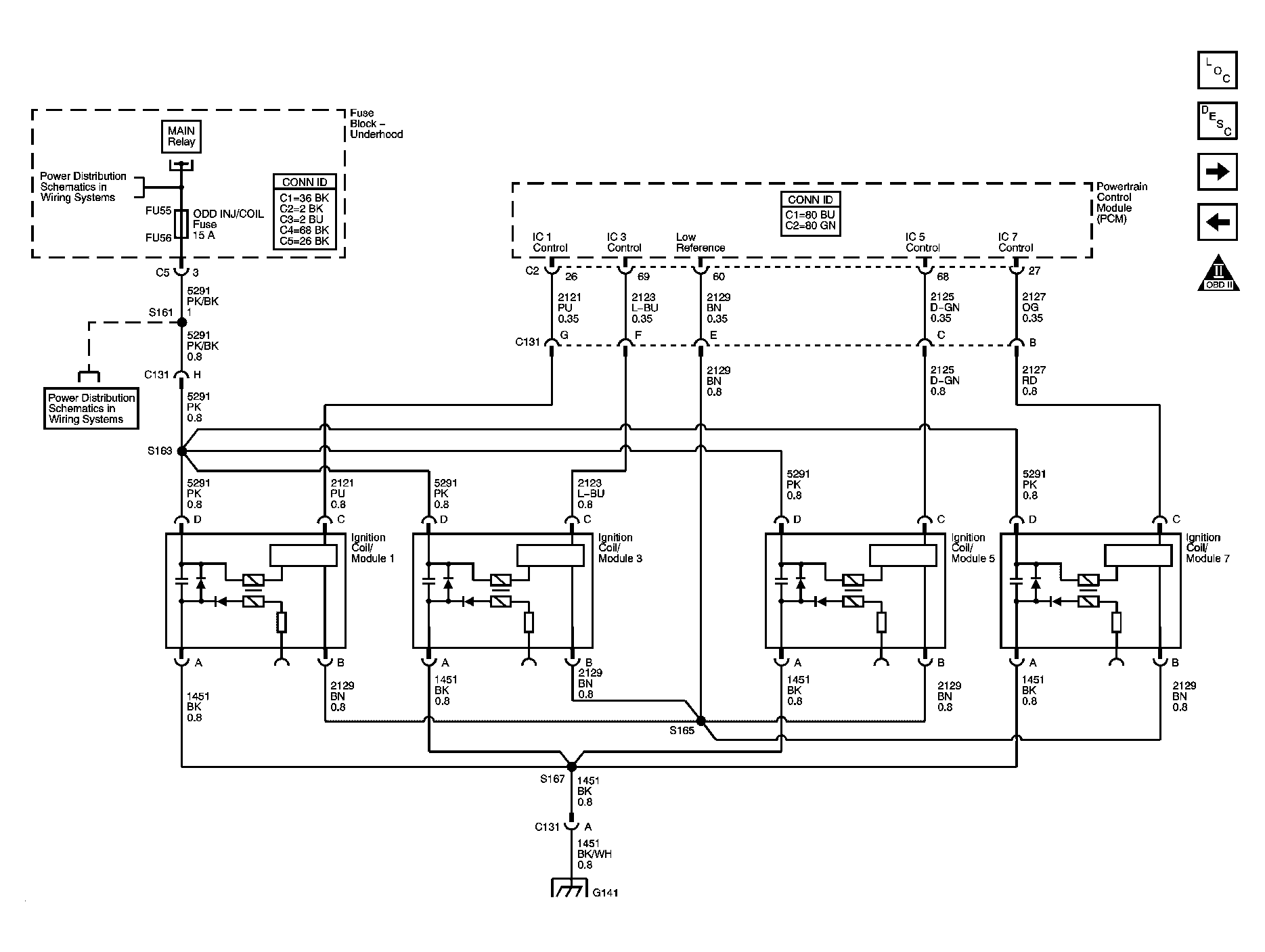

Fig 6: Ignition Controls - Odd Ignition Coils

Courtesy of GENERAL MOTORS CORP.

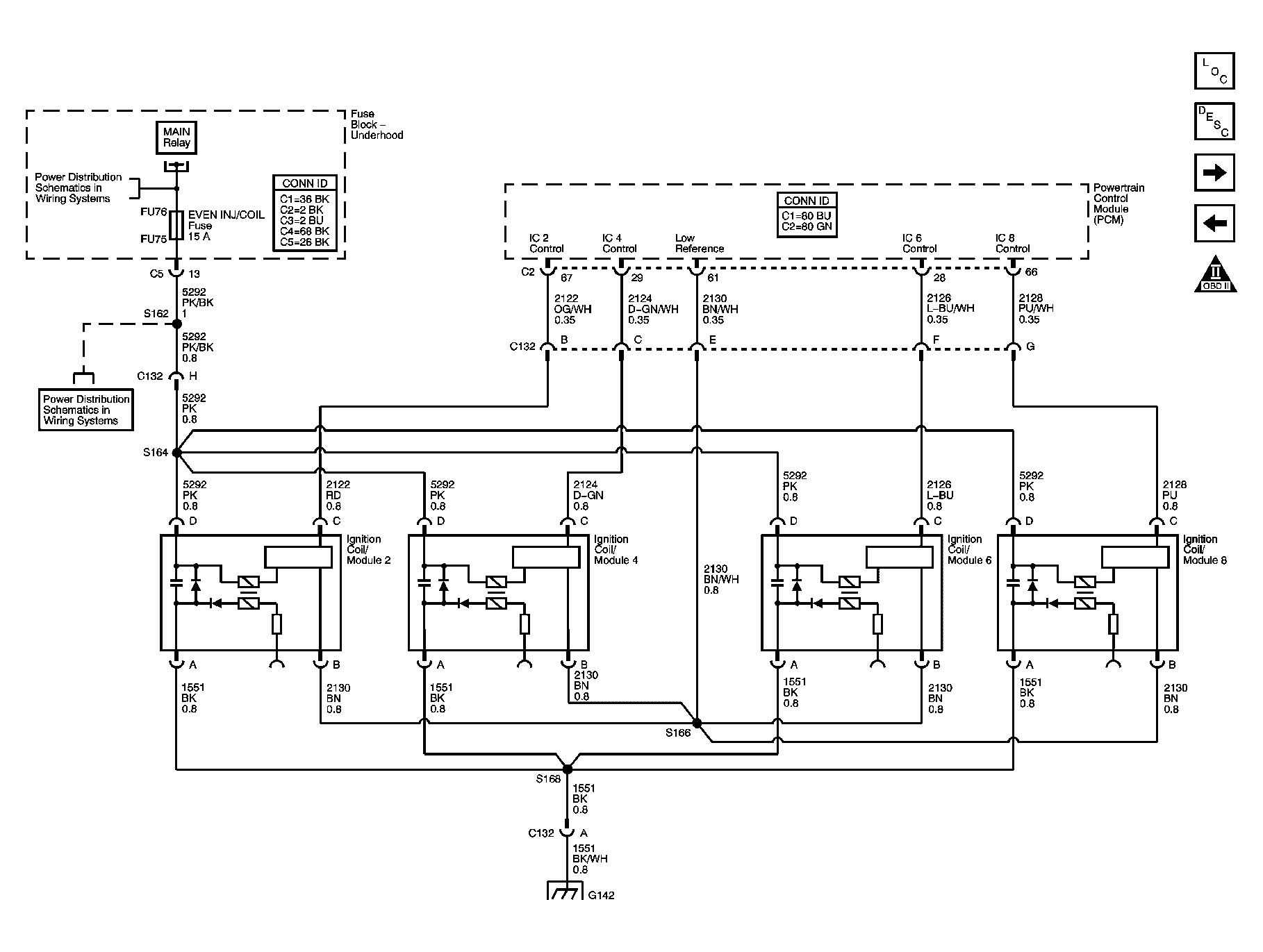

Fig 7: Ignition Controls - Even Ignition Coils

Courtesy of GENERAL MOTORS CORP.

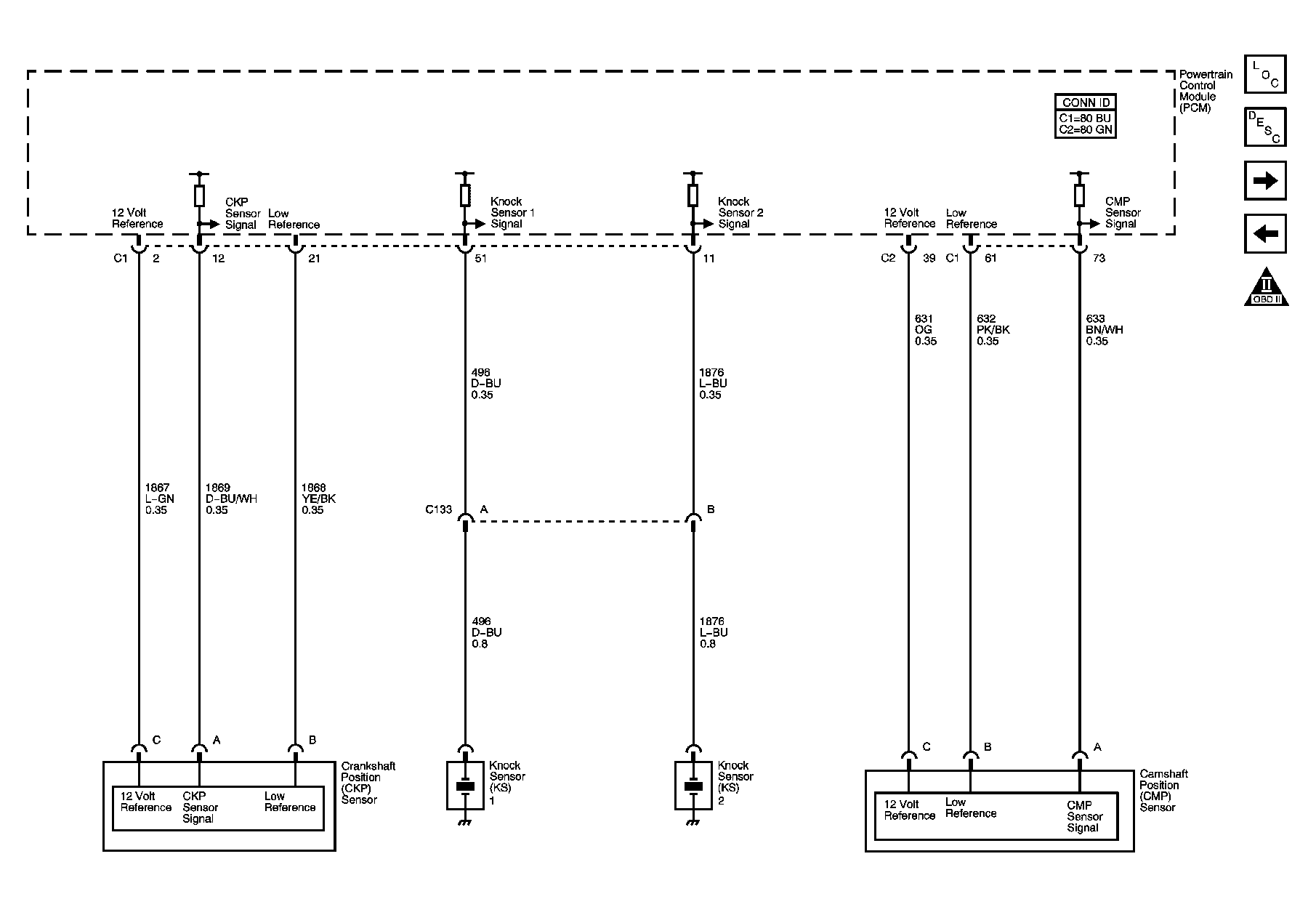

Fig 8: Ignition Controls - Knock, CKP and CMP Sensors

Courtesy of GENERAL MOTORS CORP.

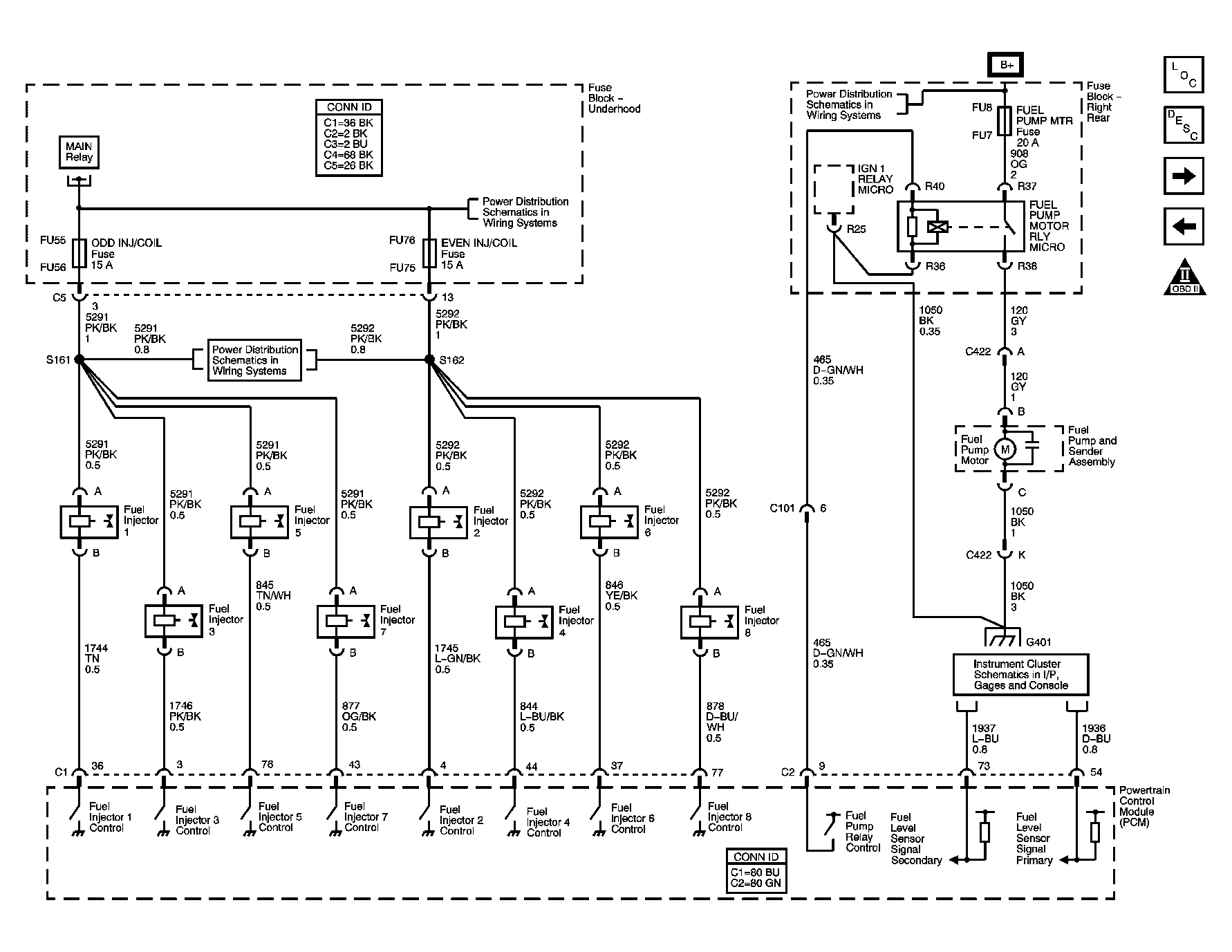

Fig 9: Fuel Controls - Fuel Injectors and Fuel Pump and Sender Assembly

Courtesy of GENERAL MOTORS CORP.

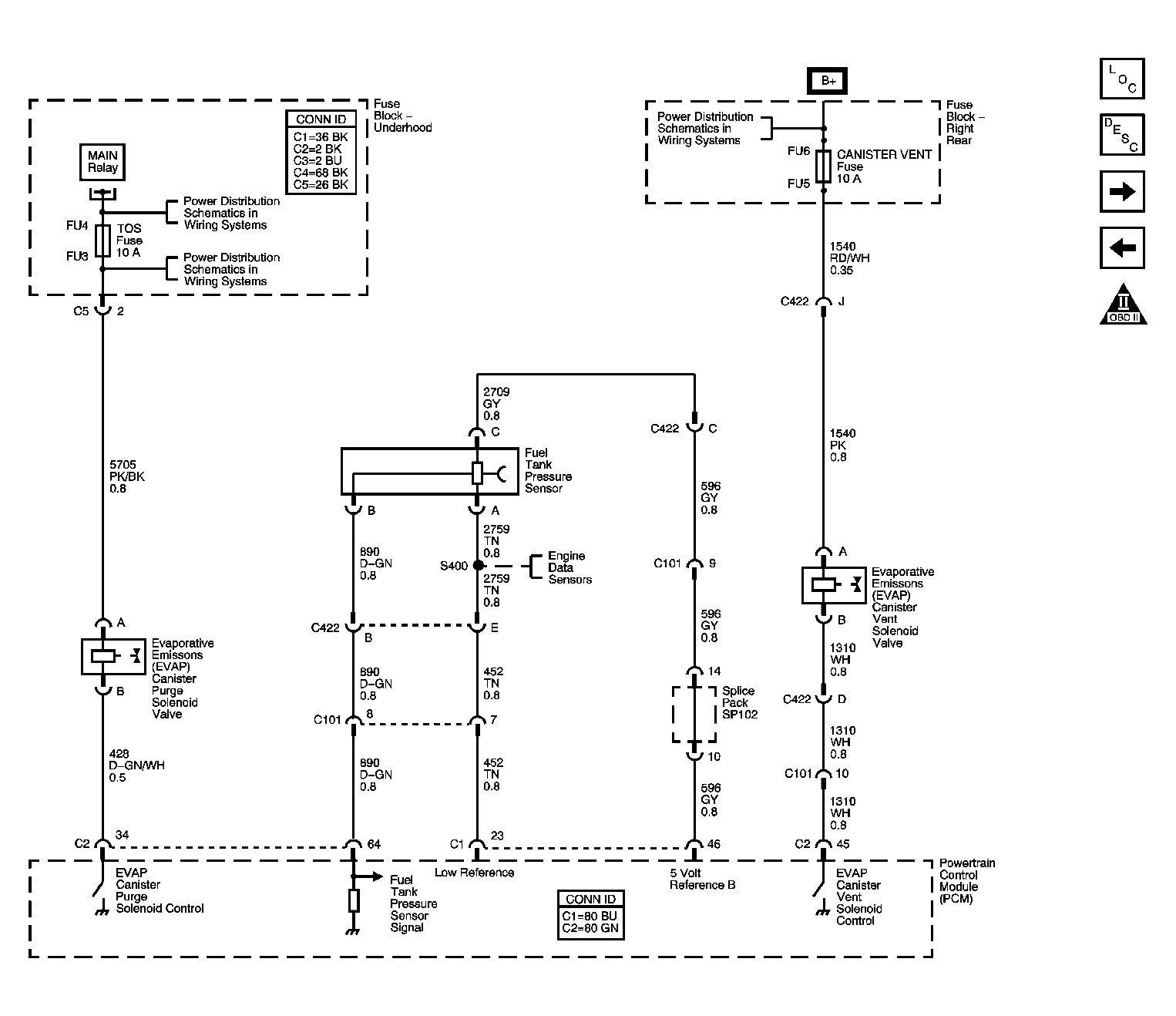

Fig 10: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

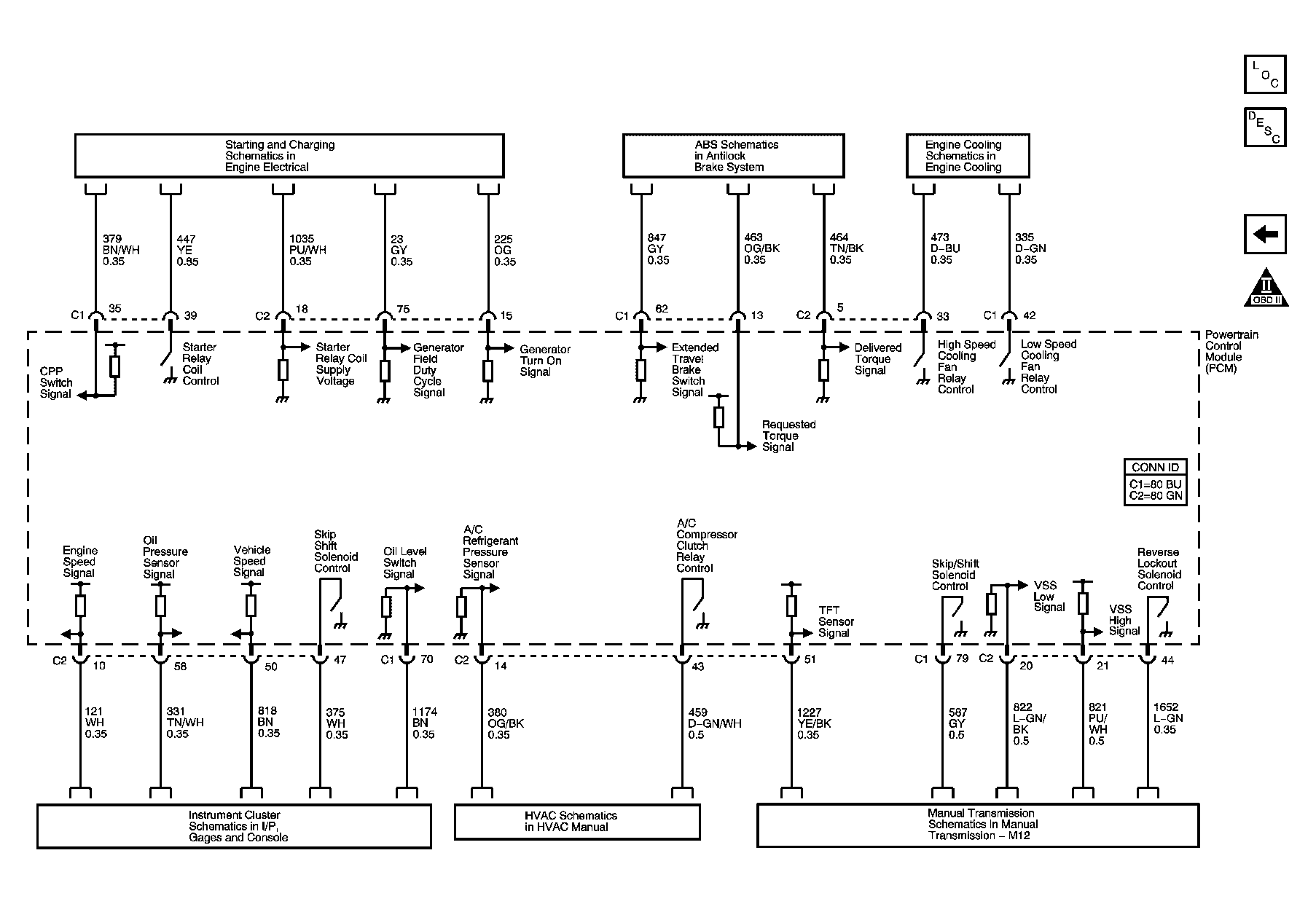

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
