Engine Controls Schematics

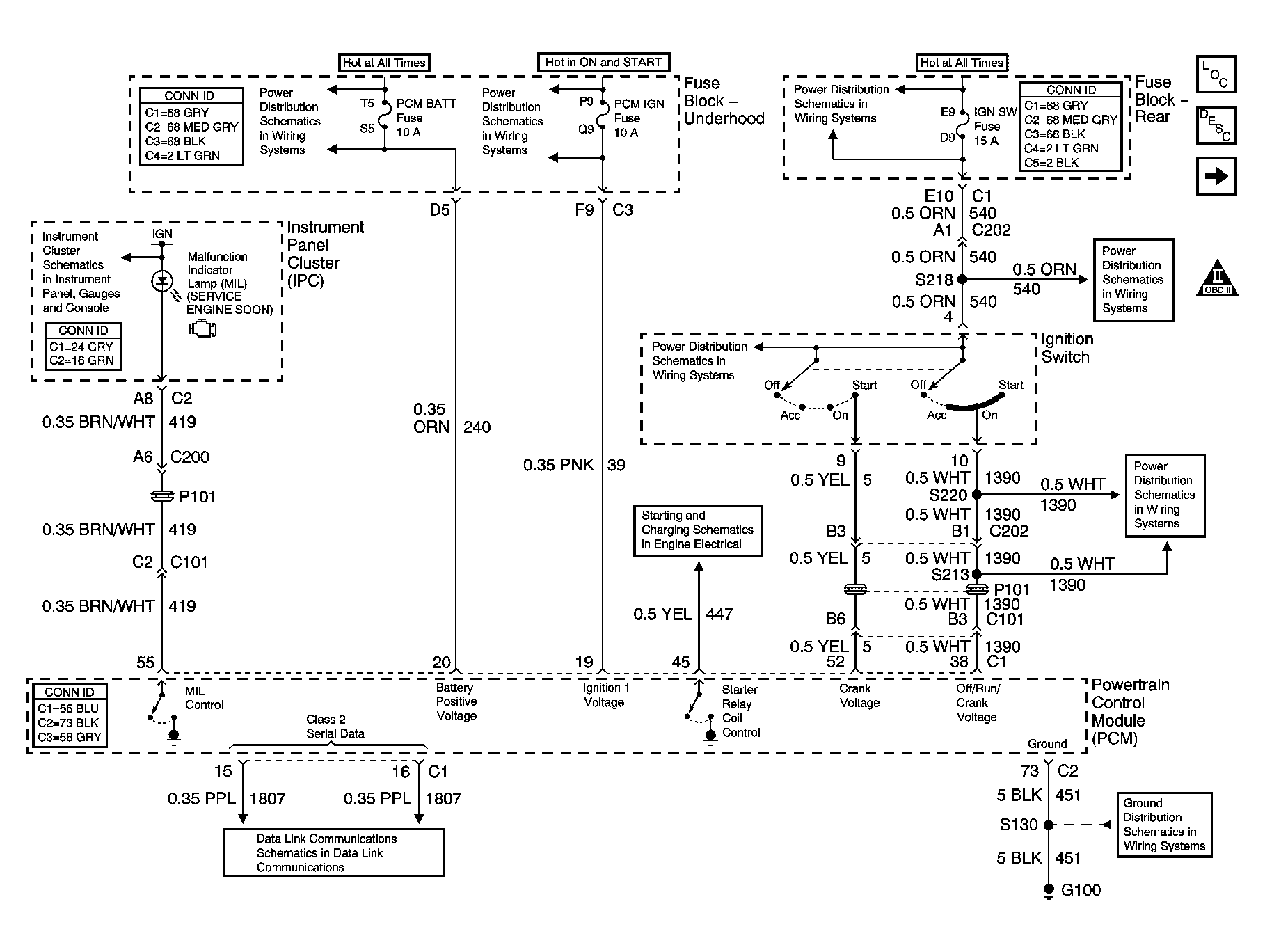

Fig 1: PCM Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

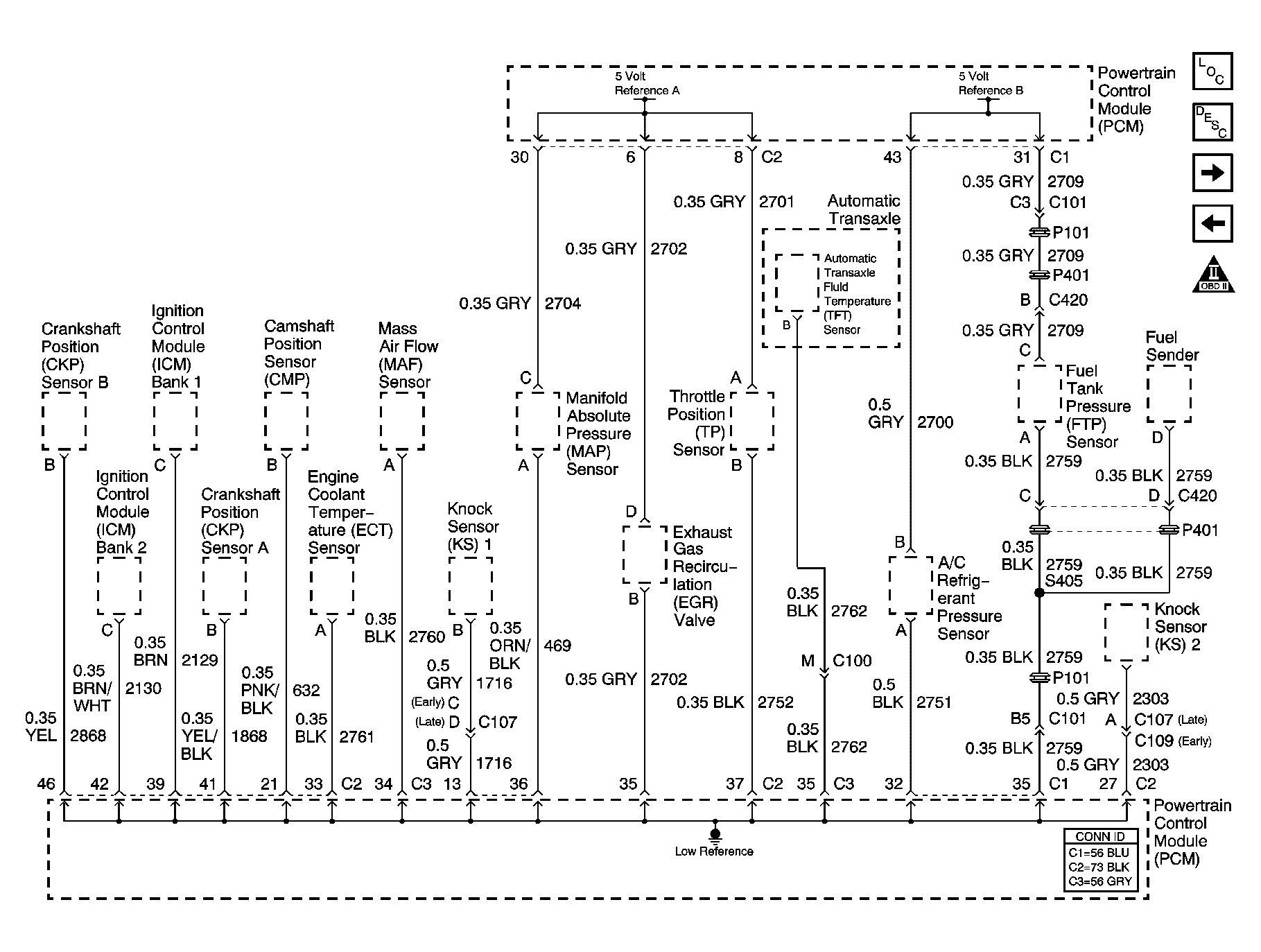

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

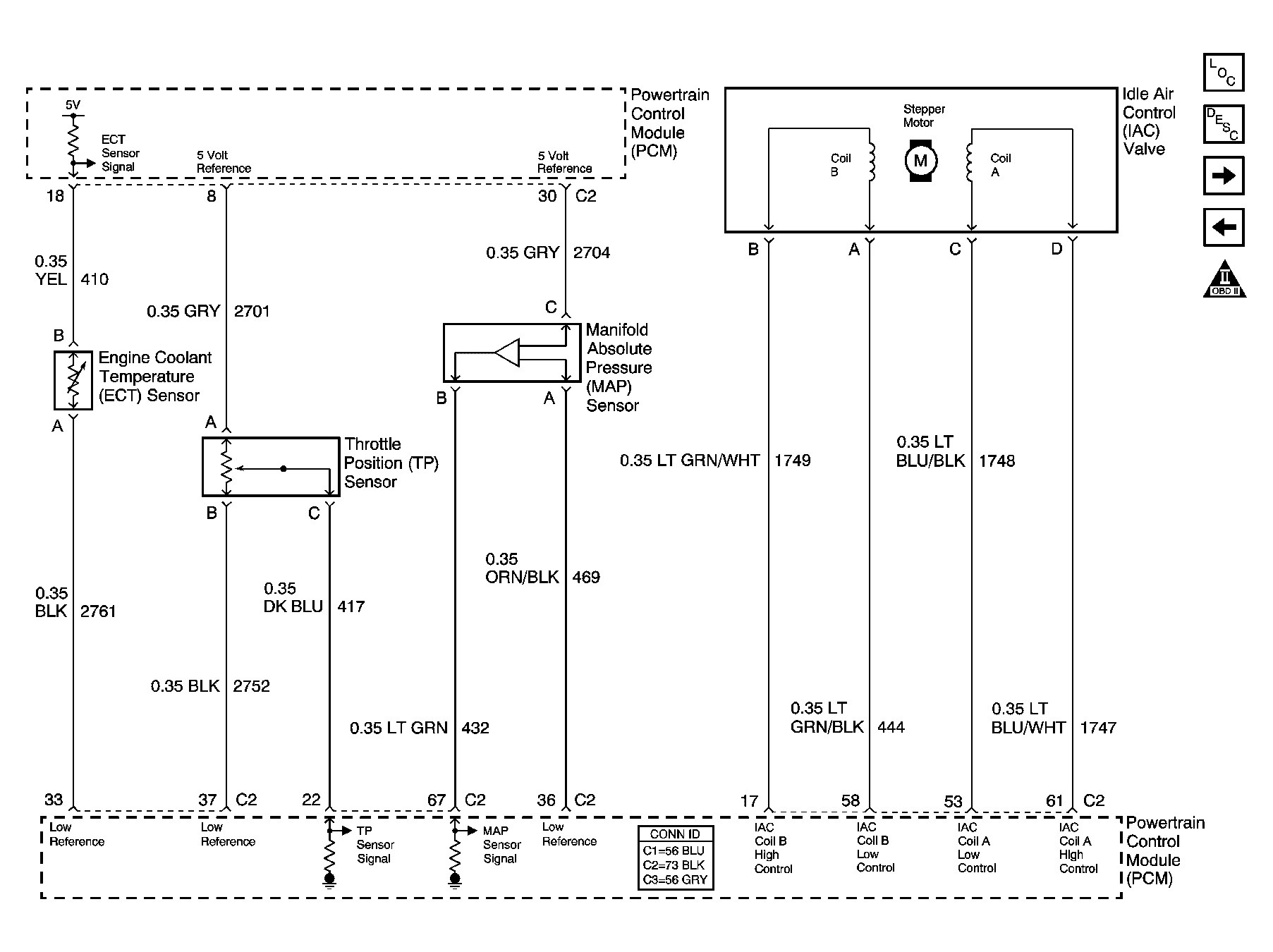

Fig 3: Pressure and Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

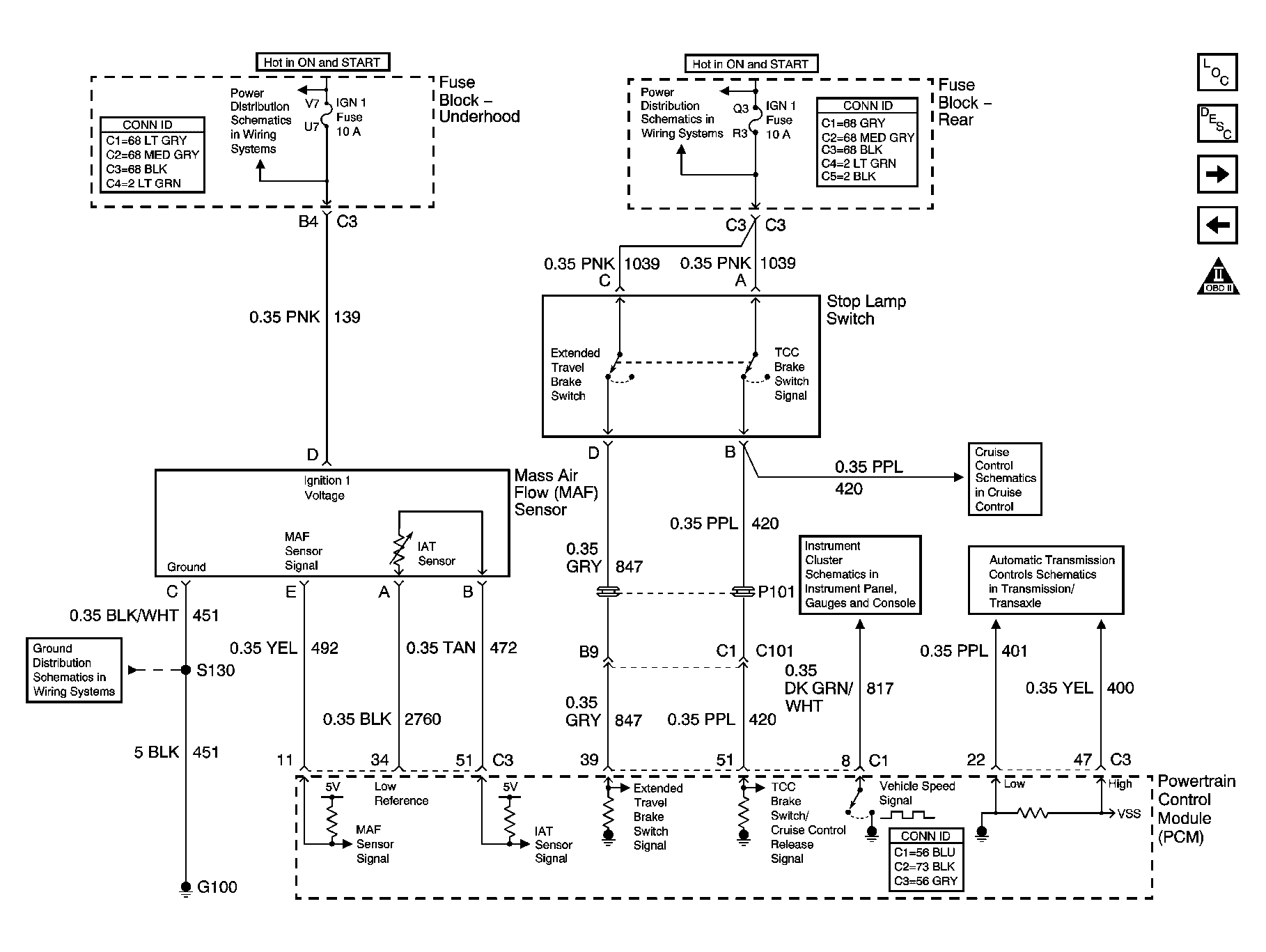

Fig 4: MAF, VSS and Extended Brake Travel Switch Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

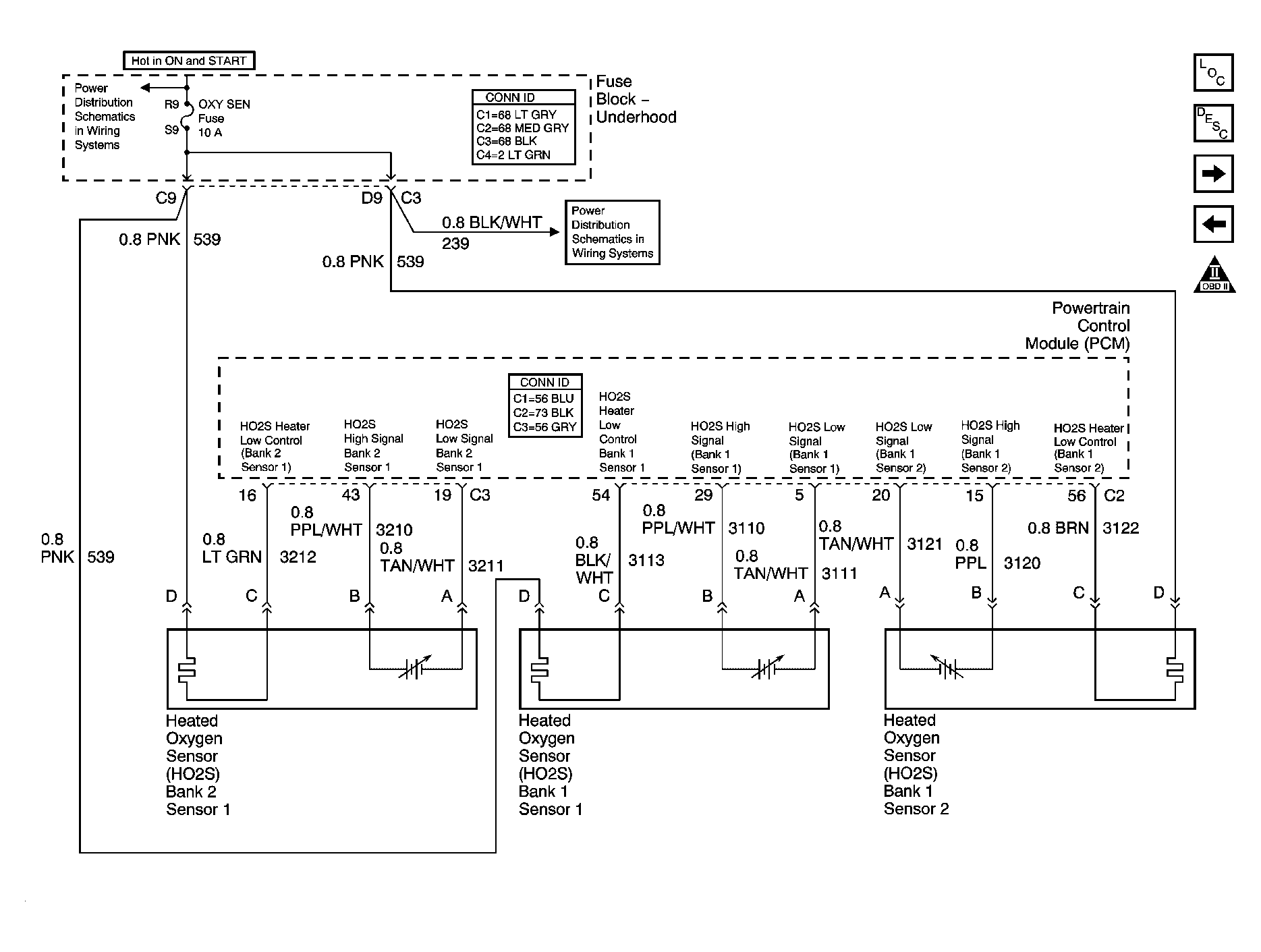

Fig 5: HO2S Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

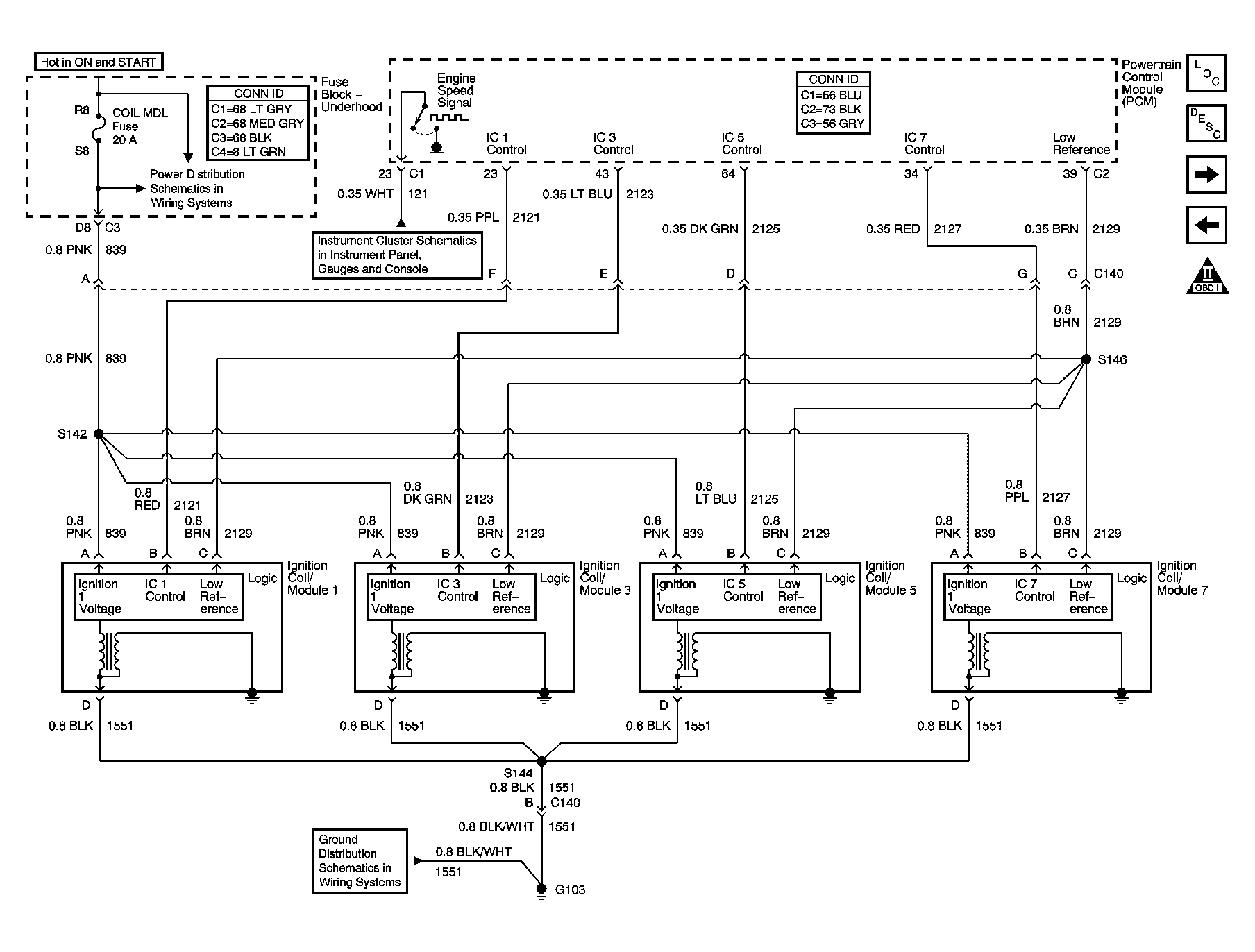

Fig 6: Ignition Controls - Ignition Coil/Modules 1, 3, 5, and 7 Schematic

Courtesy of GENERAL MOTORS CORP.

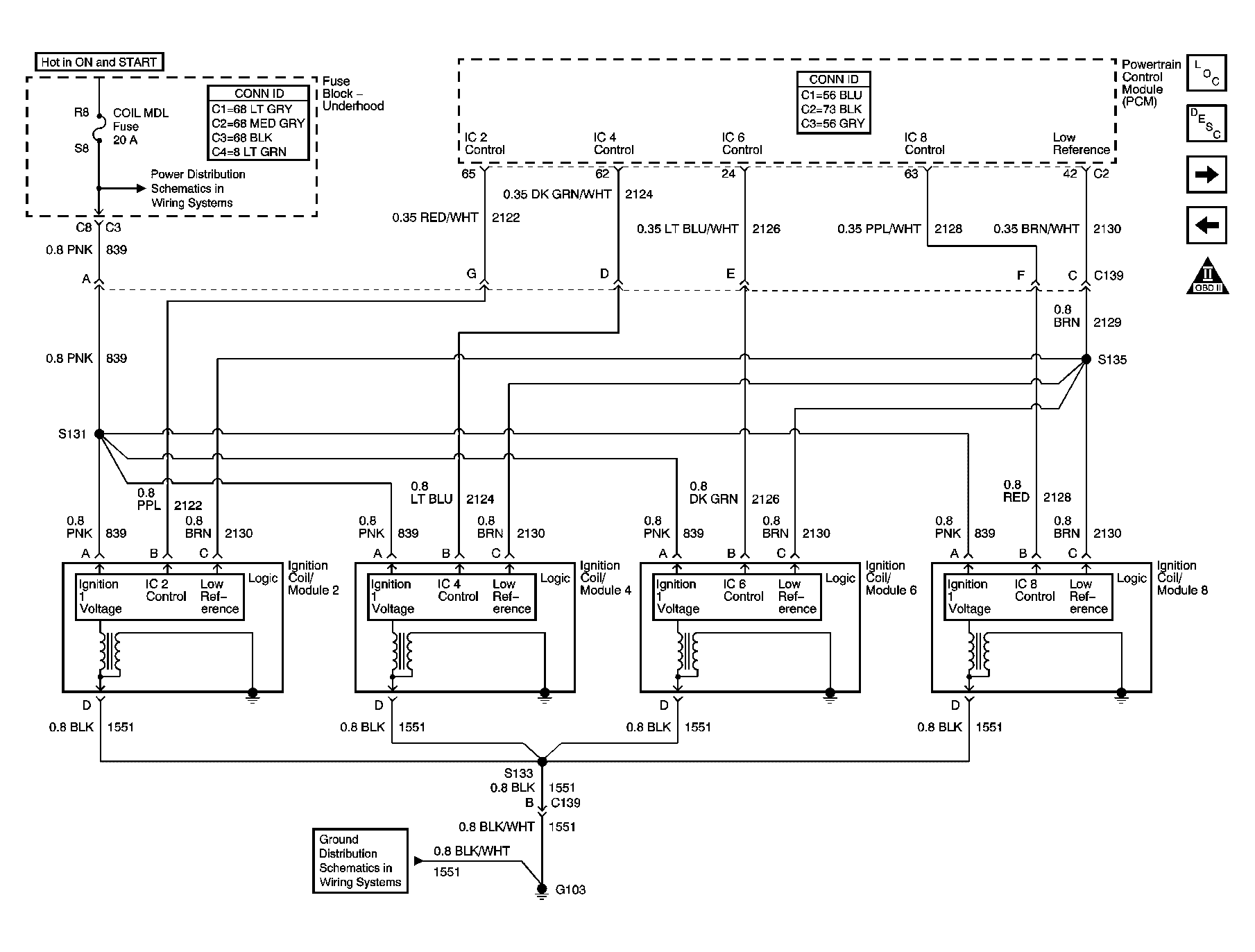

Fig 7: Ignition Controls - Ignition Coil/Modules 2, 4, 6, and 8 Schematic

Courtesy of GENERAL MOTORS CORP.

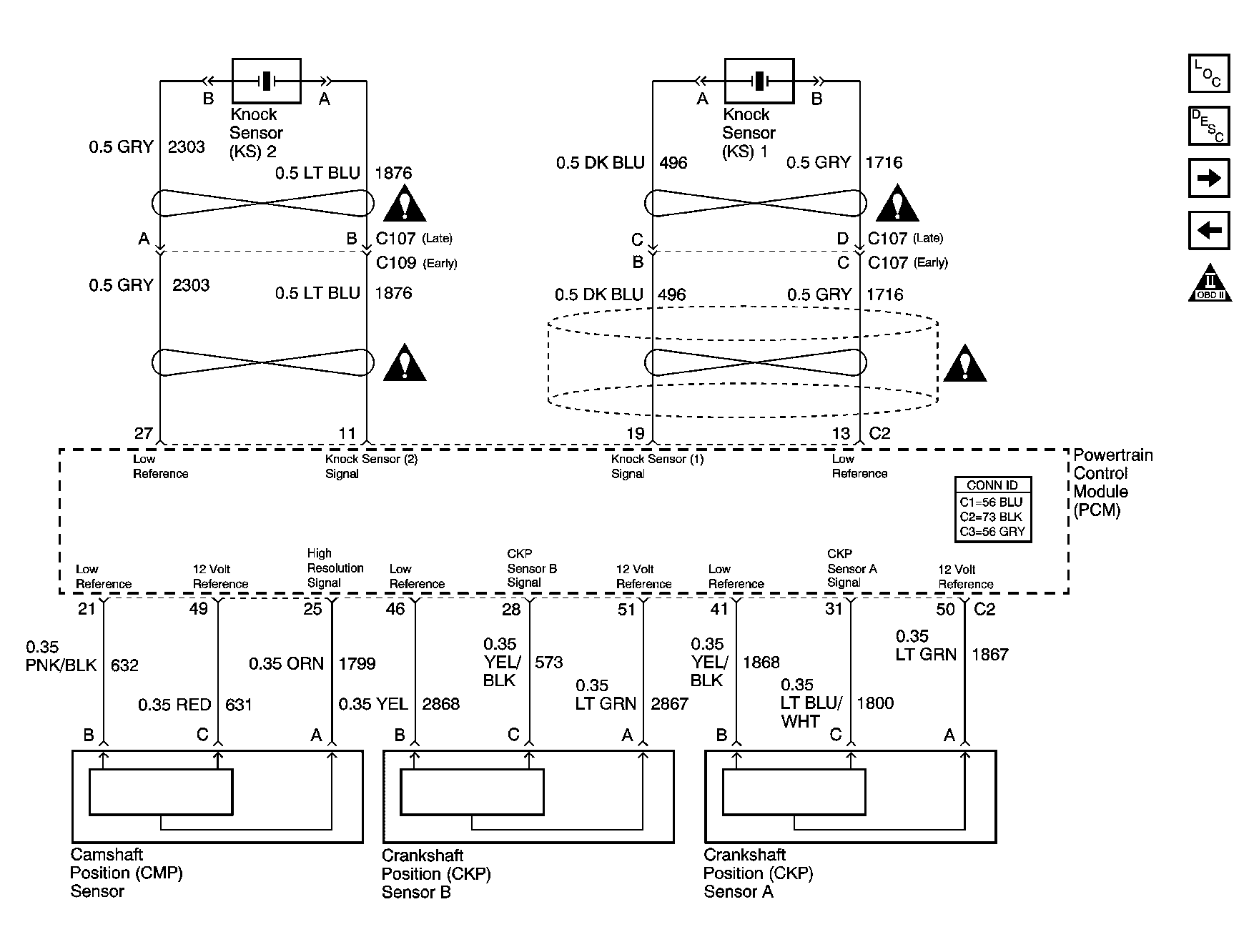

Fig 8: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

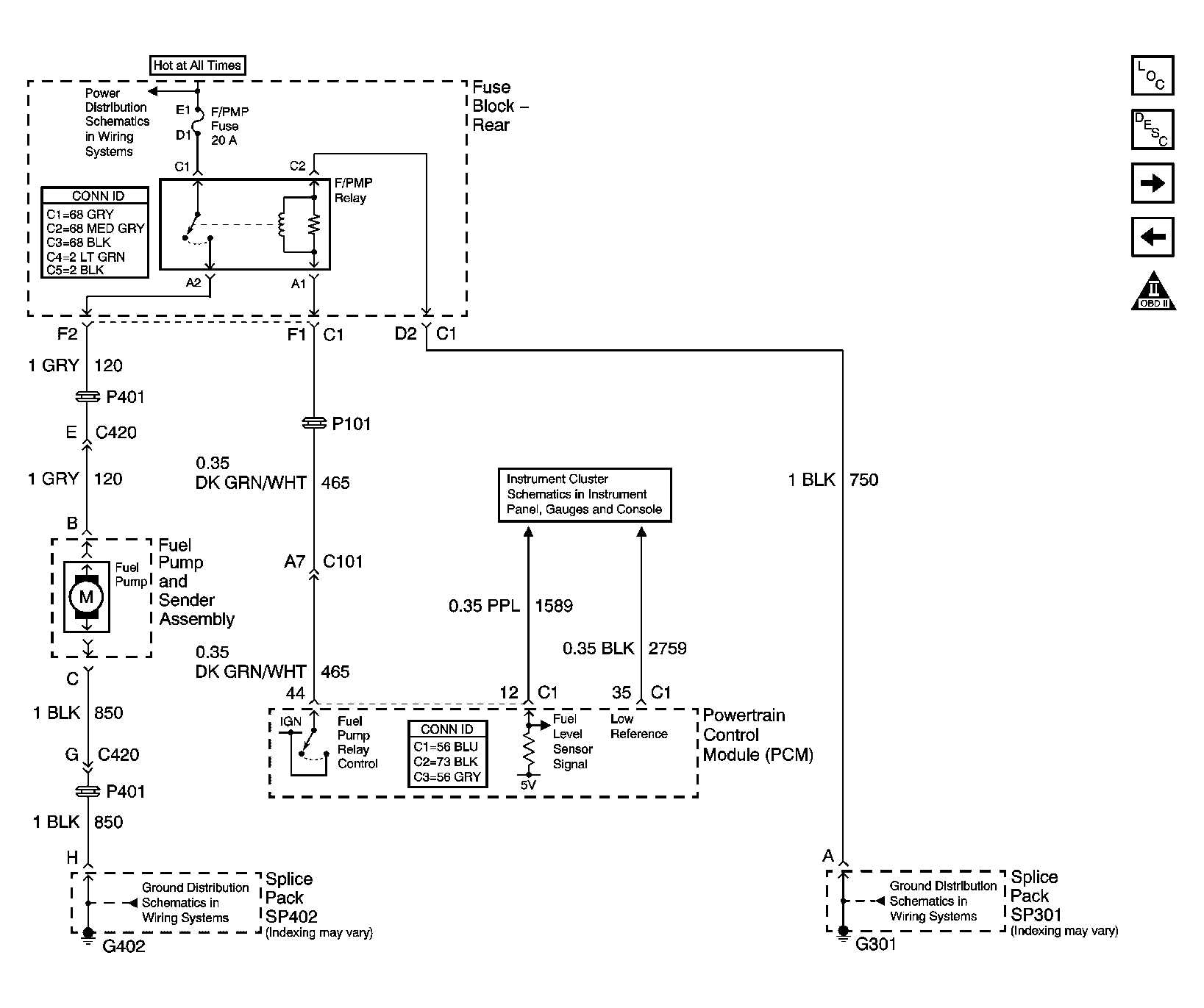

Fig 9: Fuel Controls - Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

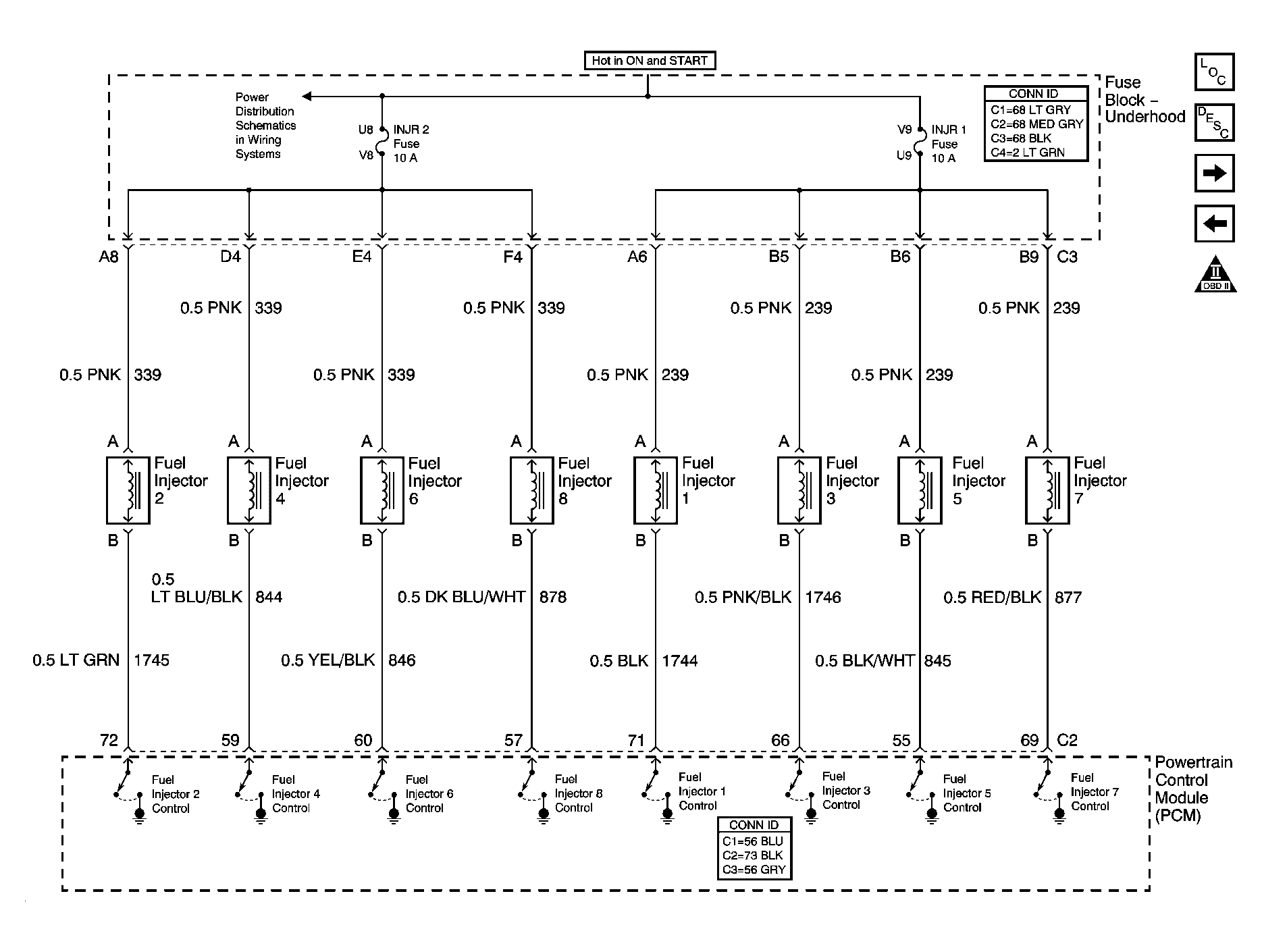

Fig 10: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

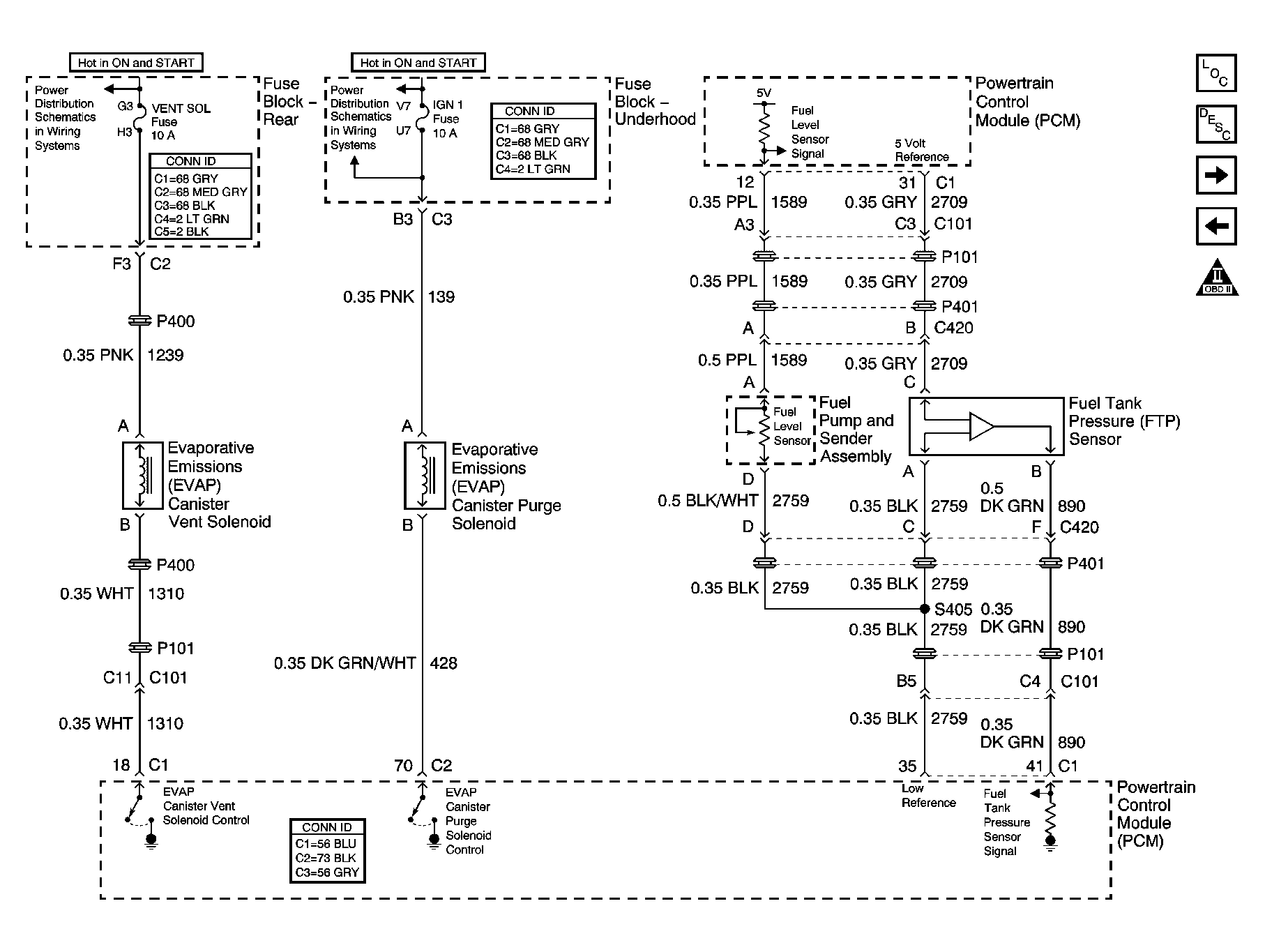

Fig 11: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

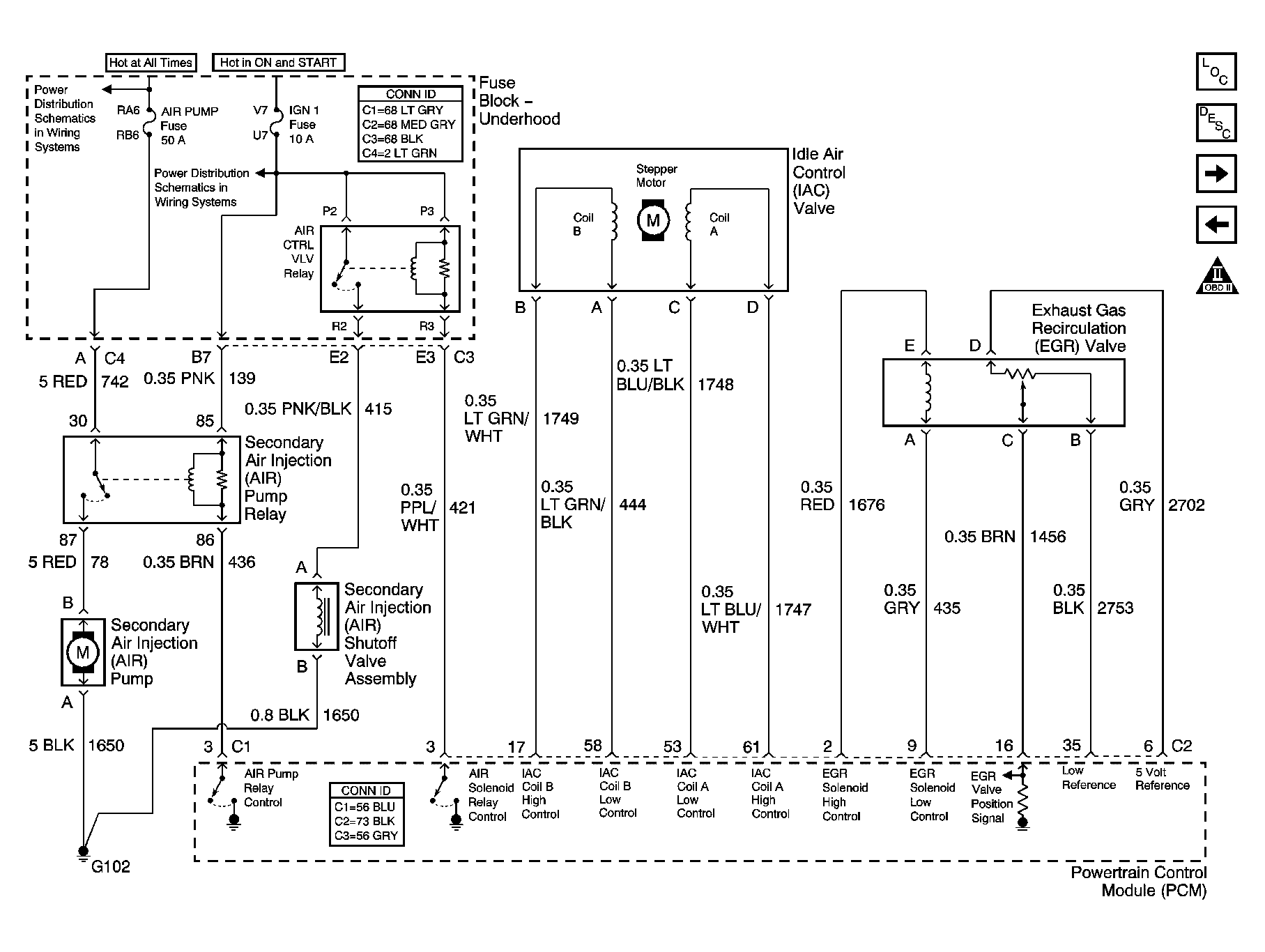

Fig 12: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

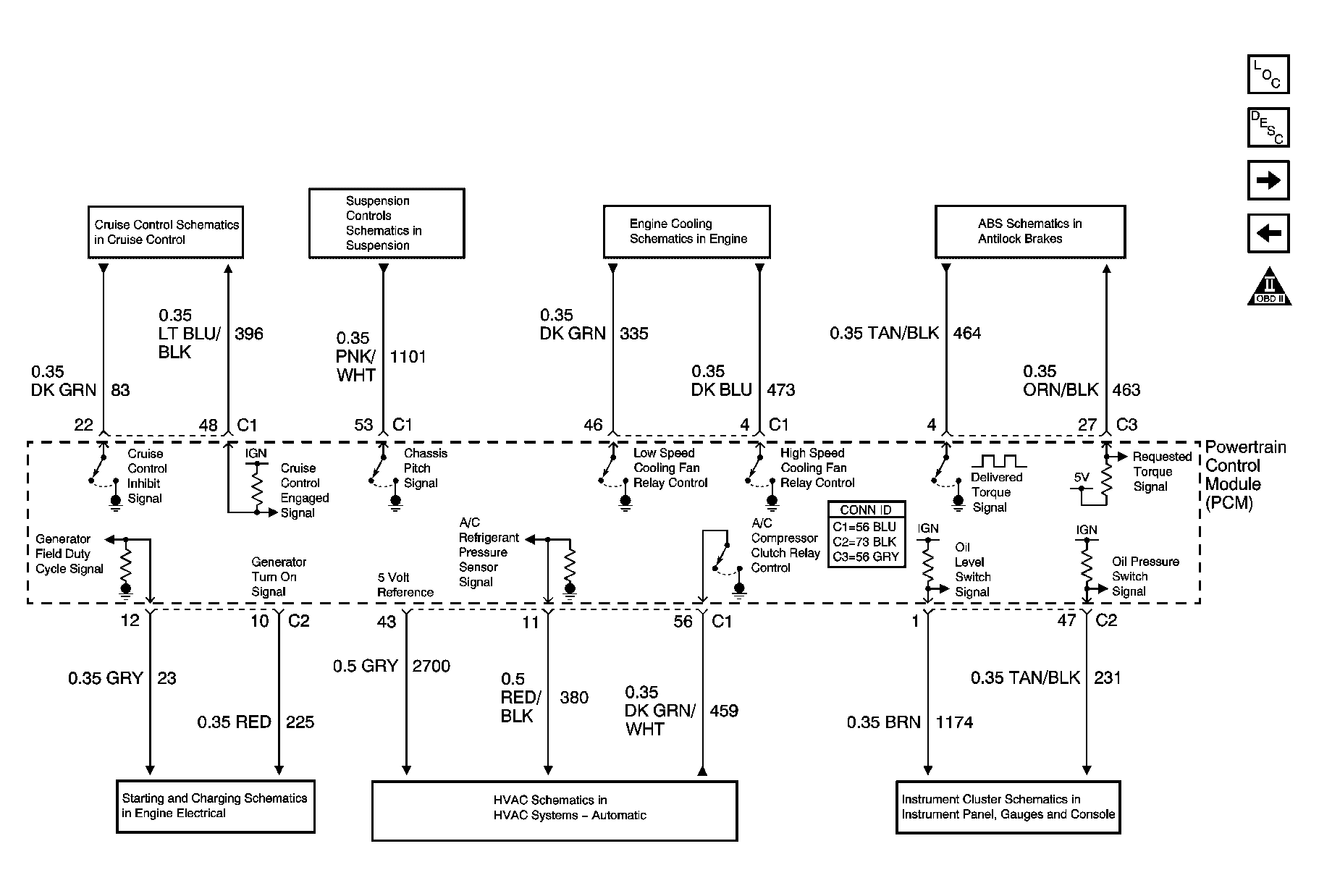

Fig 13: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

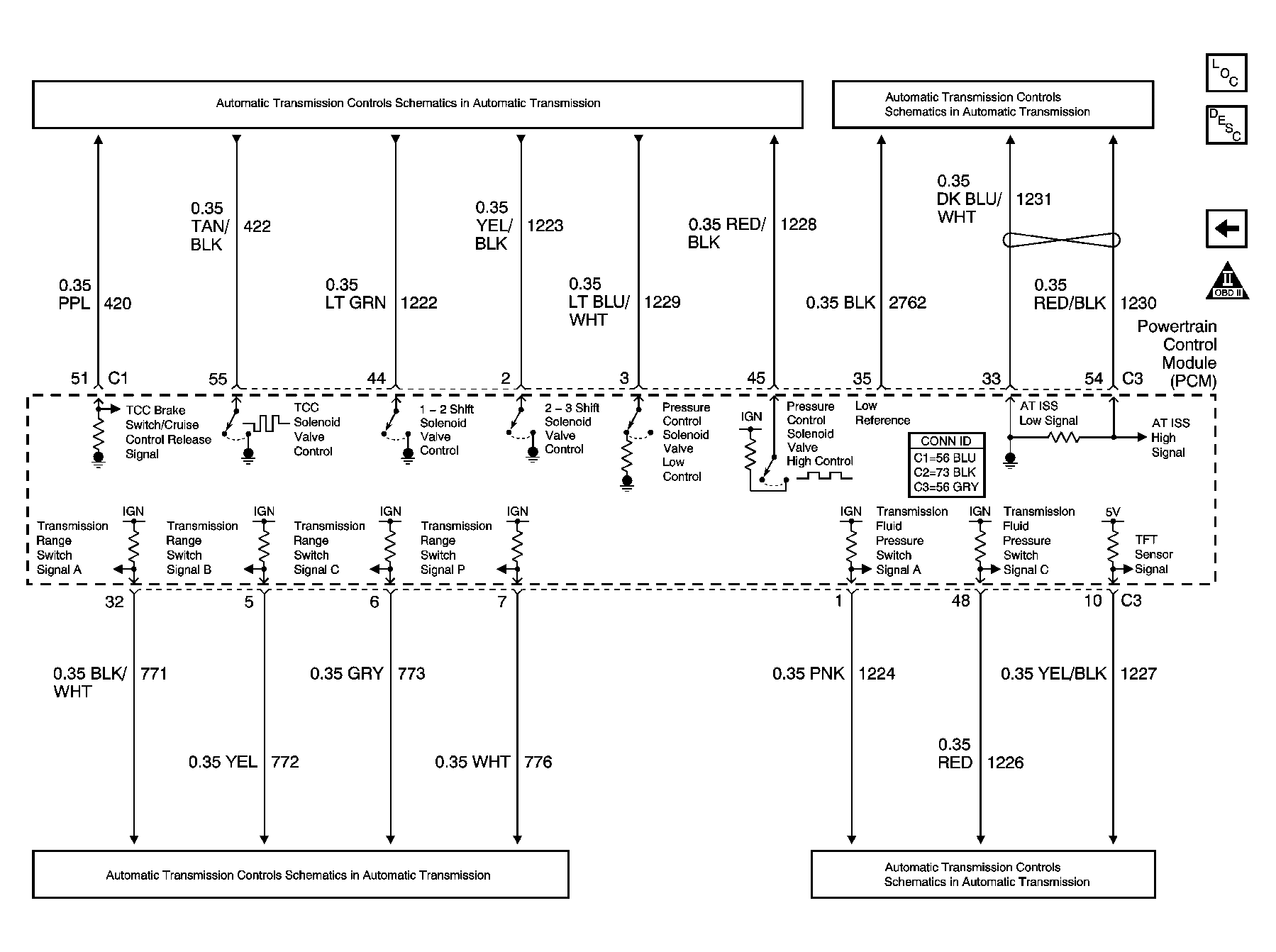

Fig 14: Transmission Controls References Schematic

Courtesy of GENERAL MOTORS CORP.
