Installation Procedure

IMPORTANT: During installation ensure that the child tether anchors are installed with the anti-rotation tabs firmly seated in the anti-rotation tab holes on the cross car beam. The anti-rotation tabs face forward on the outboard anchors. The center child tether anchor (1) and the anti-rotation tabs face the rear of the vehicle.

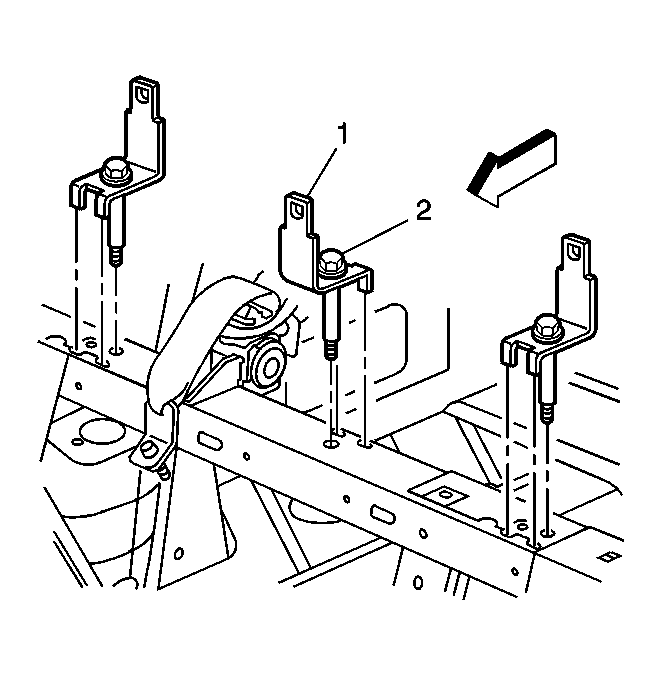

Fig 1: View Of Child Tether Anchor & Fastener

Courtesy of GENERAL MOTORS CORP.

Install the child tether anchor (1) to the cross car beam.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the child tether anchor fastener (2).
Tighten: Tighten the fastener to 30 N.m (22 lb ft).
Install the rear shelf panel carrier. Refer to Shelf Carrier Replacement - Rear in Interior Trim.
Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Without Sunshade) or Trim Panel Replacement - Rear Window Shelf (With Sunshade) in Interior Trim.
