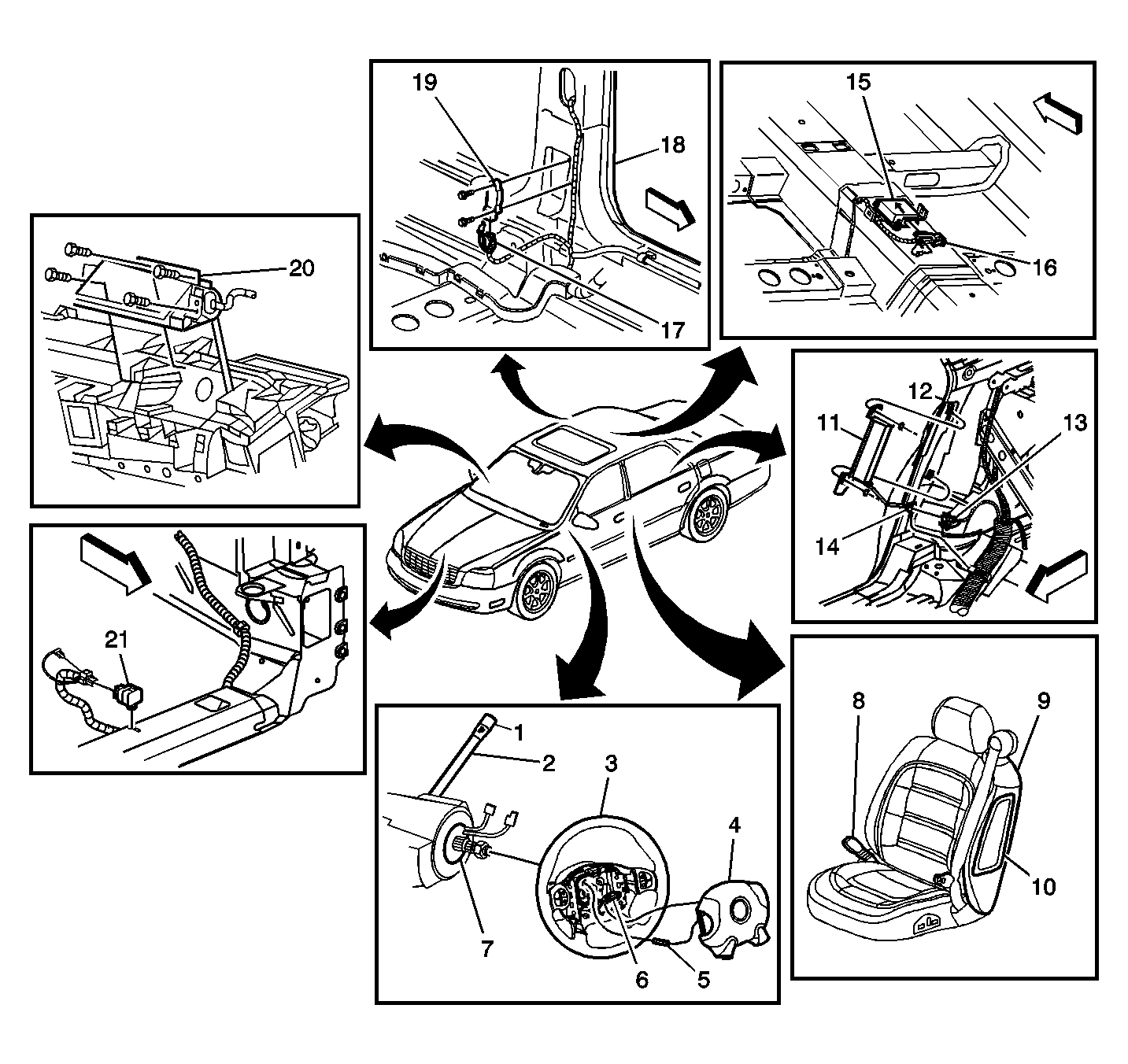

| 1 |
Traction Control Switch (w/o F45) |
| 2 |
Gear Shift Lever (w/o F45) |
| 3 |
Steering Wheel |
| 4 |
Inflatable Restraint Steering Wheel Inflator Module |
| 5 |
Horn Switch Contact |
| 6 |
Inflatable Restraint Steering Wheel Inflator Module Connector |
| 7 |
Inflatable Restraint Steering Wheel Module Coil |
| 8 |
Seat Belt Switch-Driver |
| 9 |
Driver Seat (Passenger Similar) |
| 10 |
Inflatable Restraint Side Impact Module-LF (RF Similar) |
| 11 |
Inflatable Restraint Side Impact Module-RR (LR similar) |
| 12 |
Passenger Rear Pillar (Driver Similar) |
| 13 |
Inflatable Restraint Side Impact Module-RR Connector (LR Similar) |
| 14 |
Inflatable Restraint Side Impact Module -RR Connector (LR Similar) |
| 15 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 16 |
Inflatable Restraint Sensing and Diagnostic Module Connector |
| 17 |
Inflatable Restraint Side Impact Sensor-Left Connector (Right Similar) |
| 18 |
Left B-Pillar |
| 19 |
Inflatable Restraint Side Impact Sensor (SIS)- Left (Right Similar) |
| 20 |
Inflatable Restraint I/P Module |
| 21 |
Inflatable Restraint Front End Sensor |
