Automatic Transmission Shift Lock Control Connector End Views

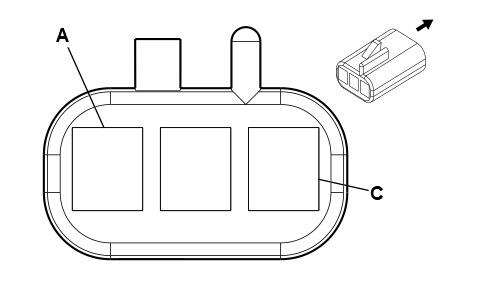

A/T Shift Lock Control Solenoid Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047781 3-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN/WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
B	BRN	41	Ignition 3 Voltage (w/Console Shift)
B	BLK	350	Ground (W/Column Shift) or (w/B9Q/V4U)
C	BLK	450	Ground (w/ Console Shift)
C	-	-	Not Used (w/Column Shift) or (w/B9Q/V4U)

Reverse Lockout Actuator- Part of Shift Control Assembly Connector End View (w/ Console Shifter)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064760 4-Way F Metri- Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	450	Ground
B	LT GRN	1652	Reverse Lockout Solenoid Control
C	YEL	1491	Backlight Lamps Control
D	BLK	450	Ground

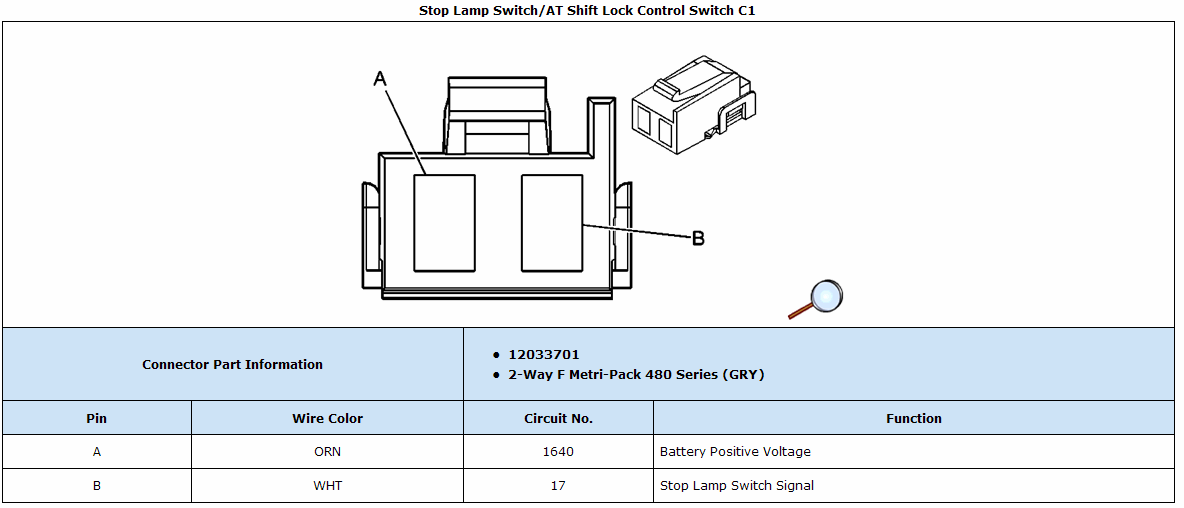

Stop Lamp/AT Shift Lock Control Switch C1 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12033701 2 Way F Metri-Pack 480 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A	ORN	1640	Battery Positive Voltage
B	WHT	17	Stop Lamp Switch Signal

Stop Lamp/AT Shift Lock Control Switch C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12033706 4-Way F Metri-Pack 280 Series (BLU)
Pin	Wire Color	Circuit No.	Function
A	LT GRN	275	Park Neutral Position Switch Park Signal
B	DK GRN/WHT	1135	A/T Shift Lock Control Solenoid Supply Voltage
C-D	-	-	Not Used
