ABS Component Views

Fig 1: Brake Pedal Components View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Side Of Frame Rail Component View - w/o JL4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	Electronic Brake Control Module (EBCM) Electrical Connector - C1
3	Electronic Brake Control Module (EBCM) Electrical Connector - C2
4	Frame

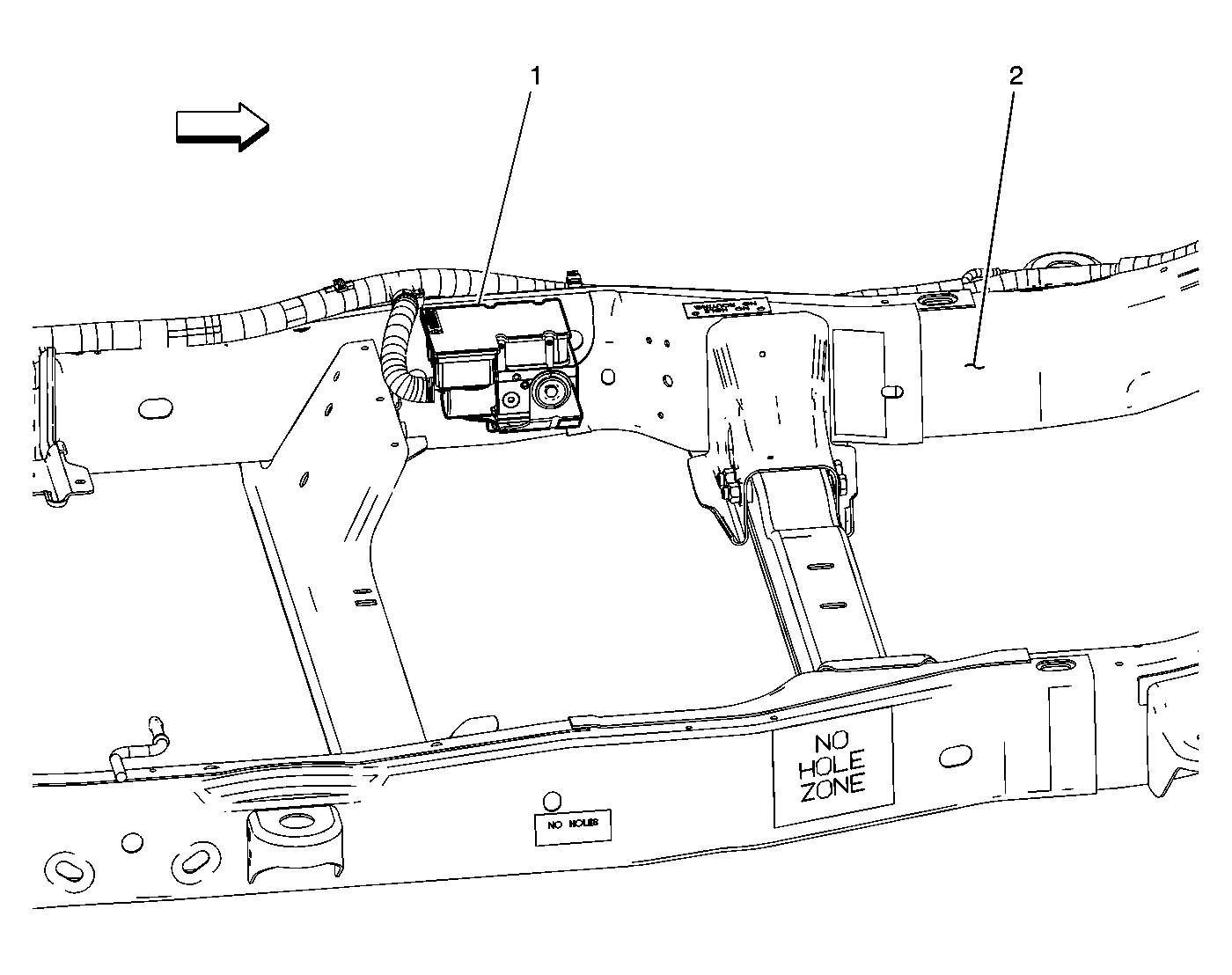

Fig 3: Left Side Of Frame Rail Component View - w/JL4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM) - w/JL4
2	Left Side Frame Rail

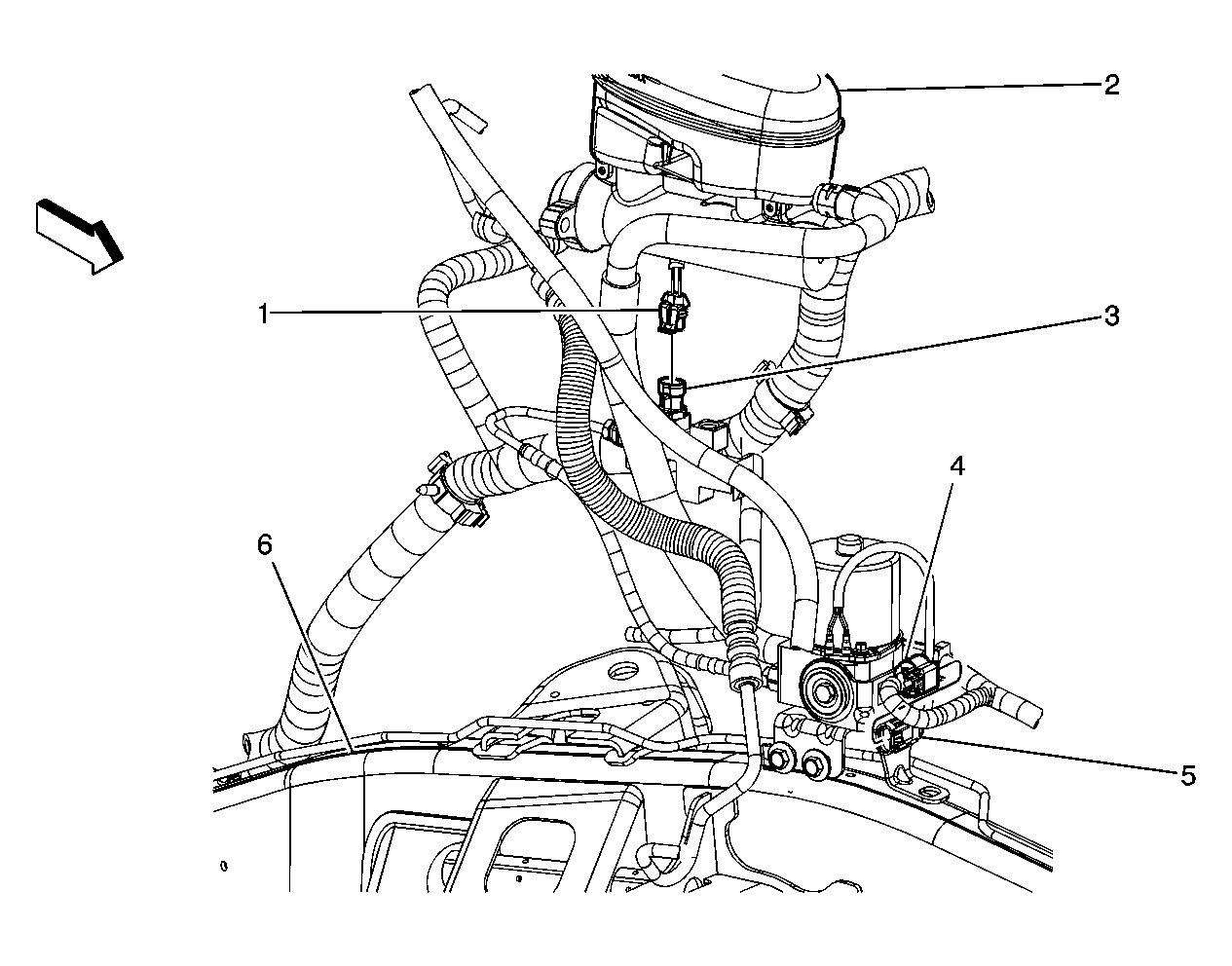

Fig 4: Precharge Pump Component View (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Differential Switch Connector
2	Master Cylinder Fluid Reservoir
3	Brake Pressure Differential Switch
4	Precharge Pump Connector
5	Precharge Pump
6	Frame

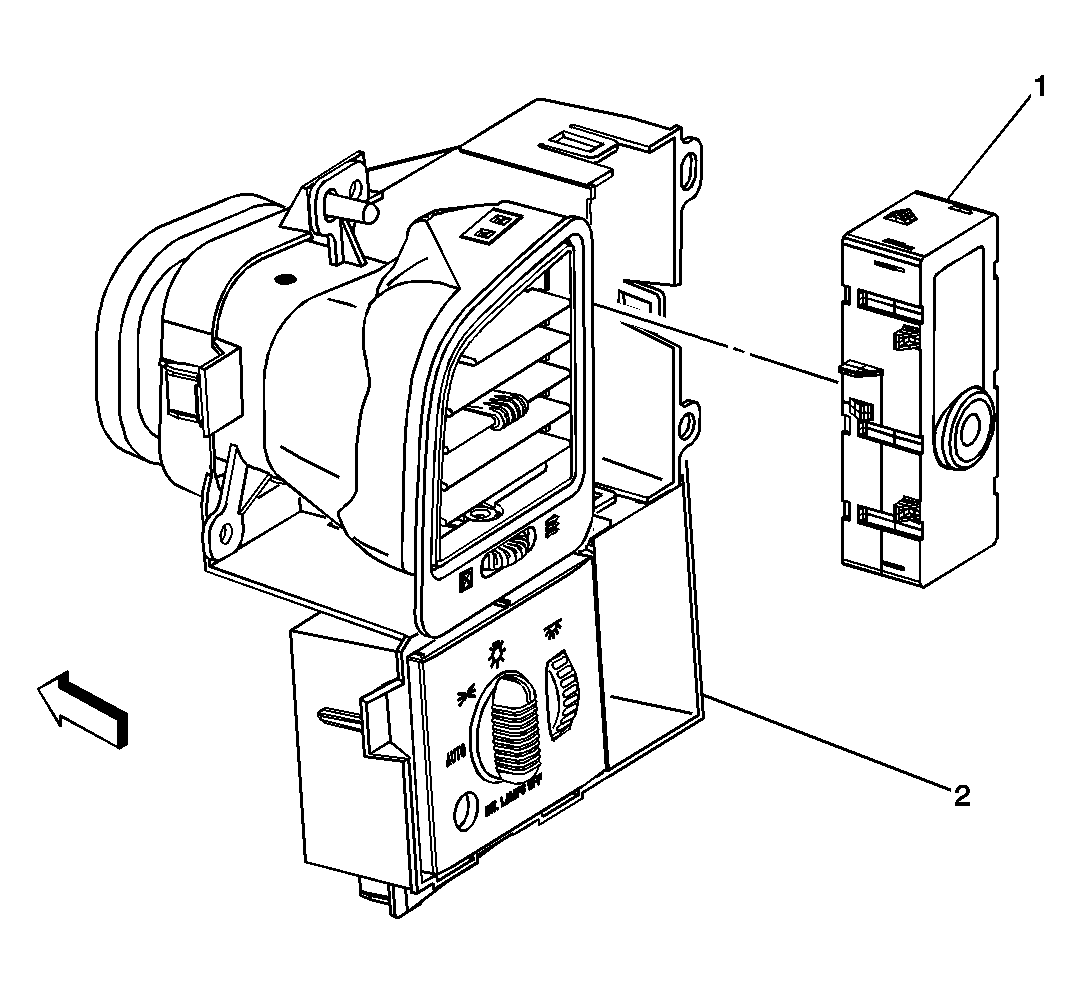

Fig 5: Traction Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch
2	Instrument Panel Outer Air Outlet Housing

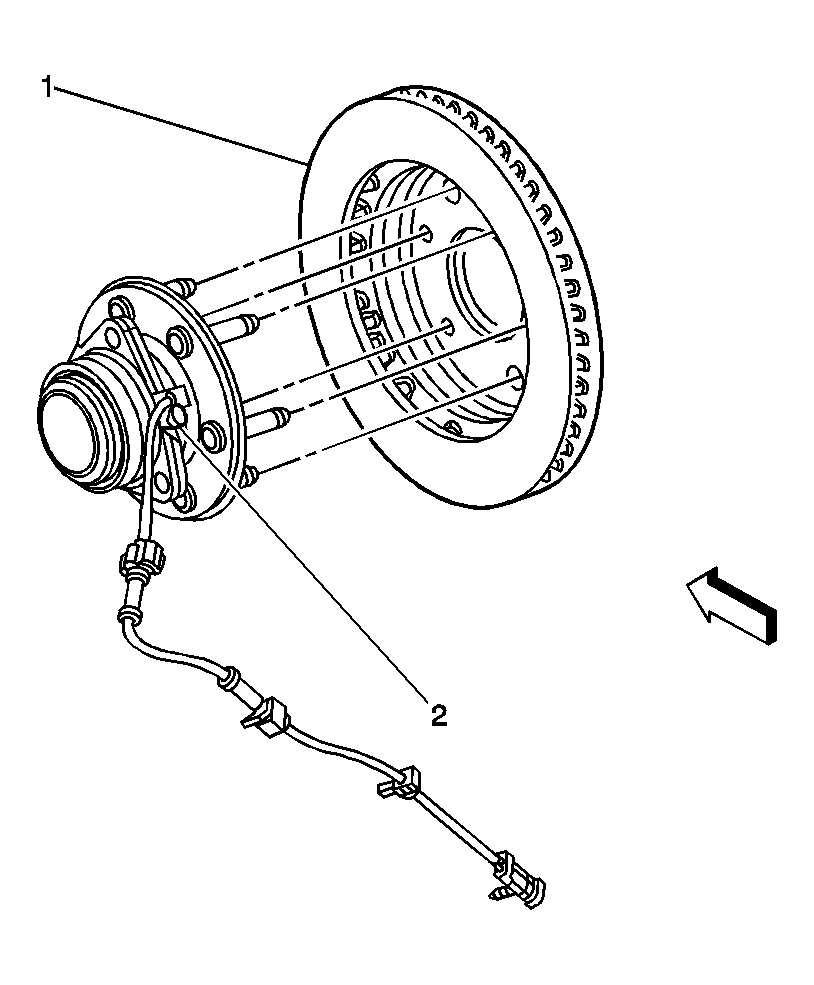

Fig 6: Wheel Speed Sensor - RF Component View (2WD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rotor
2	Wheel Speed Sensor (WSS)

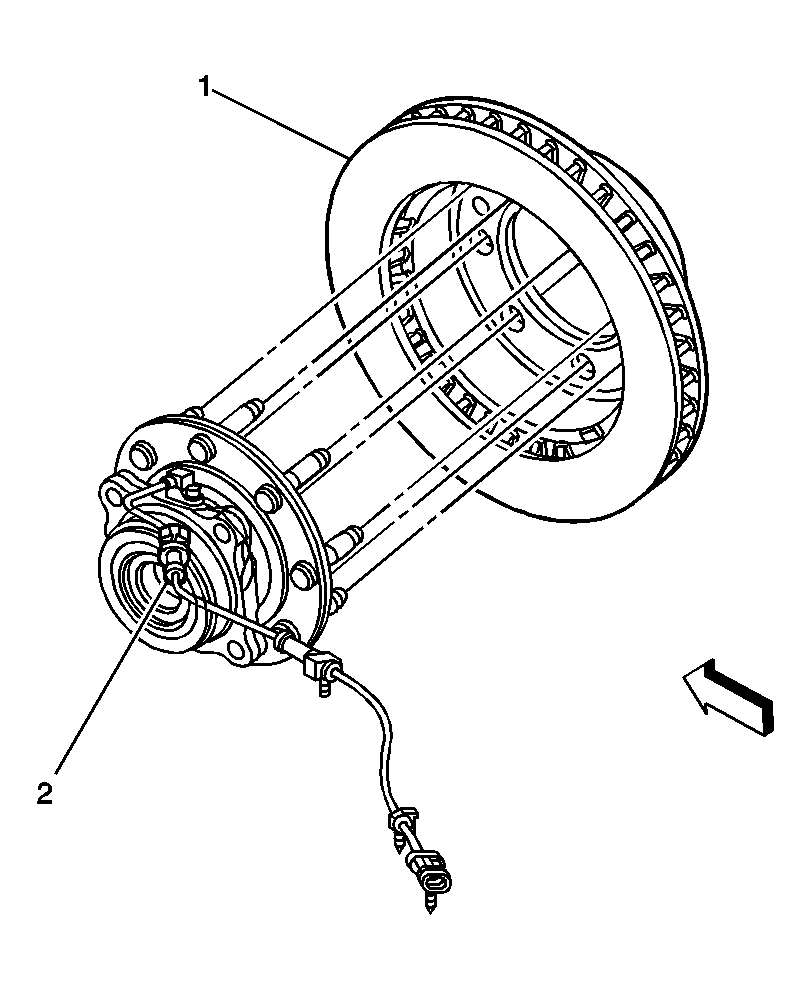

Fig 7: Wheel Speed Sensor - RF Component View (4WD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rotor
2	Wheel Speed Sensor (WSS)

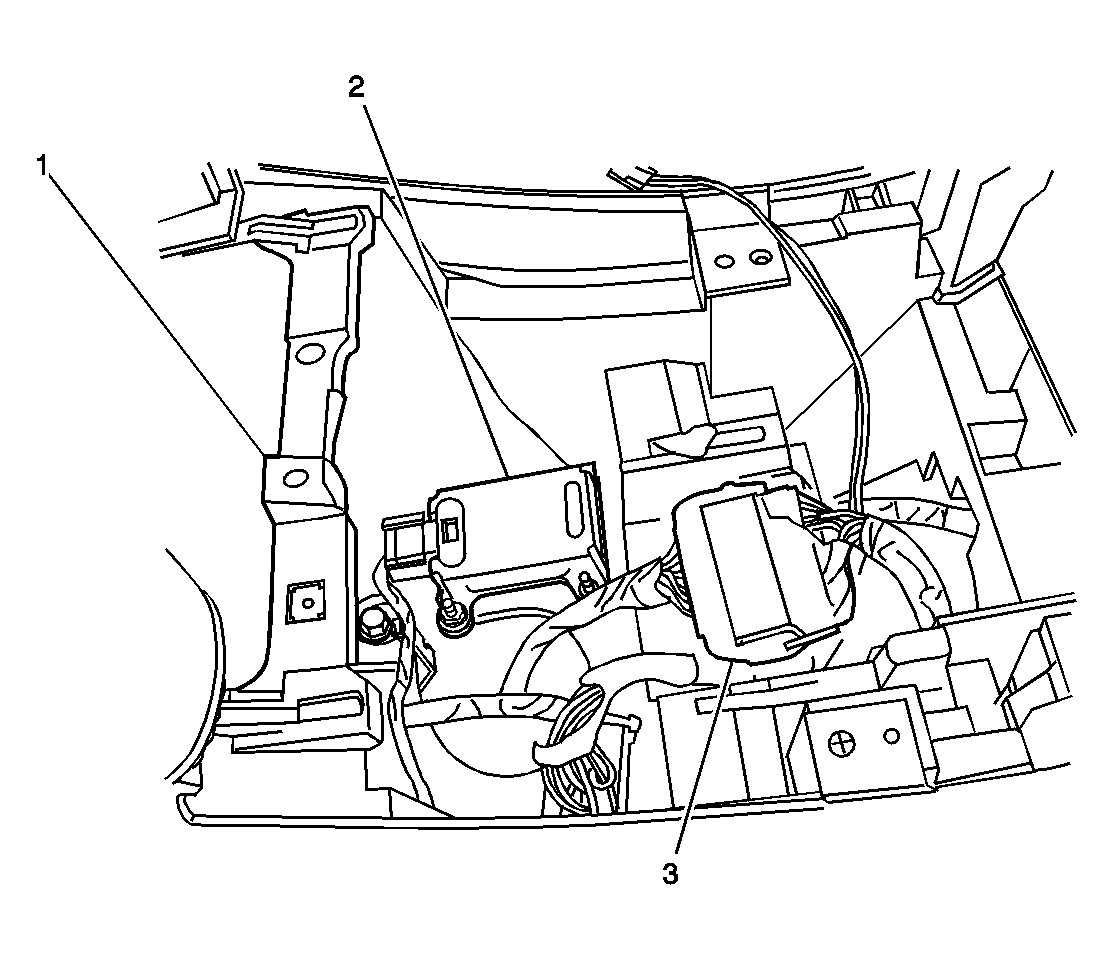

Fig 8: YAW & Lateral Acceleration Sensor Component View (Escalade)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Console
2	YAW and Lateral Acceleration Sensor
3	C306

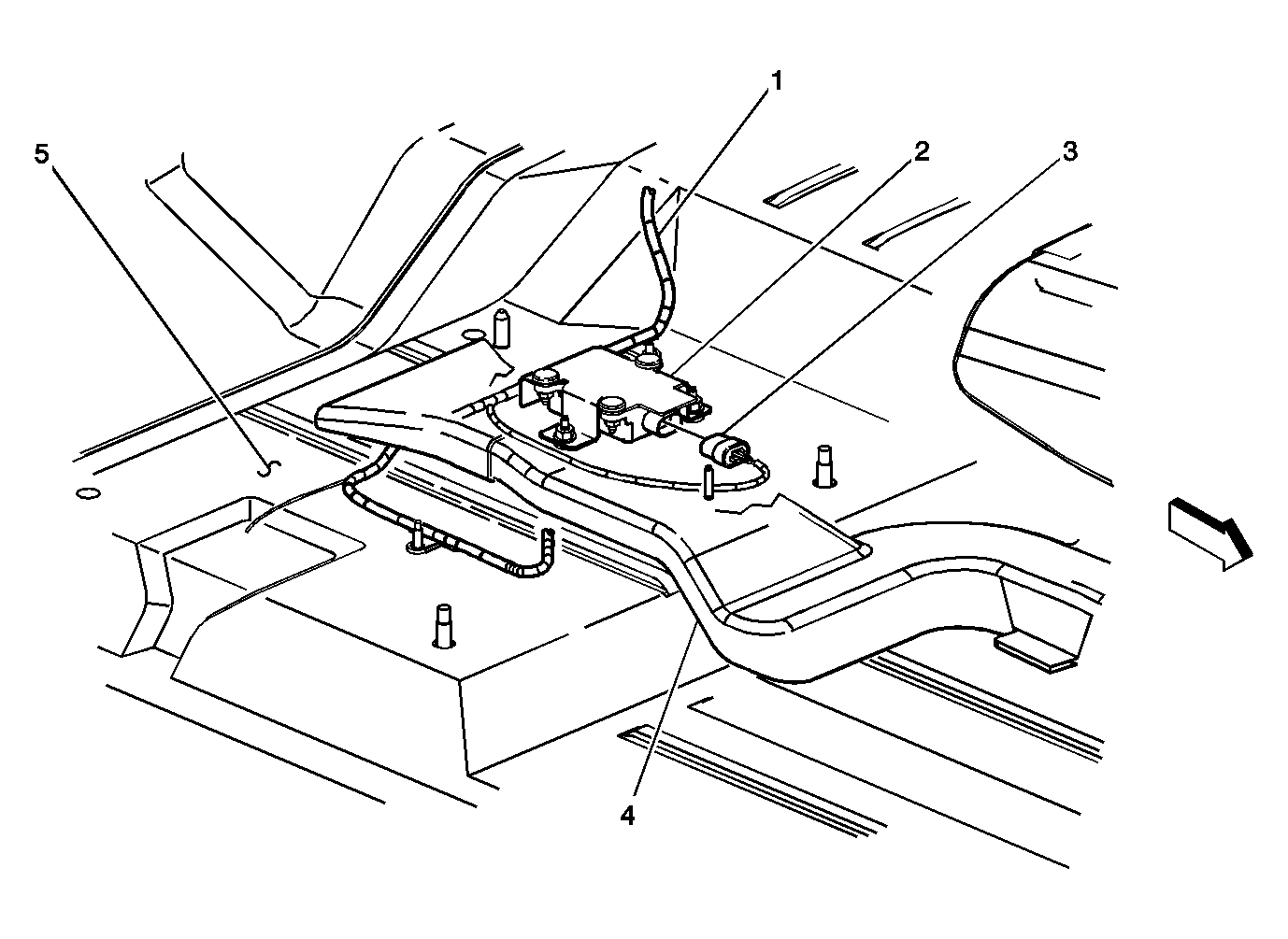

Fig 9: YAW & Lateral Acceleration Sensor Component View (Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	YAW and Lateral Acceleration Sensor
3	YAW and Lateral Acceleration Sensor Connector
4	HVAC Duct - Passenger Side
5	Front Floor Panel - Passenger Side
