Installation Procedure

  1. Install the yaw rate sensor/lateral accelerometer to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts retaining the yaw rate sensor/lateral accelerometer (2) to the vehicle.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  3. Perform the YAW rate reference table reset procedure. Refer to Yaw Rate Reference Table Reset Procedure .
  4. Connect the electrical connector (3) to the yaw rate sensor/lateral accelerometer.

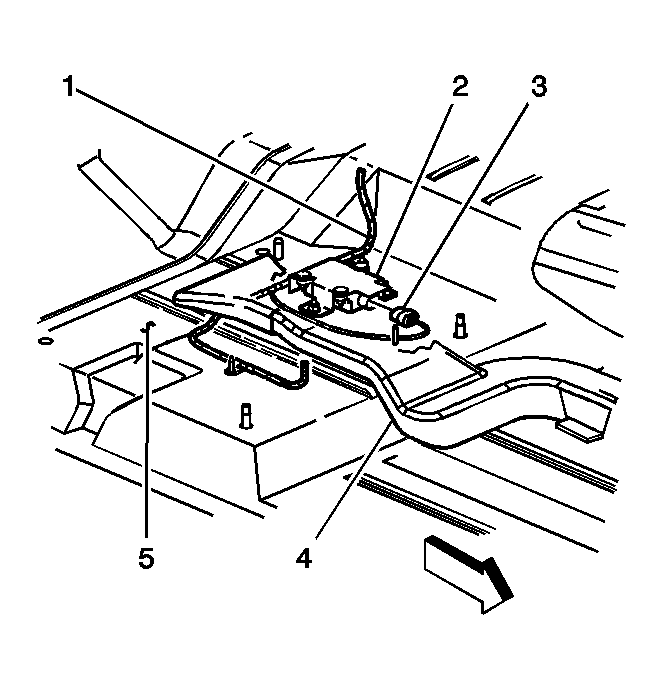

    5. Fig 1: View Of Yaw Rate Sensor/Lateral Accelerometer & Electrical Connector
    GM793060Courtesy of GENERAL MOTORS CORP.
  5. Install the carpet.
  6. Install the passenger seat to the vehicle. Refer to Seat Replacement - Front Bucket in Seats.
