Installation Procedure

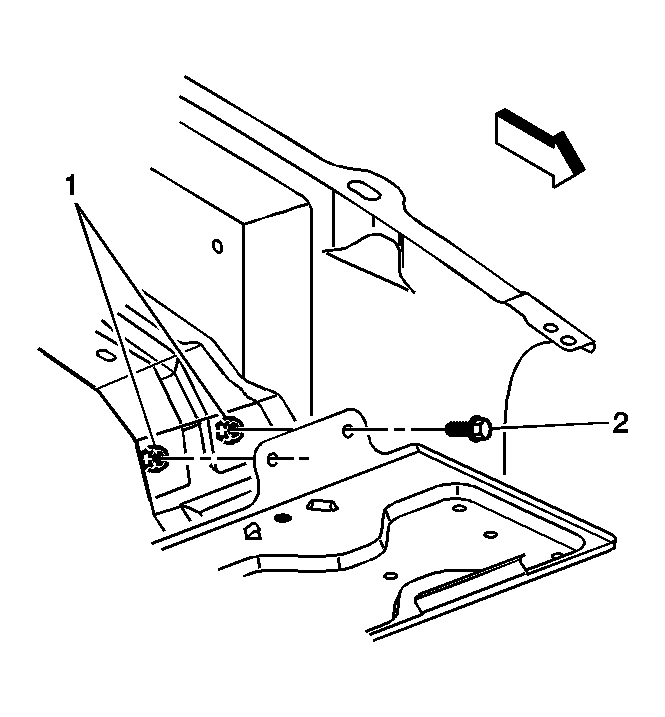

Fig 1: View Of Battery Tray Reinforcement Bolts

GM847274

Courtesy of GENERAL MOTORS CORP.

Install the battery tray.
Install the bolts (2) to the battery tray reinforcement until snug.

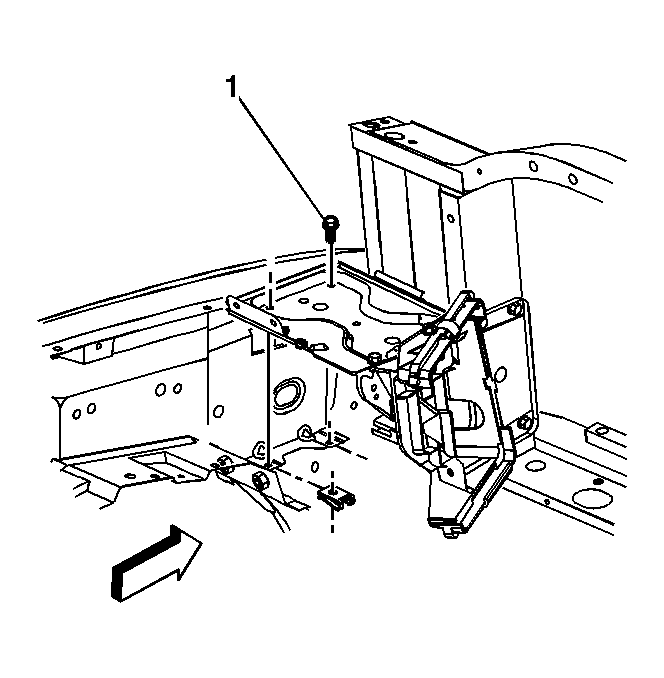

Fig 2: View Of Fender Inner Panel Bolts

GM847278

Courtesy of GENERAL MOTORS CORP.

Install the bolts (1) to the fender inner panel until snug.

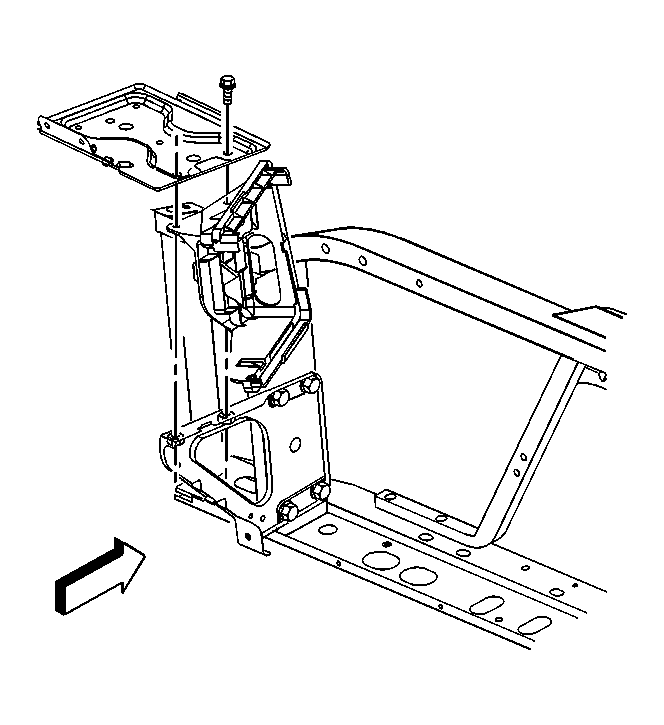

Fig 3: View Of Battery Tray Support & Bolts

GM662962

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices

Install the bolts to the battery tray support until snug.
Tighten the battery tray bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
Install the battery. Refer to Battery Replacement .
