Installation Procedure

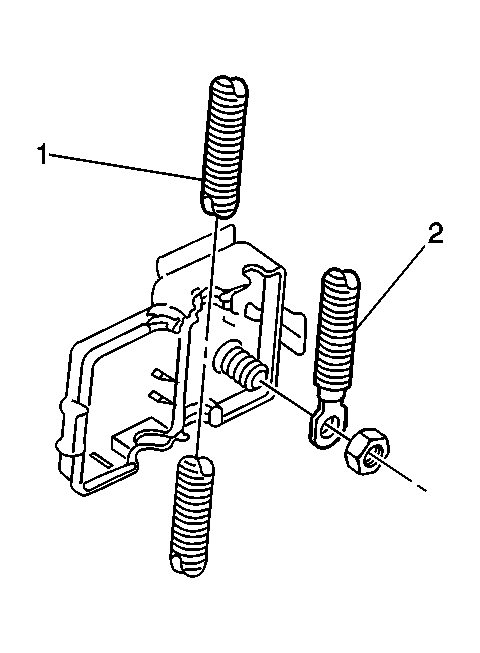

    Fig 1: View Of Battery Cables At Junction Block
    GM662521Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the generator cable (2) to the junction block.
  2. Install the generator cable nut.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  3. Close the positive cable junction block.

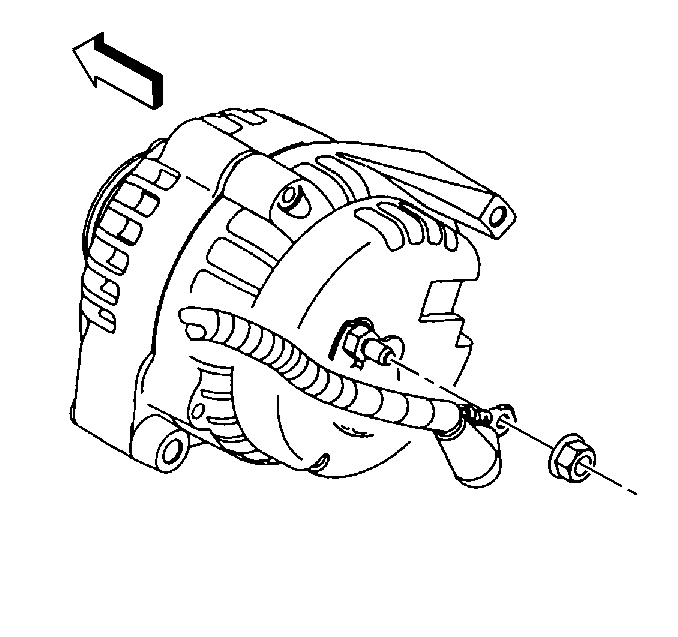

    4. Fig 2: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS CORP.
  4. Install the generator cable to the generator, perform the following:
    1. Install the generator cable to the stud.
    2. Install the generator cable nut.

      Tighten:  Tighten the nut to 9 N.m (80 lb in).

    3. Position the boot to cover the stud.
  5. If necessary, install the engine sight shield. Refer to Engine Sight Shield Replacement (4.8L, 5.3L, and 6.0L (RPO LQ4)) or Engine Sight Shield Replacement (6.0L (RPO LQ9)) in Engine Mechanical - 4.8L, 5.3L, and 6.0L, or Engine Sight Shield Replacement in Engine Mechanical - 8.1L.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
