Keyless Entry Component Views

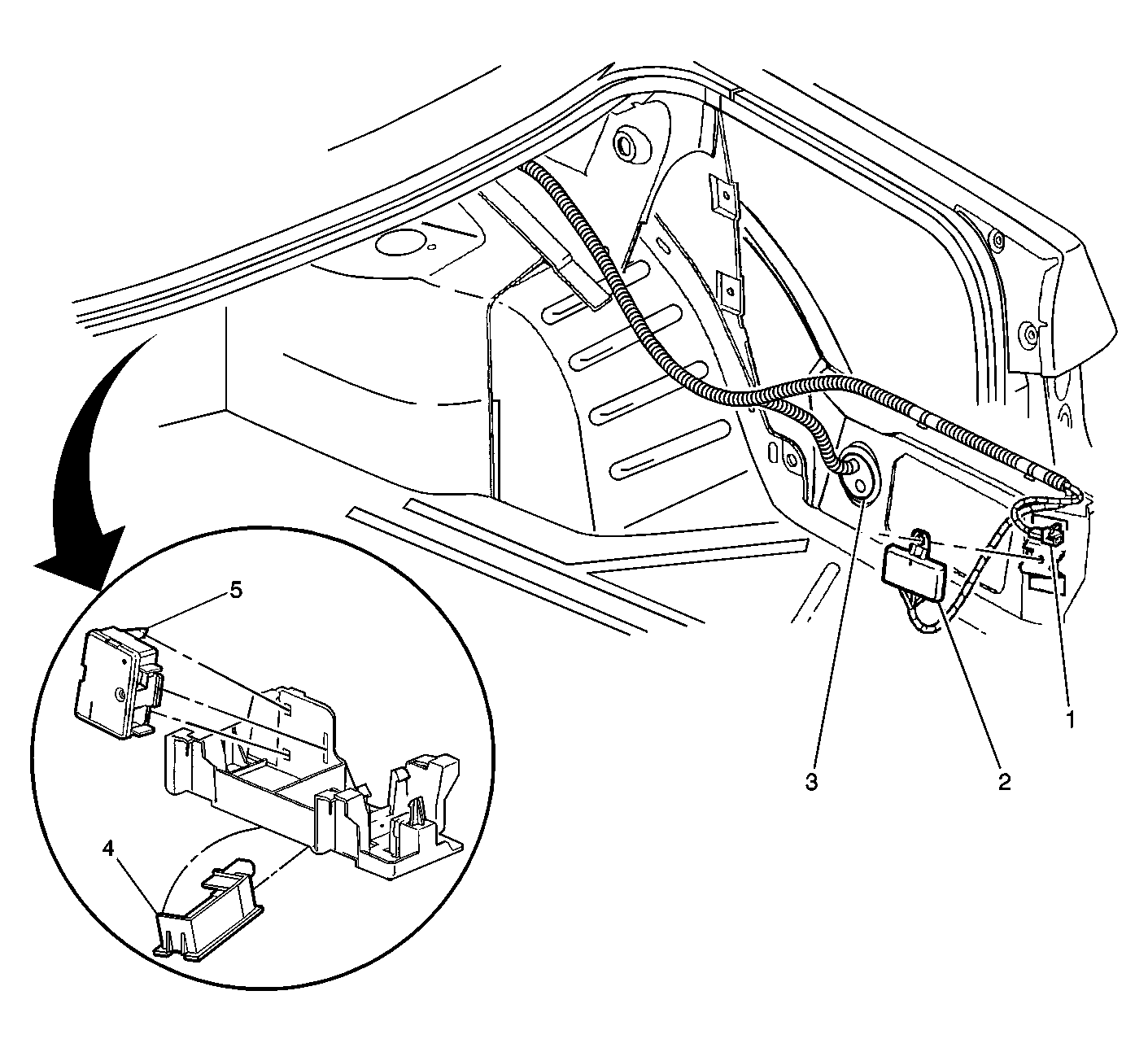

Fig 1: RCDLR, Rear Comp Lamp, C403, G401, and P400 Component View
GM154461Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C403
2 G401
3 P400
4 Rear Compartment Lamp
5 Remote Control Door Lock Receiver (RCDLR)
