Installation Procedure

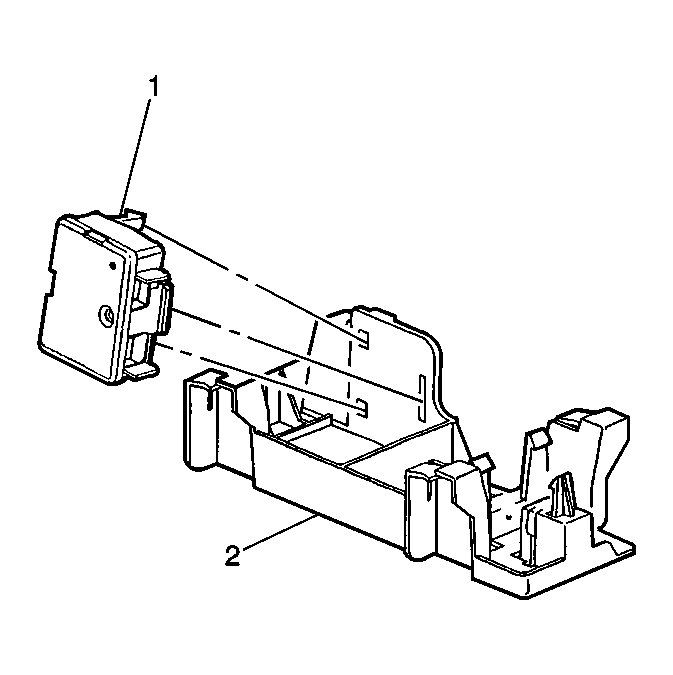

- Install the remote control door lock receiver (1) to the bracket (2).
- Connect the electrical connectors.
- Install bracket to rear shelf.
- Install rear storage compartment trim. Refer to Compartment Trim Panel Replacement - Rear in Body Rear End.
- Program the transmitters to the receiver. Refer to Transmitter Programming .
