Removal Procedure

IMPORTANT: Replace the battery when the range of the transmitter decreases to less than 7 m (23 ft).

Fig 1: Opening Transmitter Case

Courtesy of GENERAL MOTORS CORP.

Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
Twist the coin in order to open the case.
Open the transmitter case.

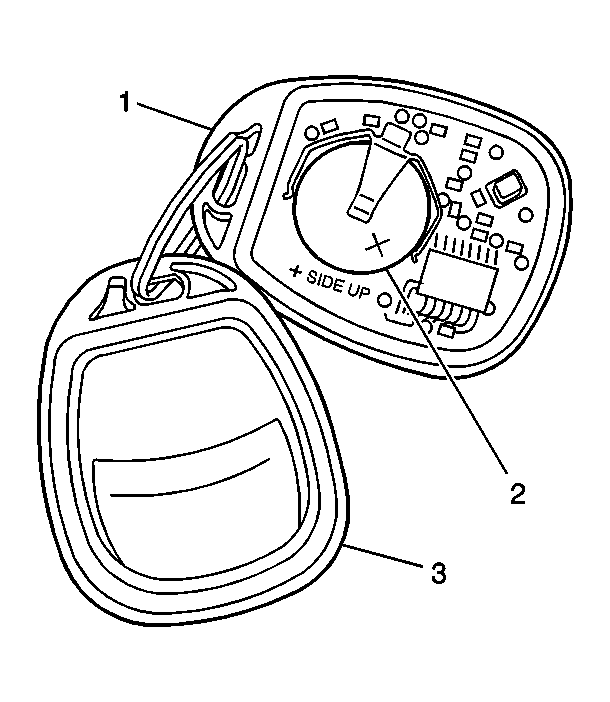

Fig 2: Identifying Transmitter Case Battery

Courtesy of GENERAL MOTORS CORP.
