Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

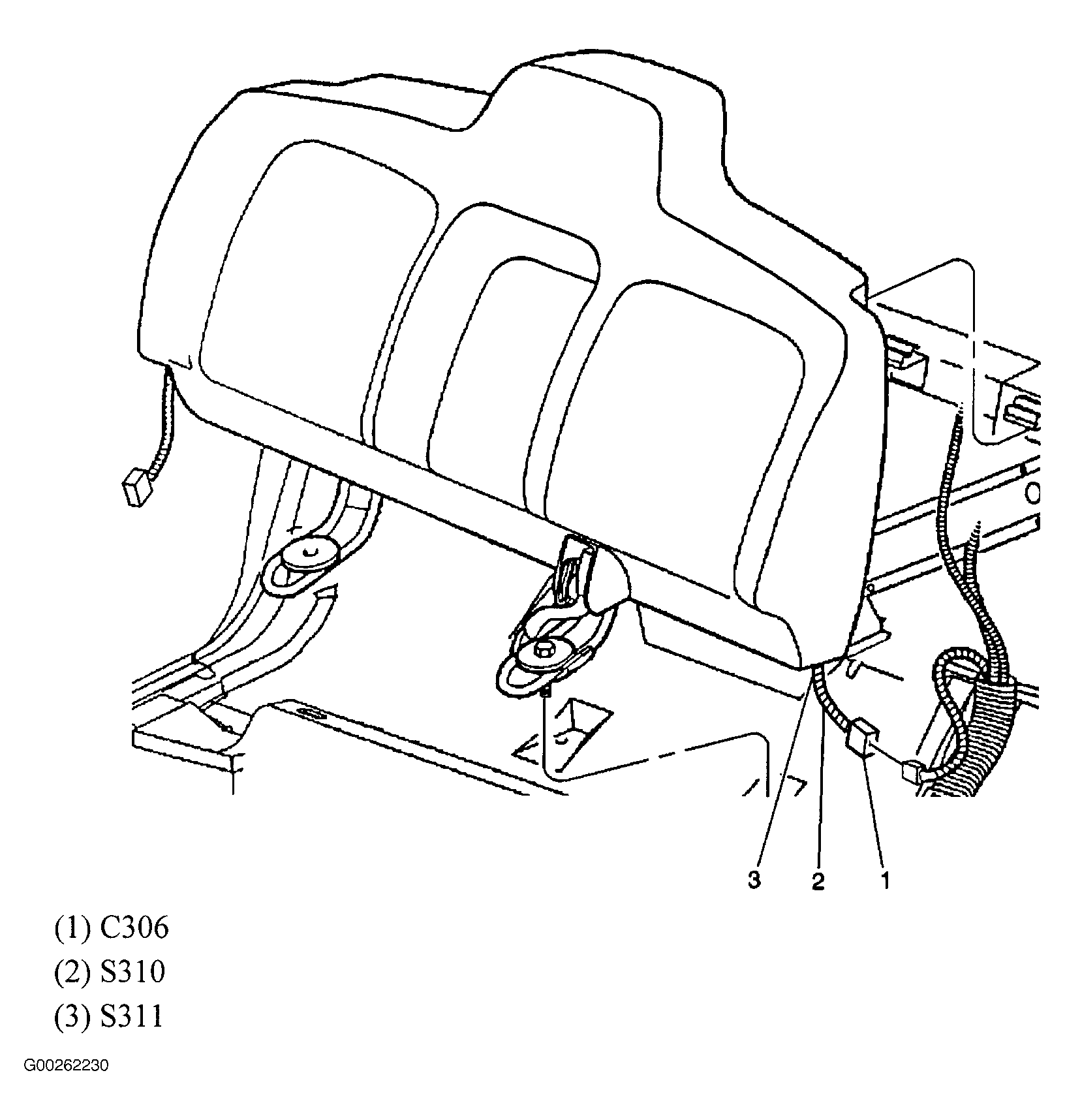

Fig 1: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 2: Roof Overview
Courtesy of GENERAL MOTORS CORP.

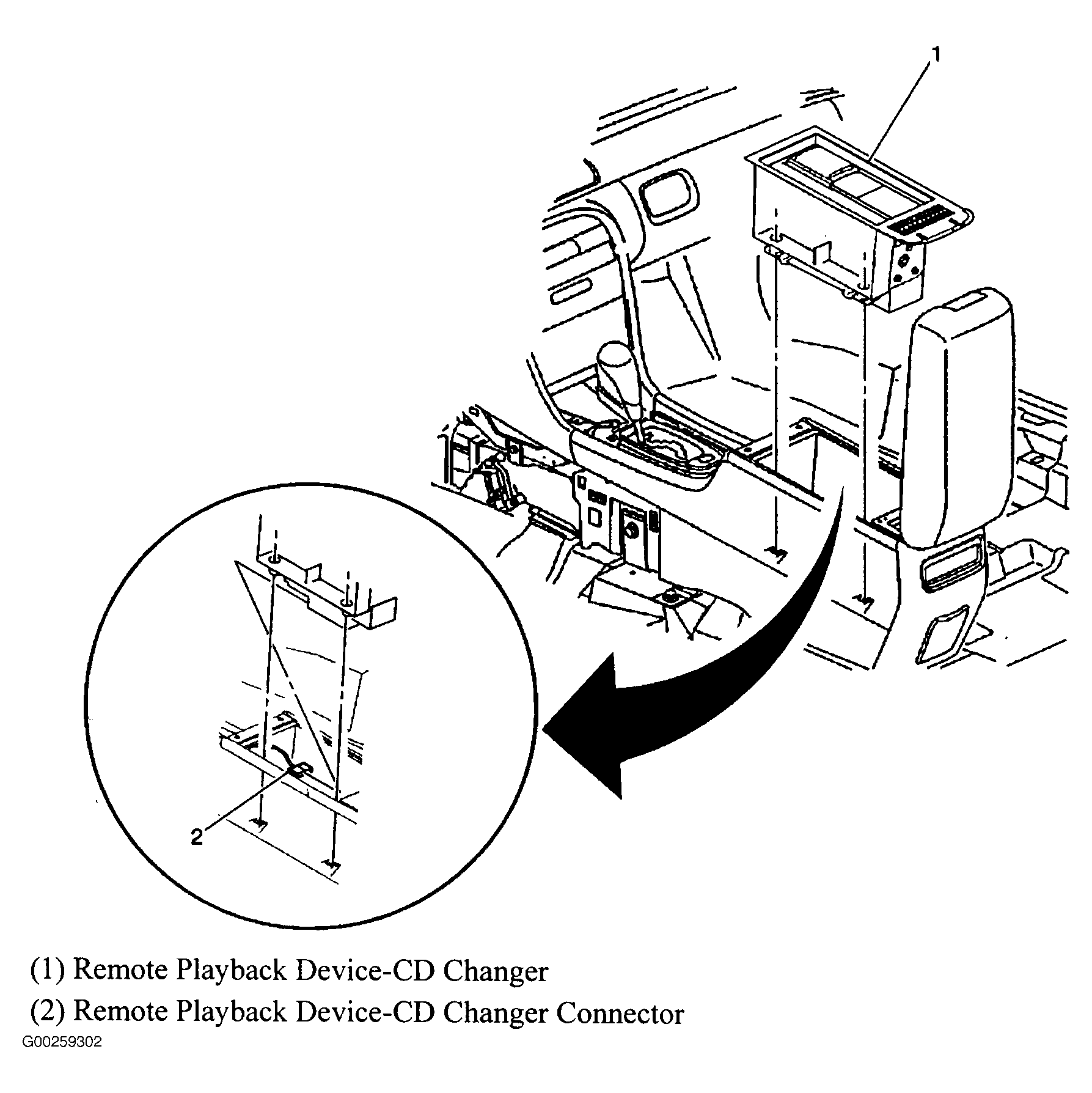

Fig 3: Center Console
Courtesy of GENERAL MOTORS CORP.

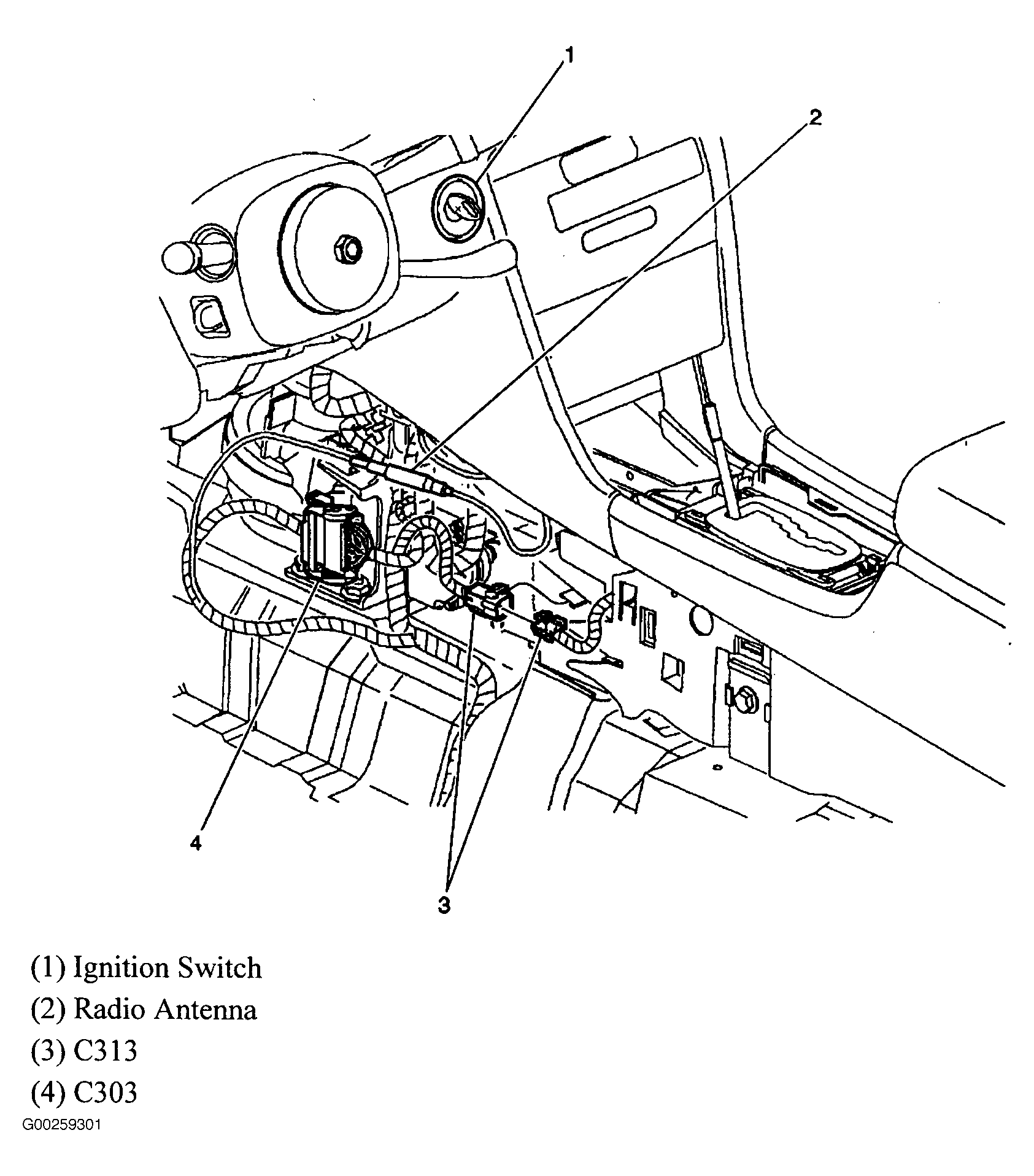

Fig 4: Below Center Of Dash
Courtesy of GENERAL MOTORS CORP.

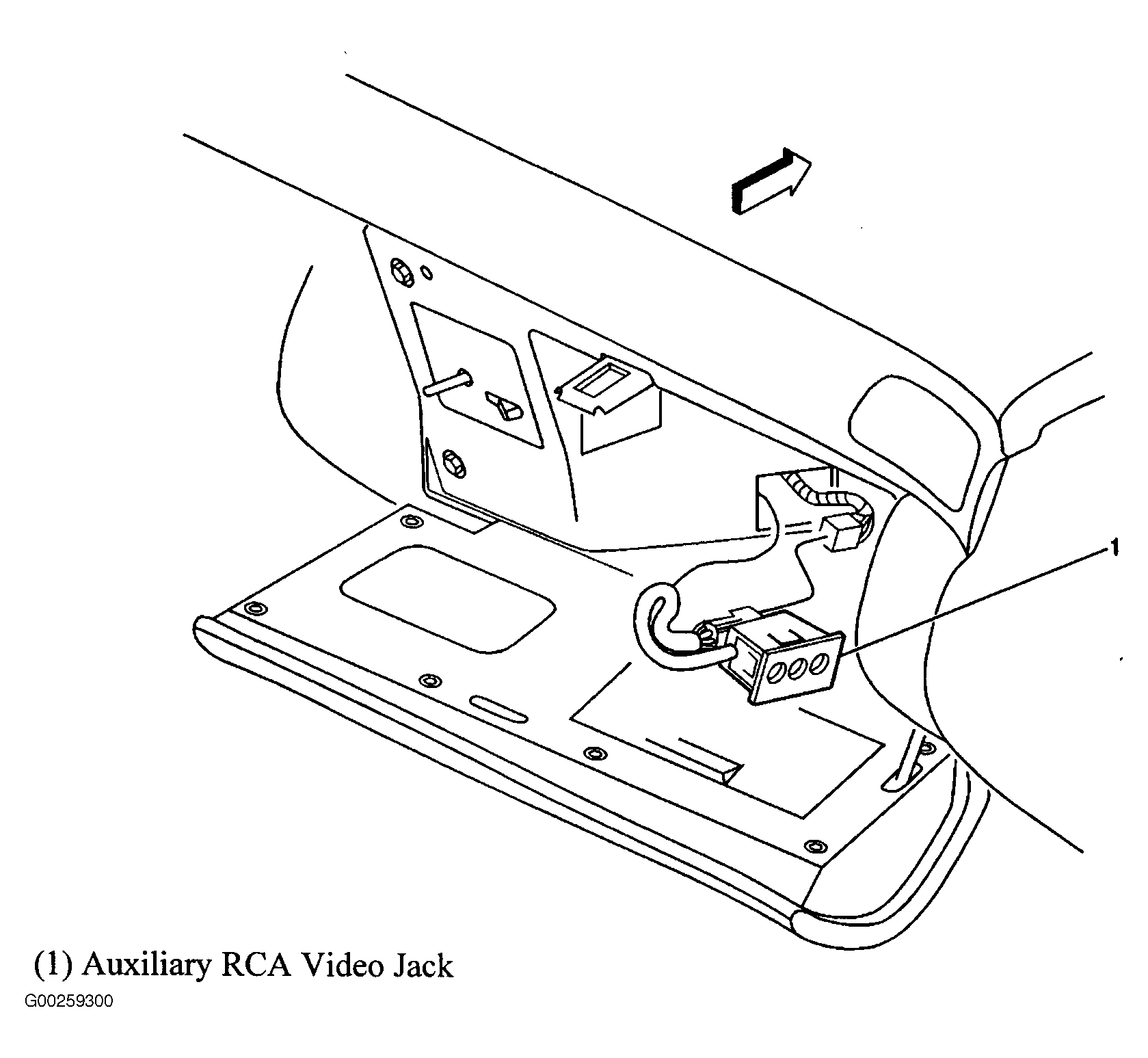

Fig 5: In Dash Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 7: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Cruise Control System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 9: Behind Rear Seat Back
Courtesy of GENERAL MOTORS CORP.

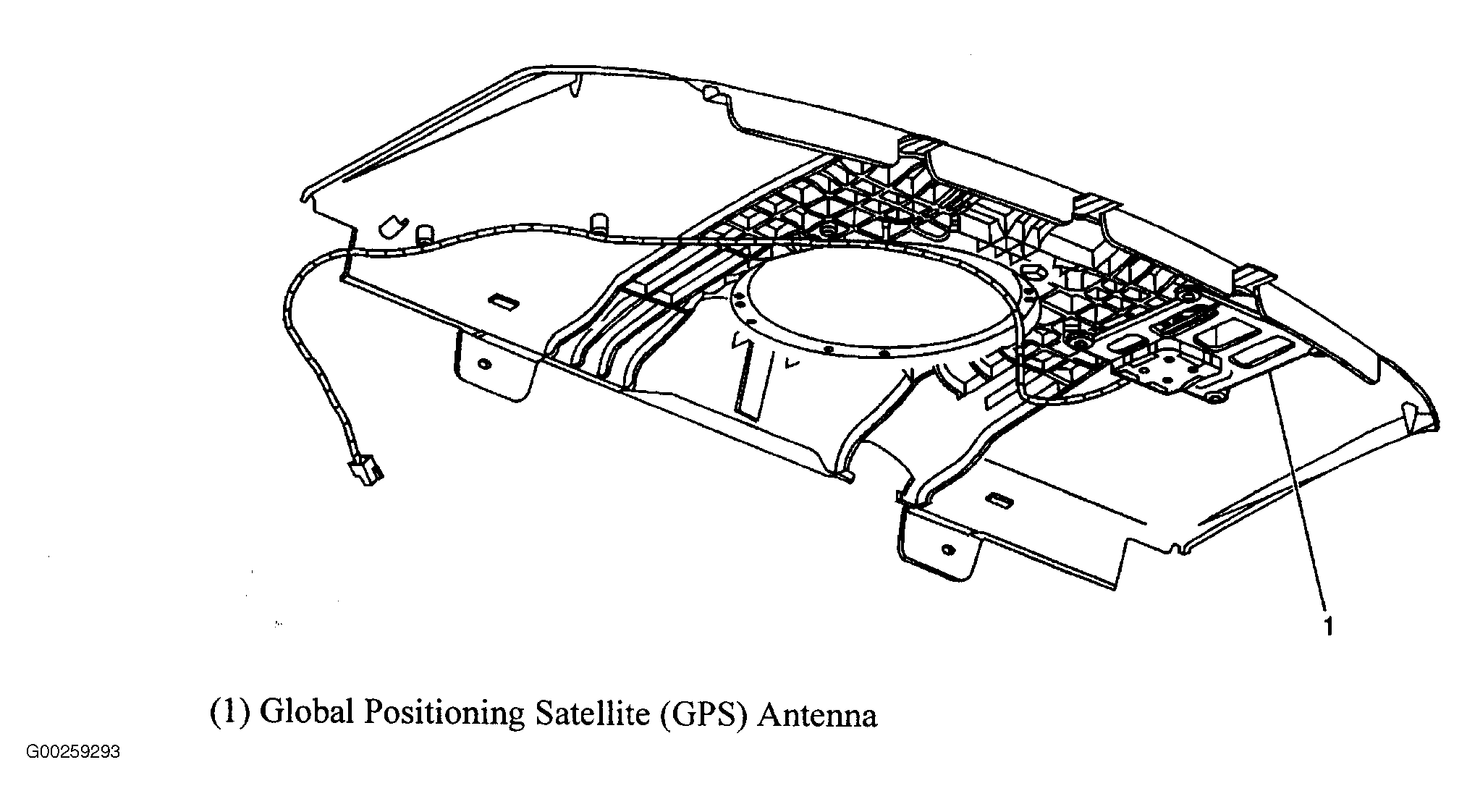

Fig 10: Below Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

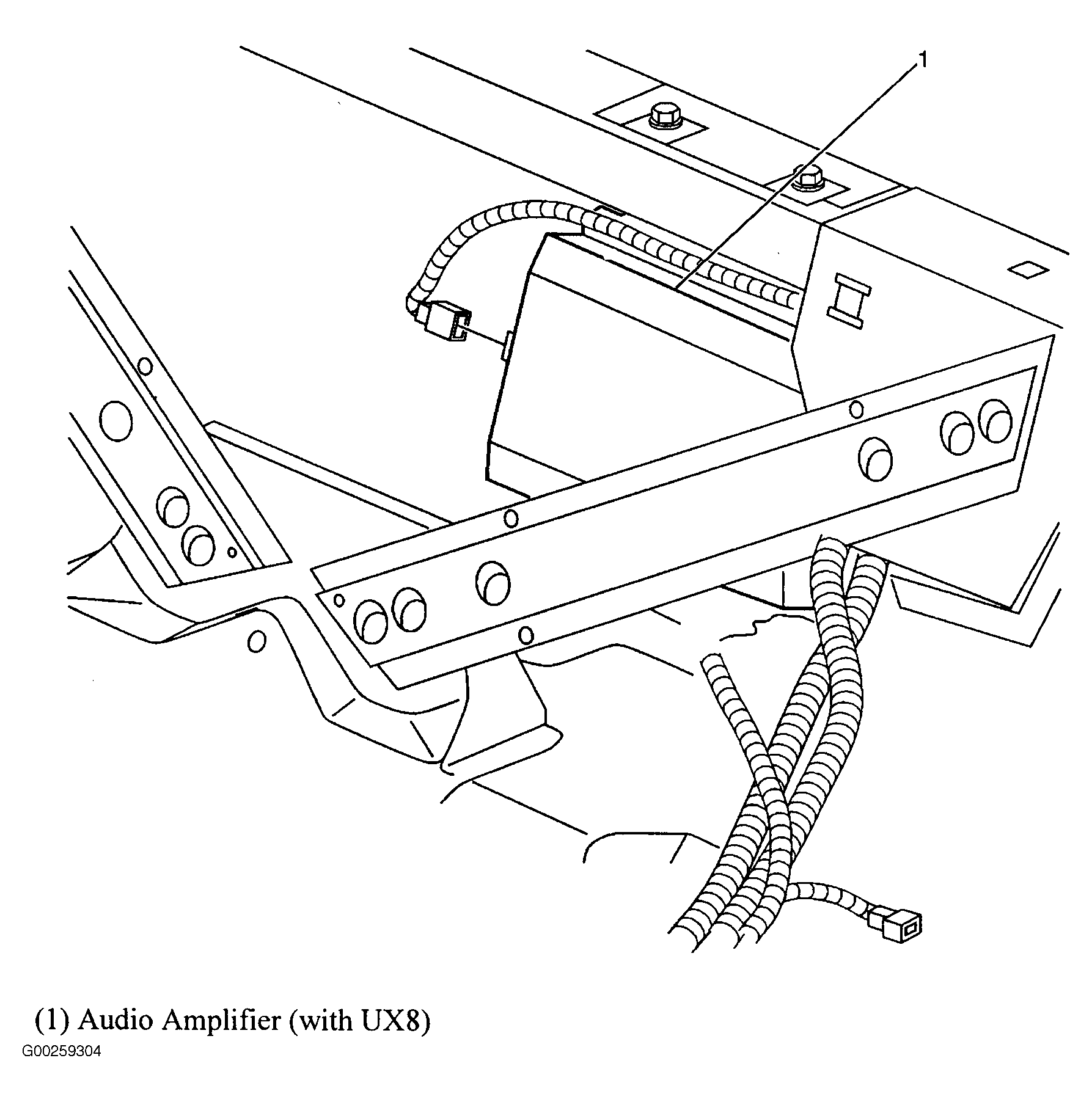

Fig 11: Below Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 12: SIR System Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 13: SIR System Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

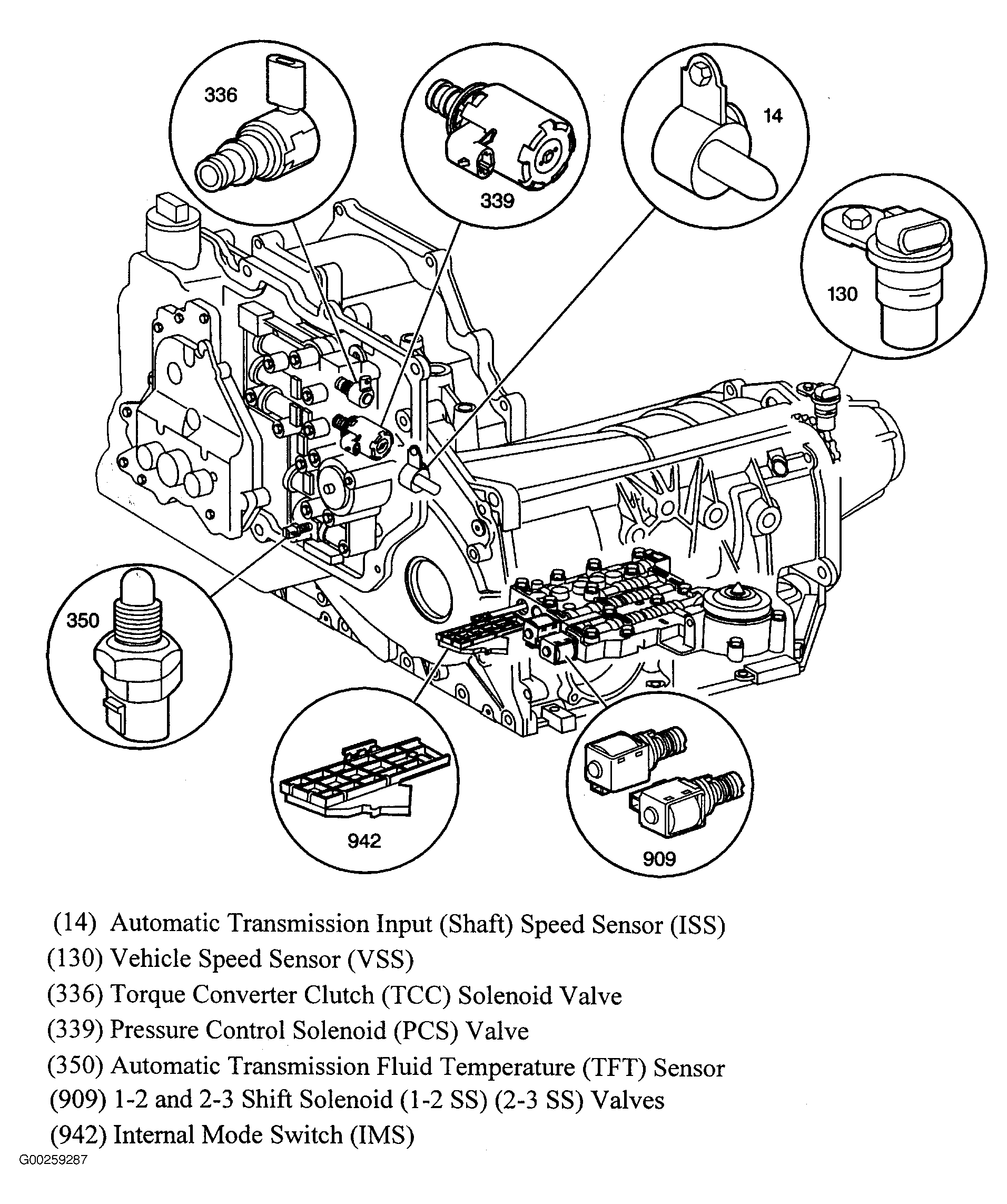

Fig 14: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

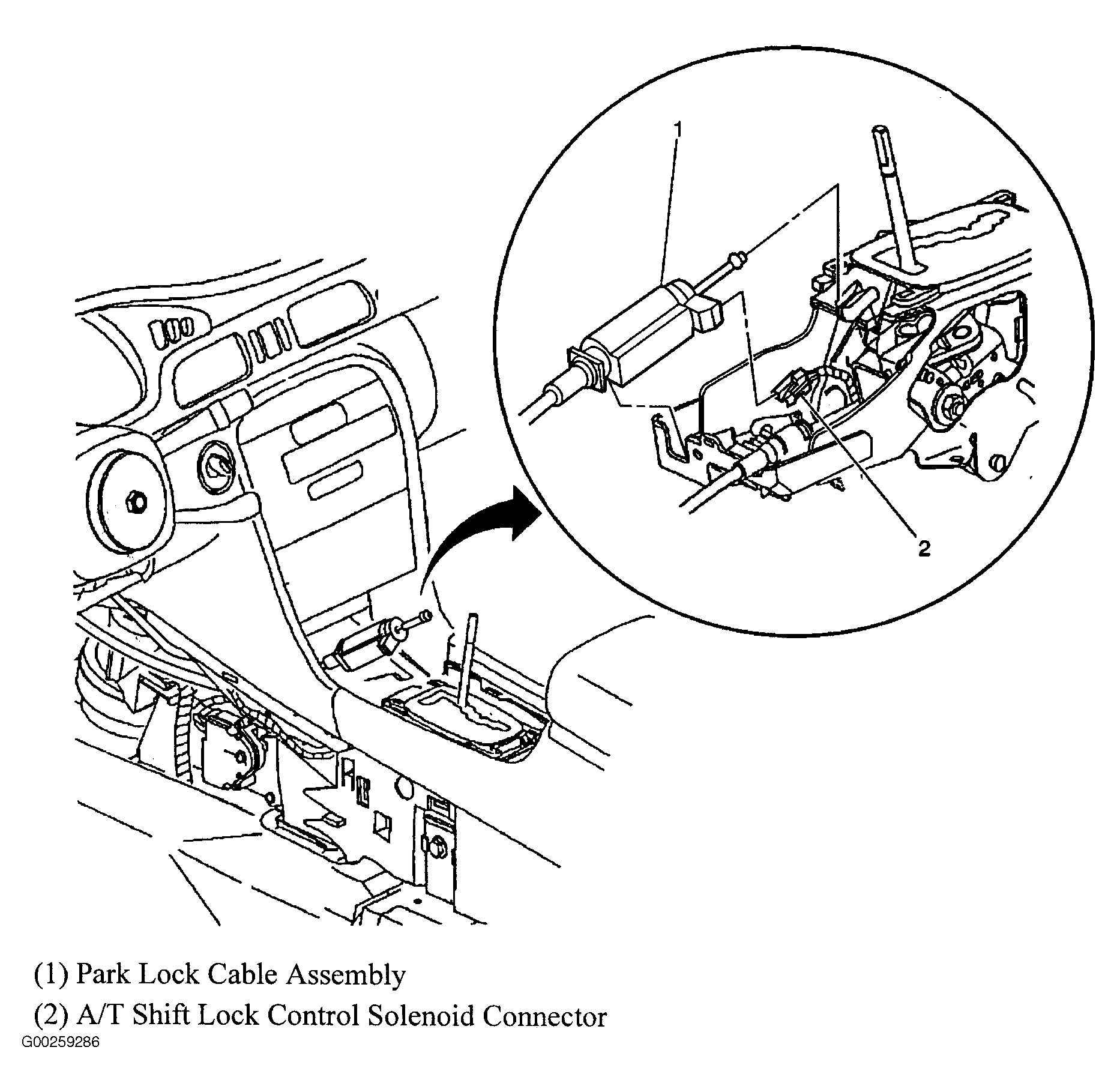

Fig 15: Beneath Center Console
Courtesy of GENERAL MOTORS CORP.

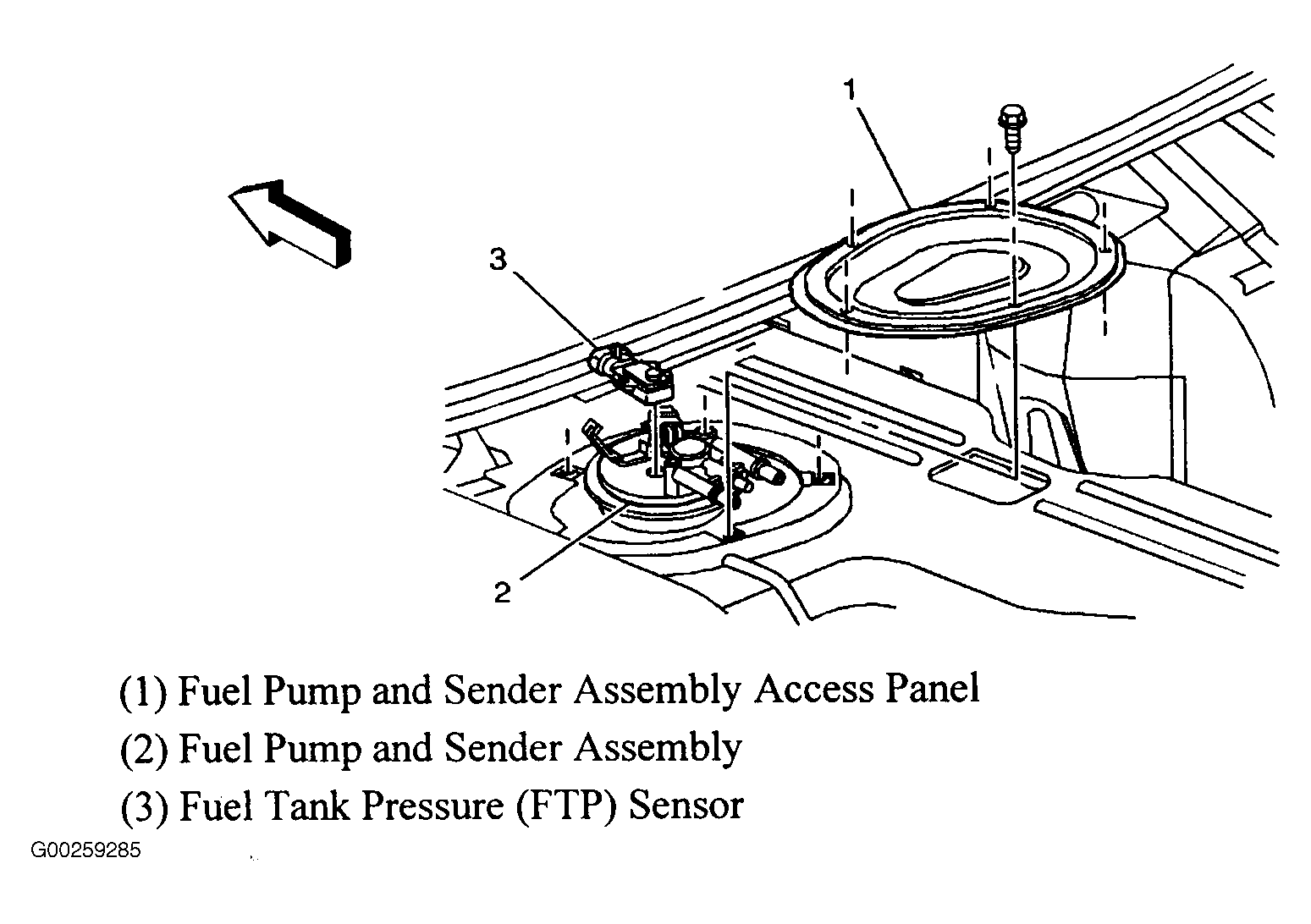

Fig 16: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.

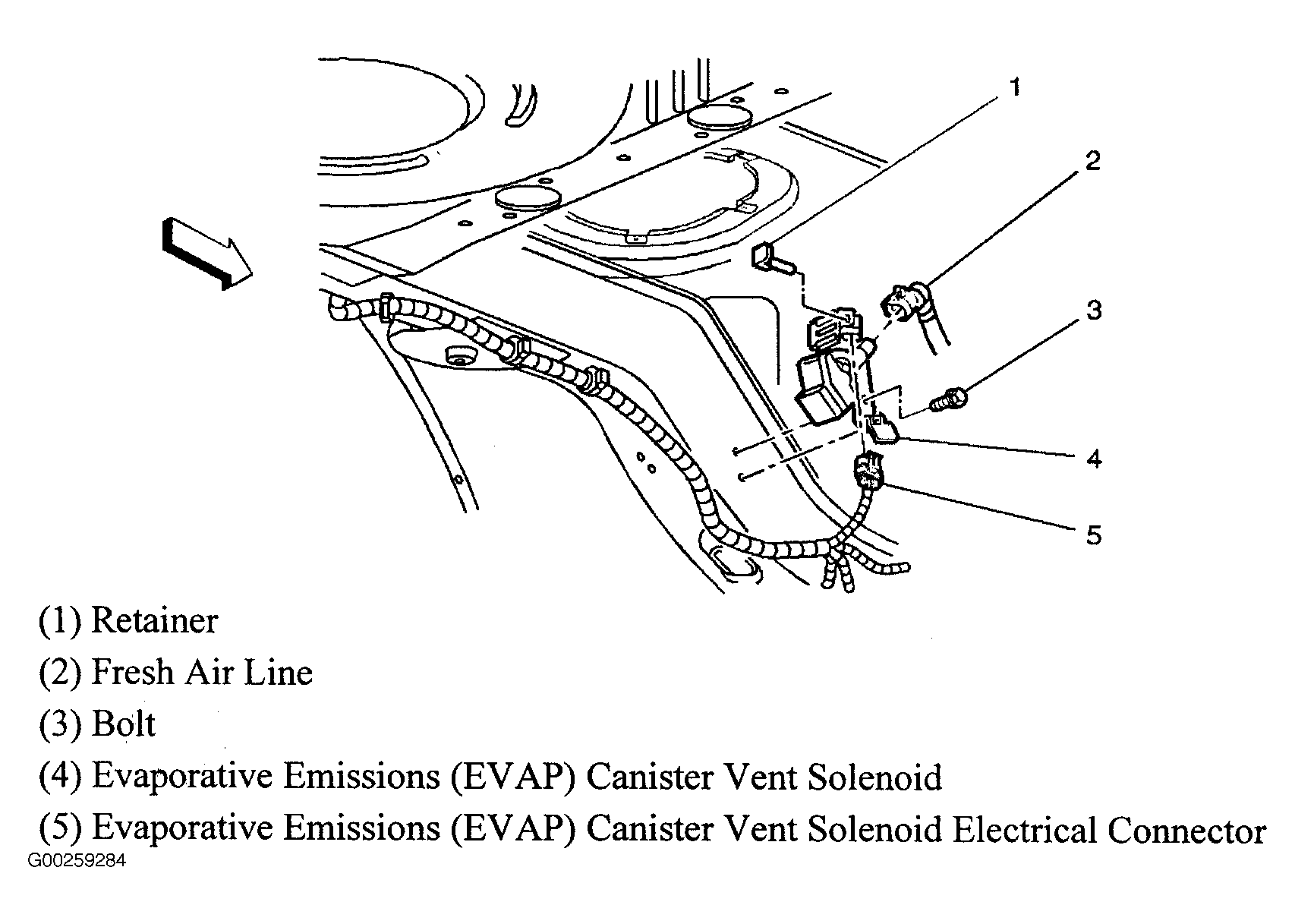

Fig 17: Near Left Rear Wheel
Courtesy of GENERAL MOTORS CORP.

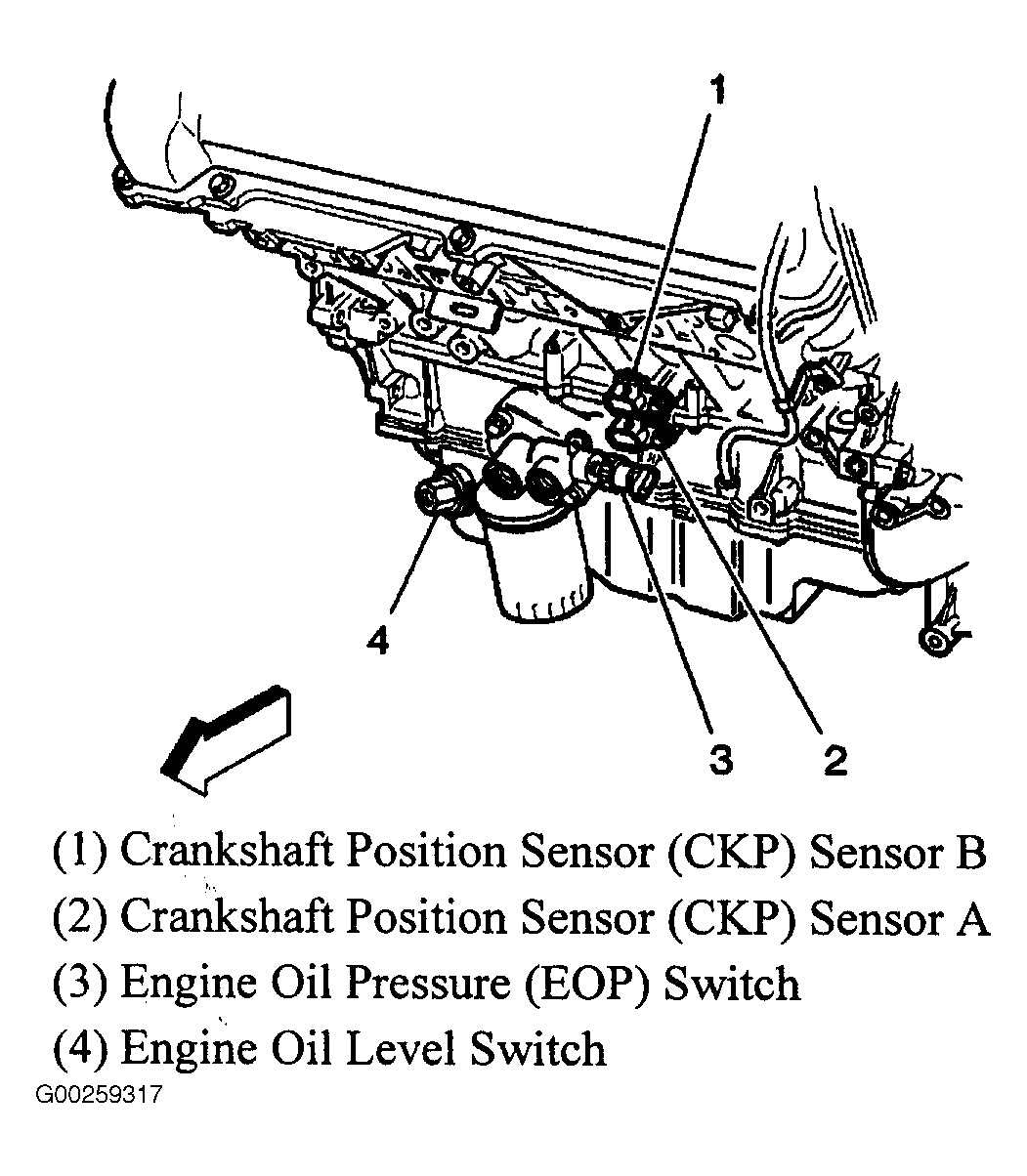

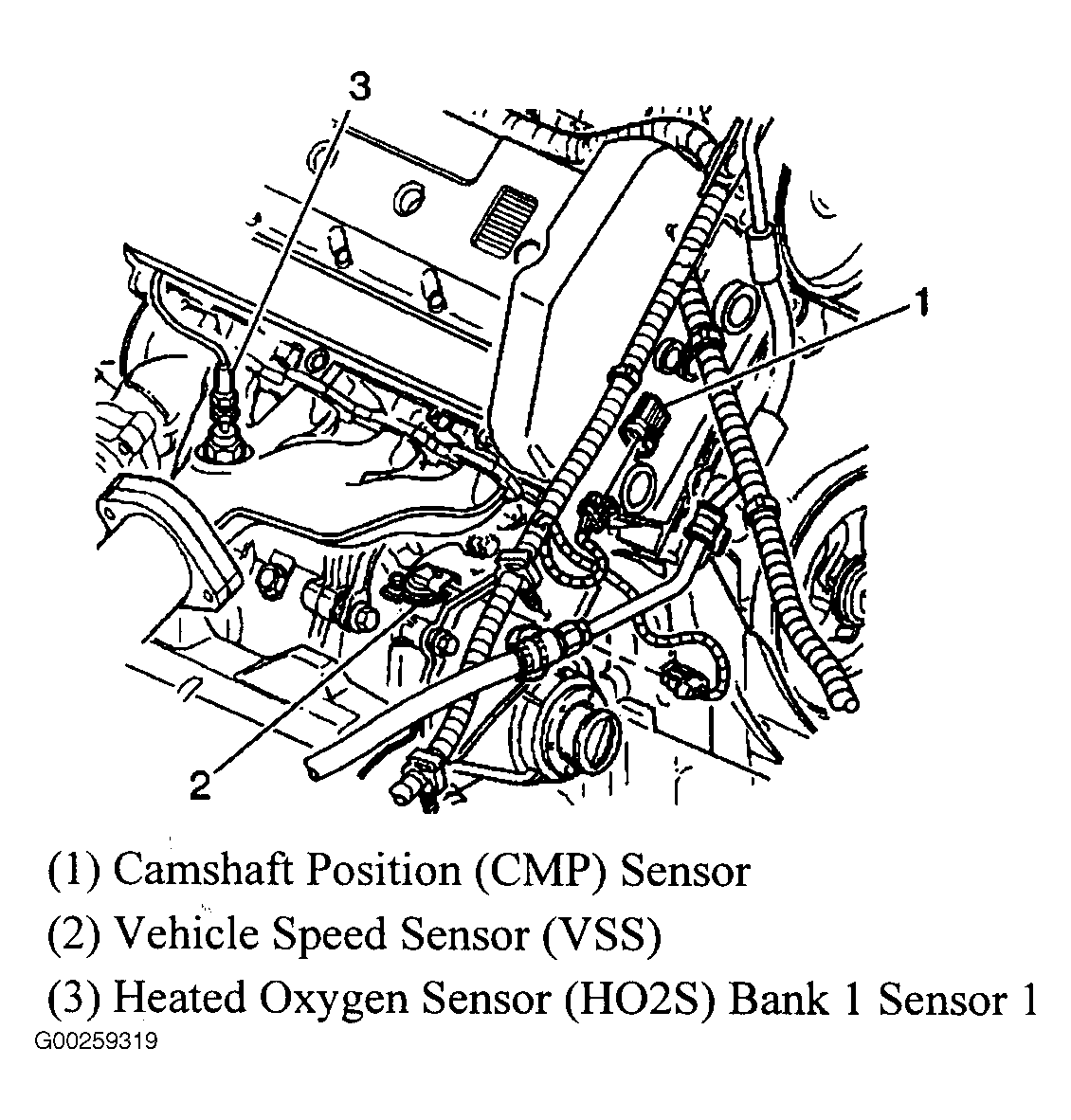

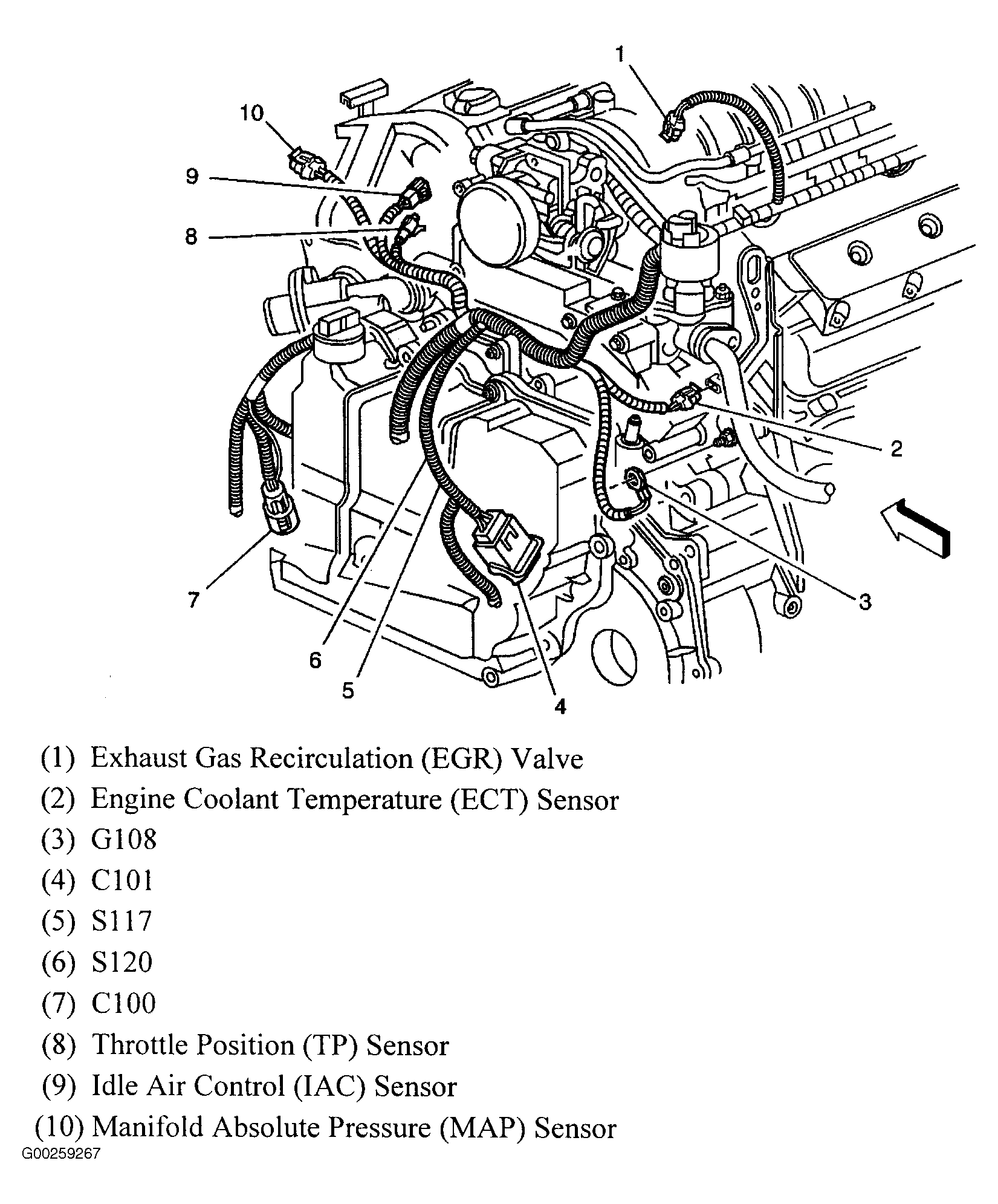

Fig 18: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

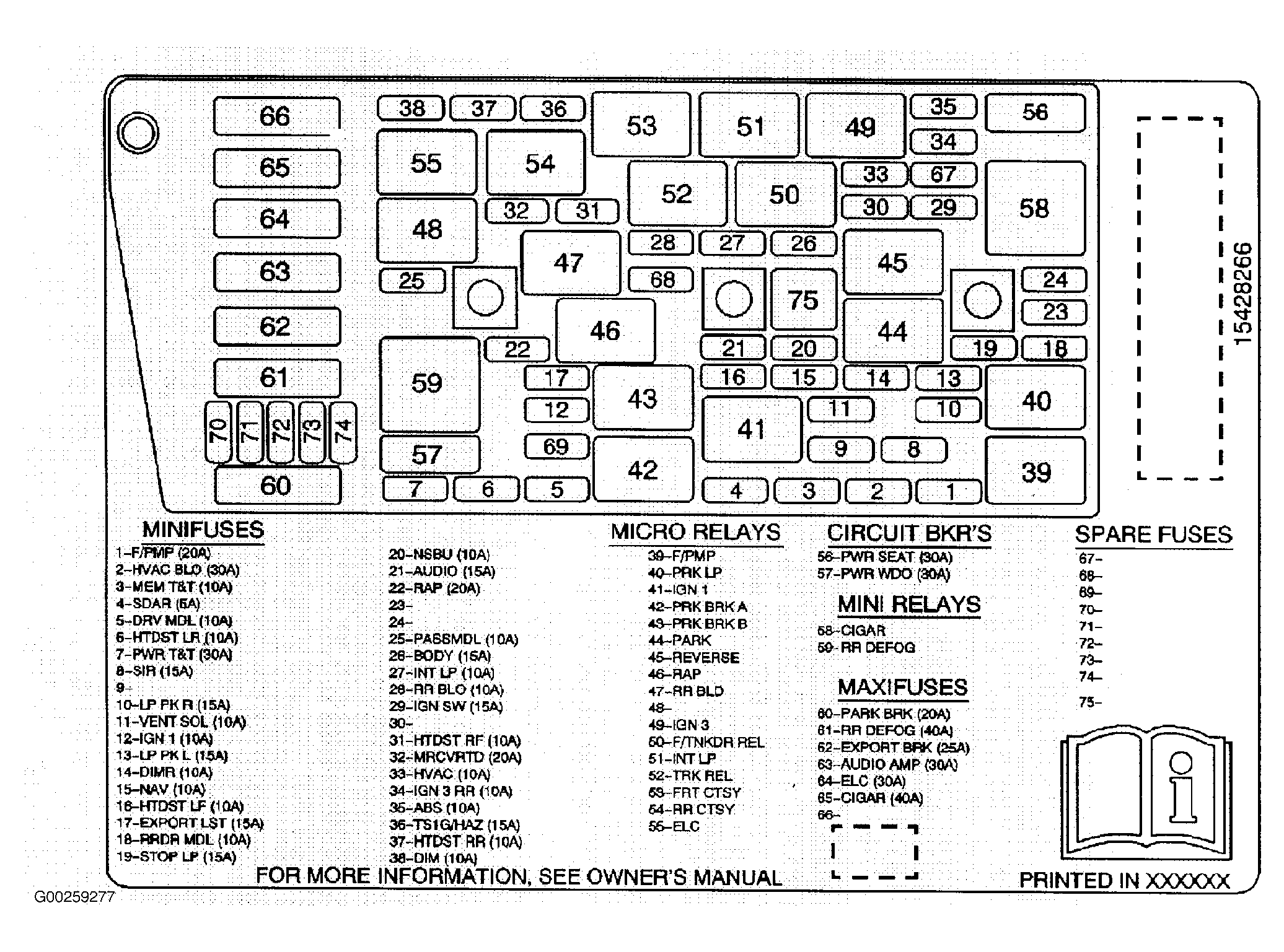

Fig 19: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

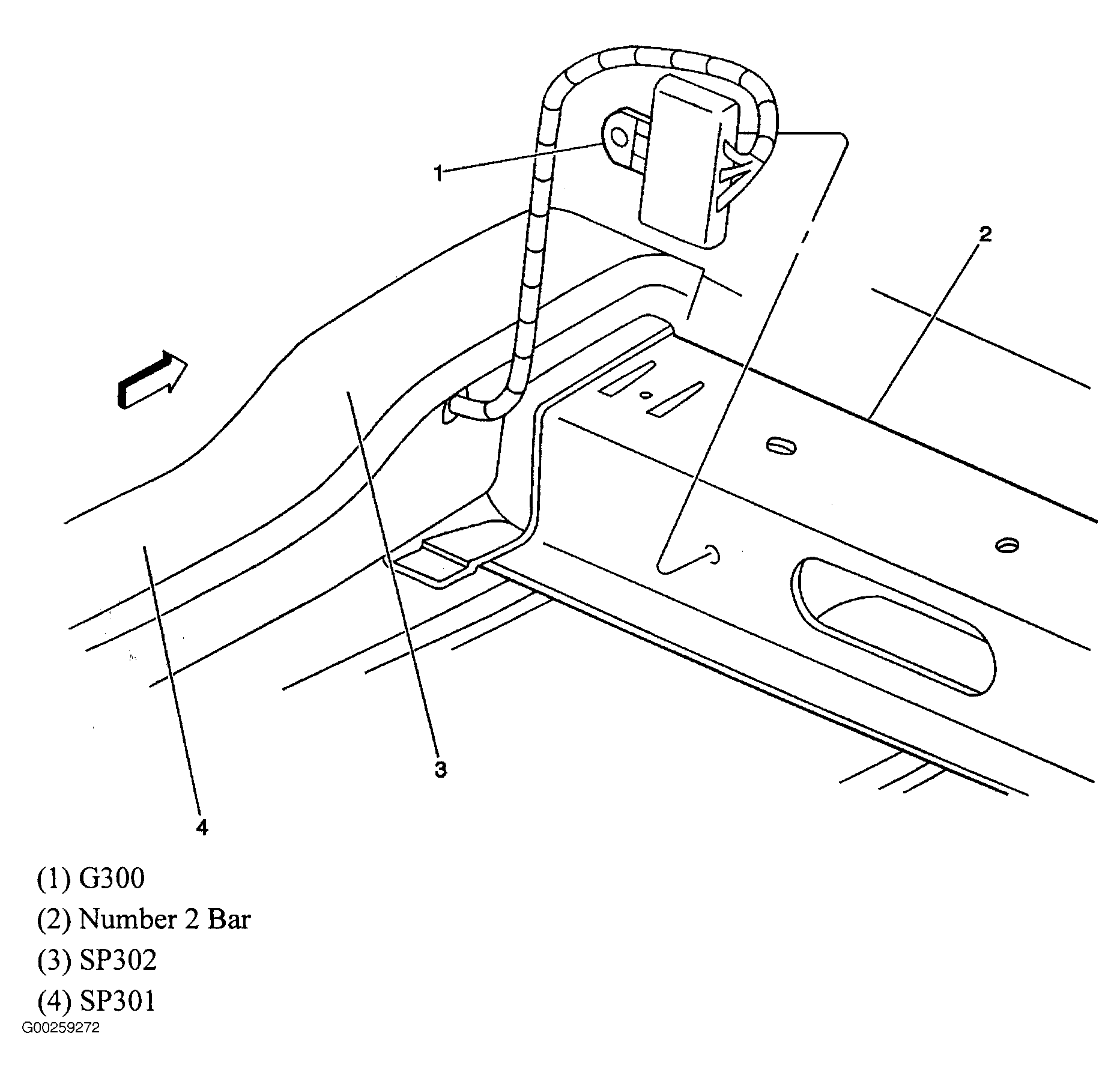

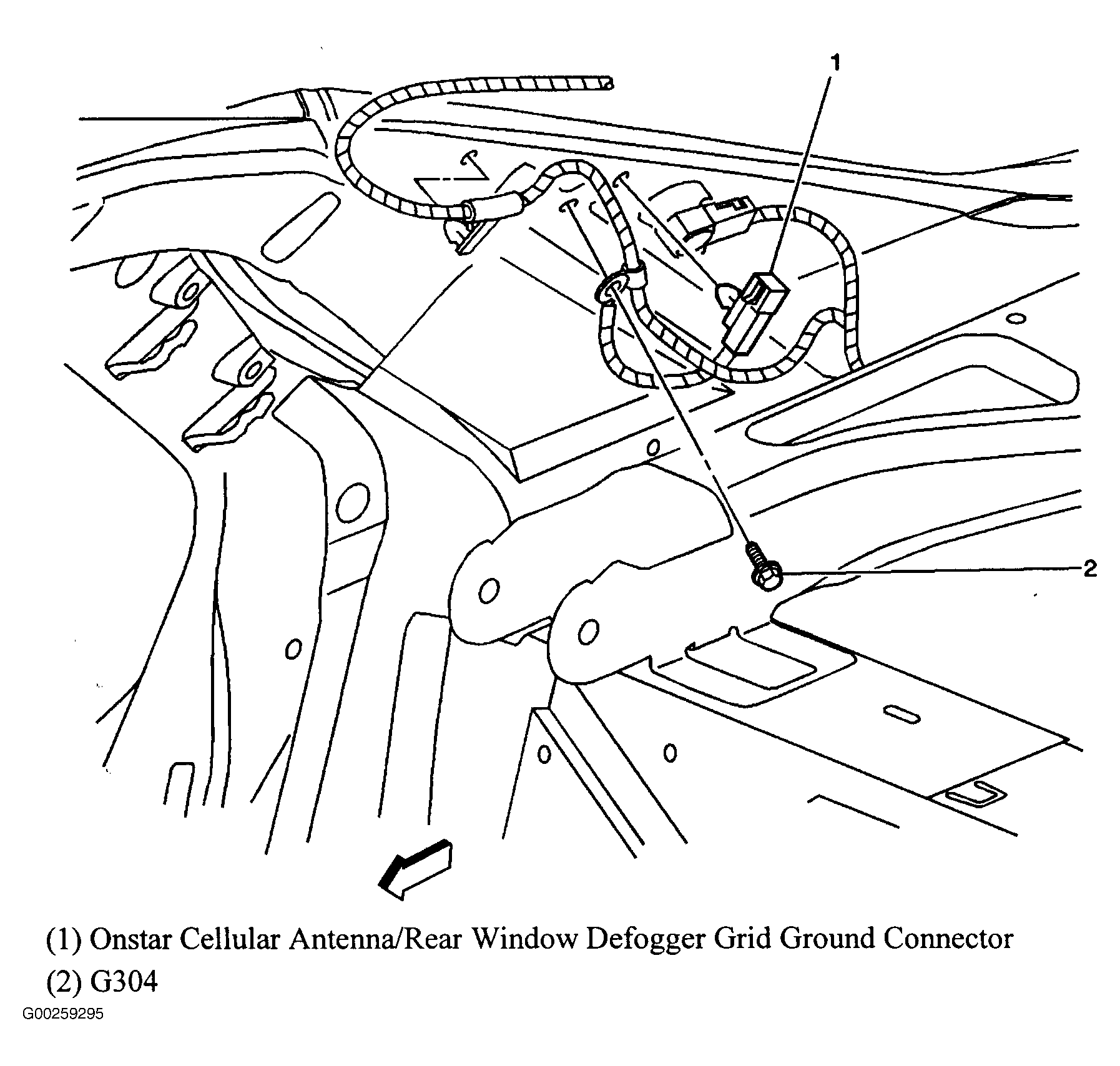

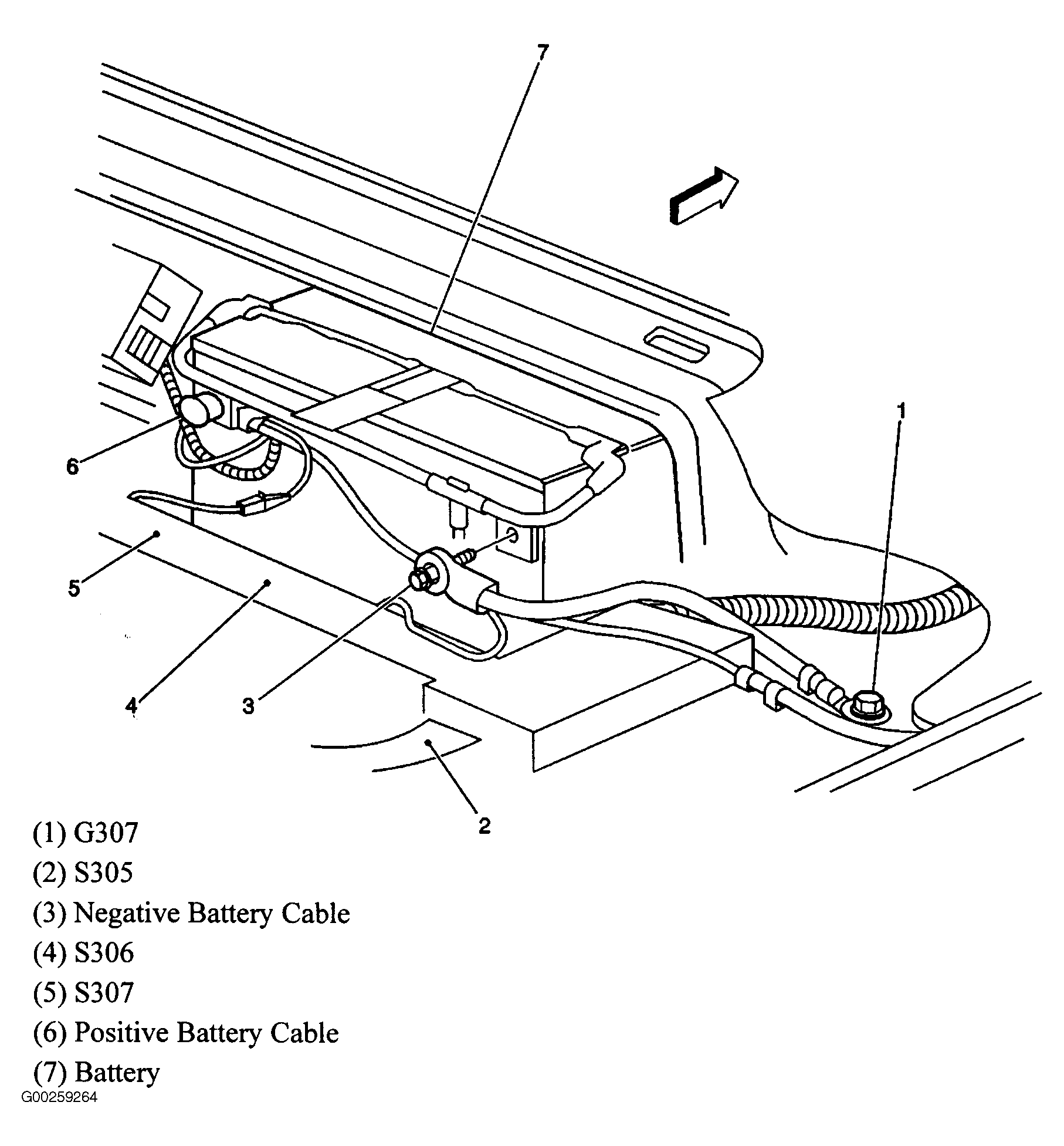

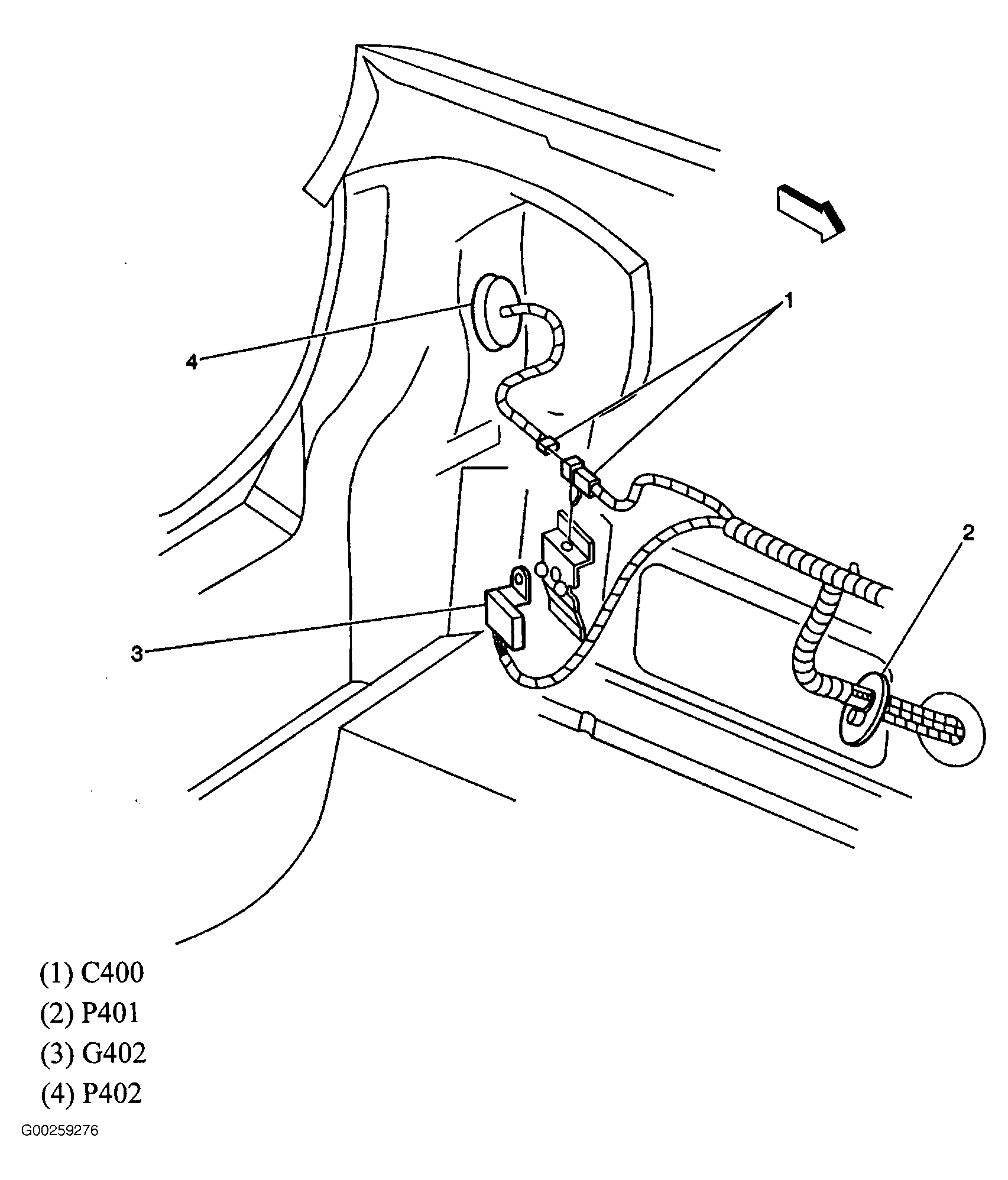

Fig 20: Left Rear Corner Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

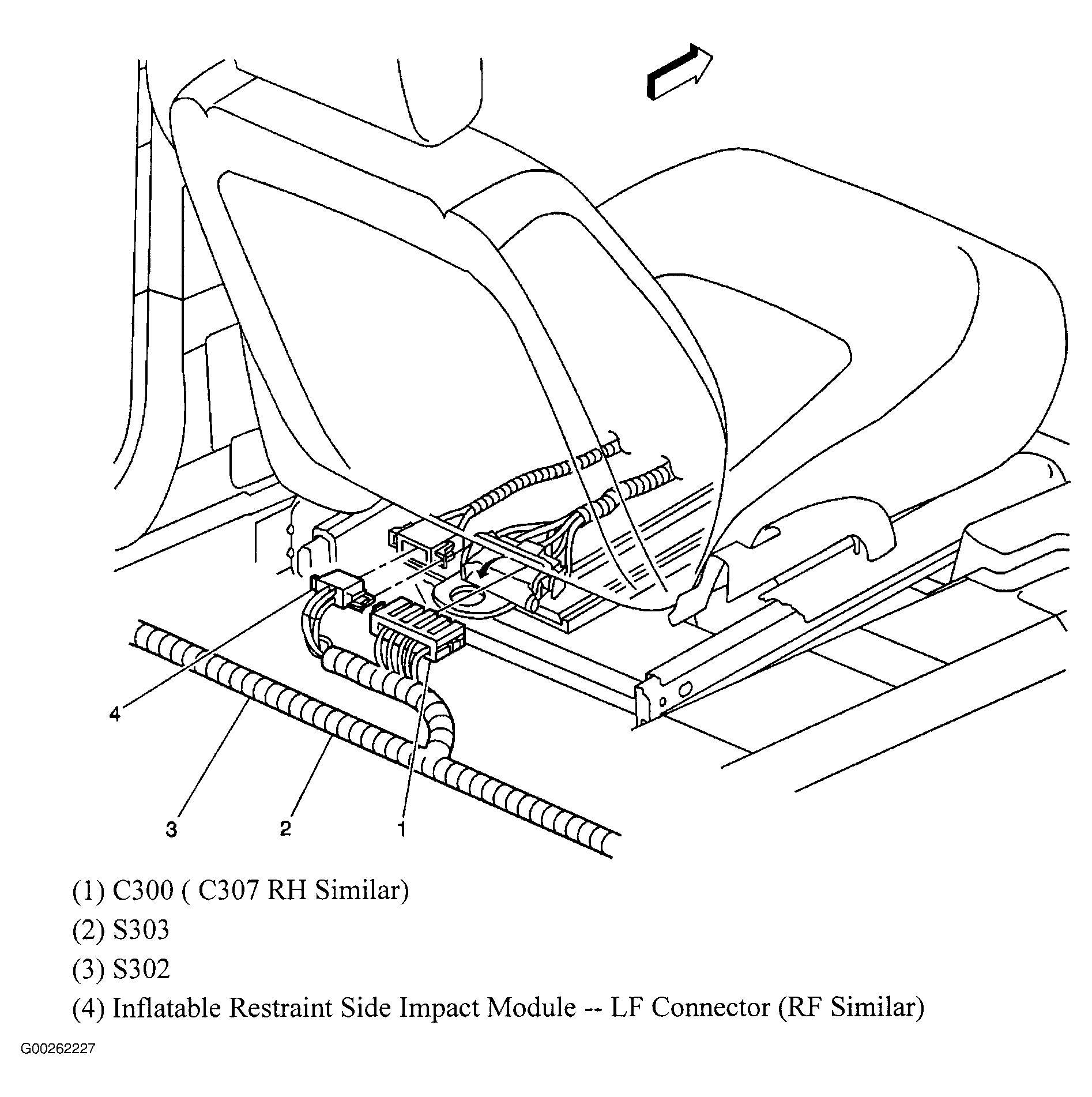

Fig 22: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.

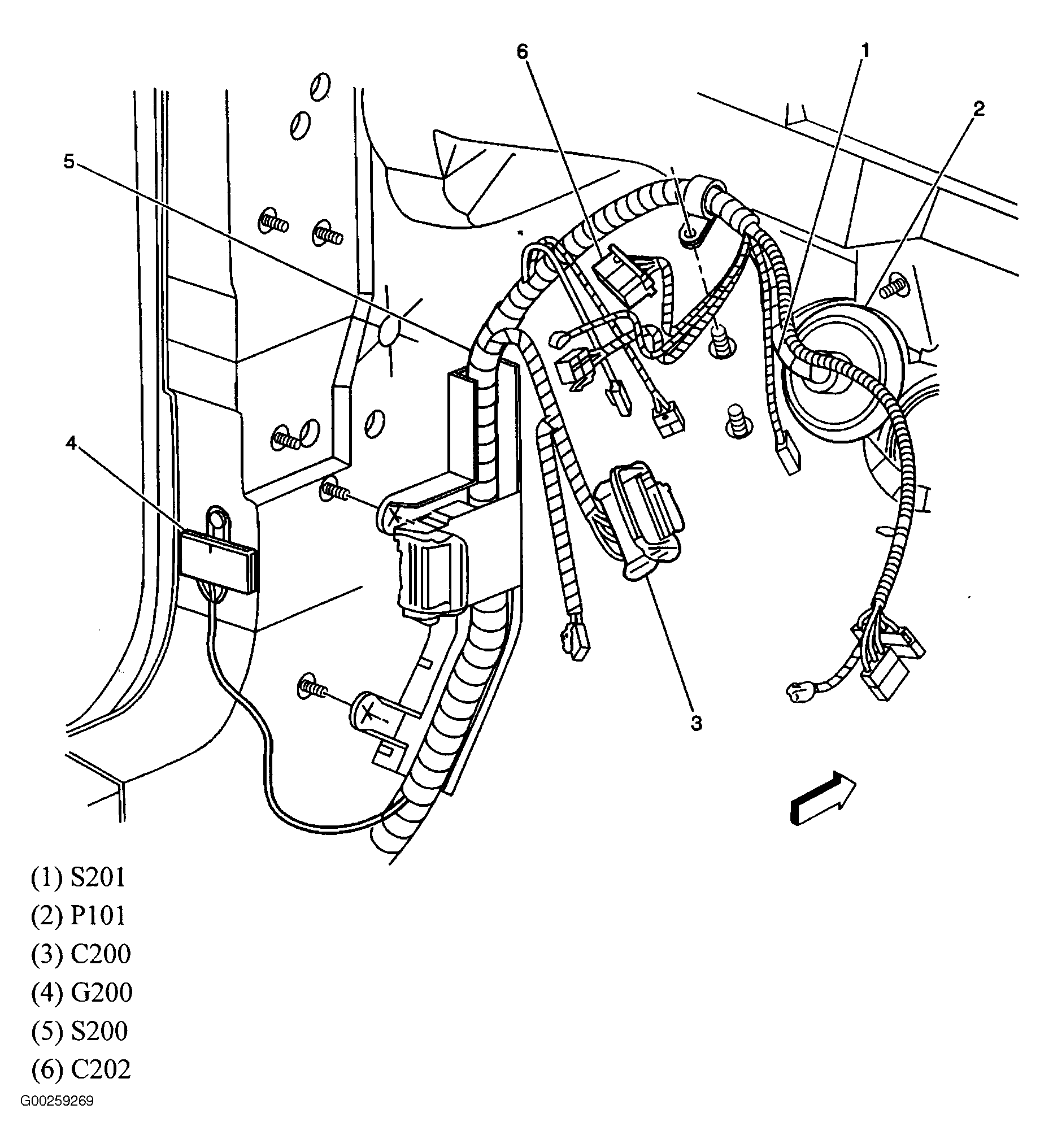

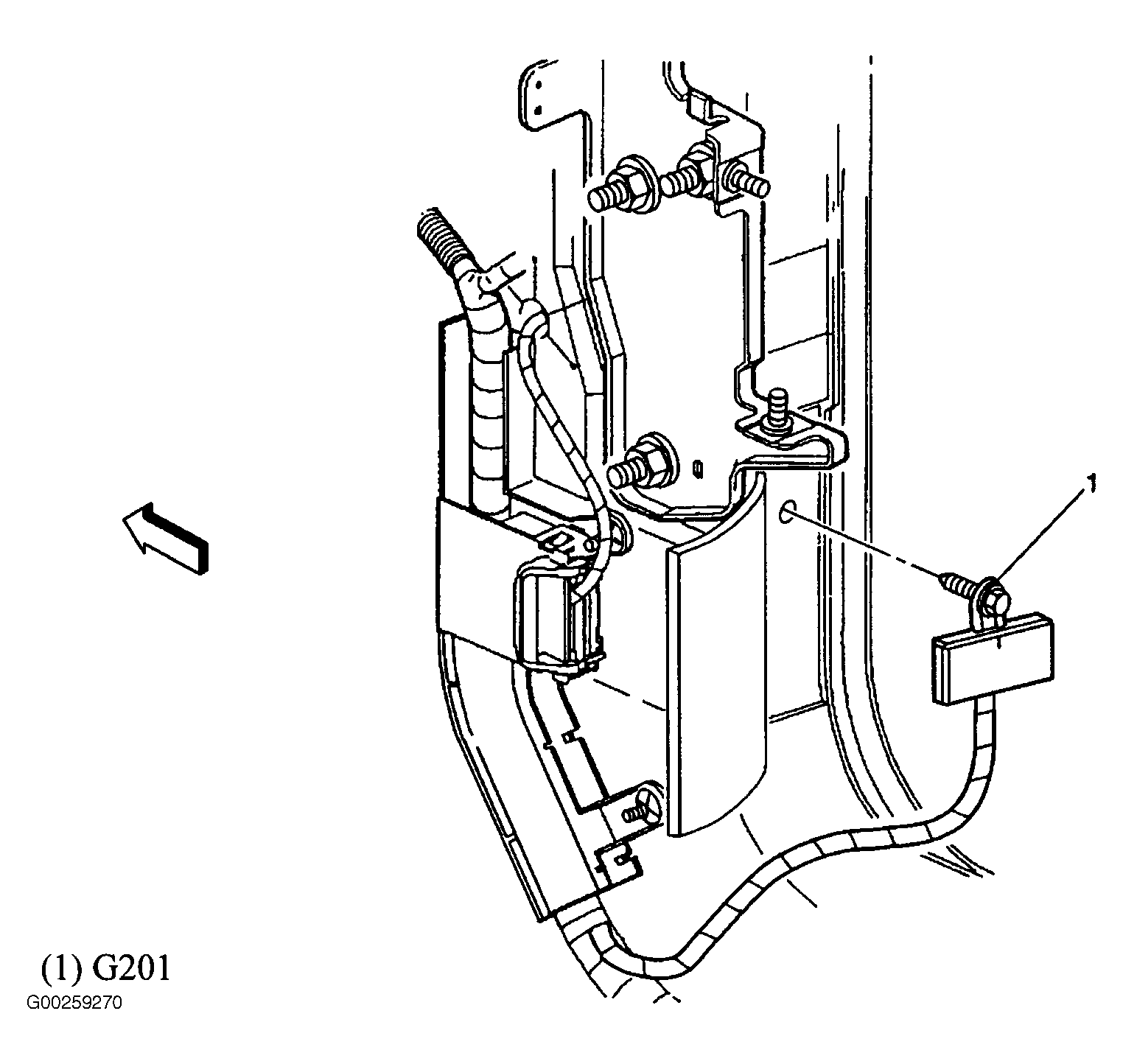

Fig 23: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.

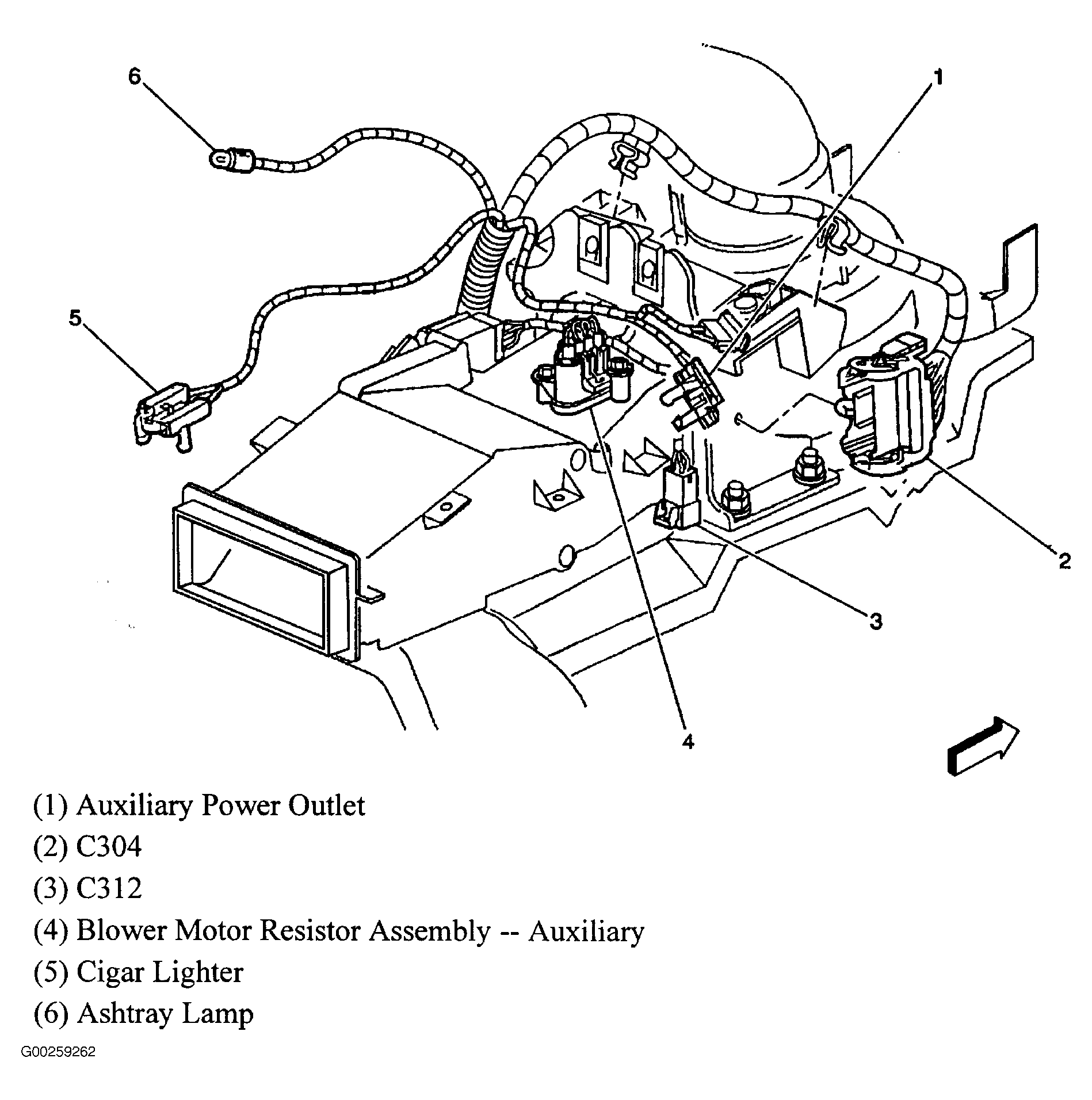

Fig 24: Below Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

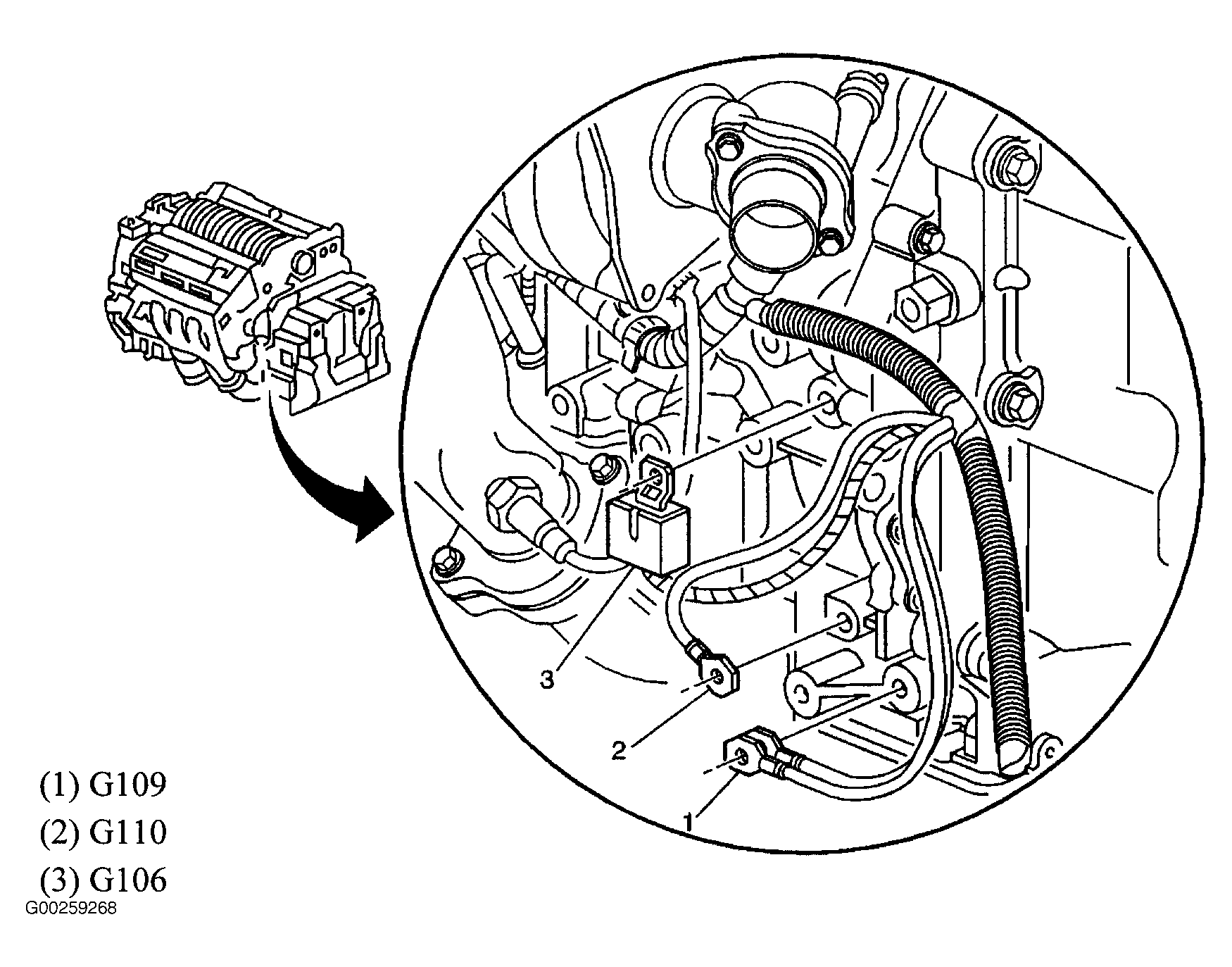

Fig 26: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

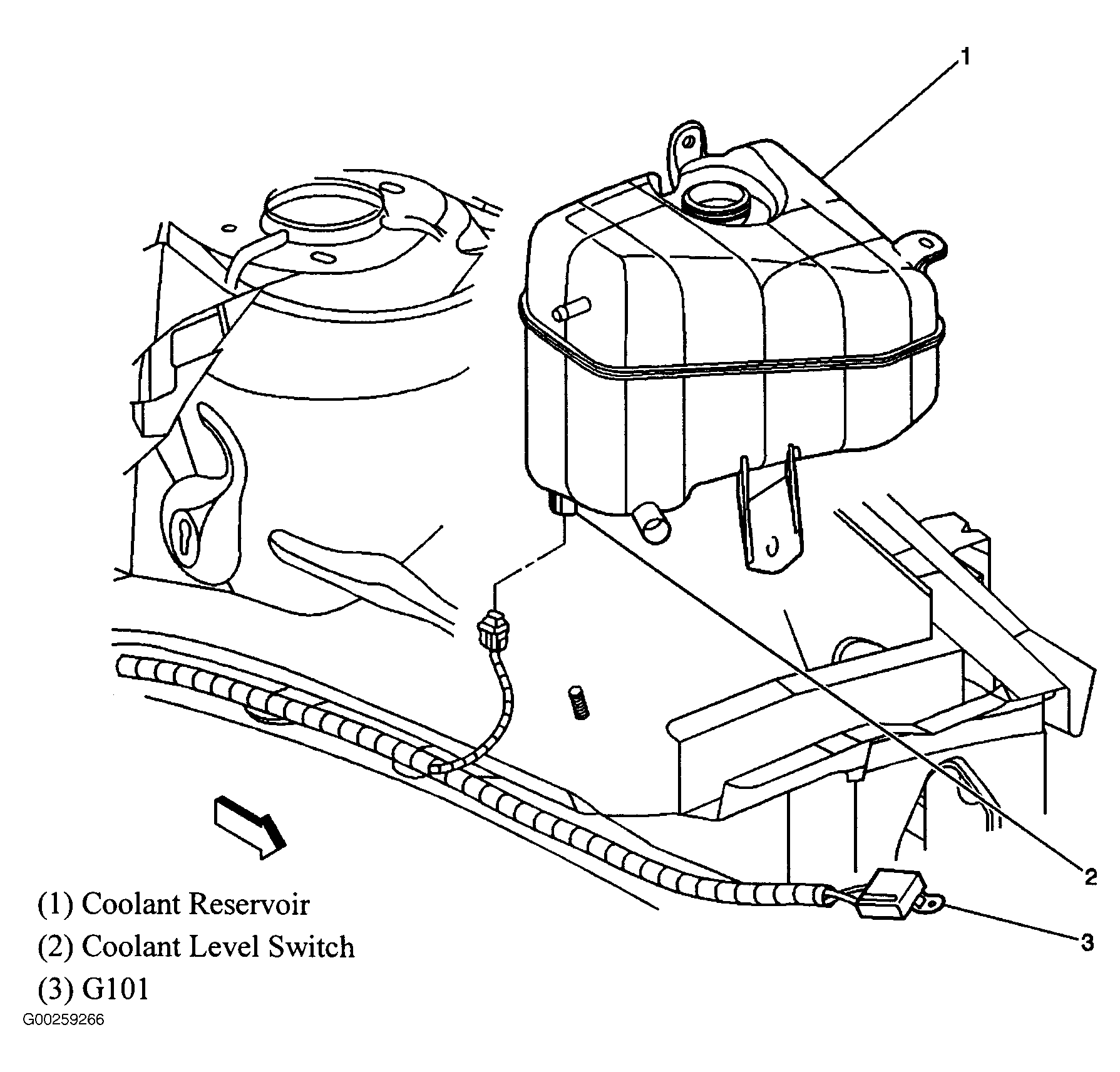

Fig 28: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 29: Under Right Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 30: Under Left Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 31: Below Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Below Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Below Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

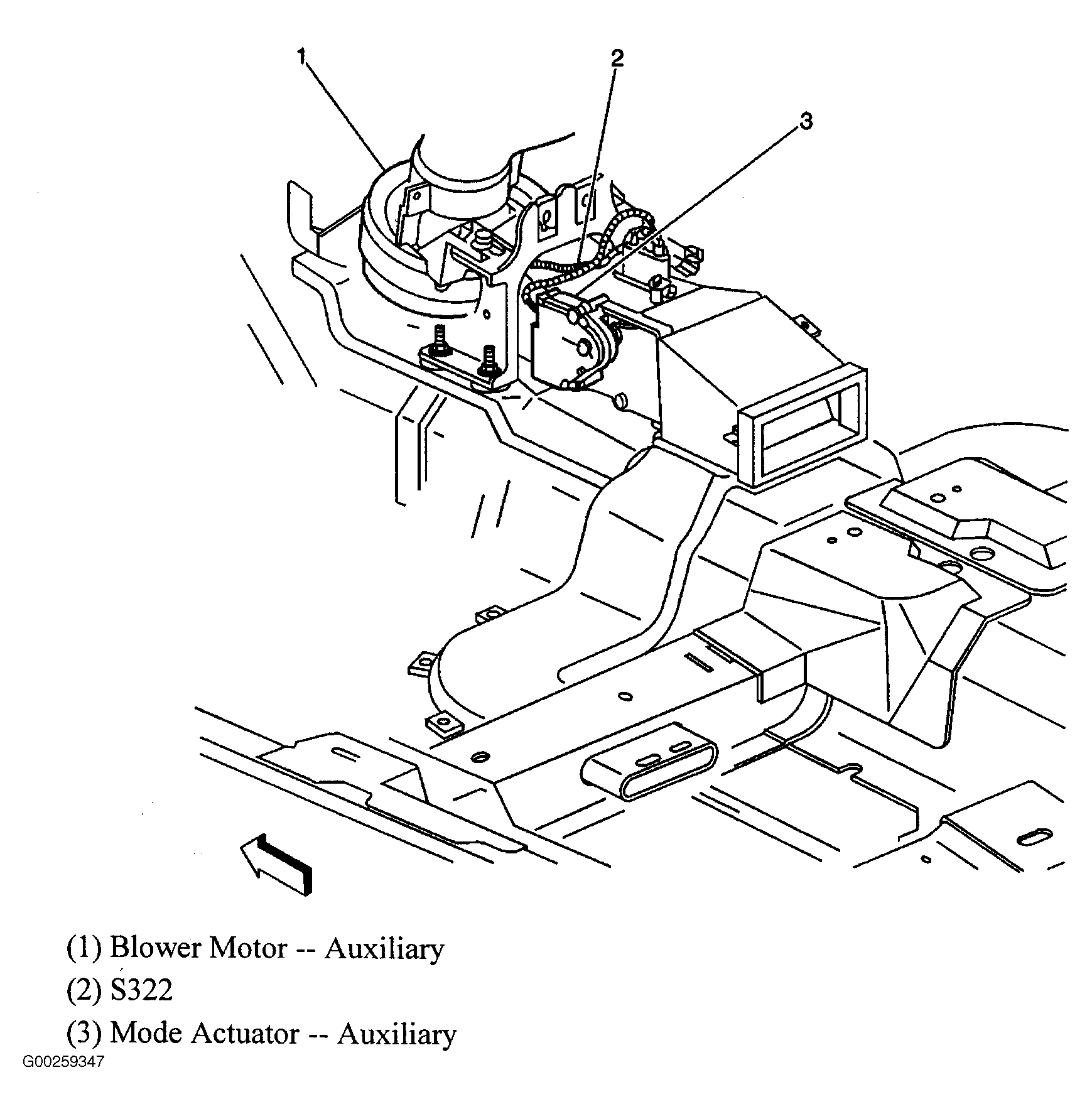

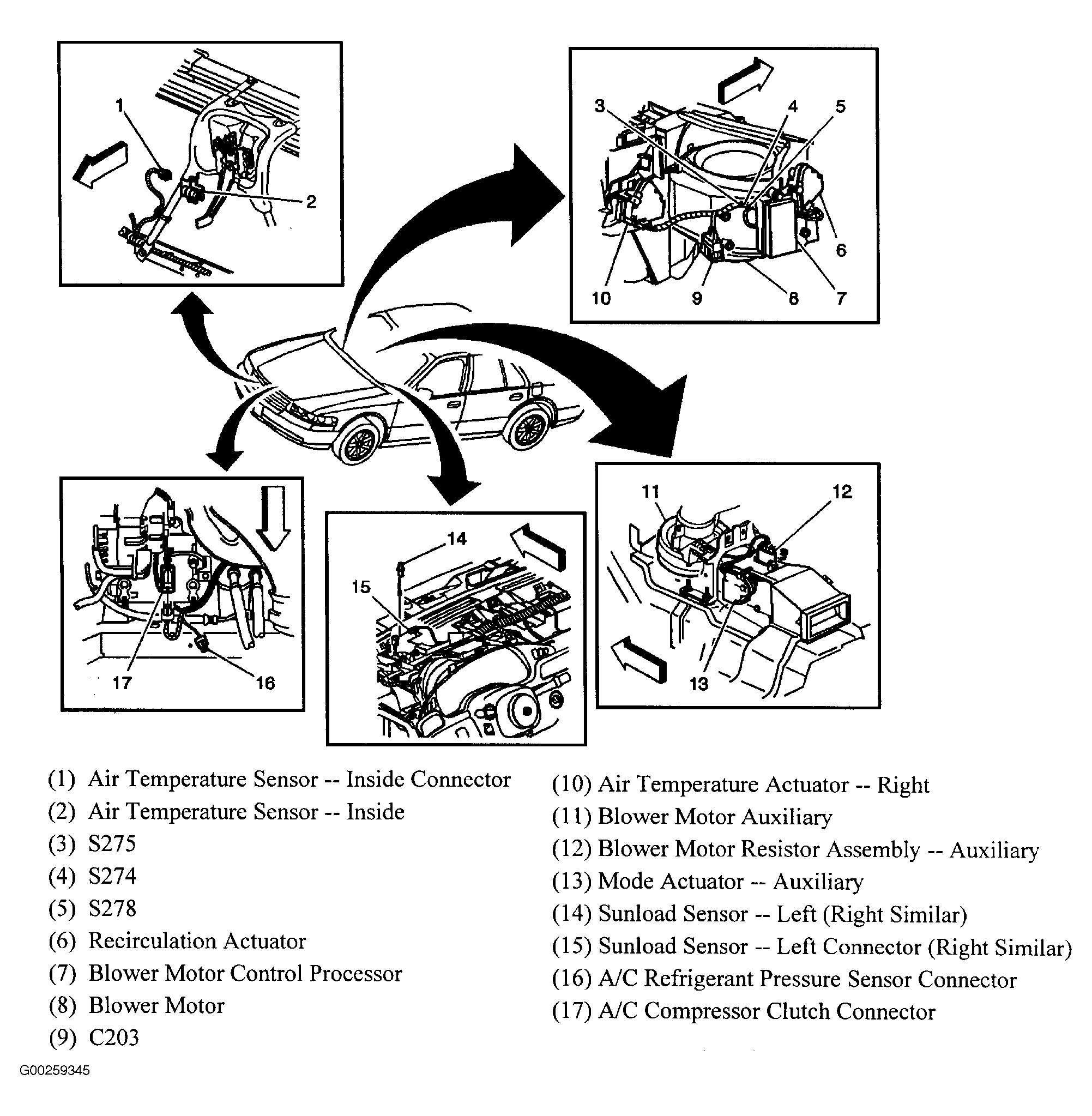

Fig 35: HVAC System Overview
Courtesy of GENERAL MOTORS CORP.

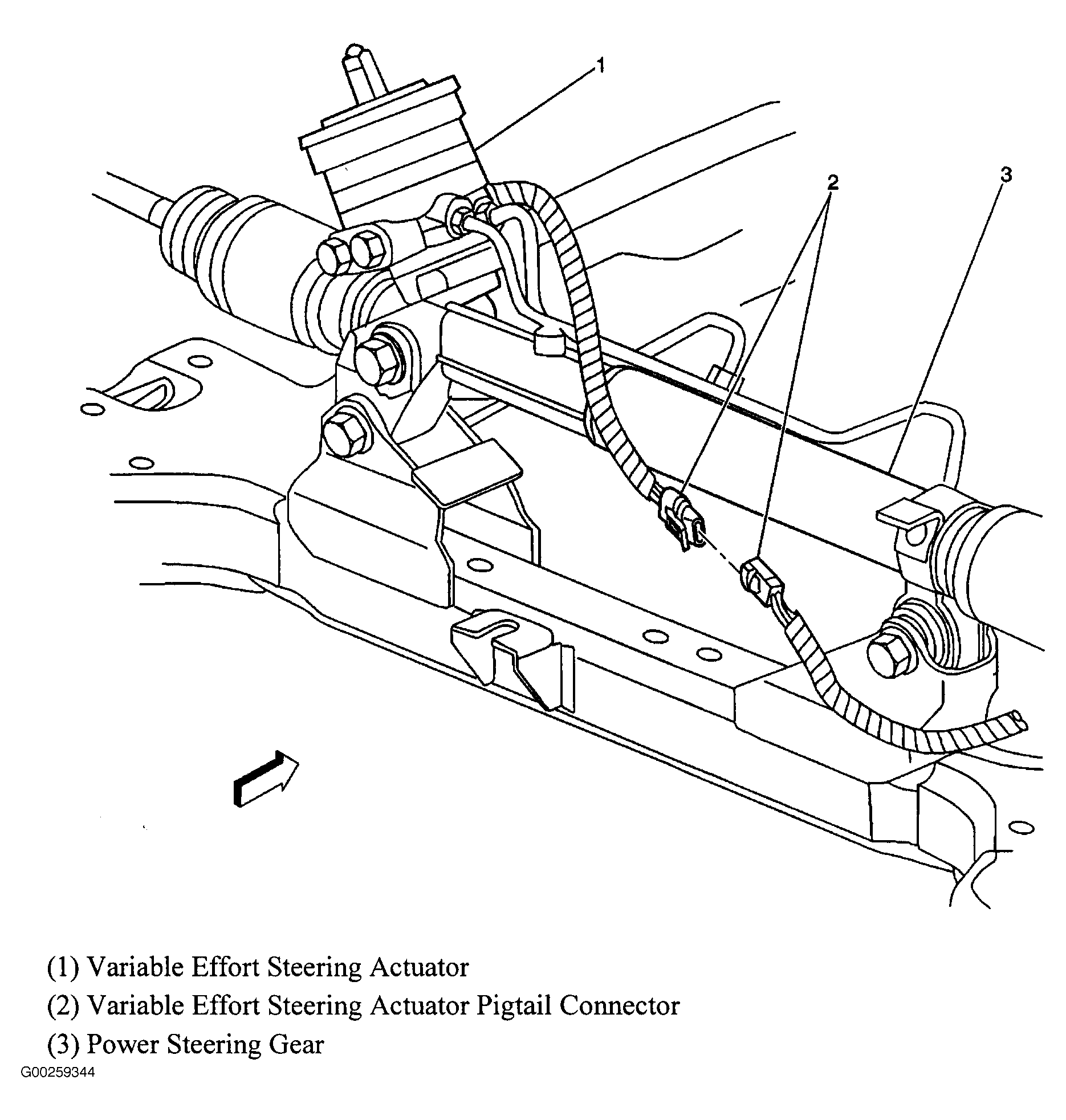

Fig 36: Lower Section Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 37: Steering Column
Courtesy of GENERAL MOTORS CORP.

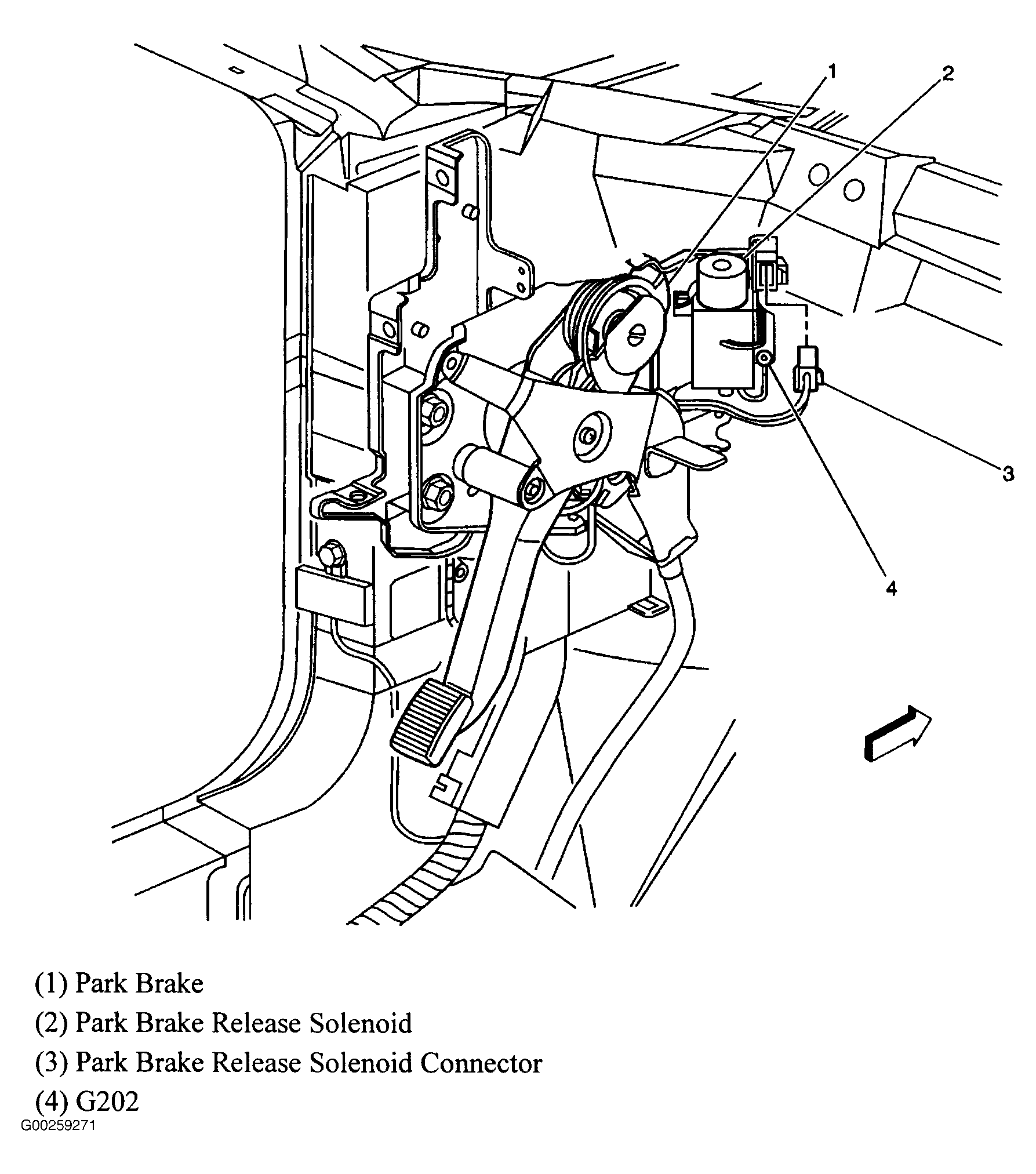

Fig 38: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

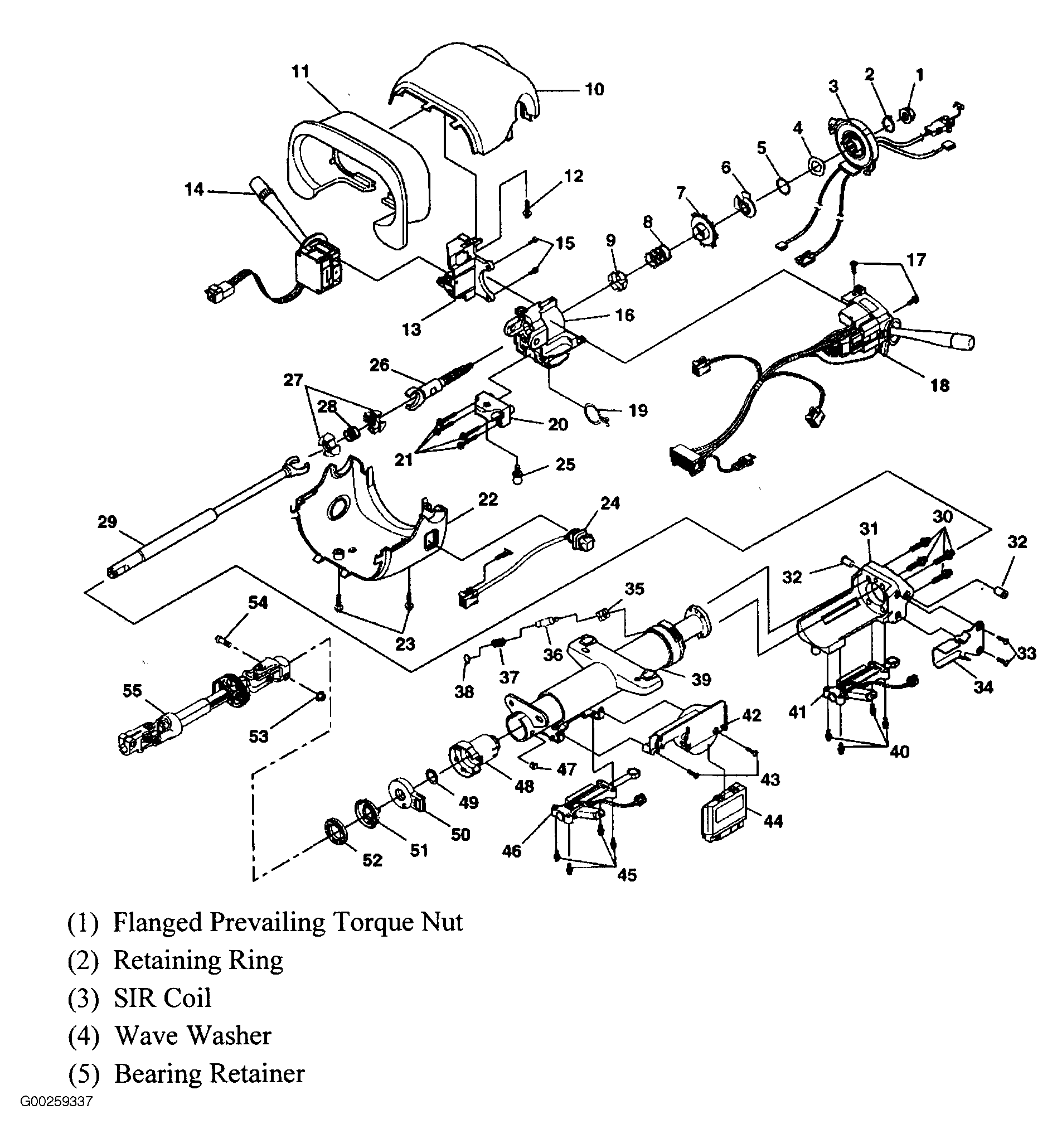

Fig 39: Steering Column Overview (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

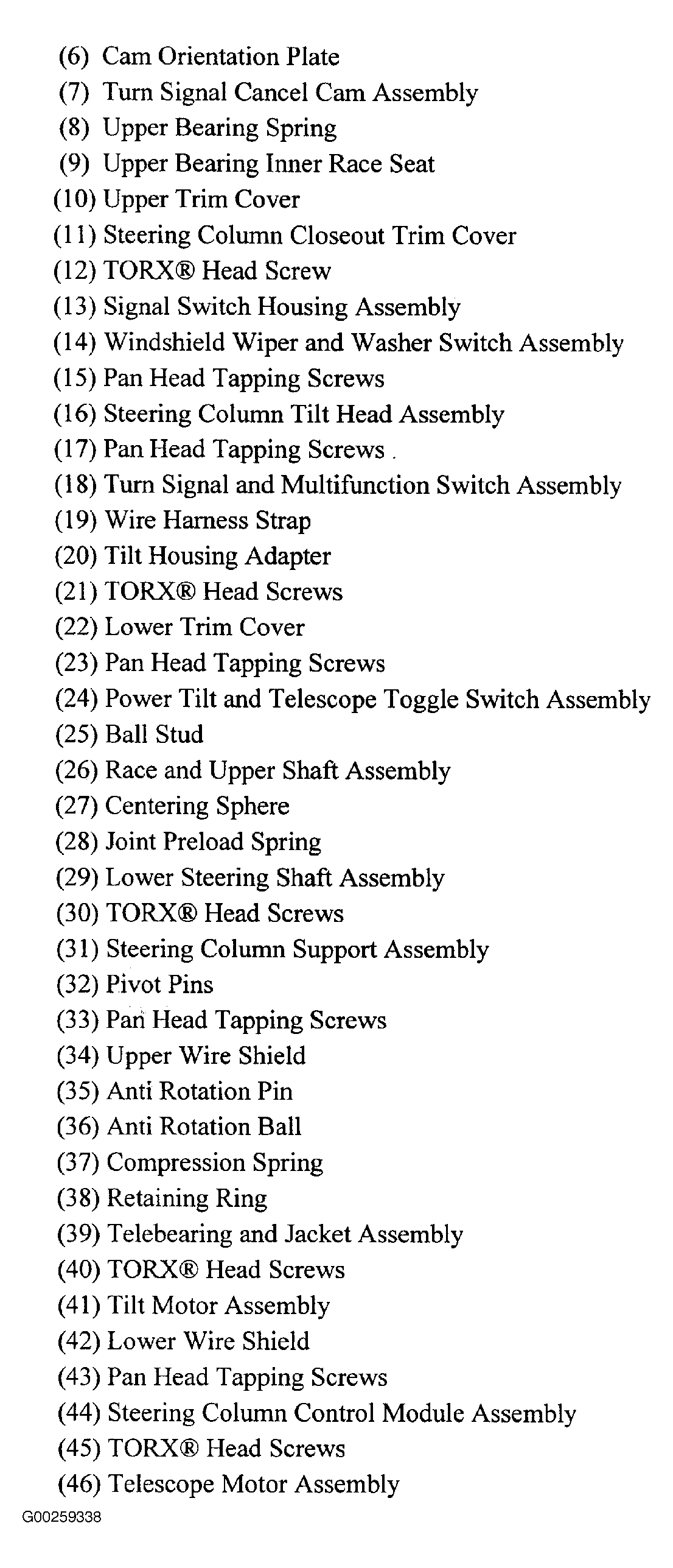

Fig 40: Steering Column Overview (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Steering Column Overview (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Suspension Control Overview
Courtesy of GENERAL MOTORS CORP.
Fig 43: Behind Right Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.

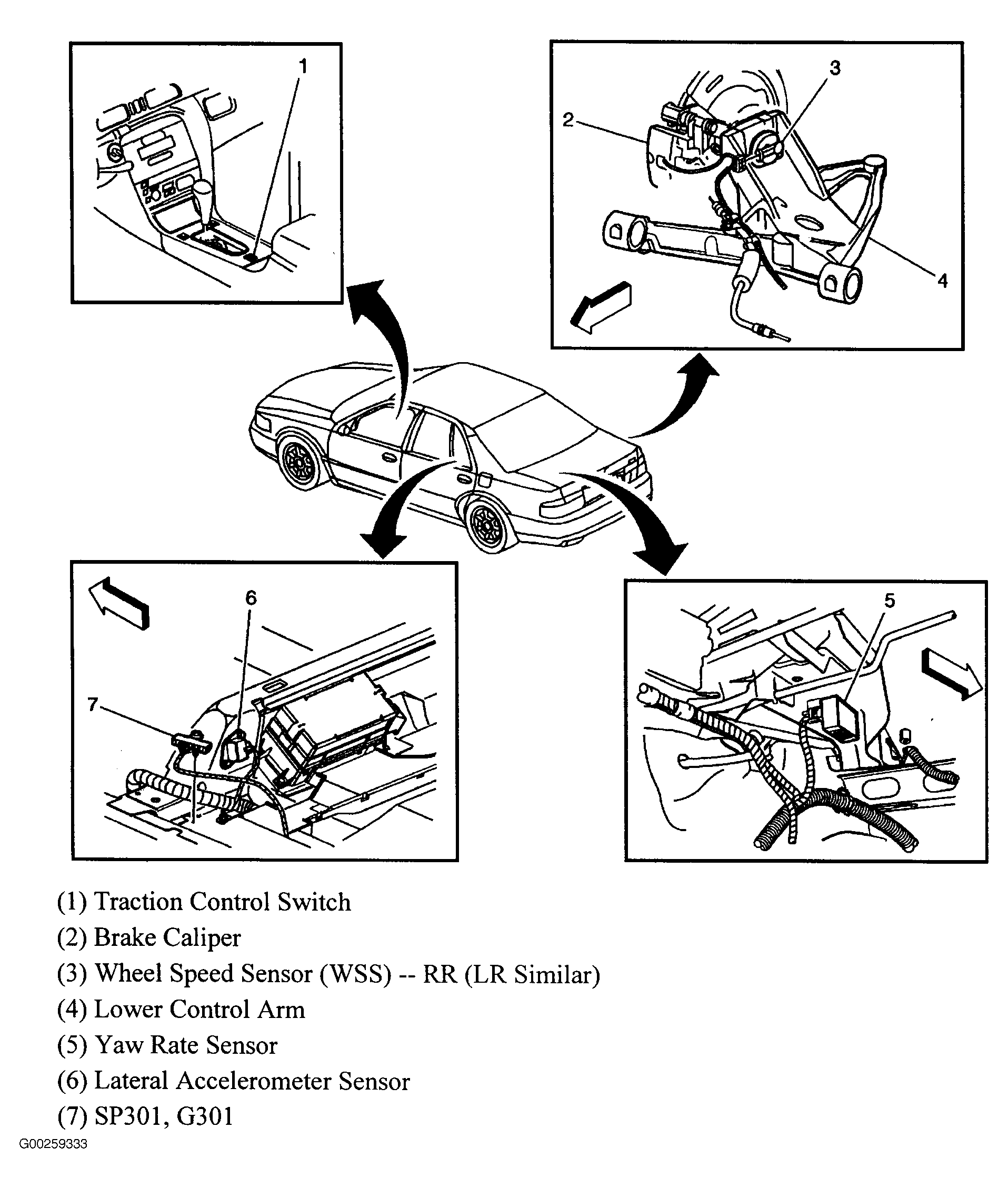

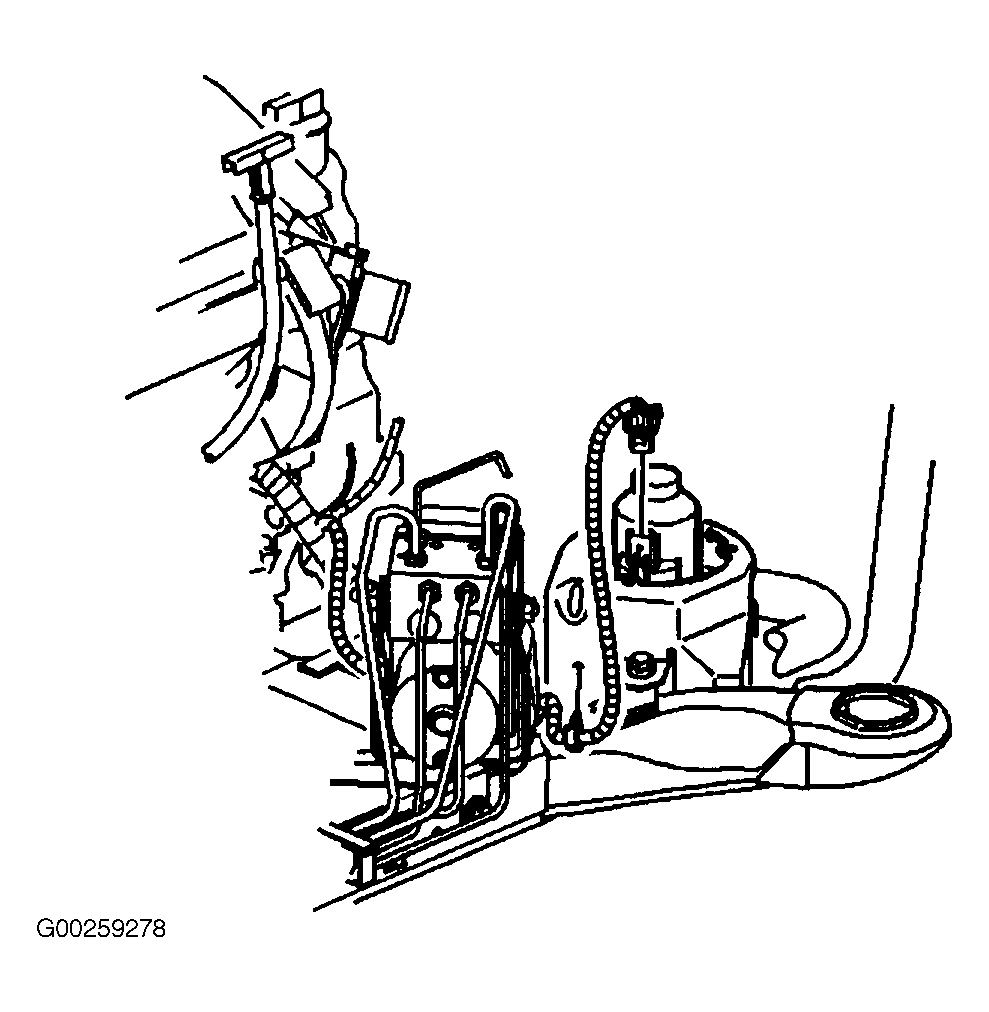

Fig 44: Anti-Lock Brake System Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Anti-Lock Brake System Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

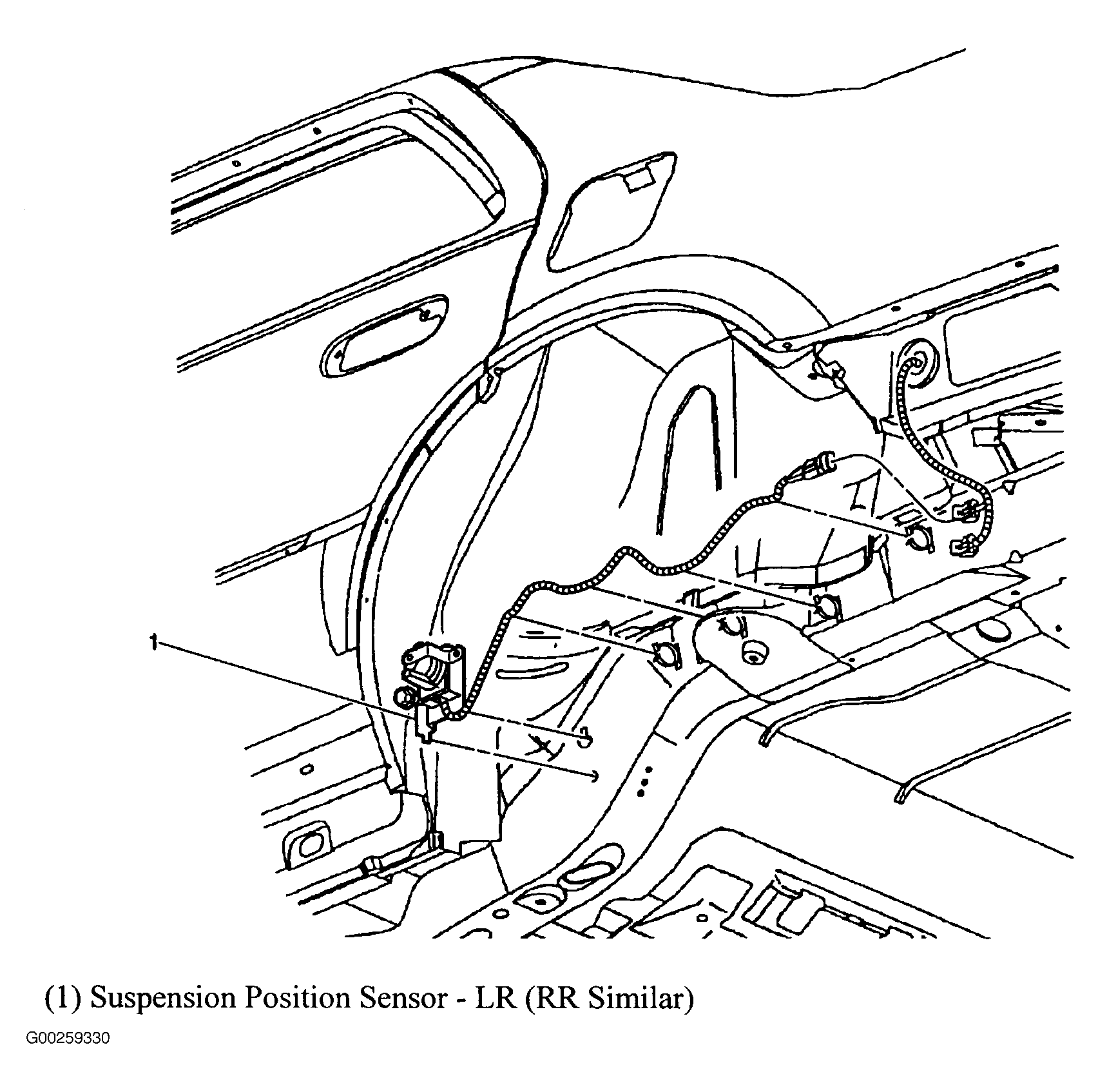

Fig 46: Rear Wheelwell
Courtesy of GENERAL MOTORS CORP.

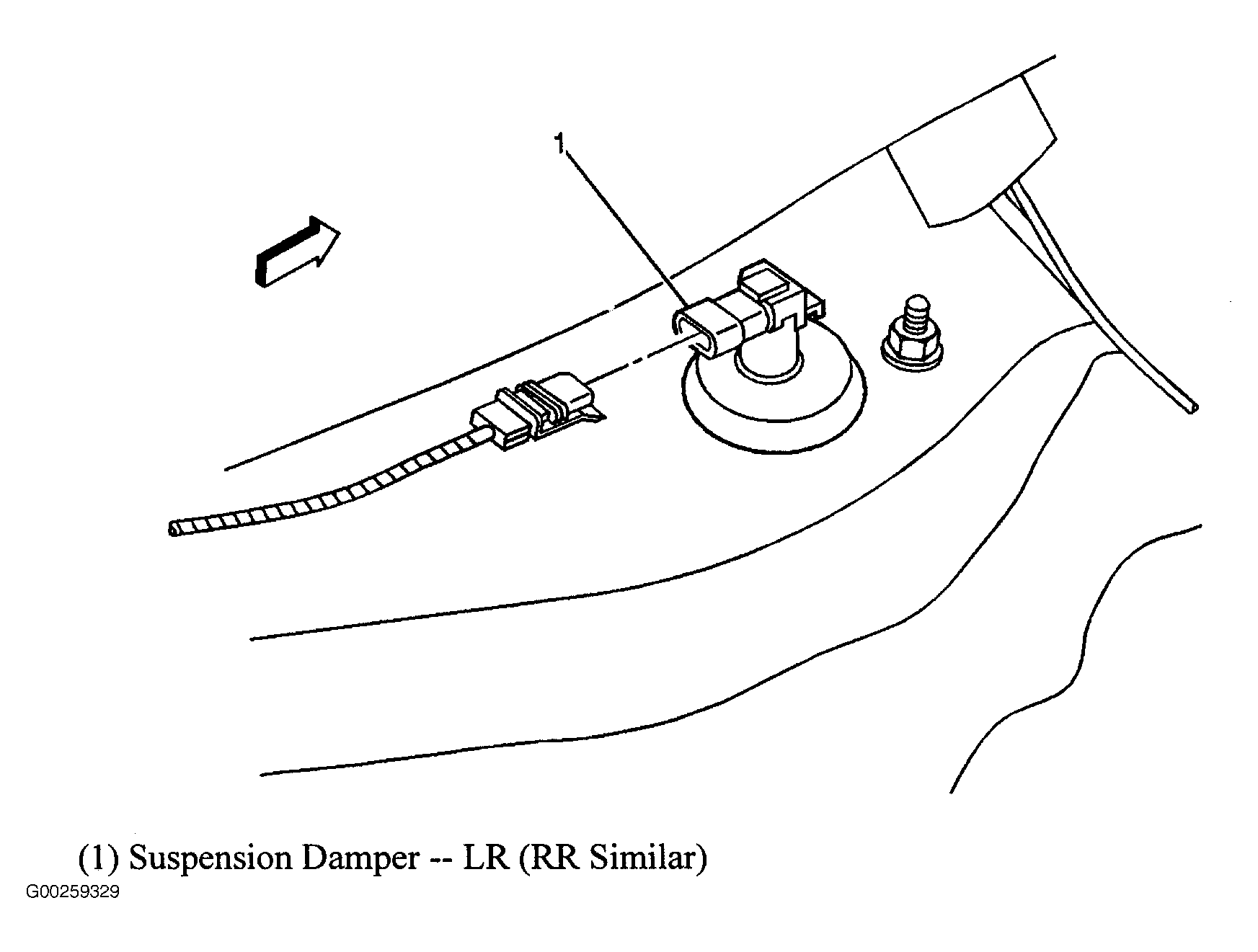

Fig 47: Rear Strut
Courtesy of GENERAL MOTORS CORP.

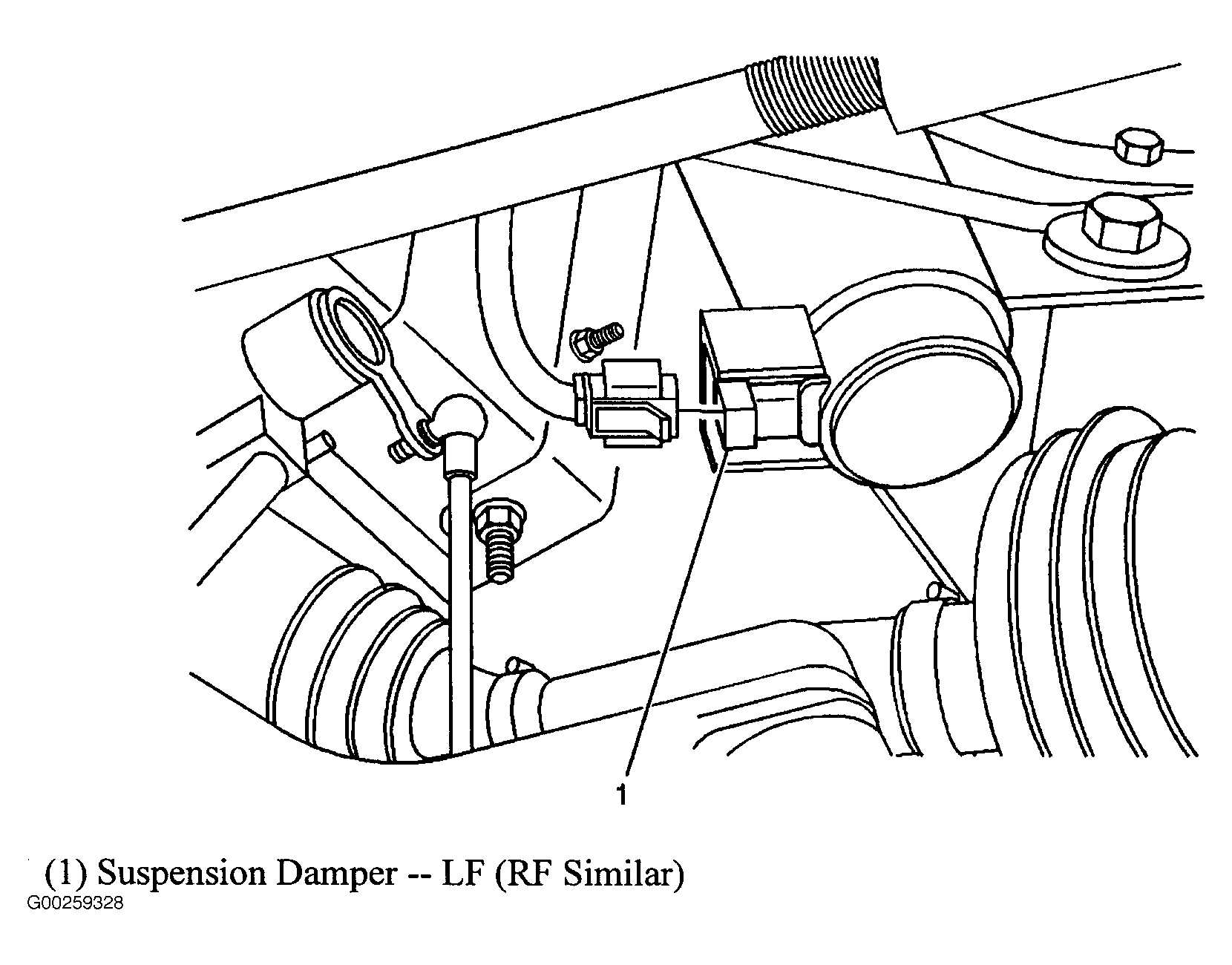

Fig 48: Front Strut
Courtesy of GENERAL MOTORS CORP.

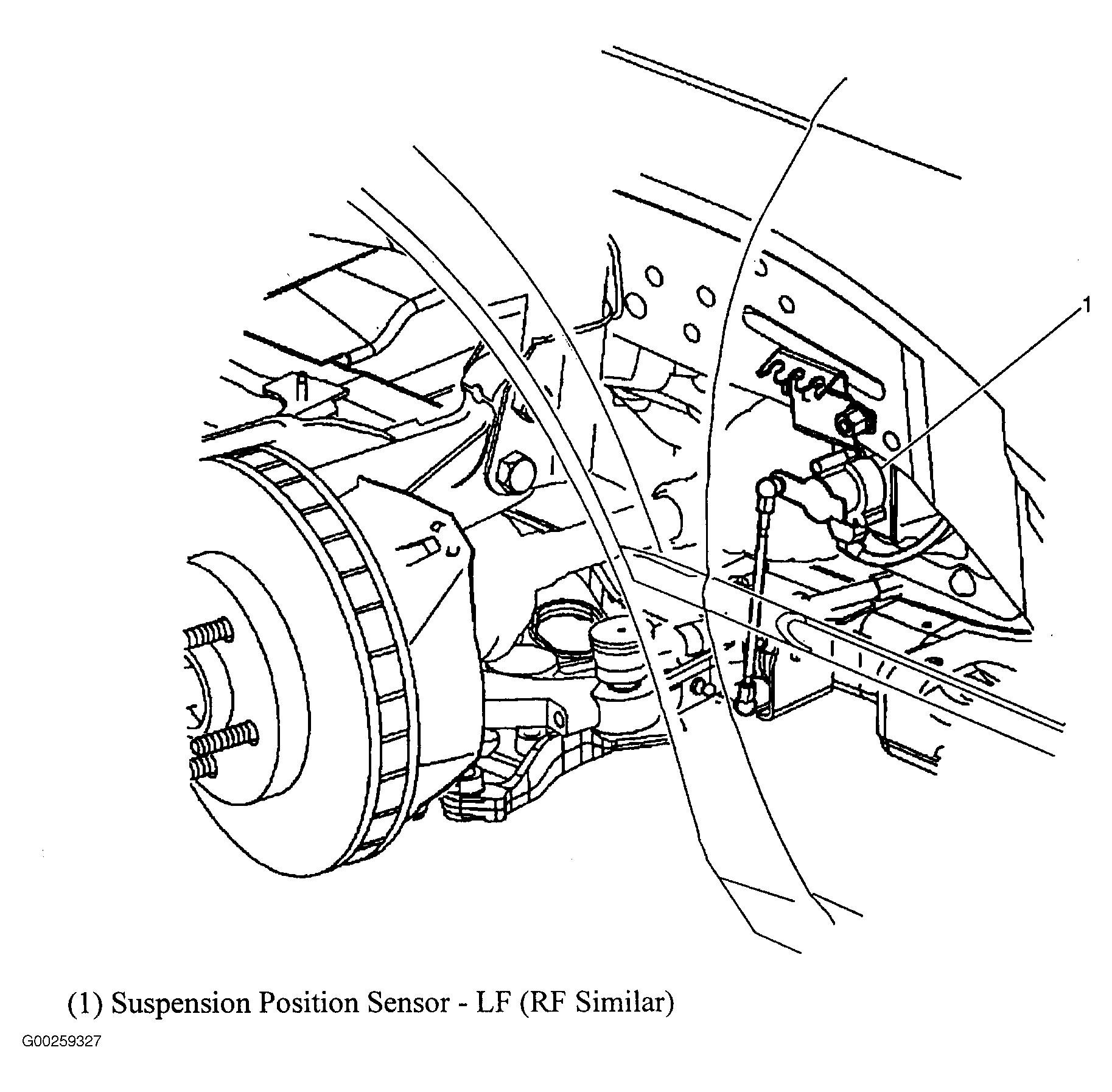

Fig 49: Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

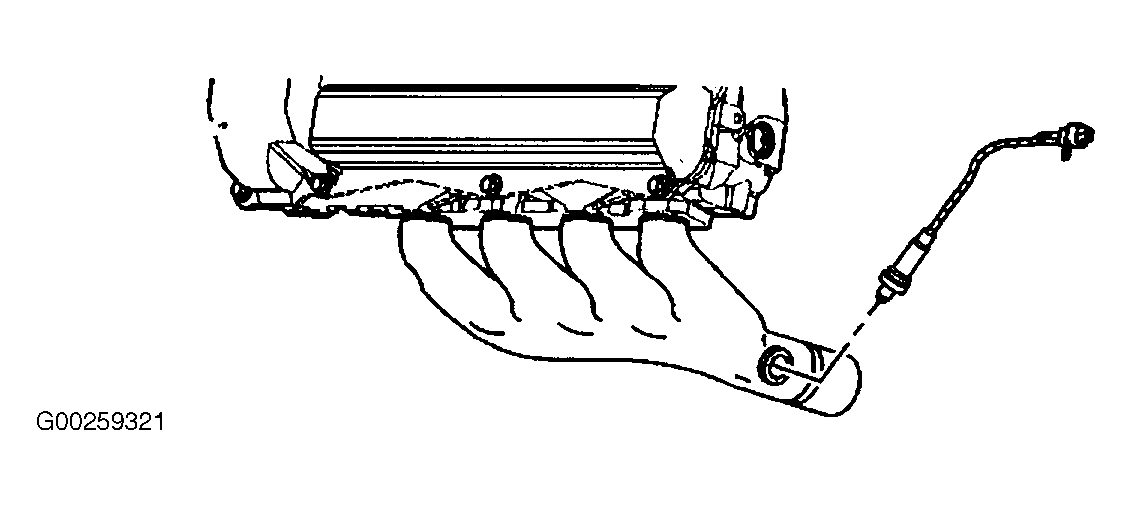

Fig 51: Front Exhaust Manifold (Heated Oxygen Sensor Bank 2 Sensor 1)
Courtesy of GENERAL MOTORS CORP.

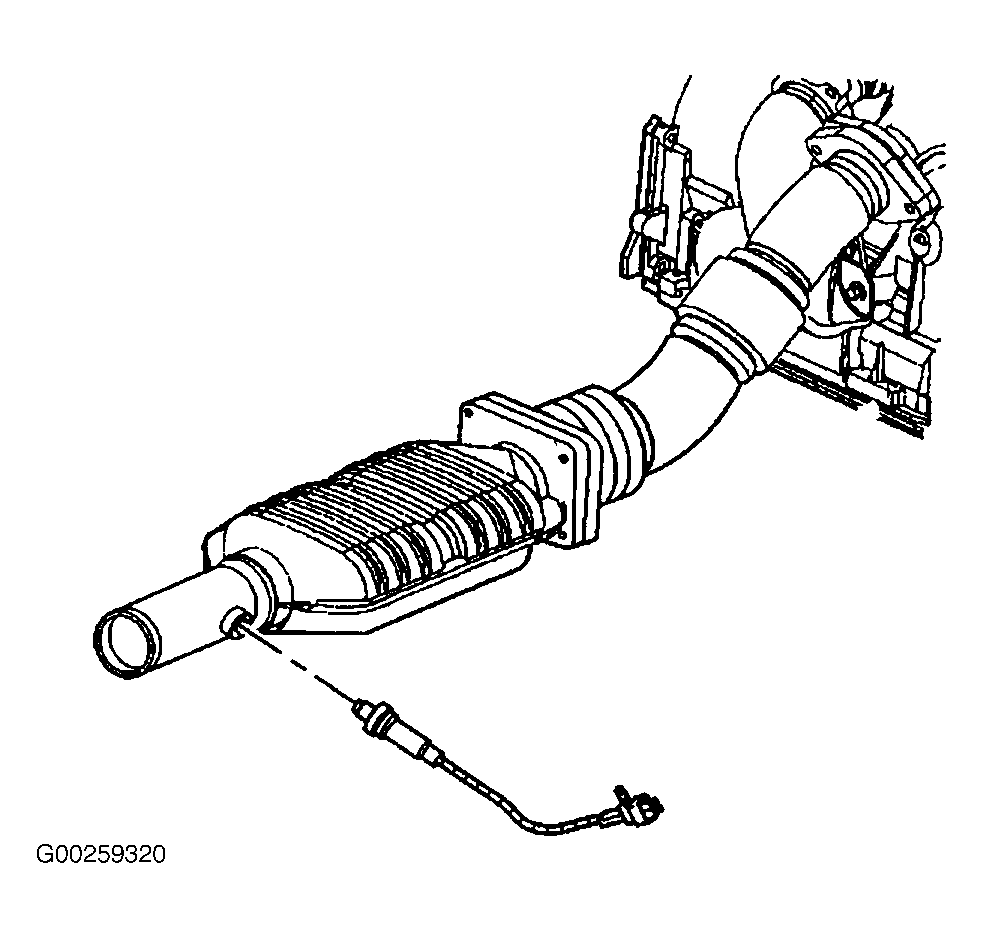

Fig 52: Catalytic Converter (Heated Oxygen Sensor Bank 1 Sensor 2)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

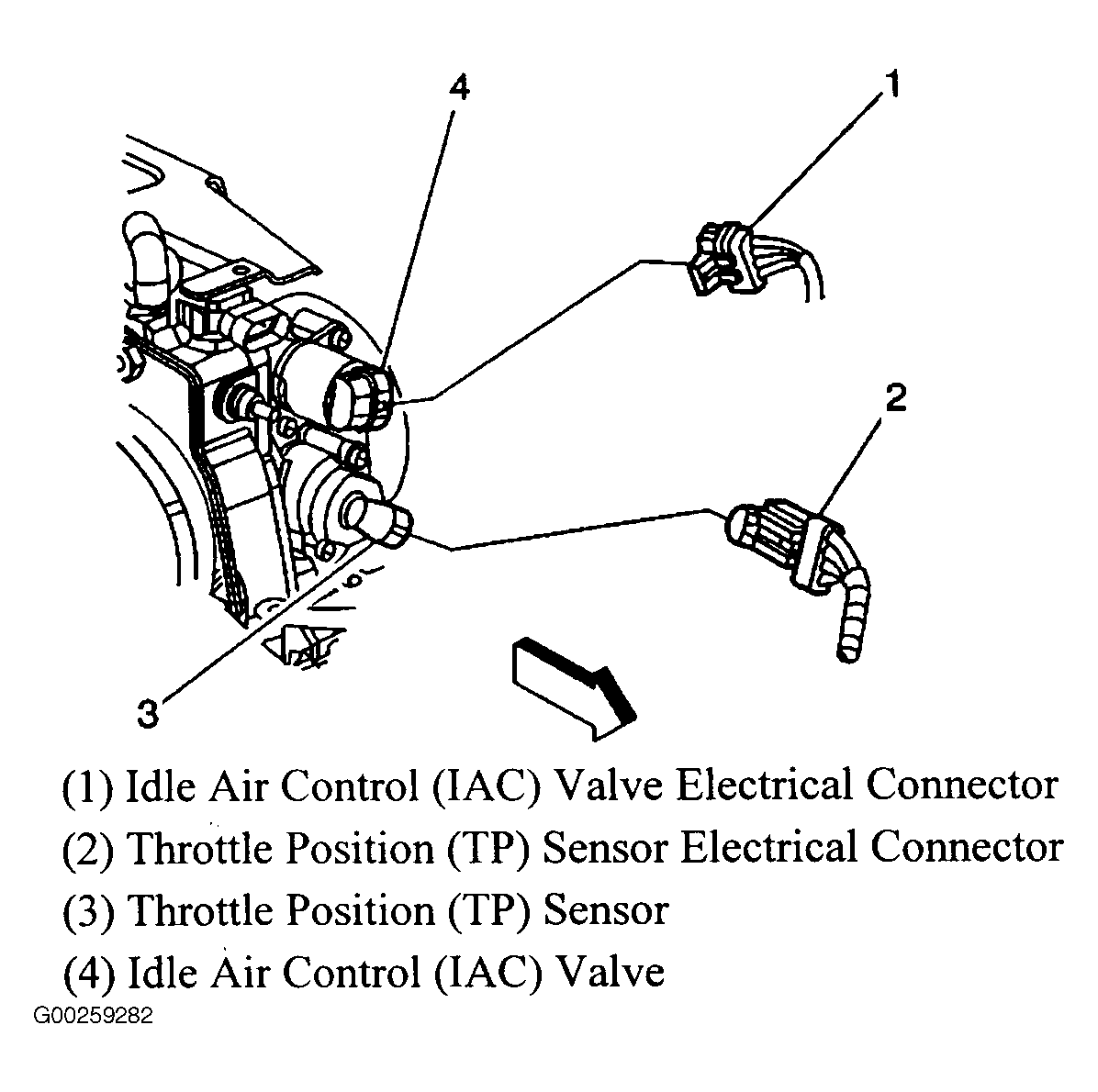

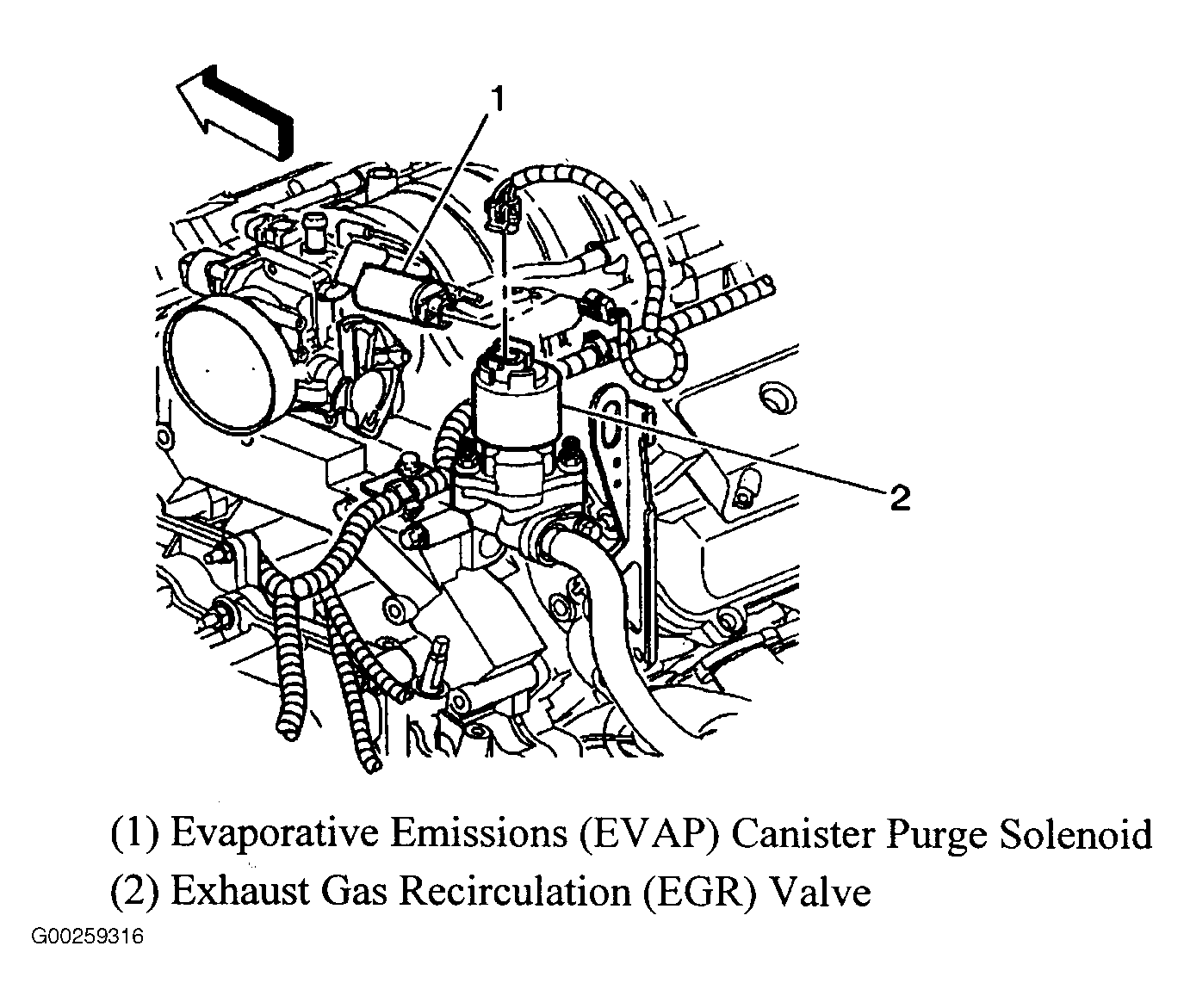

Fig 54: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 55: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

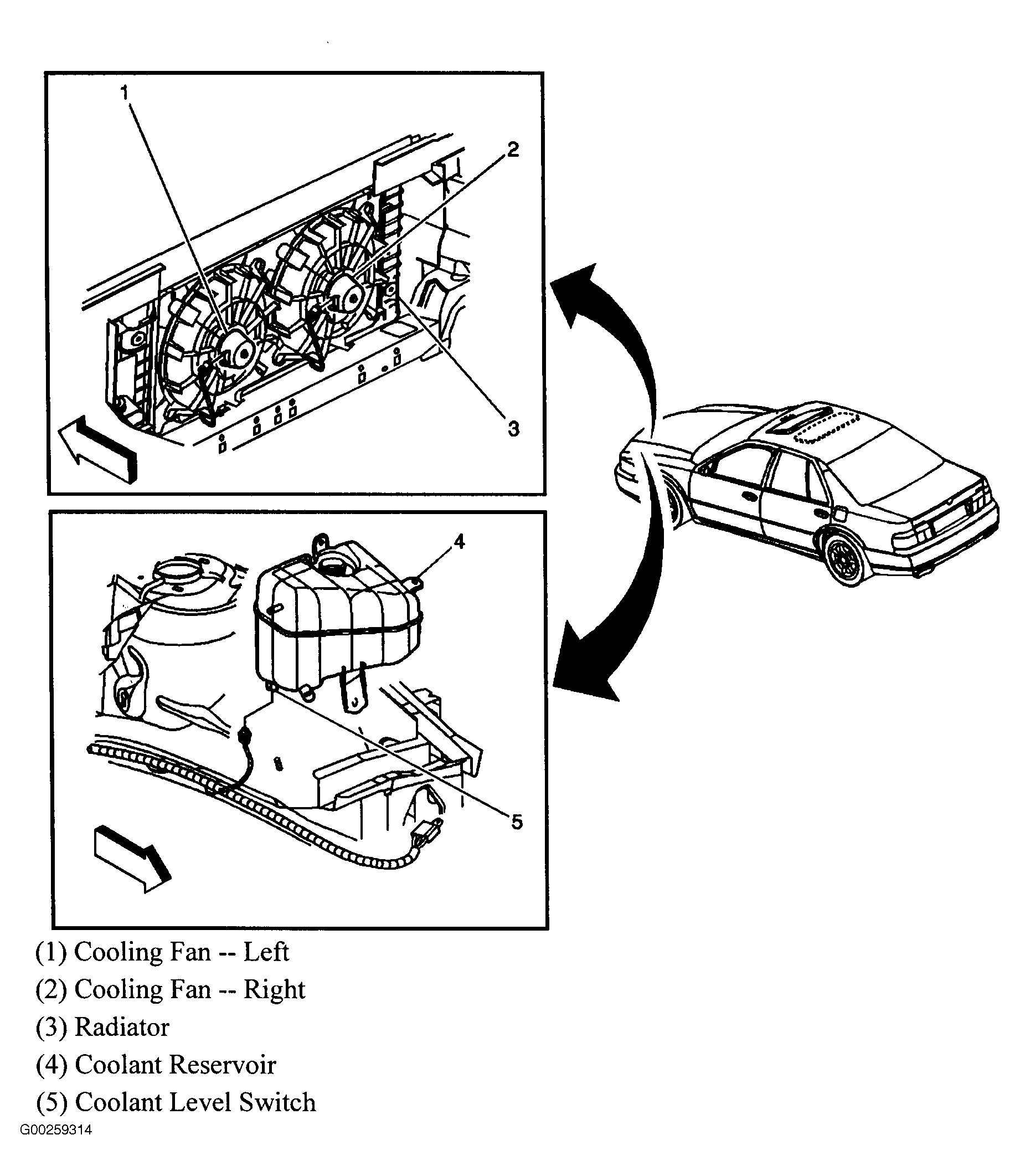

Fig 57: Cooling System Overview
Courtesy of GENERAL MOTORS CORP.

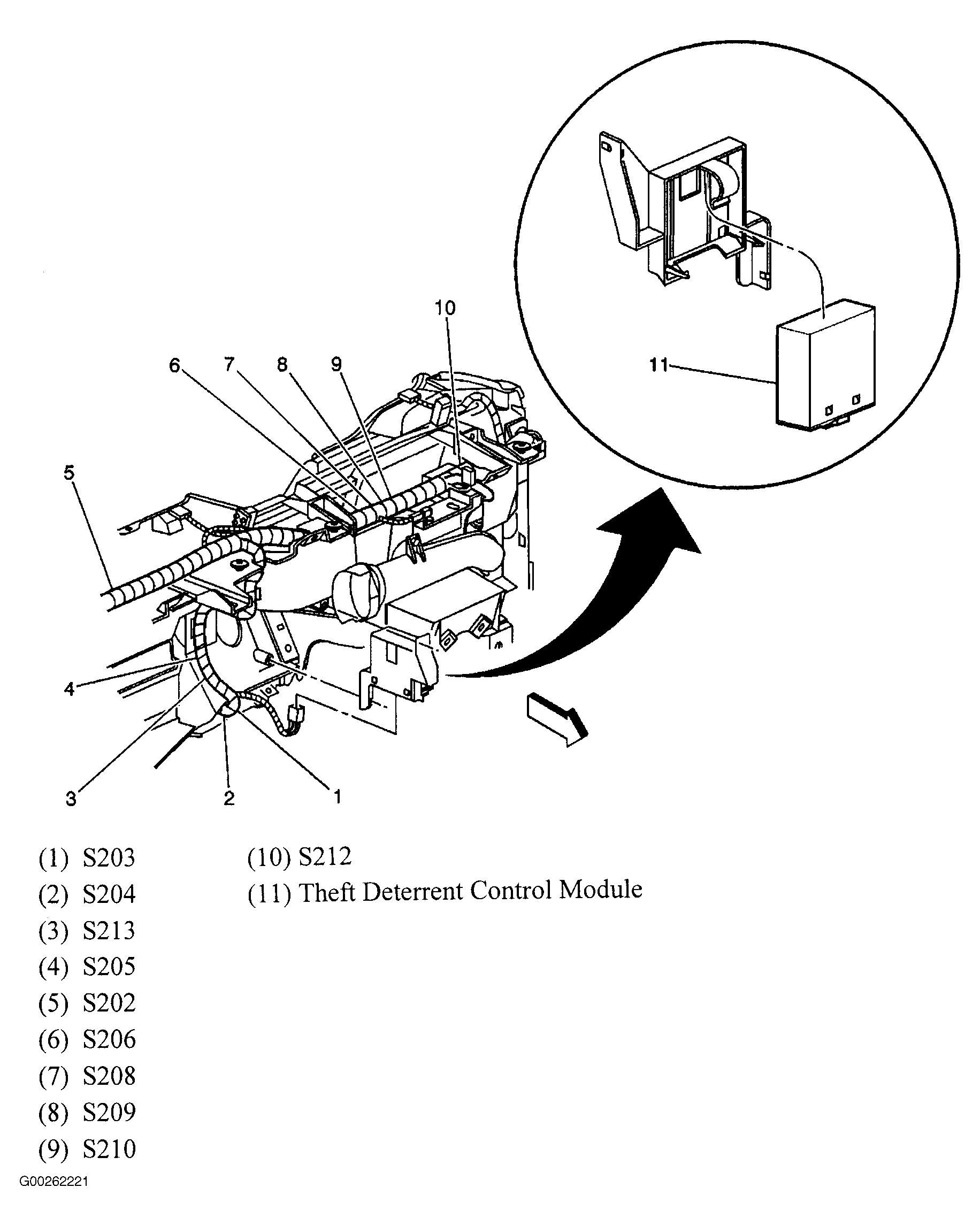

Fig 58: Anti-Theft System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 59: Center Rear Of Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 60: Under Right Side Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

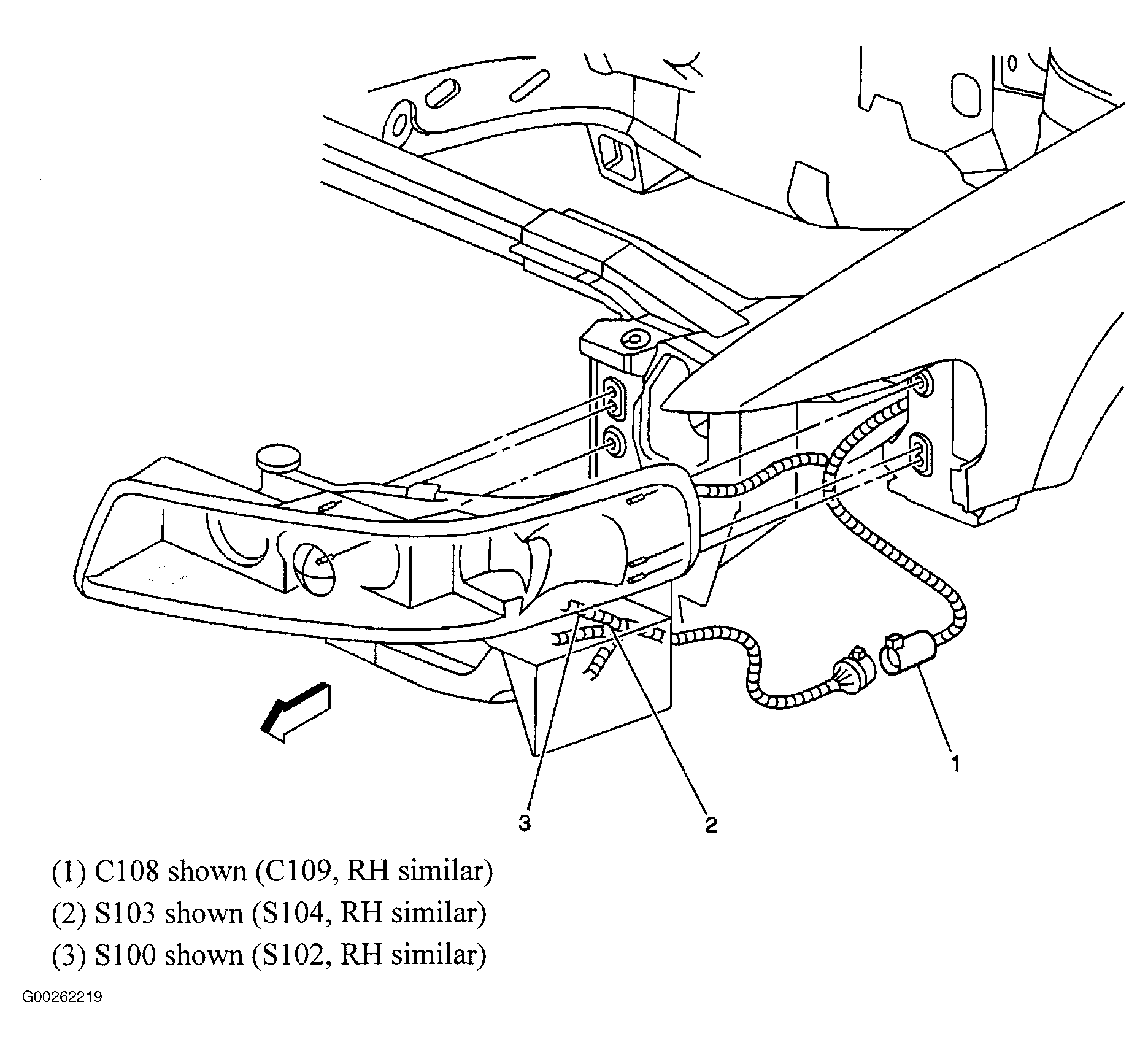

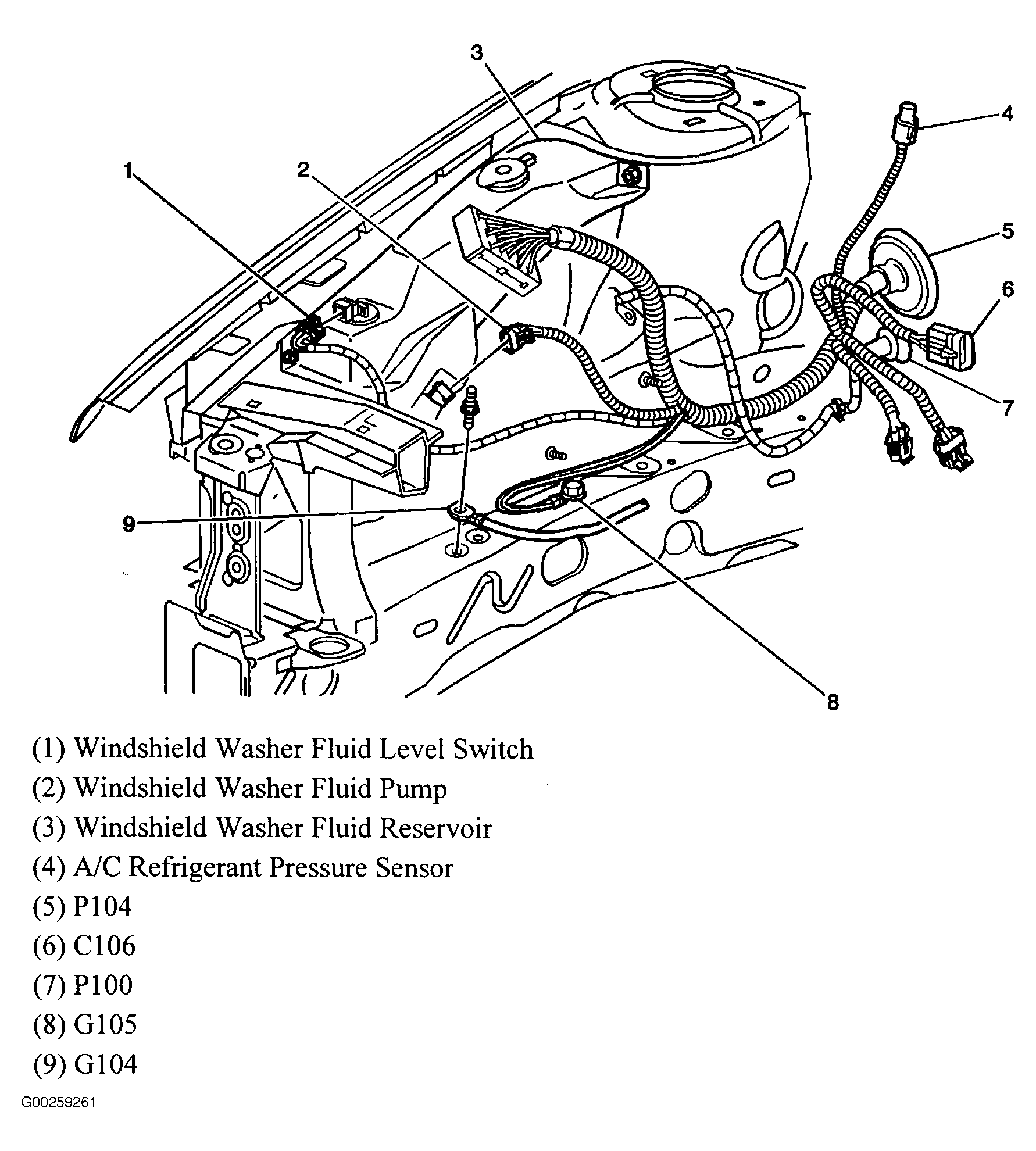

Fig 61: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 62: Behind Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

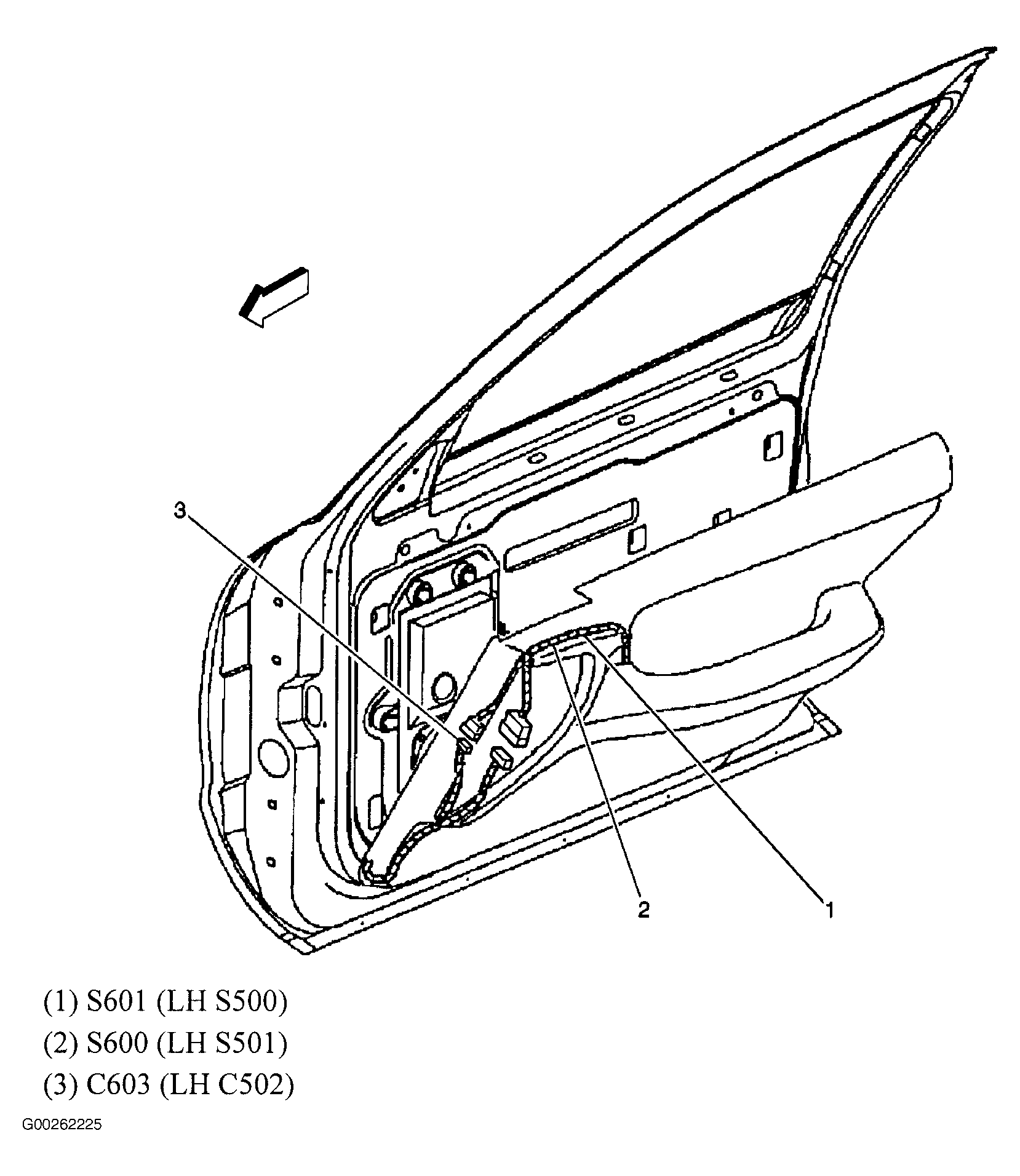

Fig 63: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Front Door
Courtesy of GENERAL MOTORS CORP.

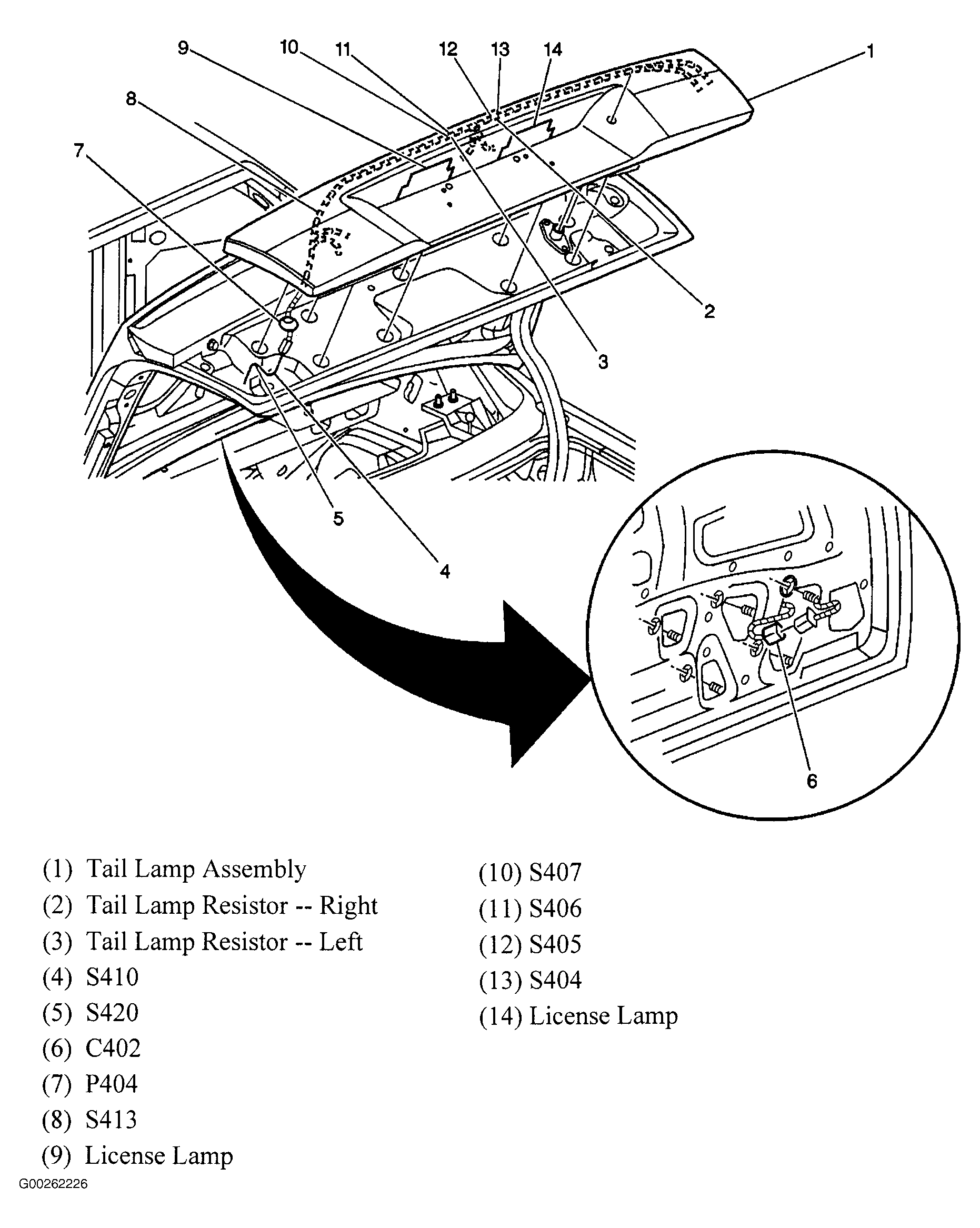

Fig 66: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 67: Under Drivers Seat
Courtesy of GENERAL MOTORS CORP.

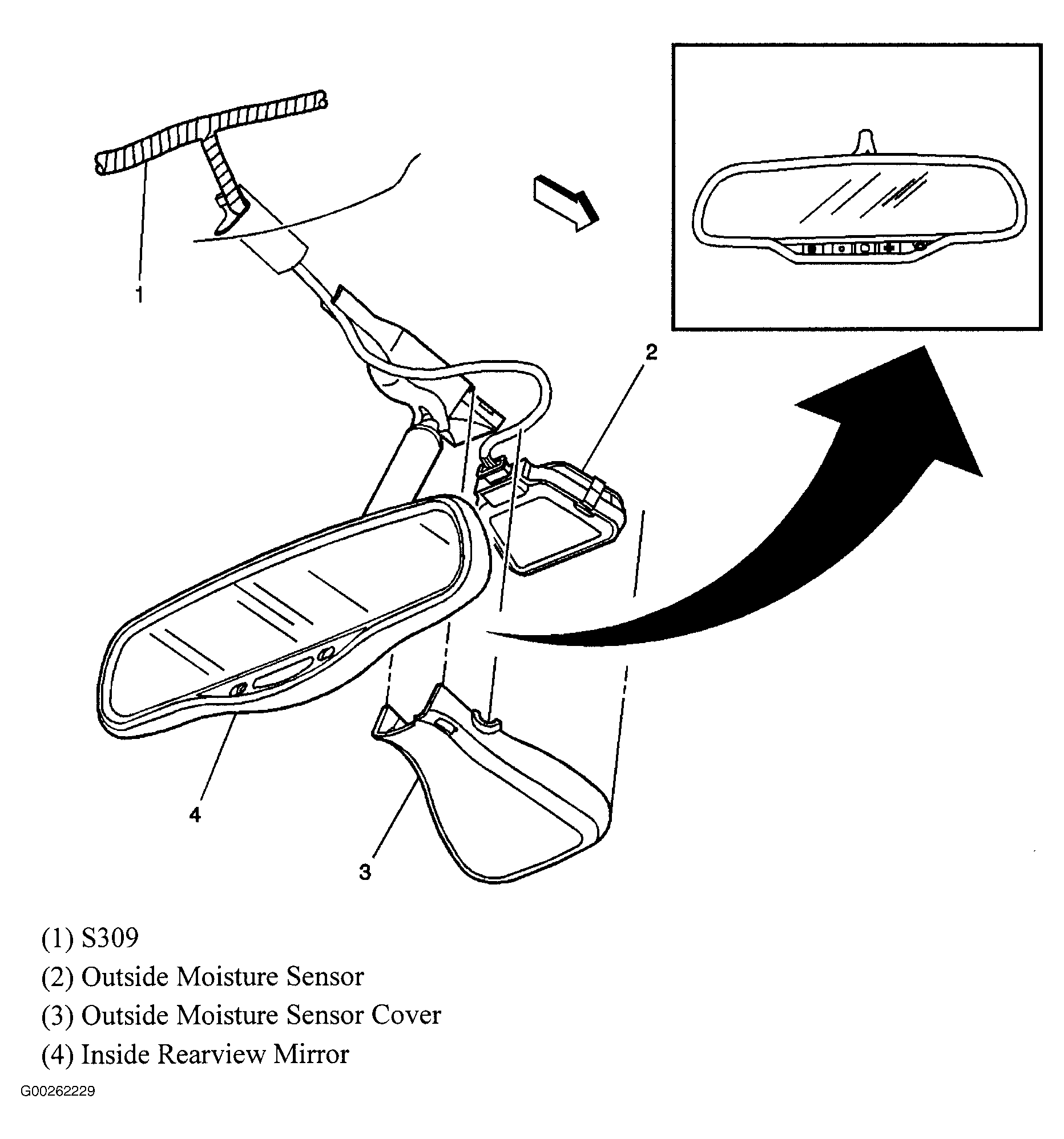

Fig 68: Top Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 69: Under Rear Seat
Courtesy of GENERAL MOTORS CORP.

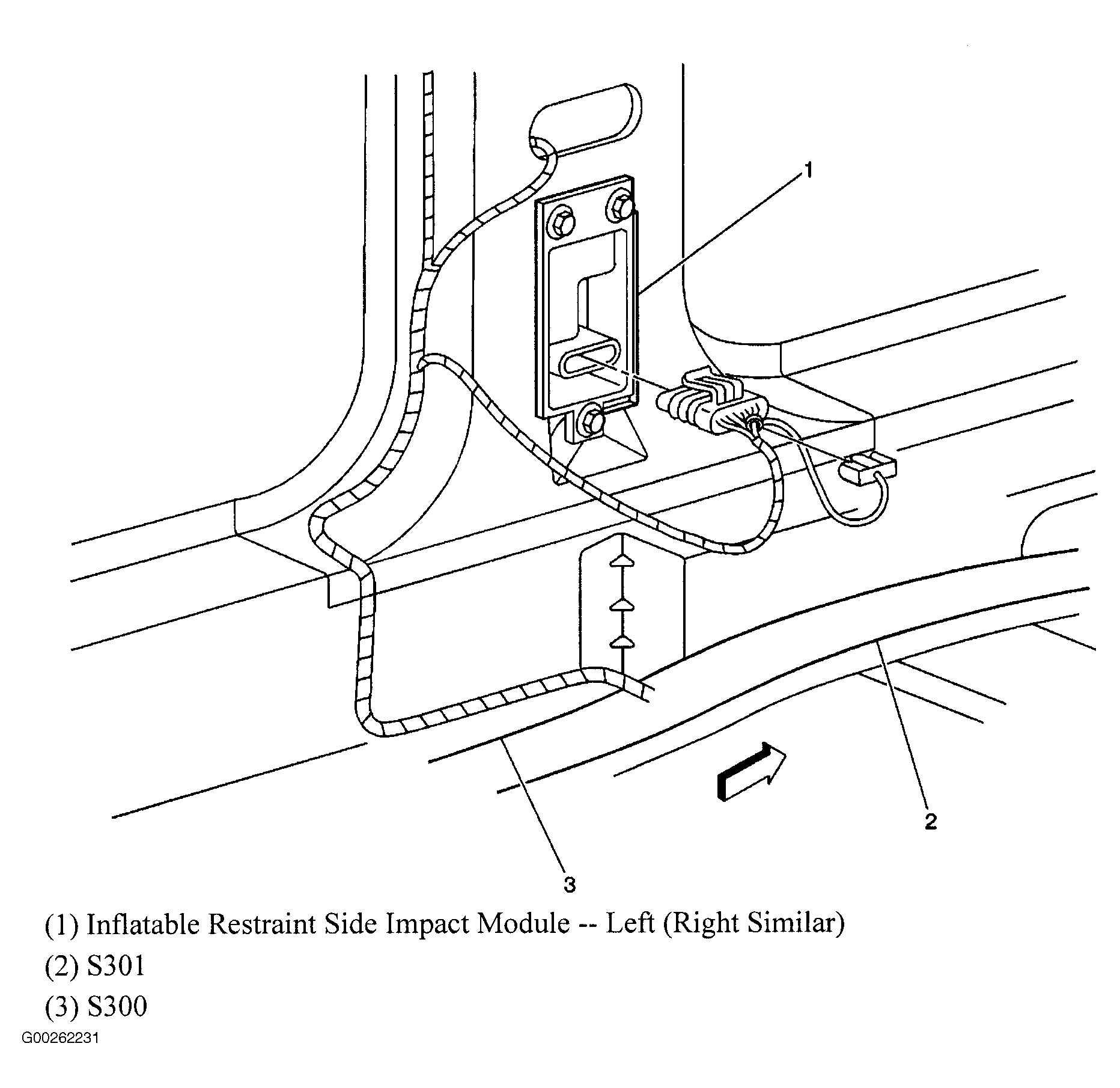

Fig 70: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

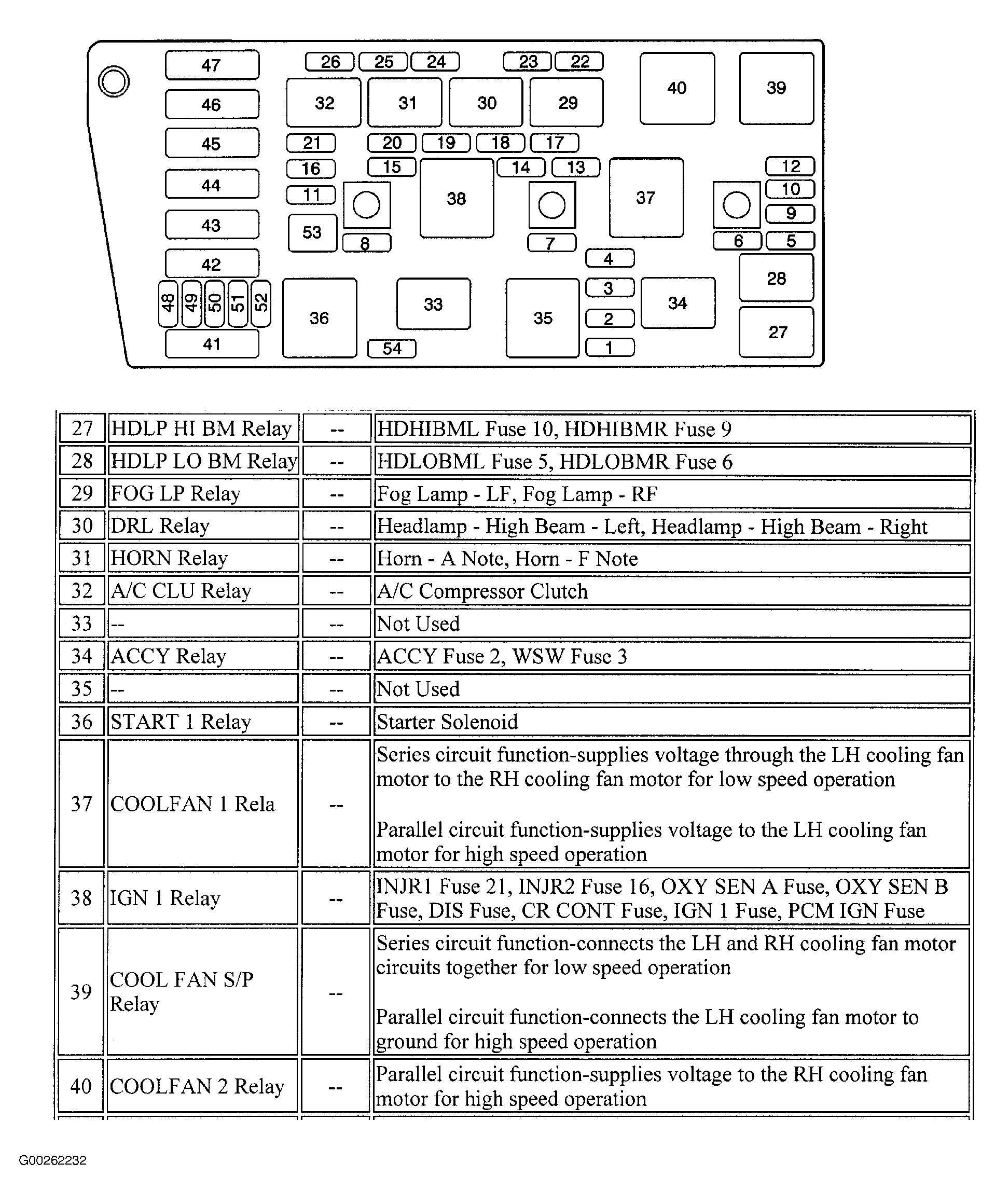

Fig 71: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 72: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

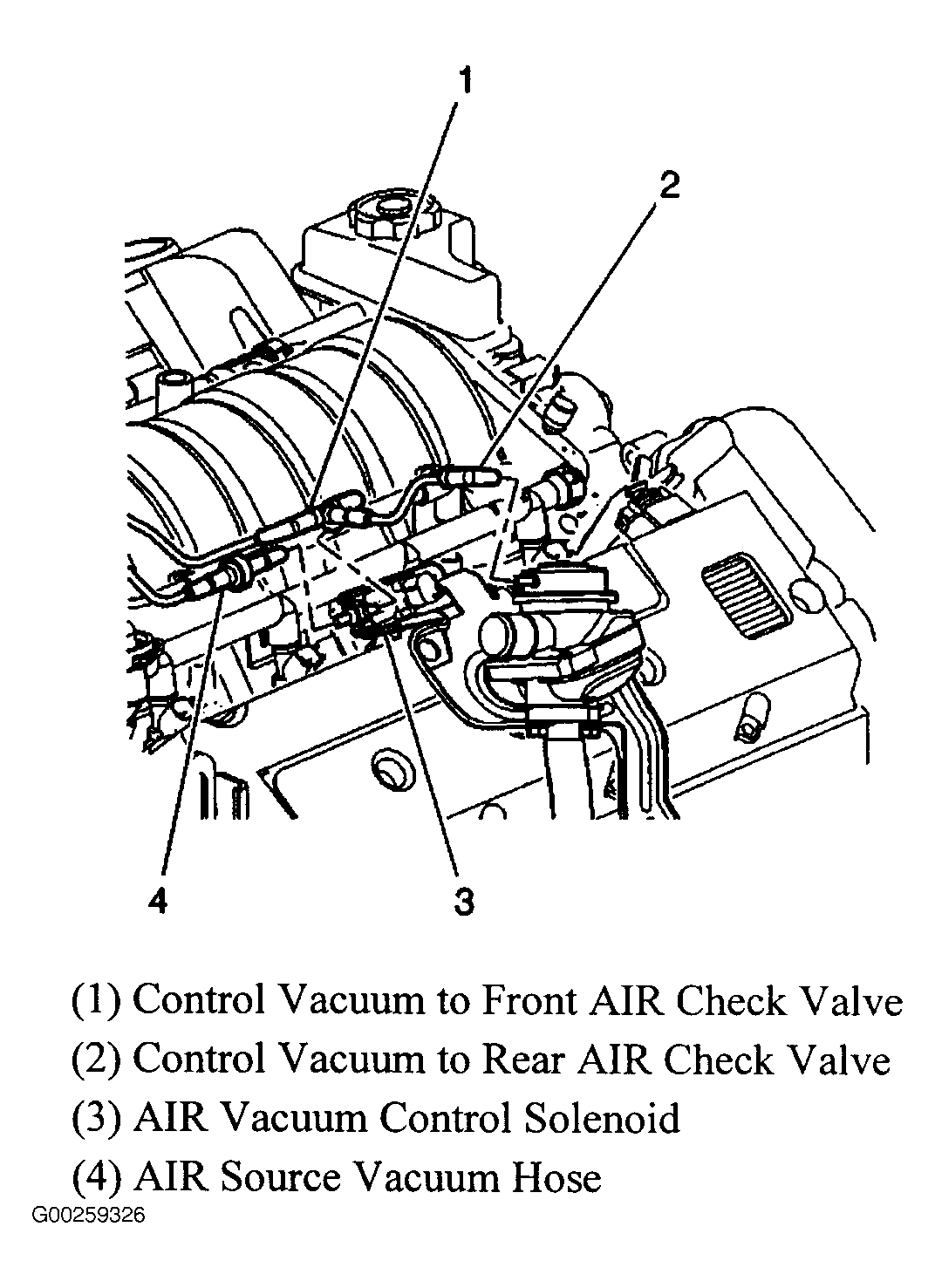

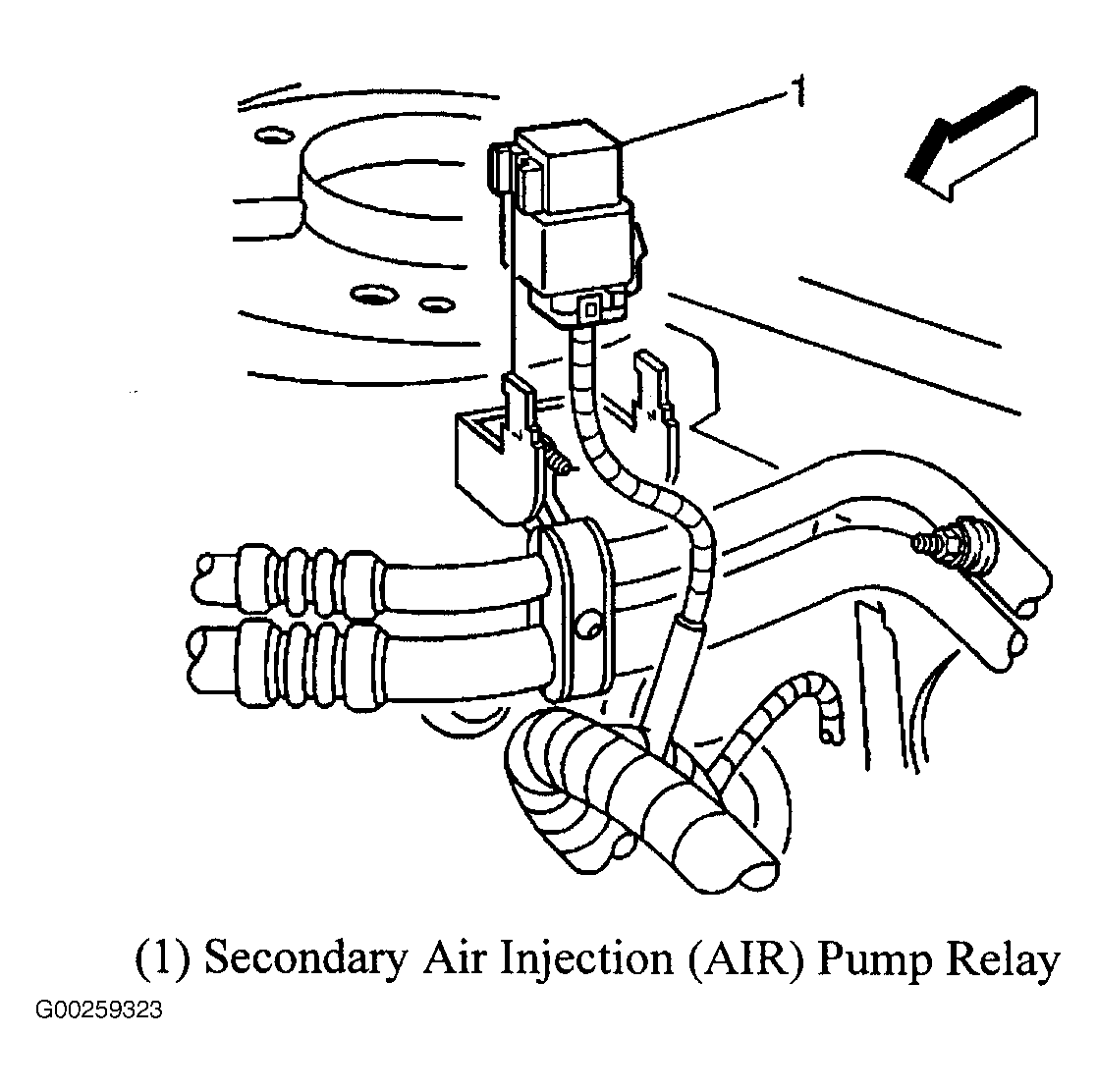

Fig 73: Left Air Pump
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 75: Upper Right Rear Corner Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
