Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

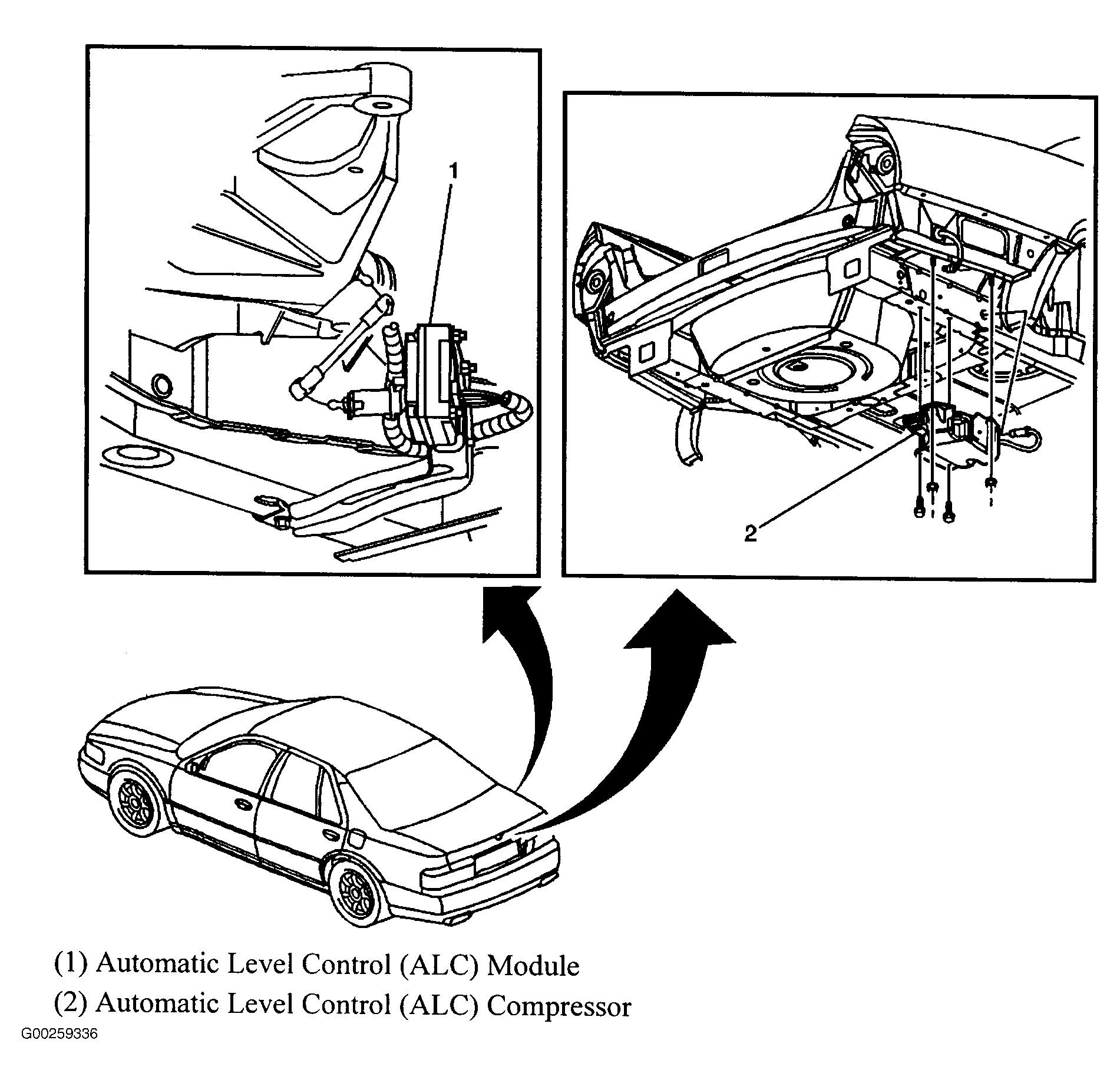

| Automatic Level Control (ALC) Module | Under rear of vehicle, near rear suspension carrier. See Figure . |

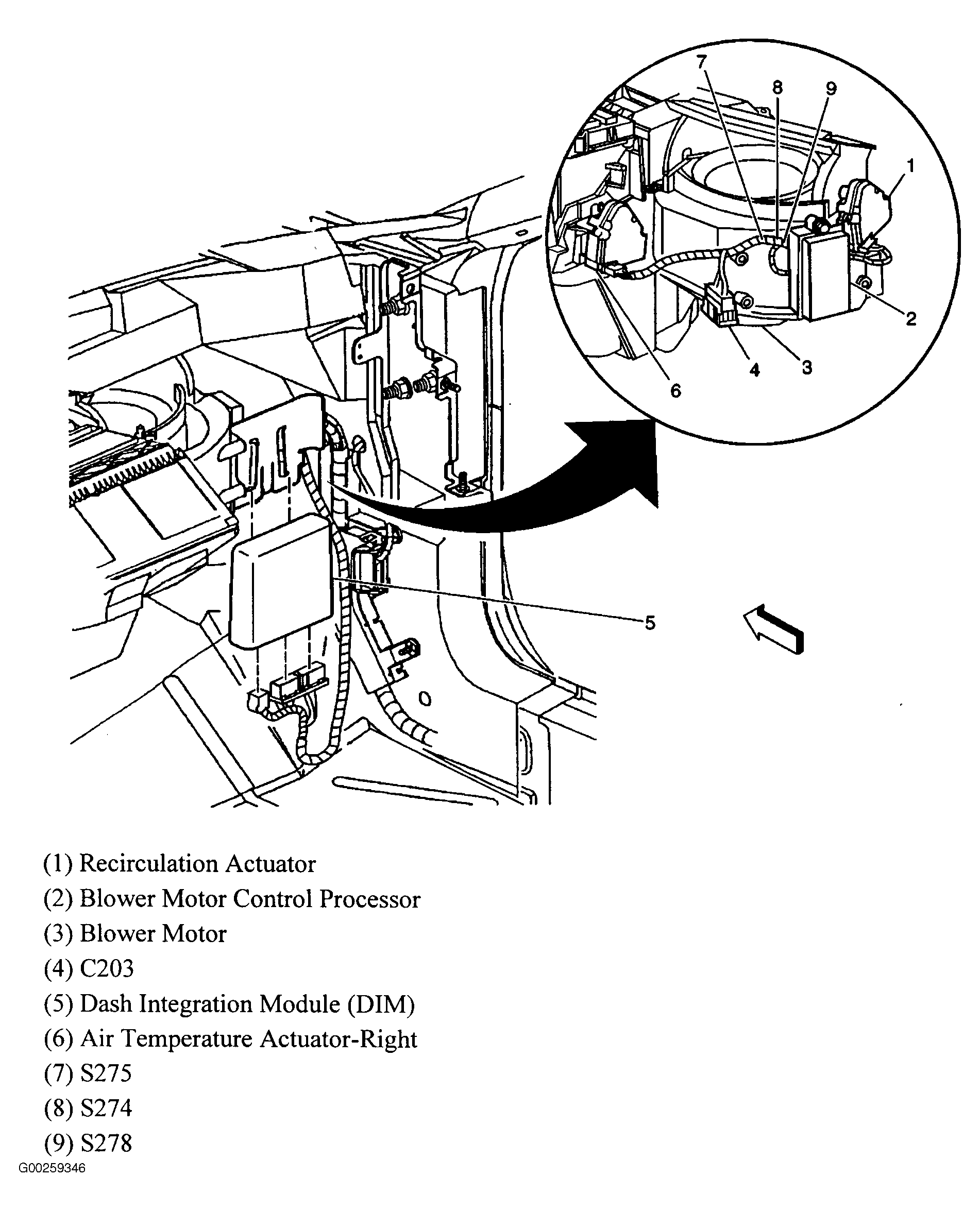

| Blower Motor Control Processor | Under right side of dash, near center heater outlets. See Figure . |

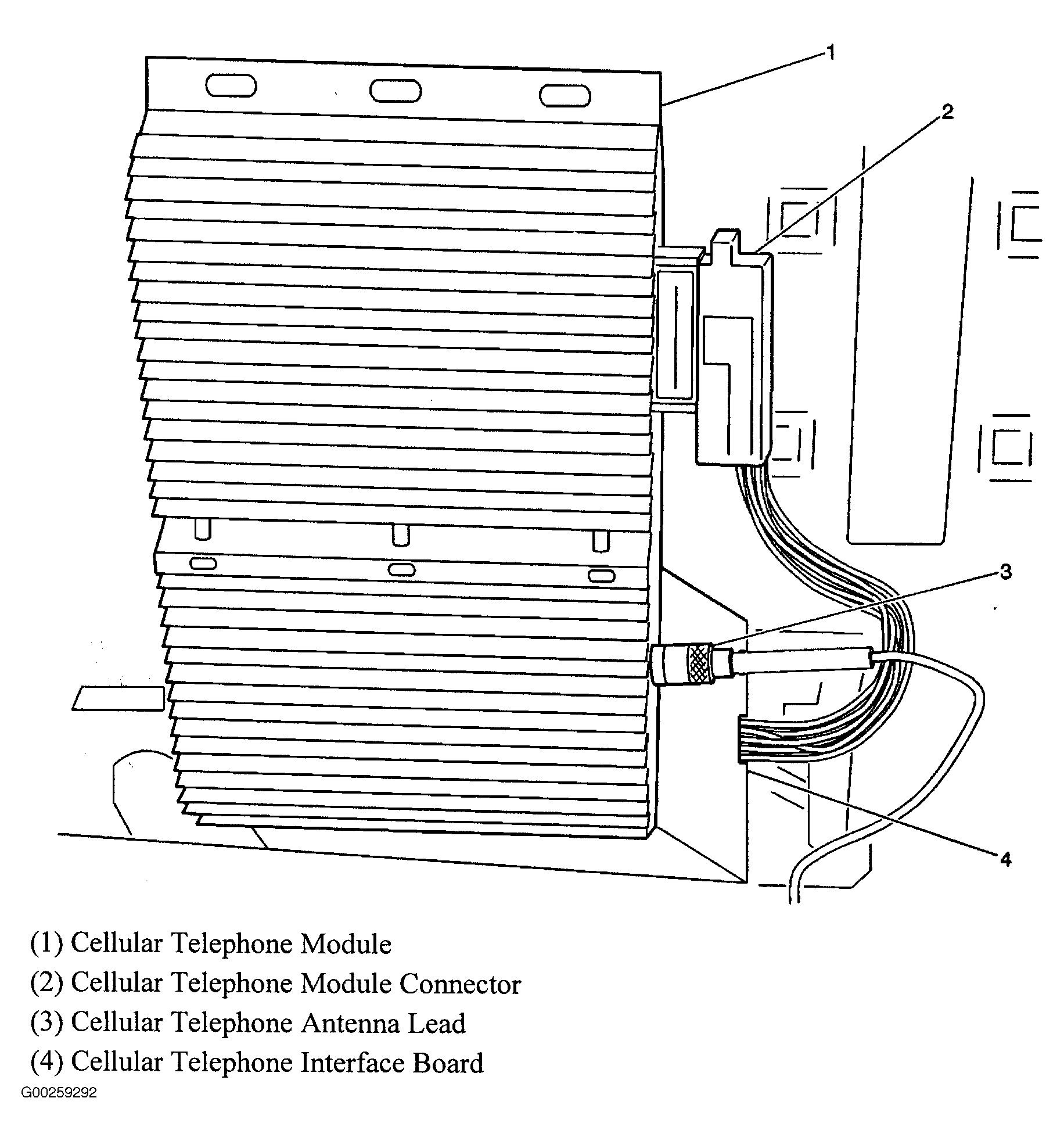

| Cellular Telephone Module | Under right side of rear compartment shelf. See Figure . |
| Cellular Telephone Module Connector | Under right side of rear compartment shelf. See Figure . |

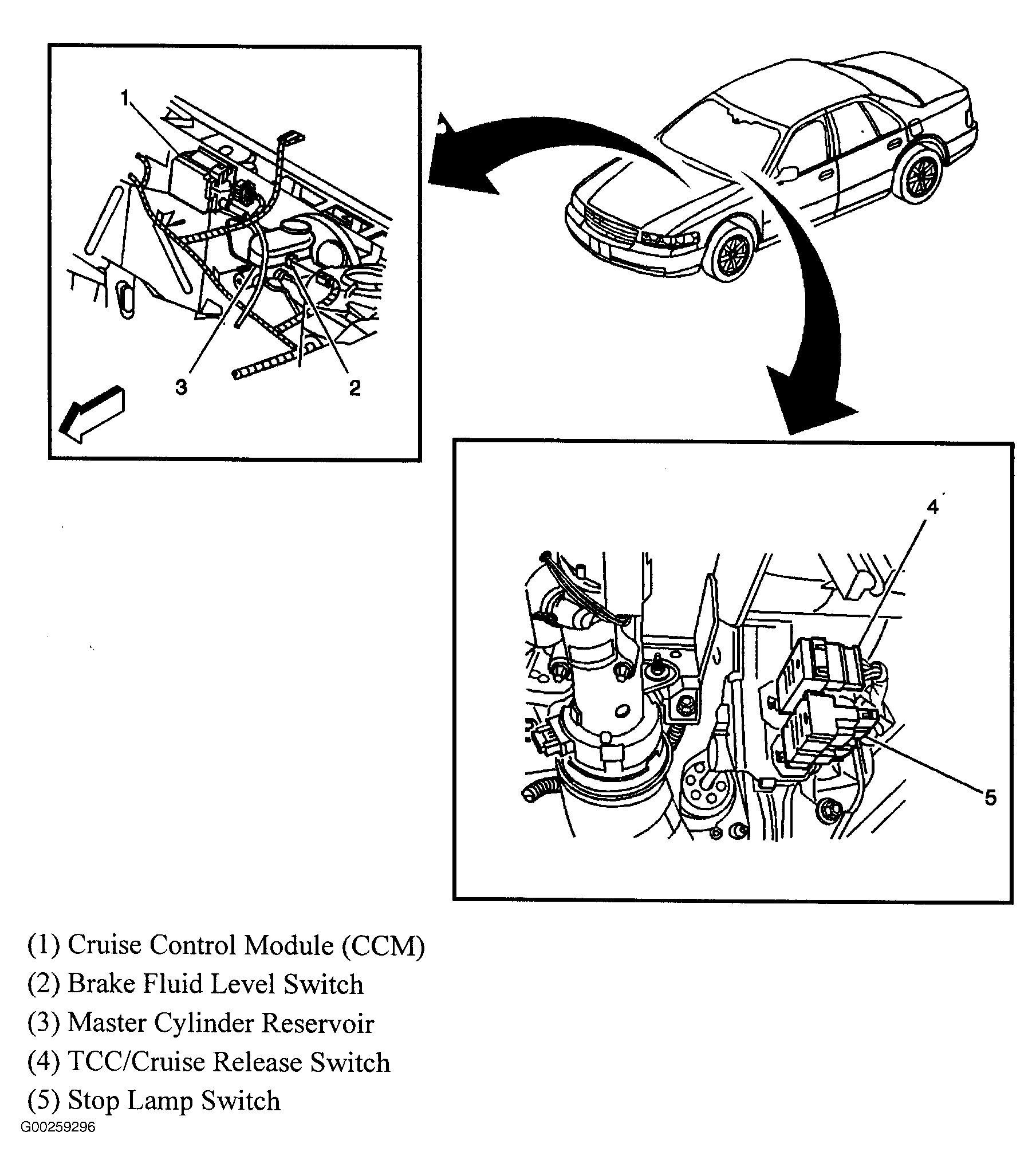

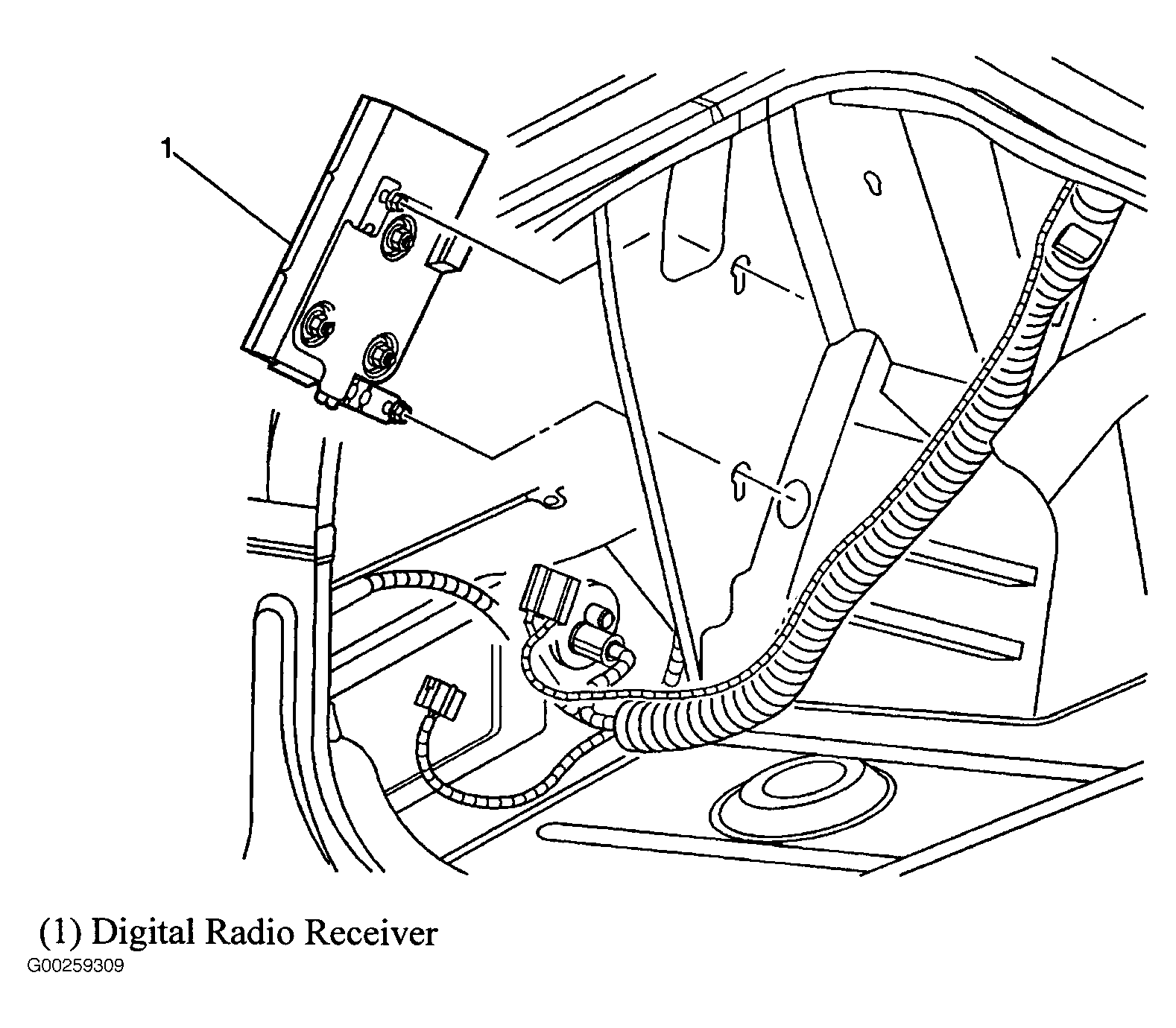

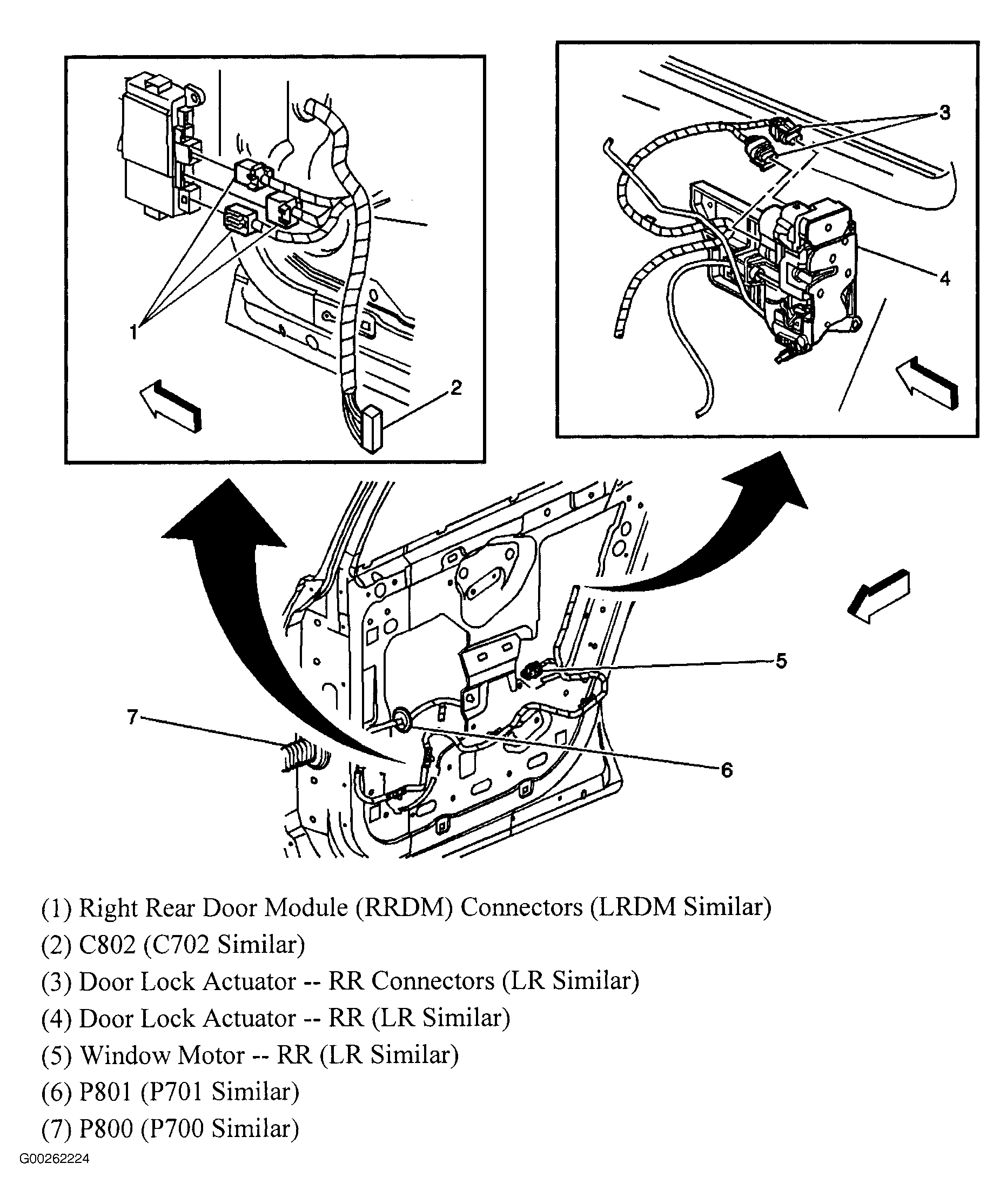

| Cruise Control Module (CCM) | On center rear of engine compartment, near power brake booster. See Figure . |
| Dash Integration Module (DIM) | On right side of dash, near blower motor. See Figure . |
| Digital Radio Receiver | On left side of rear compartment. See Figure . |
| Door Module (Front Passenger) | In front of right front door, near radio speaker. See Figure . |
| Door Module (Left Rear) | In front of left rear door, near radio speaker. See Figure . |
| Door Module (Right Rear) | In front of right rear door, near radio speaker. See Figure . |

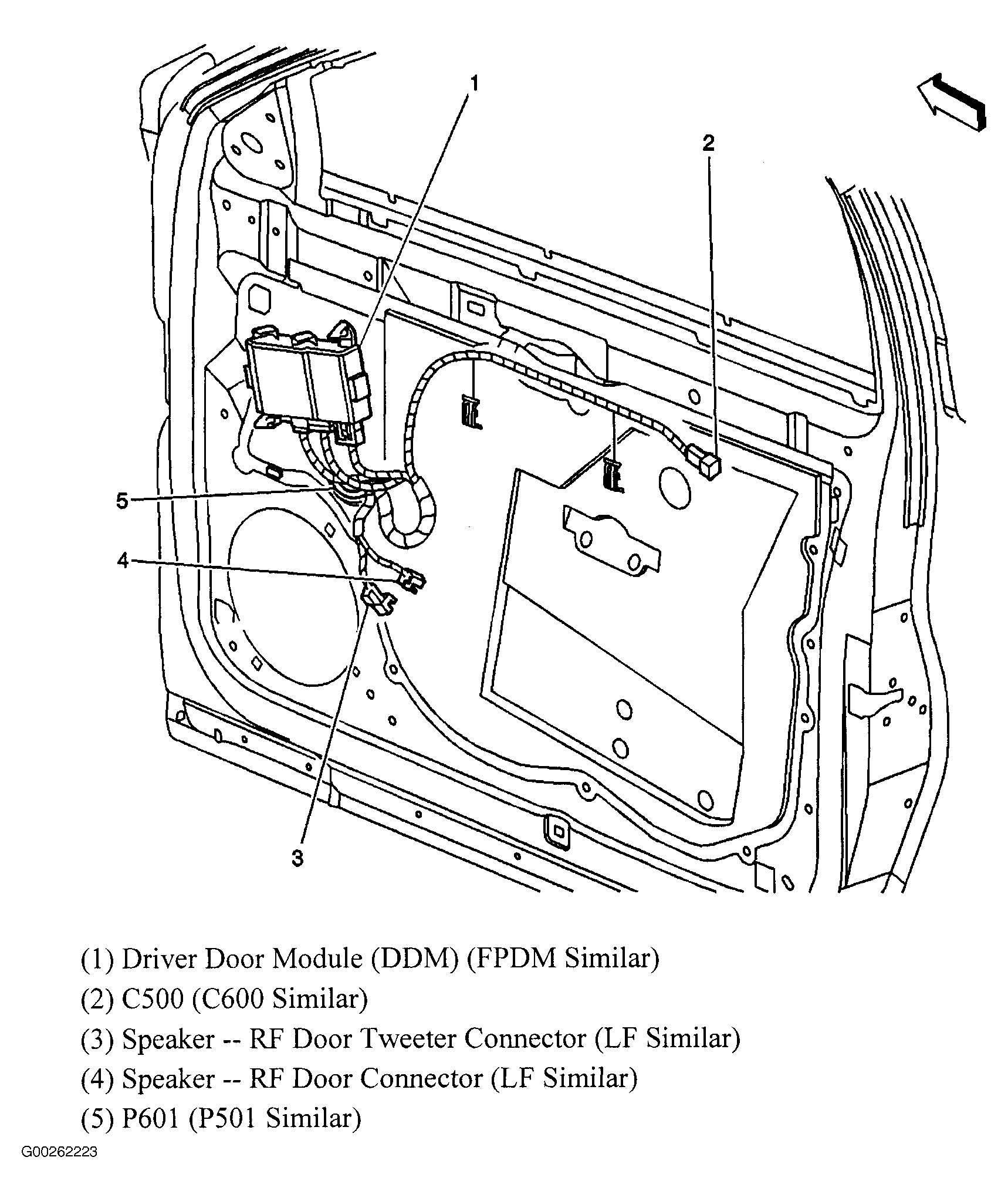

| Driver Door Module | In front of left front door, near radio speaker. See Figure . |

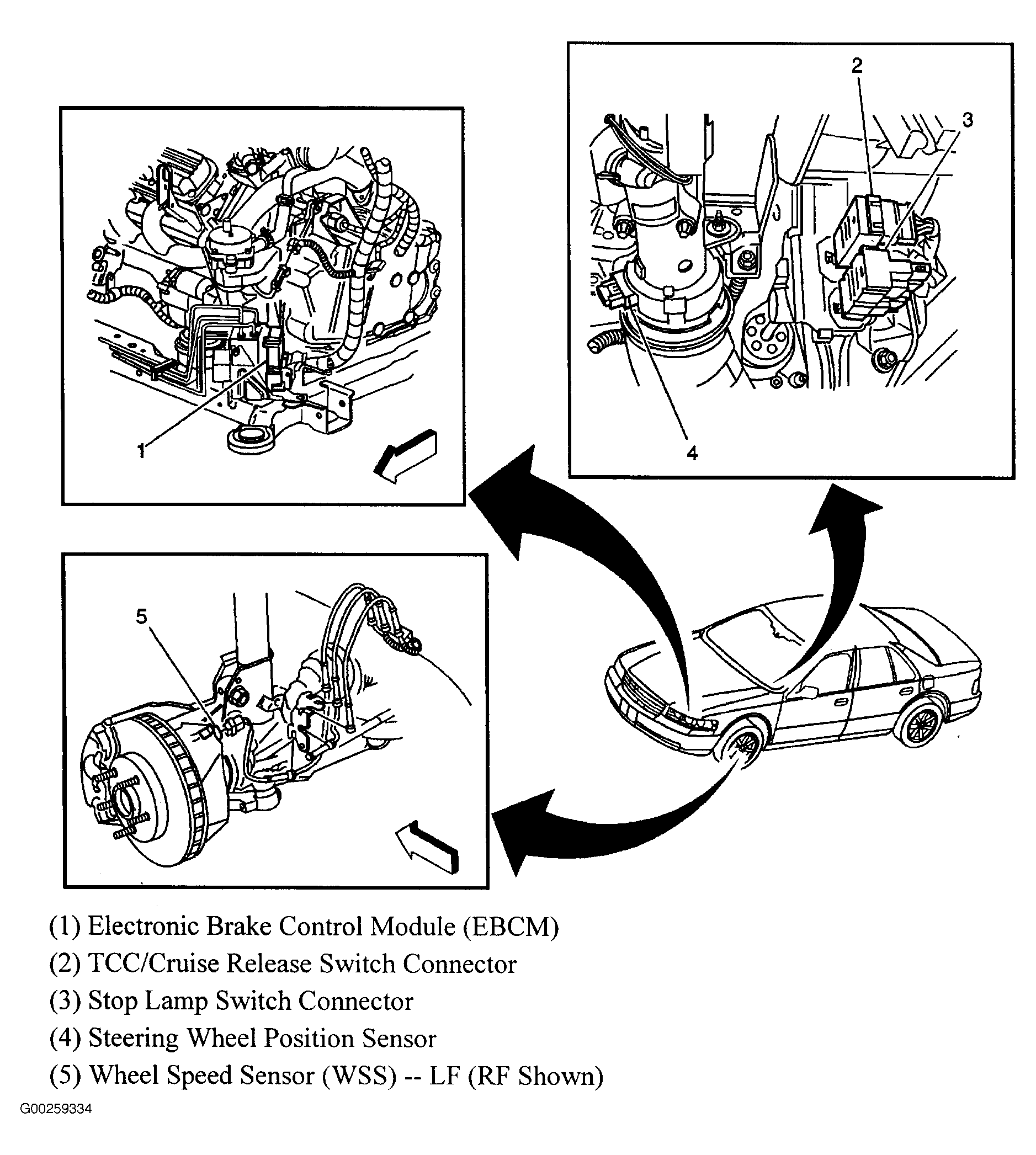

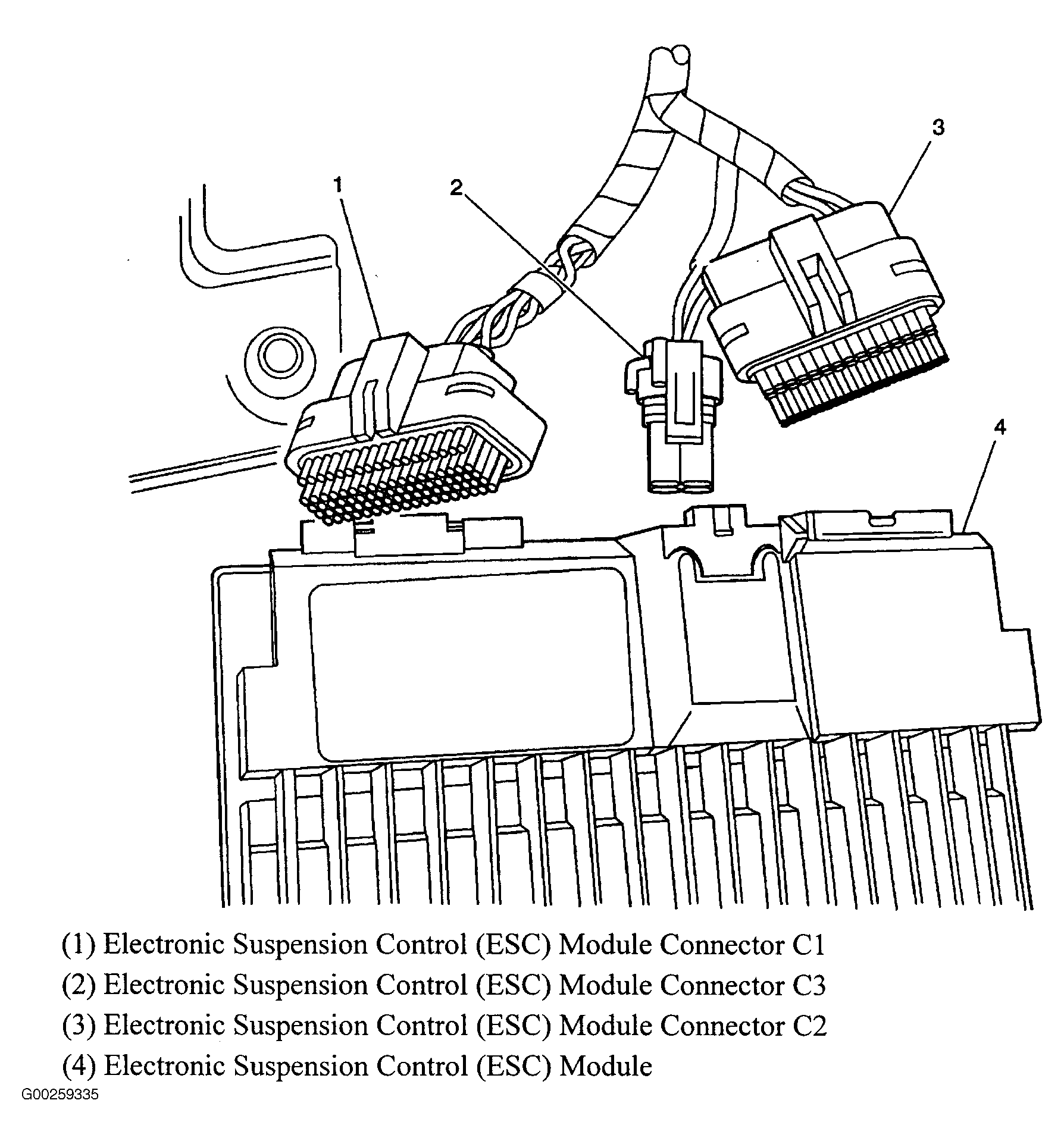

| Electronic Brake Control Module (EBCM) | On left front corner of engine compartment, below air cleaner housing. See Figure . |
| Electronic Suspension Control (ESC) Module | Behind right side of rear seat. See Figure . |
| Front Heated Seat Module (Driver/Passenger) | Under respective front seat. |

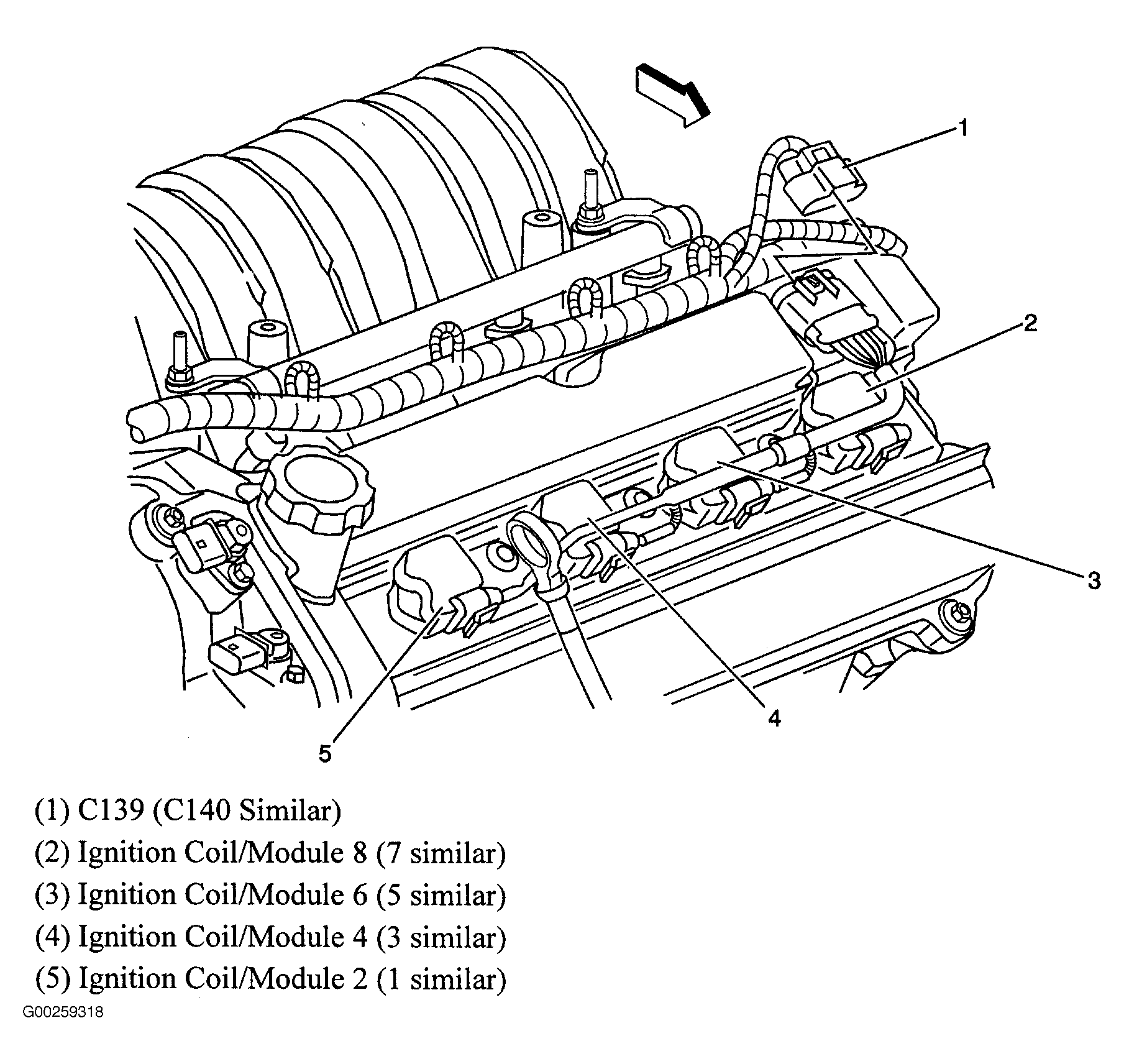

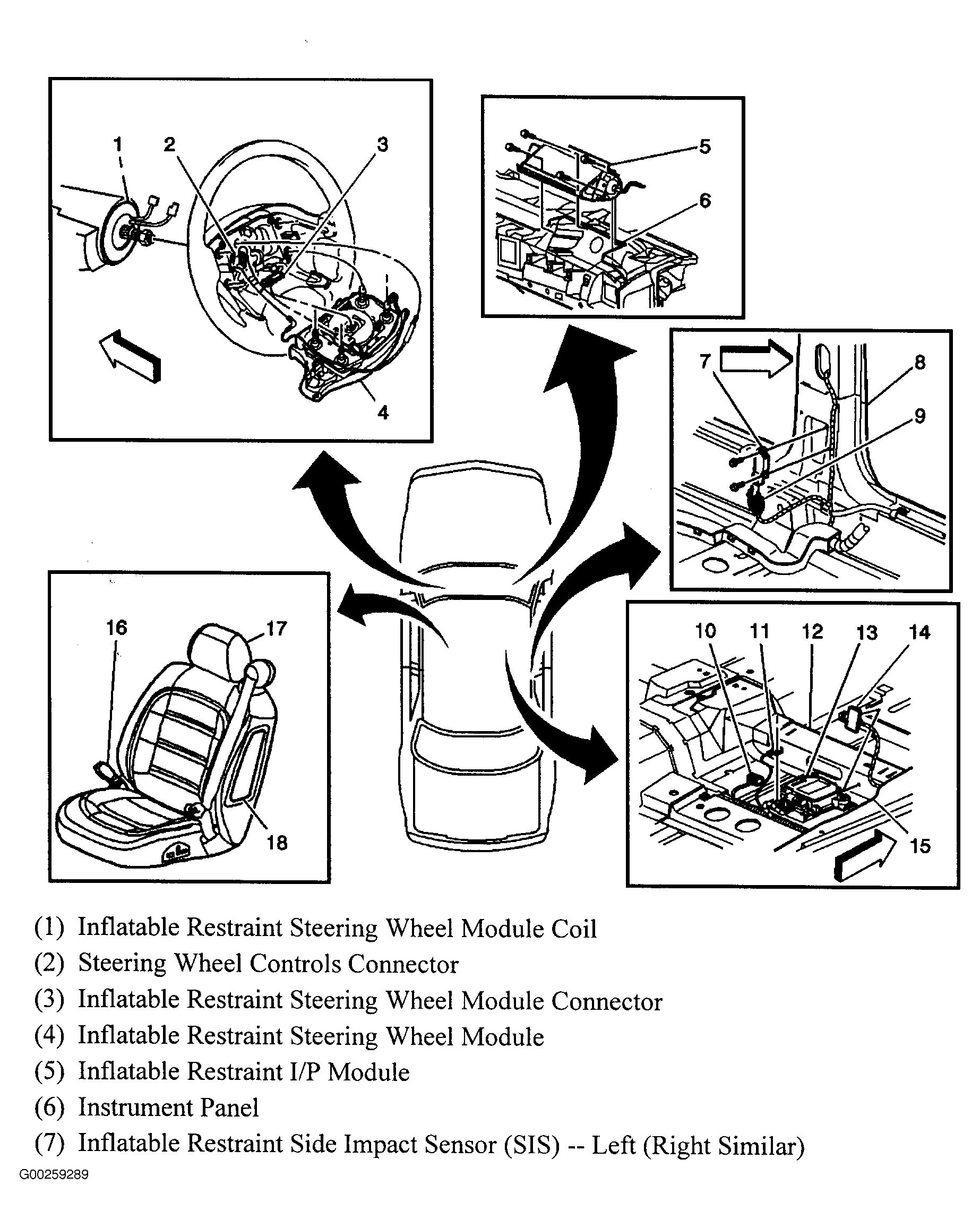

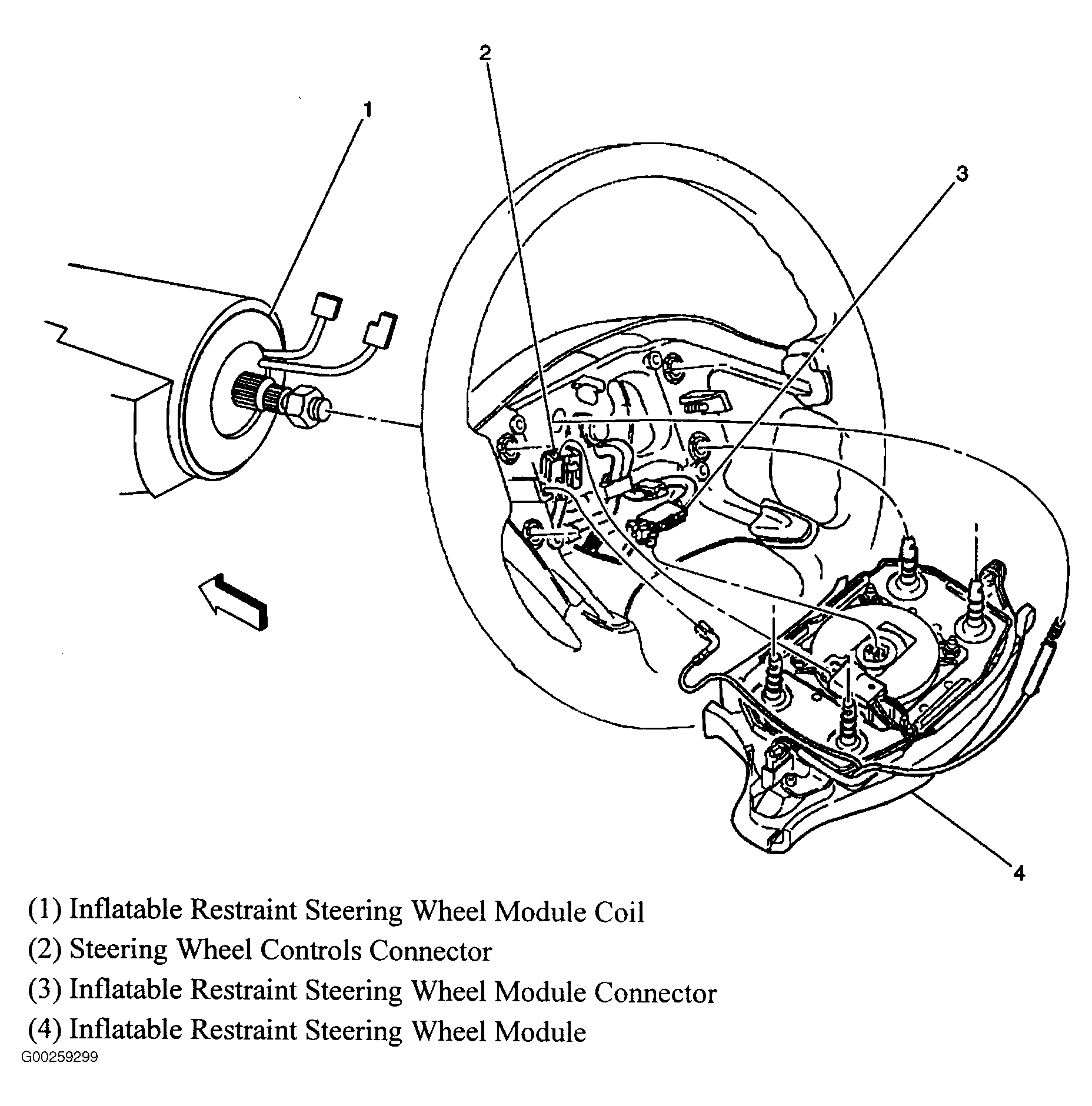

| Ignition Coil/Module 1 | Top rear of engine. See Figure . |
| Ignition Coil/Module 2 | Top front of engine. See Figure . |
| Ignition Coil/Module 3 | Top rear of engine. See Figure . |
| Ignition Coil/Module 4 | Top front of engine. See Figure . |
| Ignition Coil/Module 5 | Top rear of engine. See Figure . |
| Ignition Coil/Module 6 | Top front of engine. See Figure . |
| Ignition Coil/Module 7 | Top rear of engine. See Figure . |
| Ignition Coil/Module 8 | Top front of engine. See Figure . |
| Inflatable Restraint I/P Module | Right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Under right front seat. See Figure . |
| Inflatable Restraint Side Impact Module (Left) | Left side of driver seat back. See Figure . |
| Inflatable Restraint Side Impact Module (Right) | Right side of right front seat back. See Figure . |
| Inflatable Restraint Steering Wheel Module | On steering wheel. See Figure . |
| Inflatable Restraint Steering Wheel Module Coil | Top of steering column. See Figure . |
| Inflatable Restraint Steering Wheel Module Connector | On steering wheel. See Figure . |

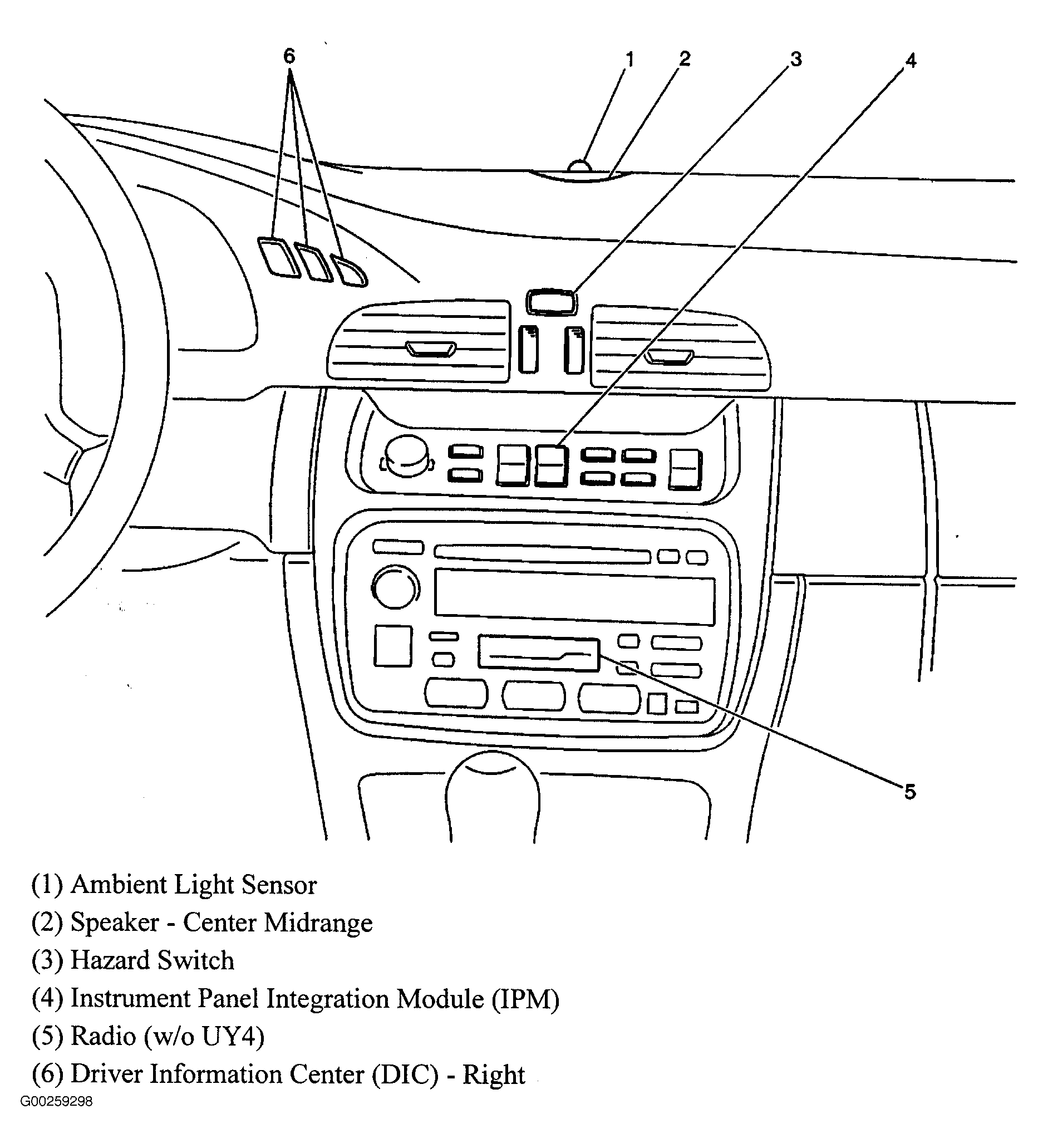

| Instrument Panel Integration Module | Behind center of dash, above radio. See Figure . |
| Memory Seat Module | Under left front seat. |
| Powertrain Control Module | At left front corner of engine compartment, below air cleaner. |

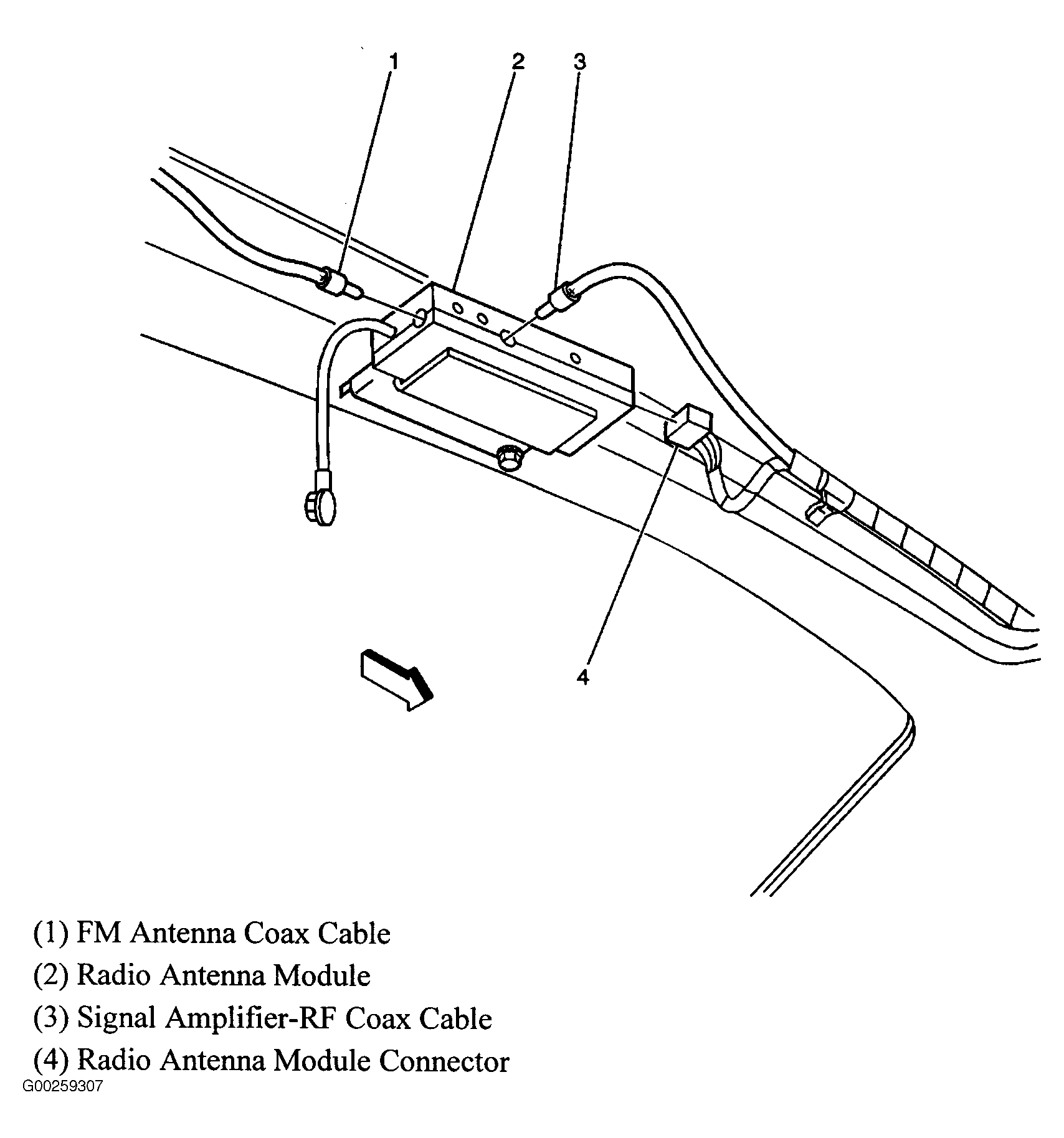

| Radio Antenna Module | Above center rear of headliner. See Figure . |
| Radio Antenna Module Connector | Above center rear of headliner. See Figure . |
| Rear Heated Seat Module (Left/Right) | In center of rear seat back. |
| Rear Integration Module (RIM) | Behind right side of rear seat back. |
| Rear Object Sensor Control Module | In right side of rear compartment. |

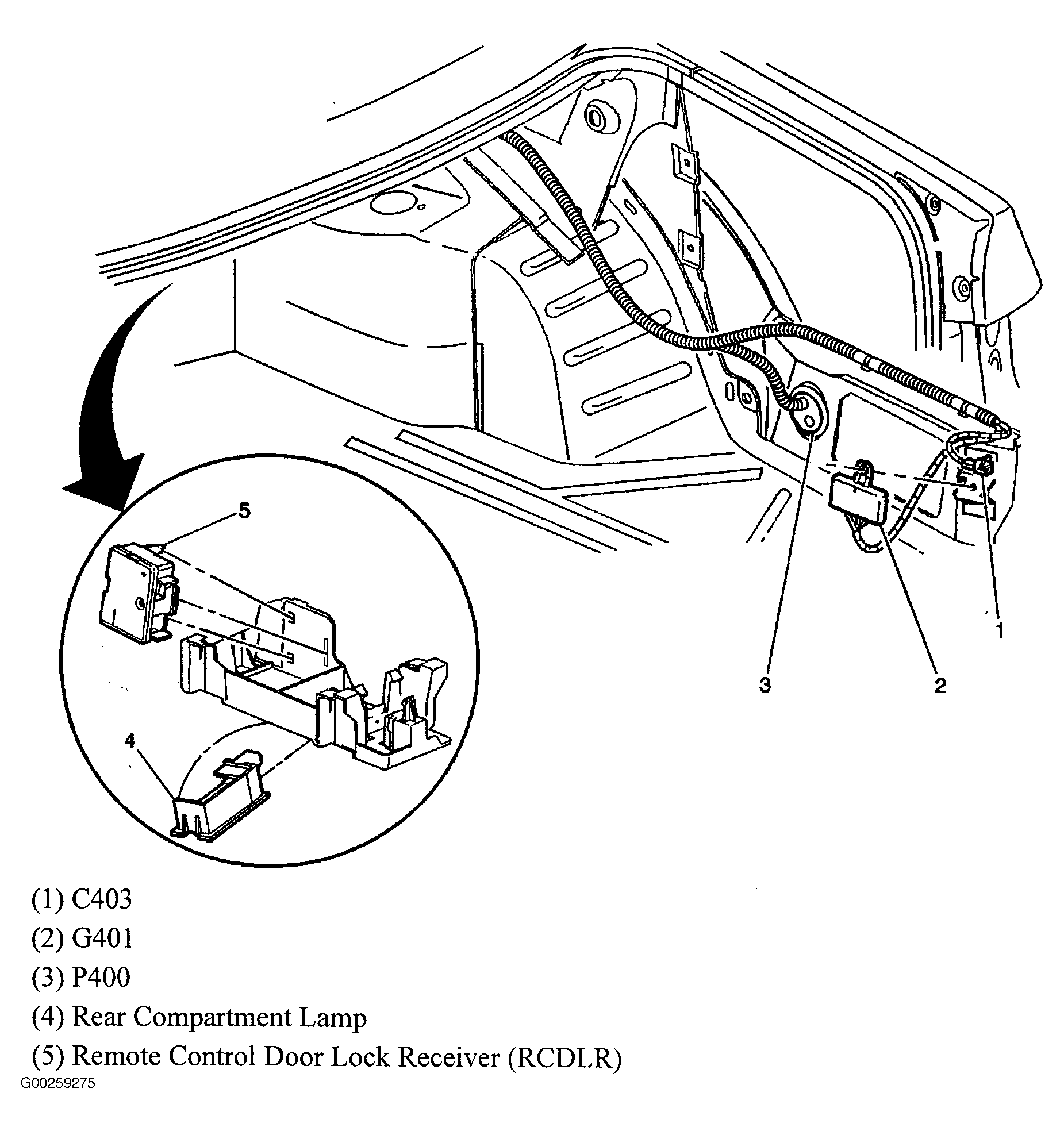

| Remote Control Door Lock Receiver | Under rear speaker shelf. See Figure . |

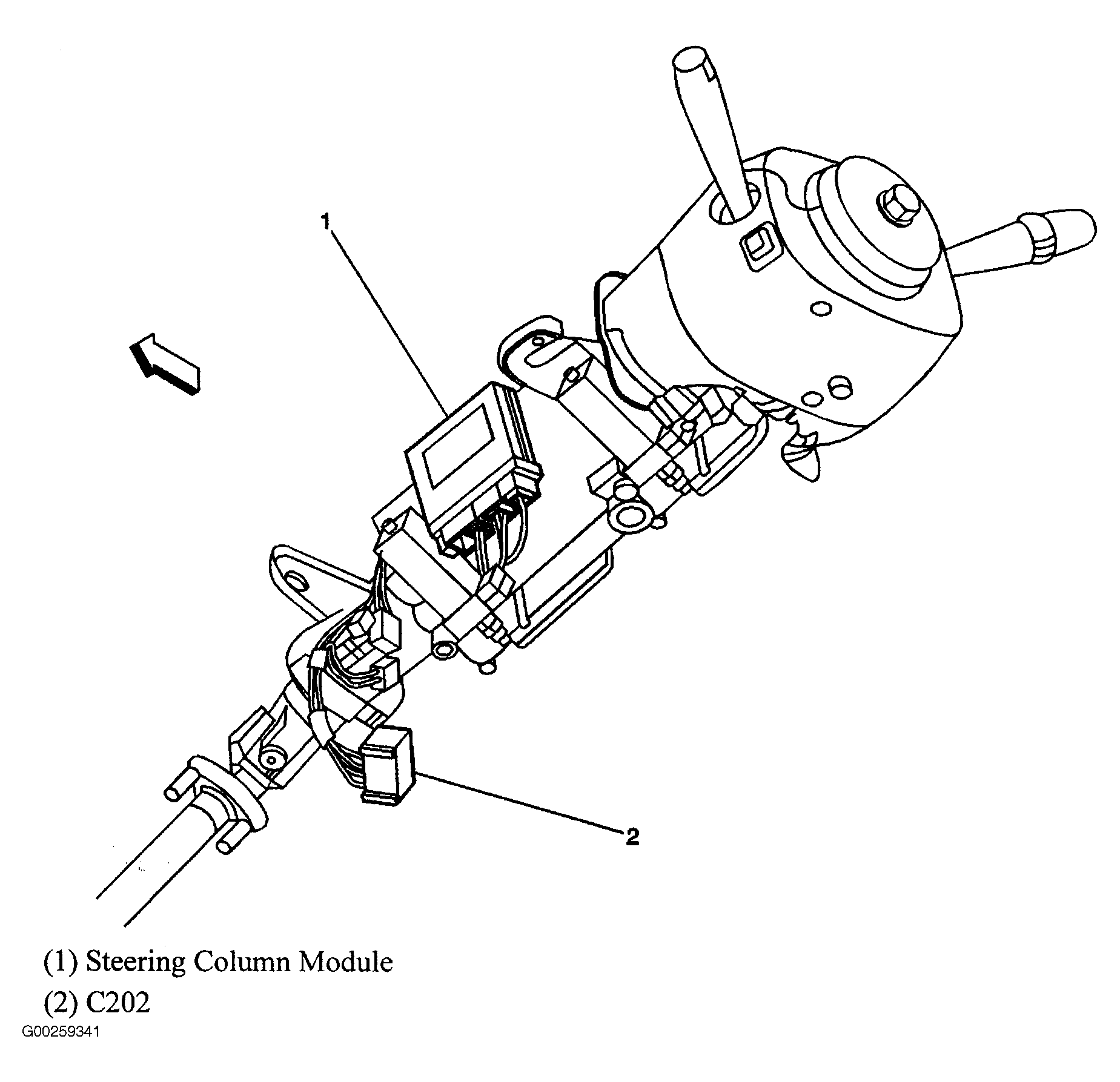

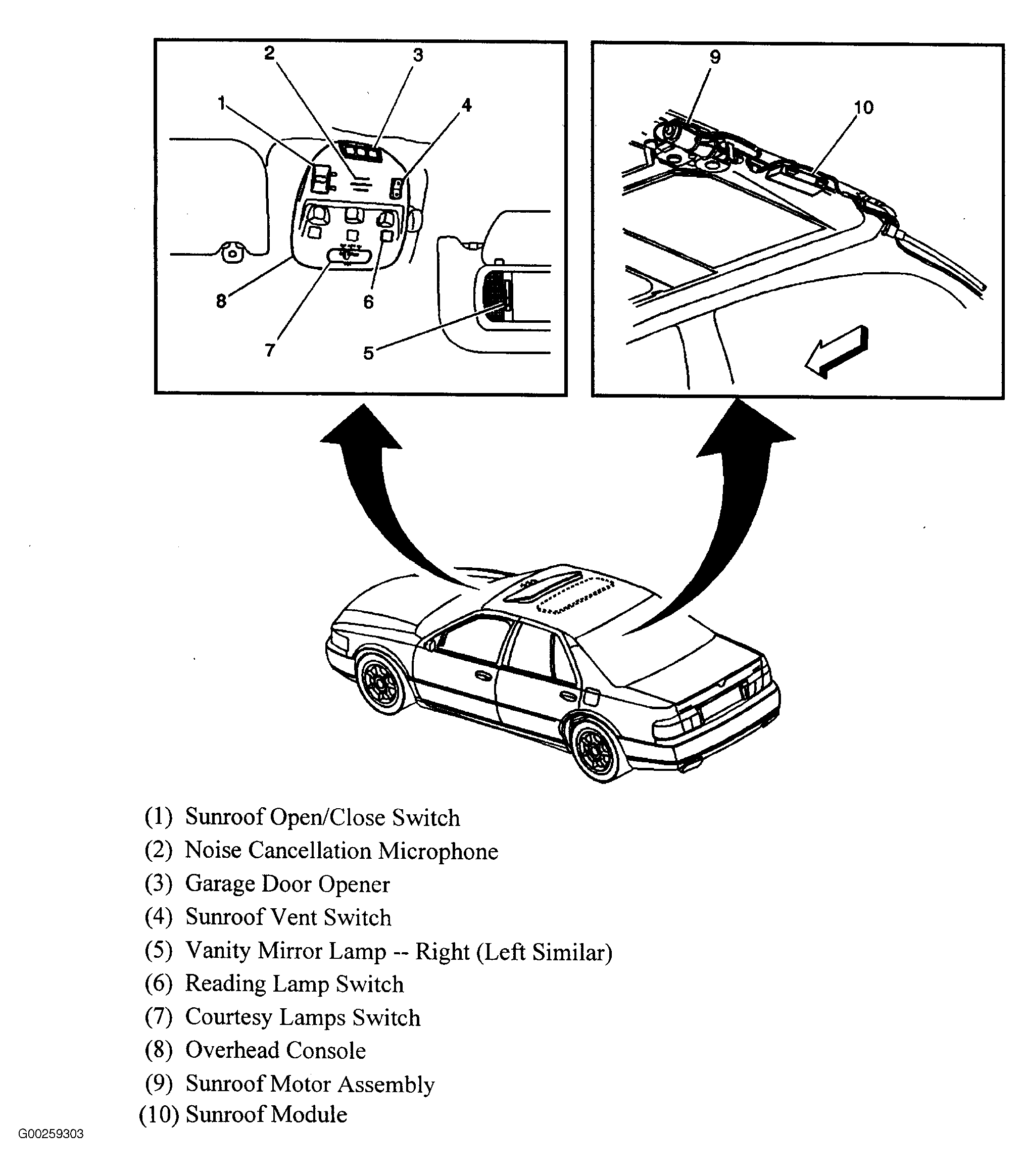

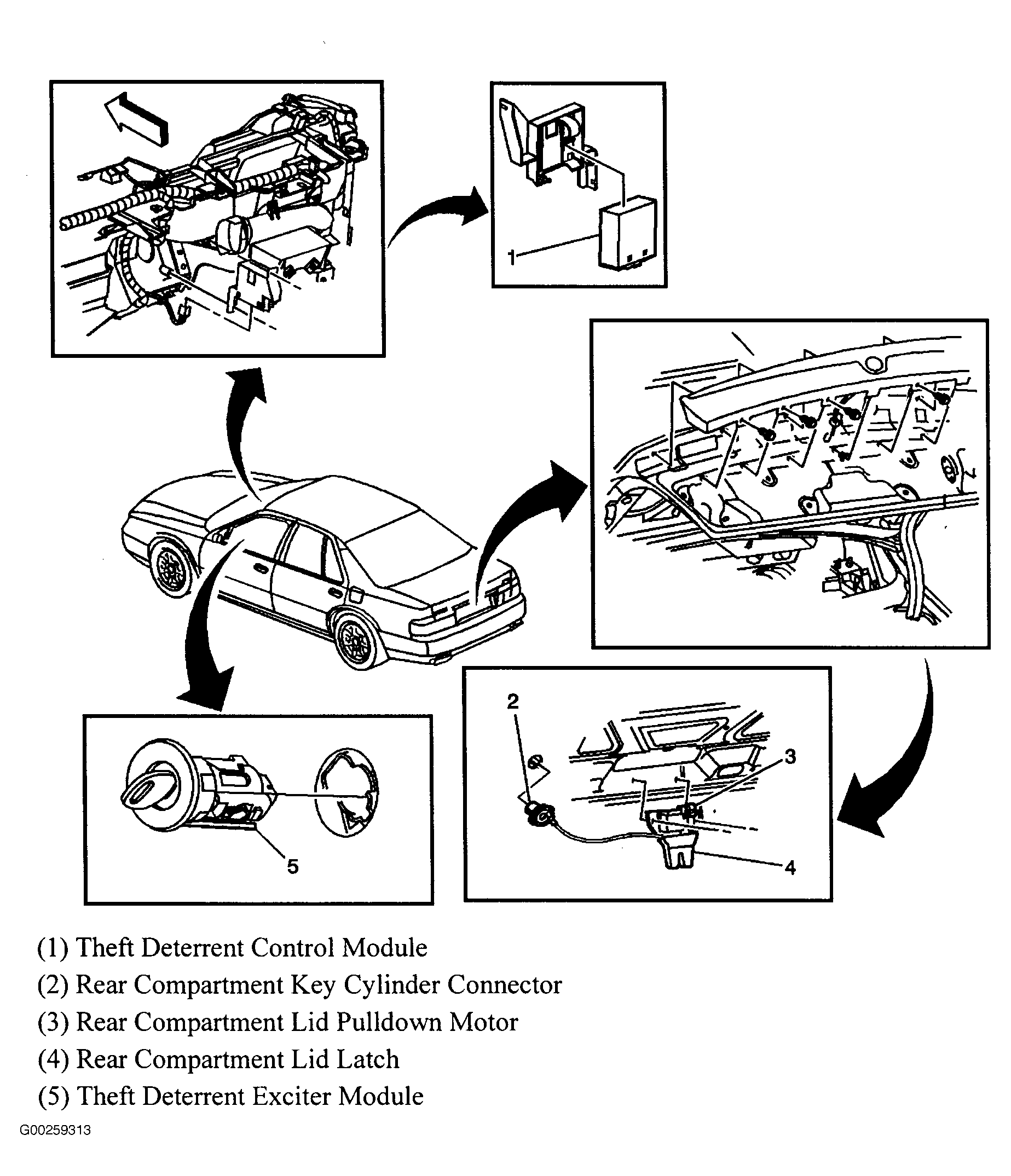

| Steering Column Module | Behind left side of dash, left of steering column. See Figure . |
| Sunroof Module | Above headliner, near rear of sun roof. See Figure . |
| Theft Deterrent Control Module | Behind left side of dash, right of steering column. See Figure . |
| Theft Deterrent Exciter Module | On ignition switch. See Figure . |
| Traffic Information Receiver | Behind right rear seat back. |

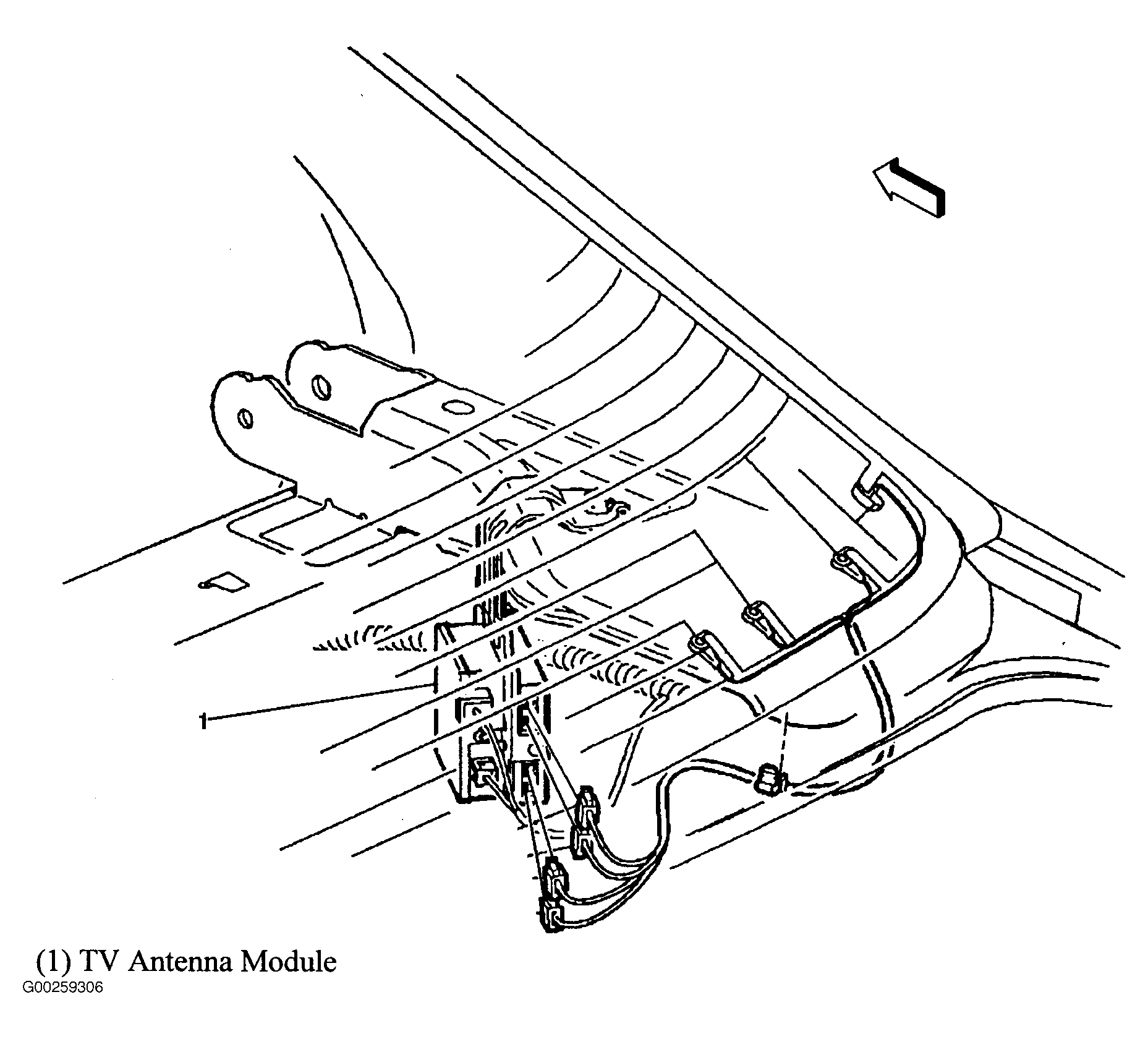

| TV Antenna Module | Under right side of rear speaker shelf. See Figure . |

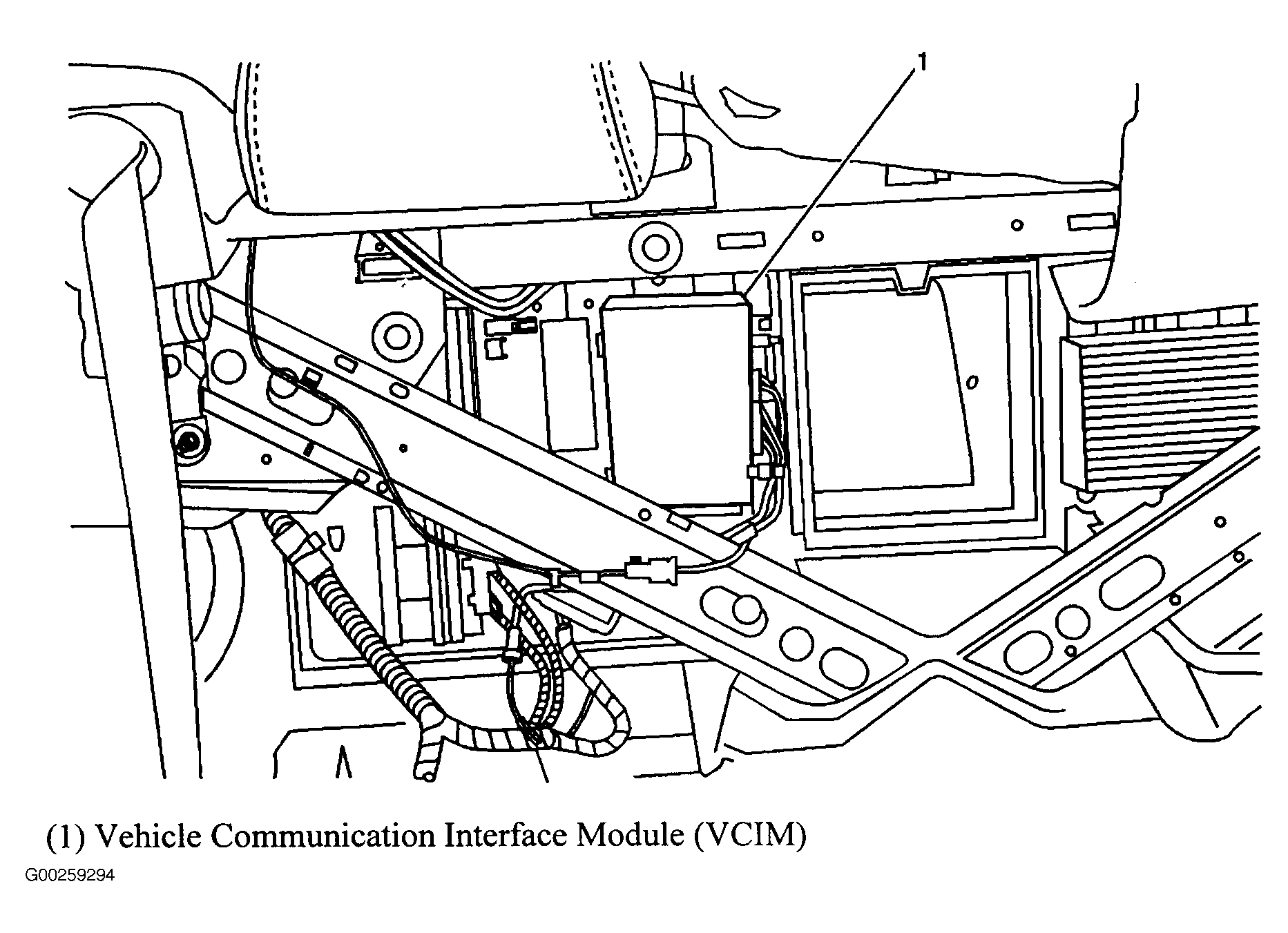

| Vehicle Communication Interface Module | Behind right rear seat back. See Figure . |
