Installation Procedure

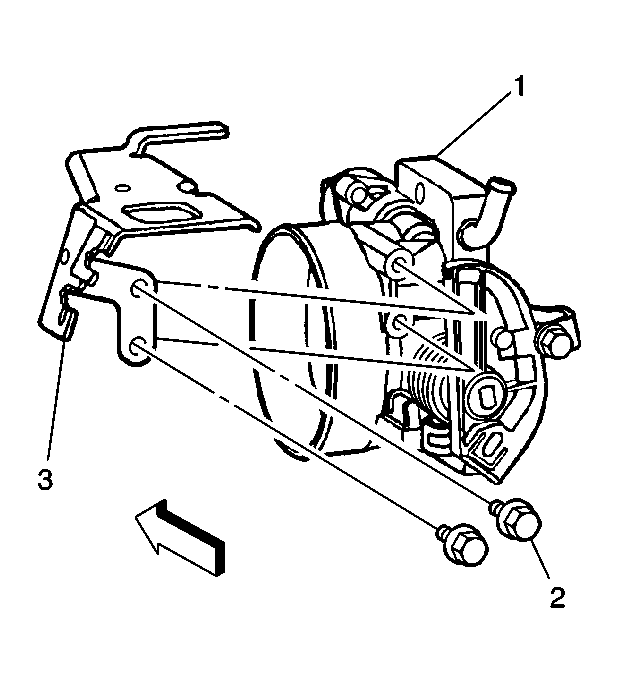

    Fig 1: View of Accelerator Controls Cable Bracket & Bolts
    GM573471Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the accelerator controls cable bracket (3) and bolts (2).
  2. Install the upper throttle body bolt.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

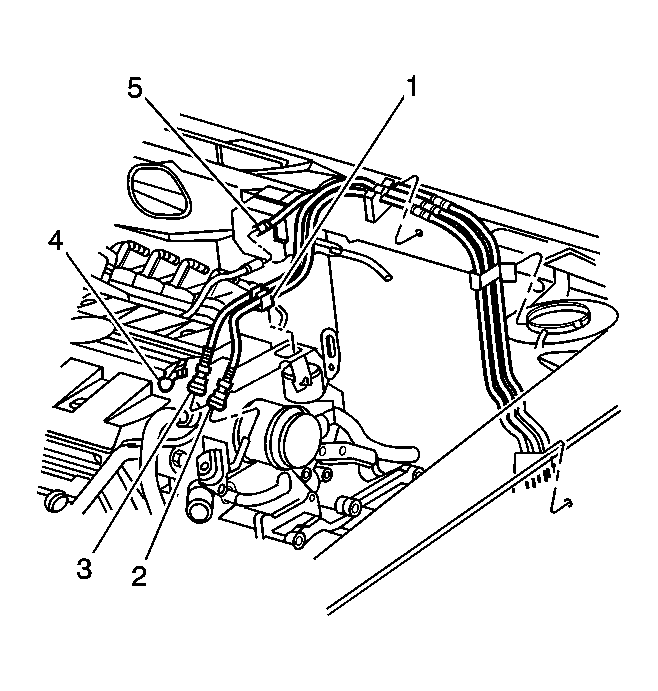

    3. Fig 2: Identifying Fuel Feed/Return Pipes & Retainer
    GM130538Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel feed (3) and fuel return (2) fuel pipes to the retainer (1).

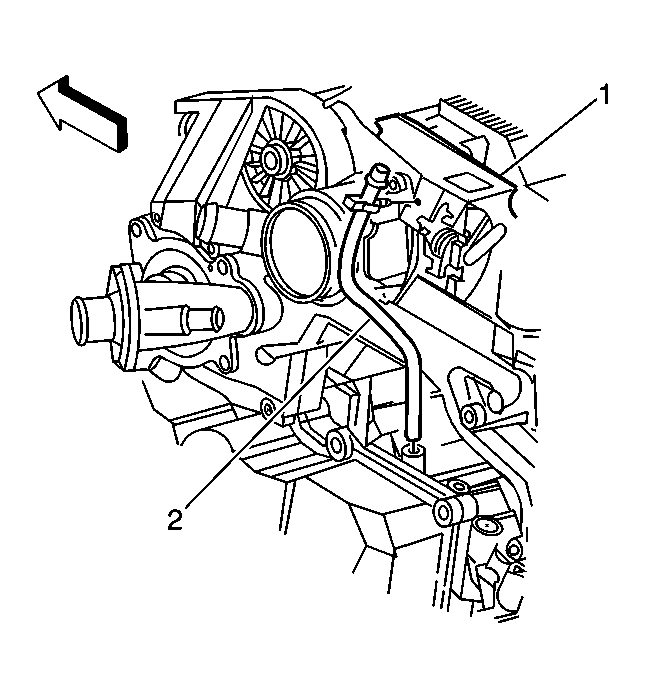

    4. Fig 3: View of Accelerator Controls Cable Bracket & Transaxle Vent Hose
    GM154854Courtesy of GENERAL MOTORS CORP.
  4. Connect the transaxle vent hose (2) clip to the accelerator controls cable bracket (1).

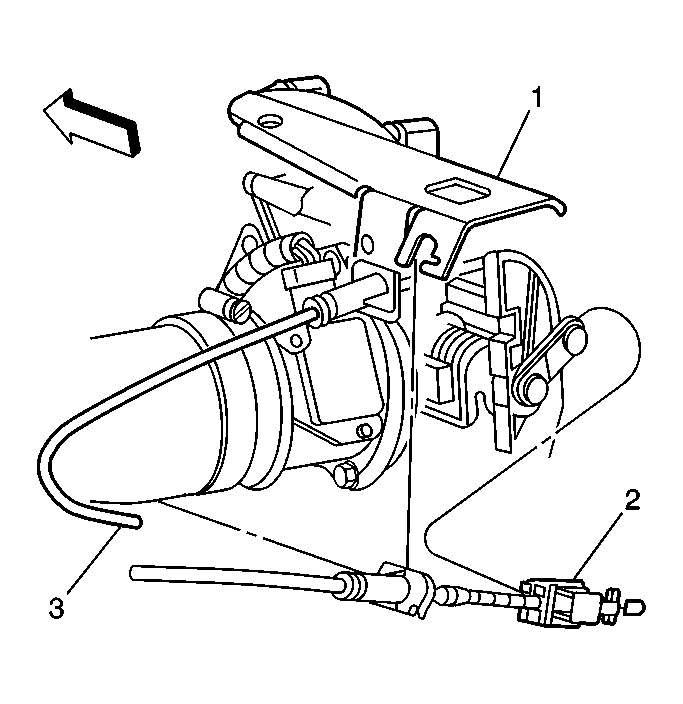

    5. Fig 4: View of Accelerator Controls Cable Bracket, Cruise Control Cable, & Accelerator Cable
    GM104766Courtesy of GENERAL MOTORS CORP.
  5. Connect the cruise control cable (2) from the accelerator controls cable bracket (1).
  6. Connect the accelerator controls cable (3) from the accelerator controls cable bracket (1).
