Removal Procedure

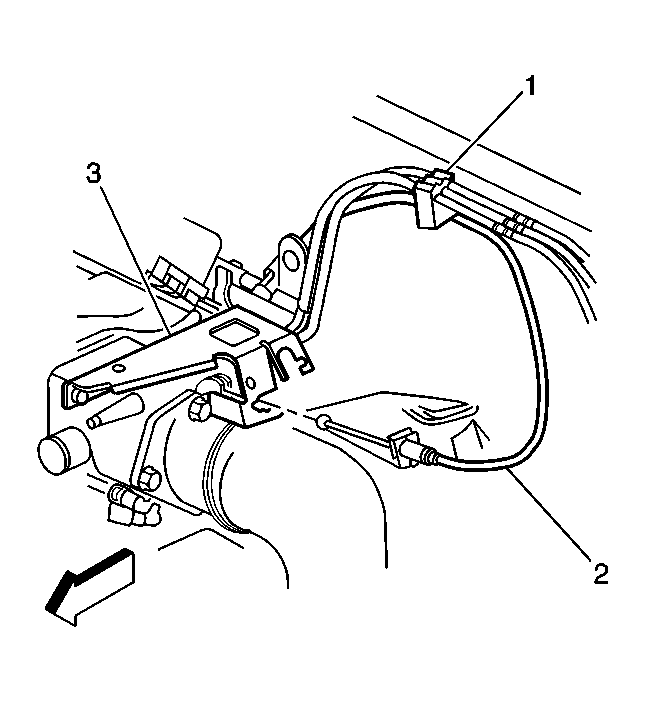

    Fig 1: View of Accelerator Control Cable & Bracket
    GM104758Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the accelerator control cable (2) from the accelerator controls bracket (3).

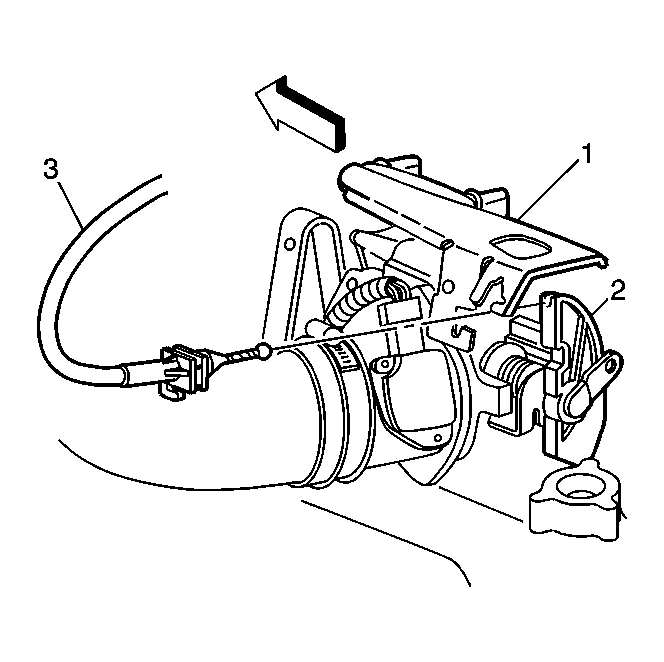

    2. Fig 2: Identifying Accelerator Control Cable & Throttle Body Lever
    GM154786Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the accelerator control cable (3) from the throttle body lever (2).
    3. Fig 3: View of Accelerator Control Cable & Bracket
    GM104758Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the accelerator control cable (2) at the retainer (1) on the bulkhead.

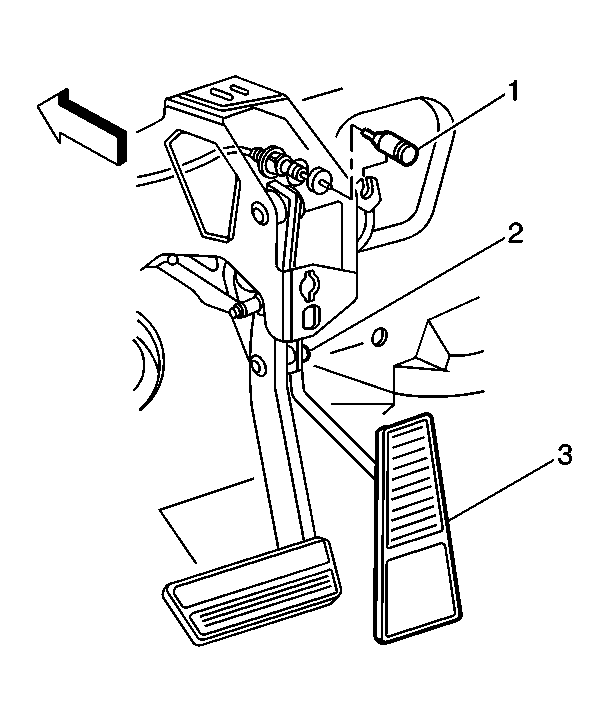

    4. Fig 4: View of Accelerator Control Cable & Pedal
    GM154846Courtesy of GENERAL MOTORS CORP.
  4. Remove the left closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Left (LHD) or Closeout/Insulator Panel Replacement - Left (RHD) in Instrument Panel, Gages, and Console.
  5. Squeeze the accelerator control cable (1) cover tangs and push the accelerator control cable through the bulkhead.
  6. Disconnect the accelerator control cable (1) at the accelerator controls pedal (3).
  7. Remove the accelerator control cable.
