Removal Procedure

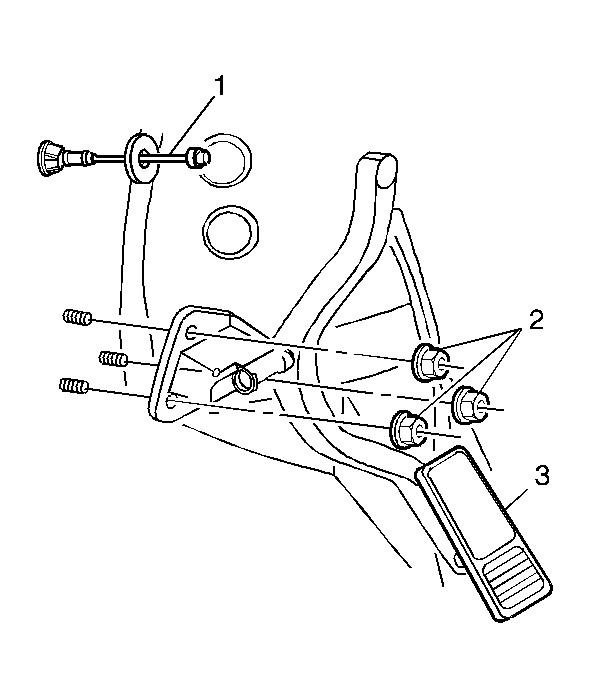

    Fig 1: View of Accelerator Controls Pedal Assembly
    GM302599Courtesy of GENERAL MOTORS CORP.
  1. Remove the right closeout/insulator panel replacement. Refer to Closeout/Insulator Panel Replacement - Left (LHD) or Closeout/Insulator Panel Replacement - Left (RHD) in Instrument Panel, Gages and Console.
  2. Remove the accelerator controls cable (1) from the accelerator controls pedal (3).
  3. Remove the nuts (2) from the accelerator controls pedal assembly (3).
  4. Remove the accelerator controls pedal assembly (3).
