Removal Procedure: Notes

NOTE: Do not damage the MAF sensor screen. A damaged screen could restrict airflow and lead to a driveability concern.

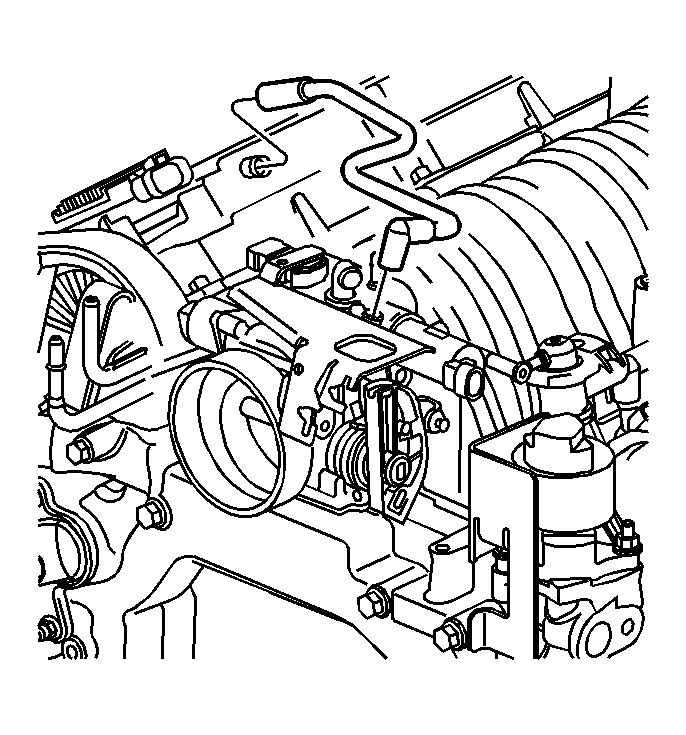

    Fig 1: View Of PCV Valve Fresh Air Tube
    GM522644Courtesy of GENERAL MOTORS CORP.
  1. Relieve the fuel system pressure. Refer to the Fuel Pressure Relief Procedure .
  2. Remove the air cleaner intake duct.
  3. Remove the PCV valve fresh air tube.
  4. Fig 2: View of Accelerator Controls Cable Bracket, Cruise Control Cable, & Accelerator Cable
    GM104766Courtesy of GENERAL MOTORS CORP.
  5. Remove the cruise control cable (2) from accelerator controls cable bracket (1).
  6. Remove the accelerator cable (3) from accelerator controls cable bracket (1).
  7. Remove the cruise control cable (2) from throttle body lever.

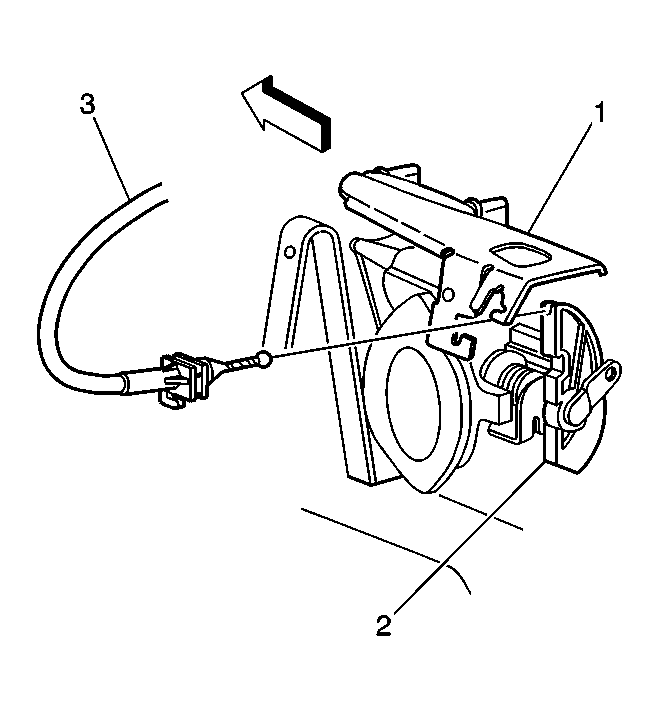

  8. Fig 3: View of Accelerator Control Cable & Throttle Body Lever
    GM175378Courtesy of GENERAL MOTORS CORP.
  9. Remove the accelerator control cable (3) from throttle body lever (2).
  10. Fig 4: IAC Connector and TP Sensor
    GM574138Courtesy of GENERAL MOTORS CORP.
  11. Remove the IAC valve electrical connector (1) from the IAC valve (4).
  12. Remove the TP sensor electrical connector (2) from the TP sensor (3).

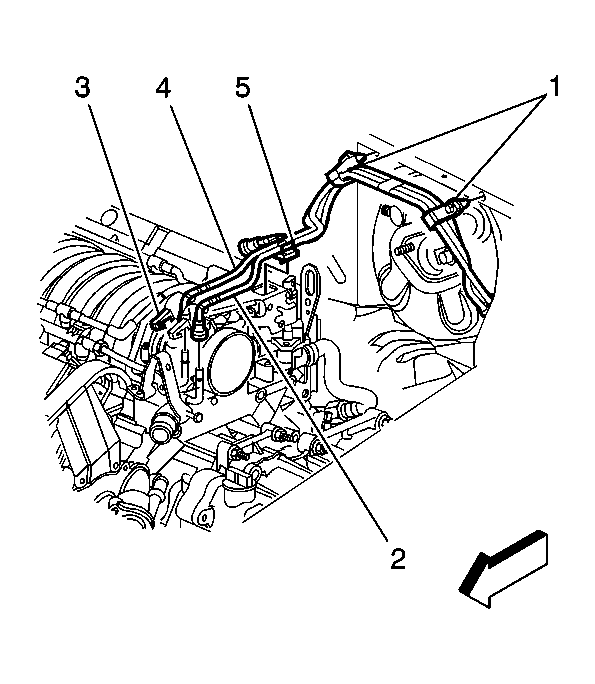

  13. Fig 5: View of Fuel Feed/Return Lines Retainer
    GM574905Courtesy of GENERAL MOTORS CORP.
  14. Remove the fuel feed and return lines from the retainer (5) on the accelerator controls cable bracket.

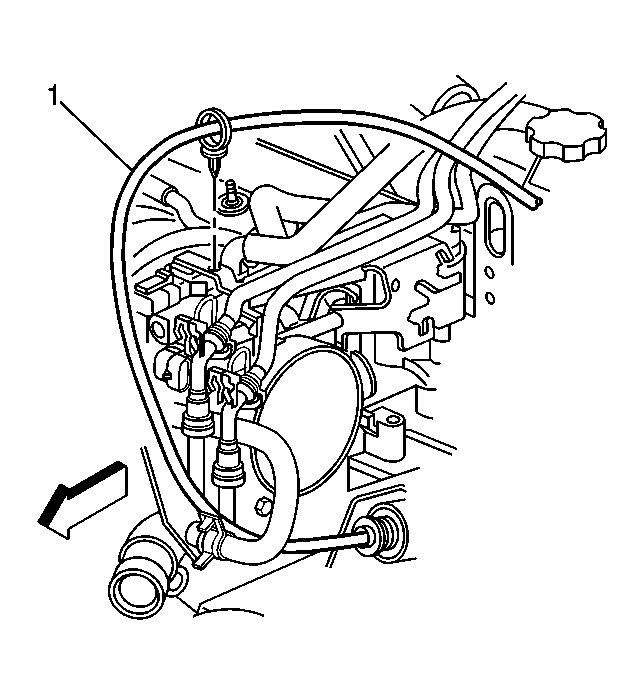

  15. Fig 6: Identifying Transaxle Shift Cable
    GM574958Courtesy of GENERAL MOTORS CORP.
  16. Remove the transaxle shift cable (1) clip from the accelerator controls cable bracket.

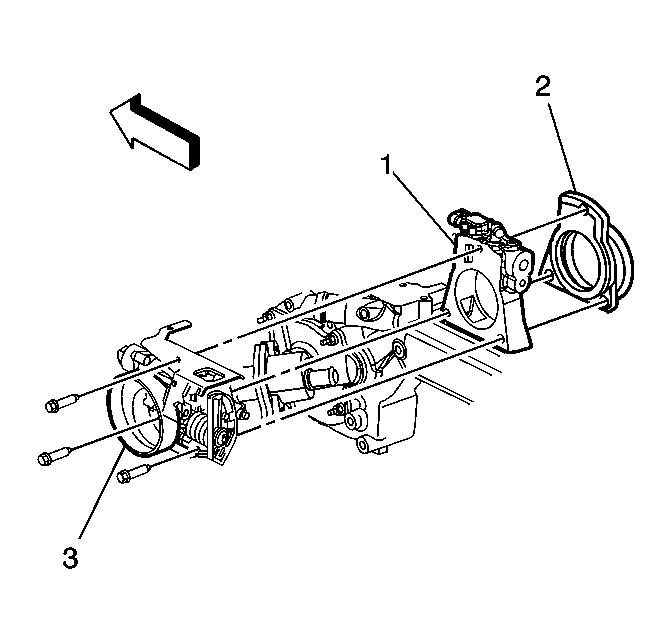

  17. Fig 7: View of Throttle Body & Water Crossover
    GM573468Courtesy of GENERAL MOTORS CORP.
  18. Remove the throttle body (2) from the water crossover (1).
  19. Fig 8: View of Accelerator Controls Cable Bracket & Bolts
    GM573471Courtesy of GENERAL MOTORS CORP.
  20. Remove the accelerator controls cable bracket (3) from the throttle body (1).
