Engine Controls Schematics

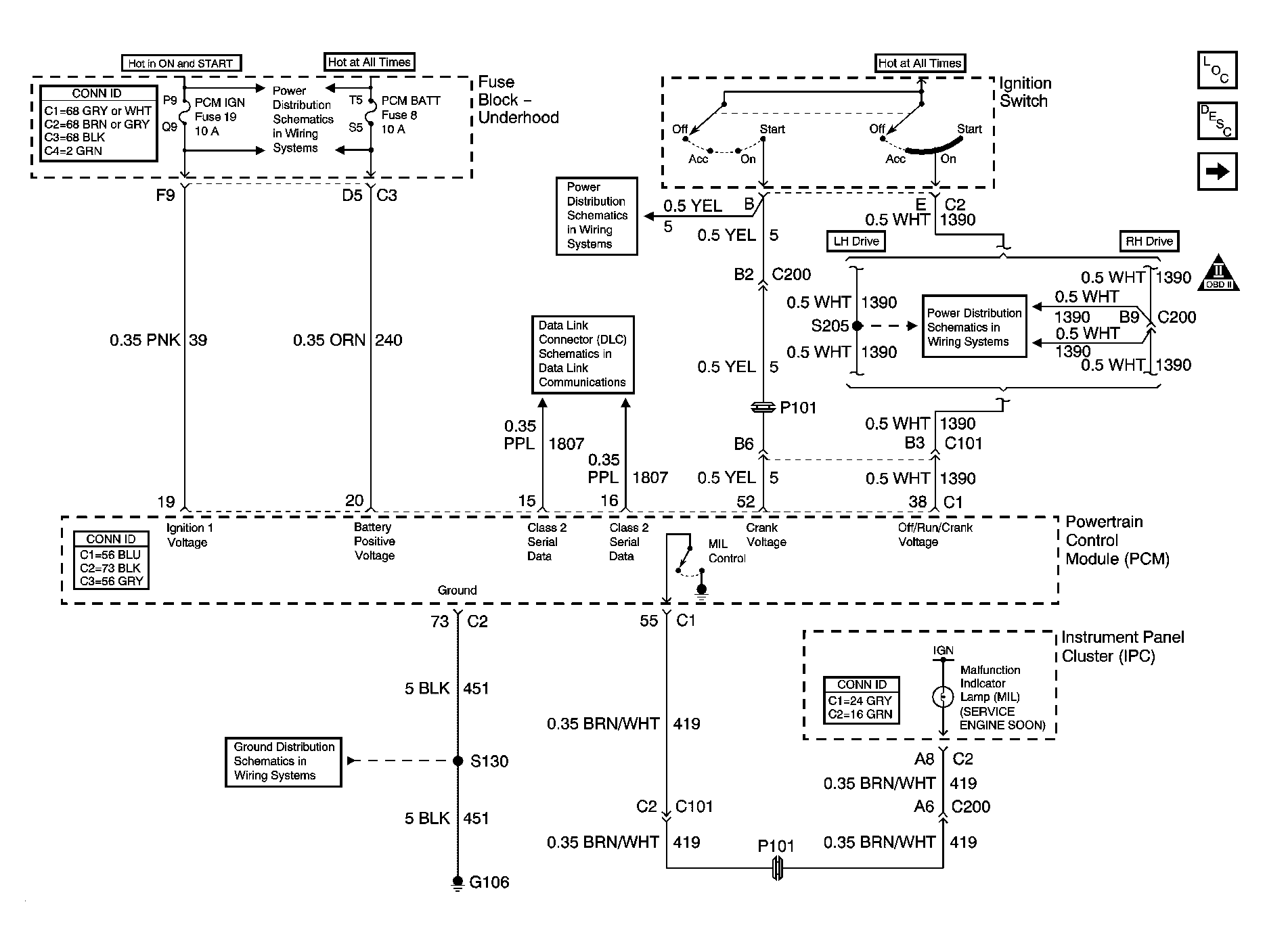

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5 Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

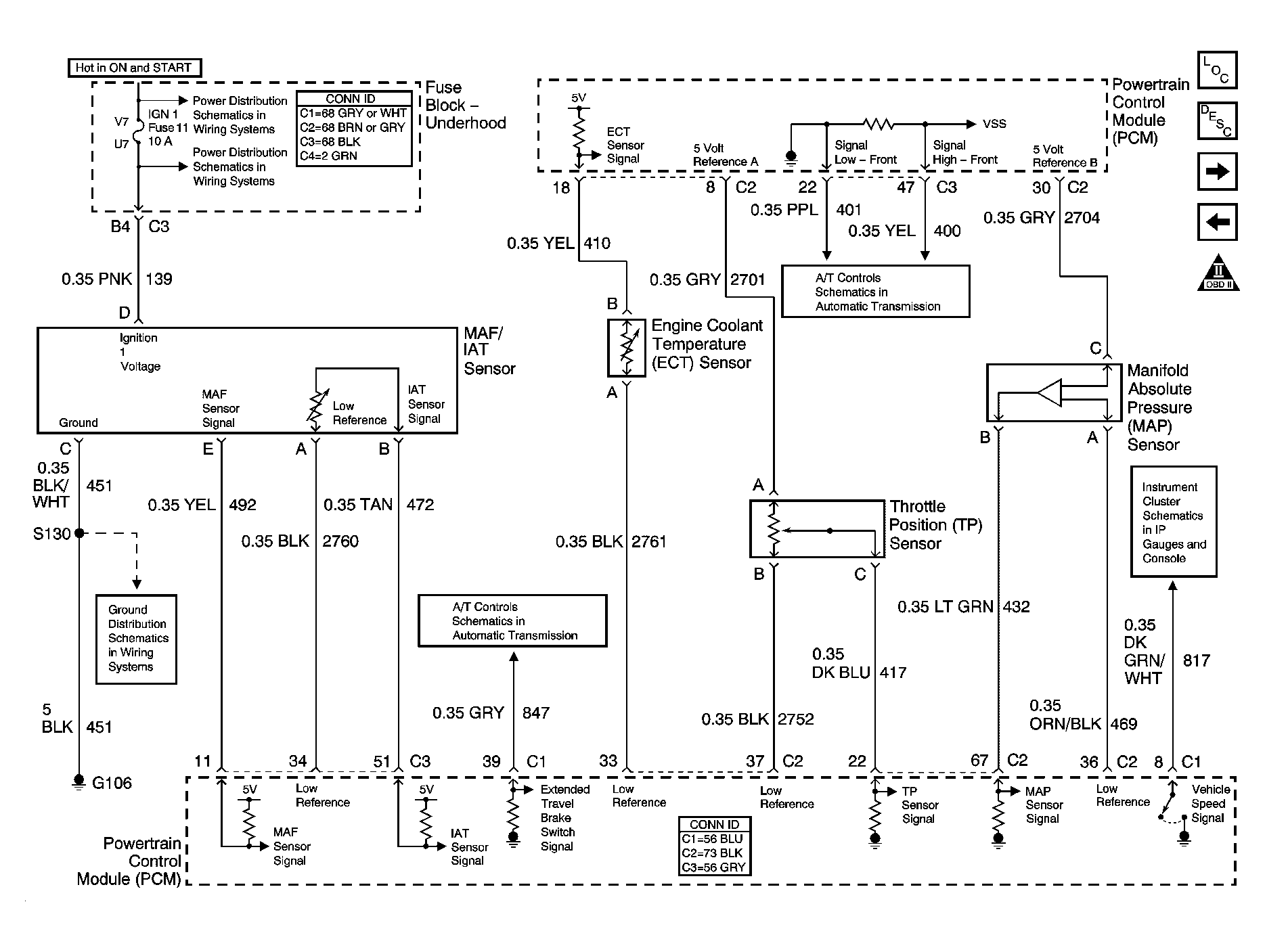

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

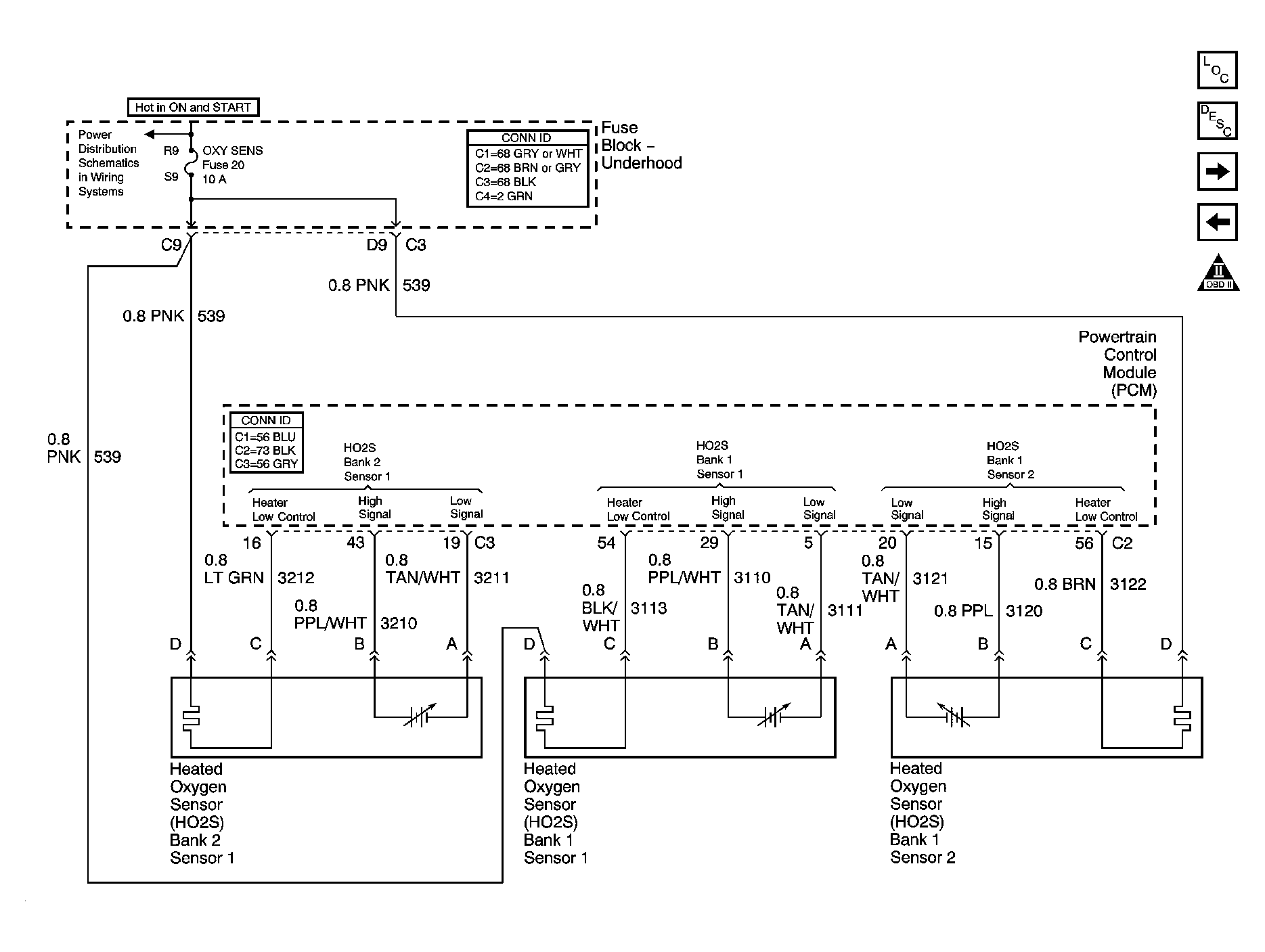

Fig 4: Engine Data Sensors - HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Coil/Module 1,3,5, and 7 Schematic

Courtesy of GENERAL MOTORS CORP.

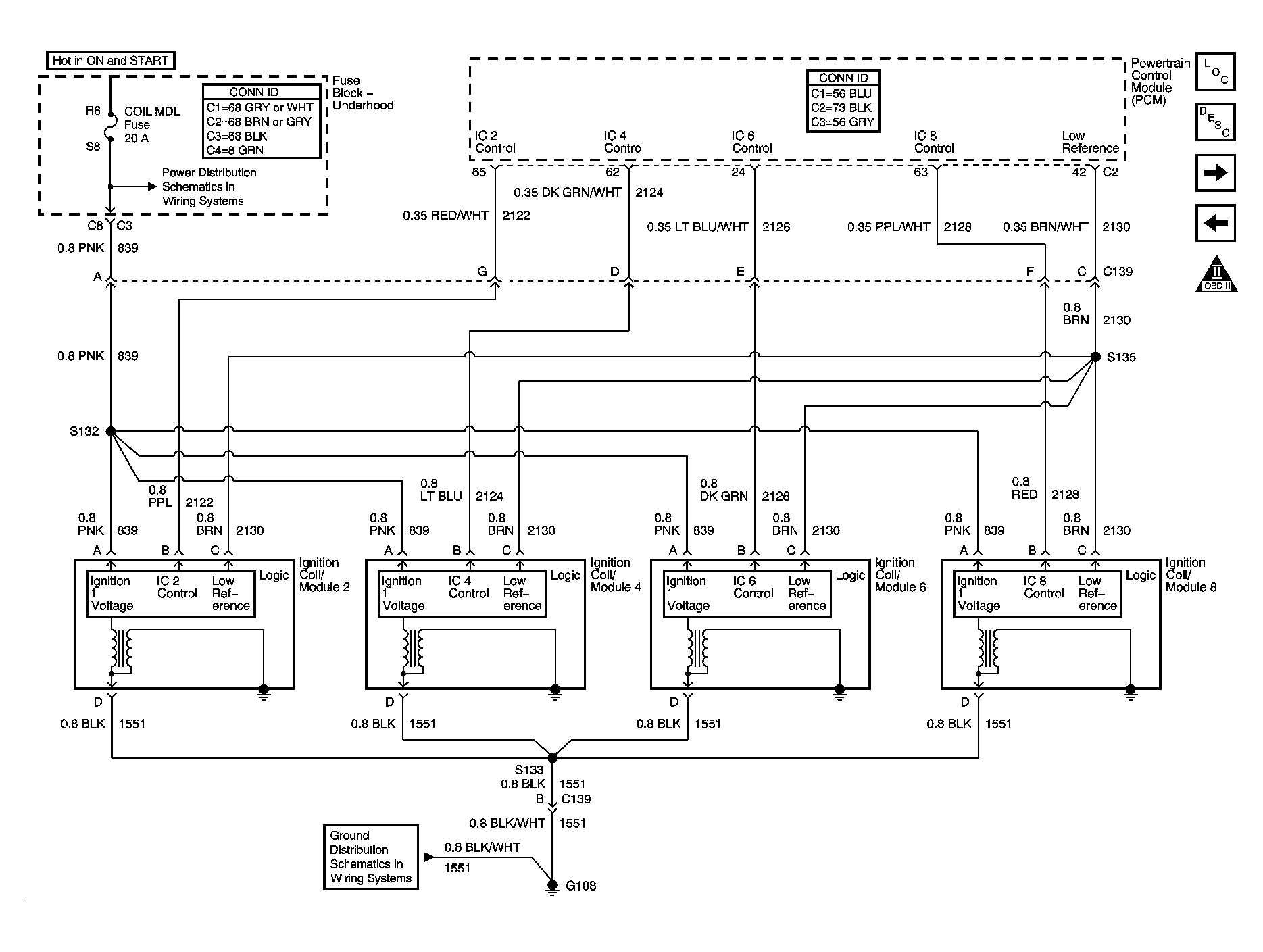

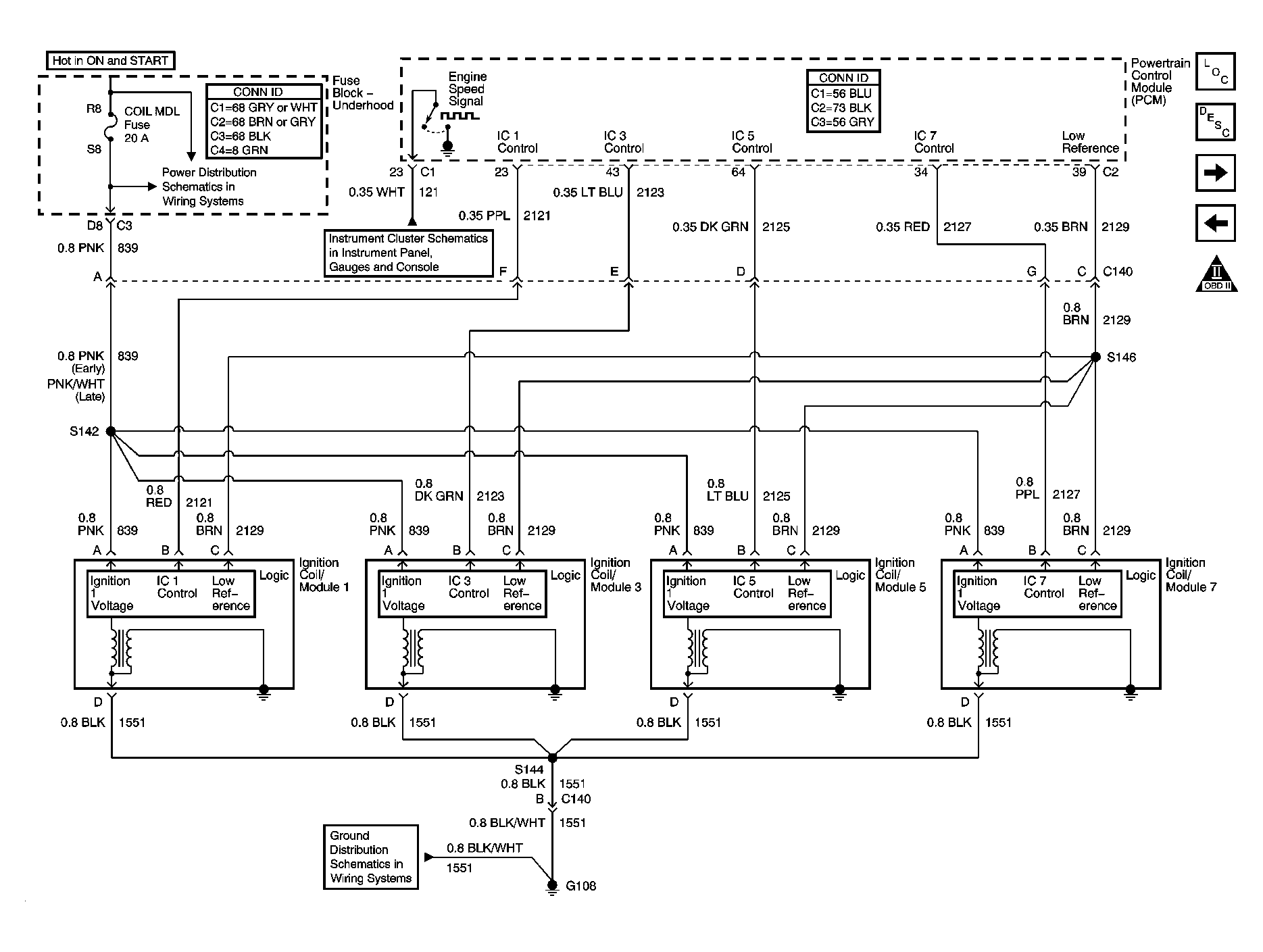

Fig 6: Ignition Coil/ Modules 2,4,6, and 8 Schematic

Courtesy of GENERAL MOTORS CORP.

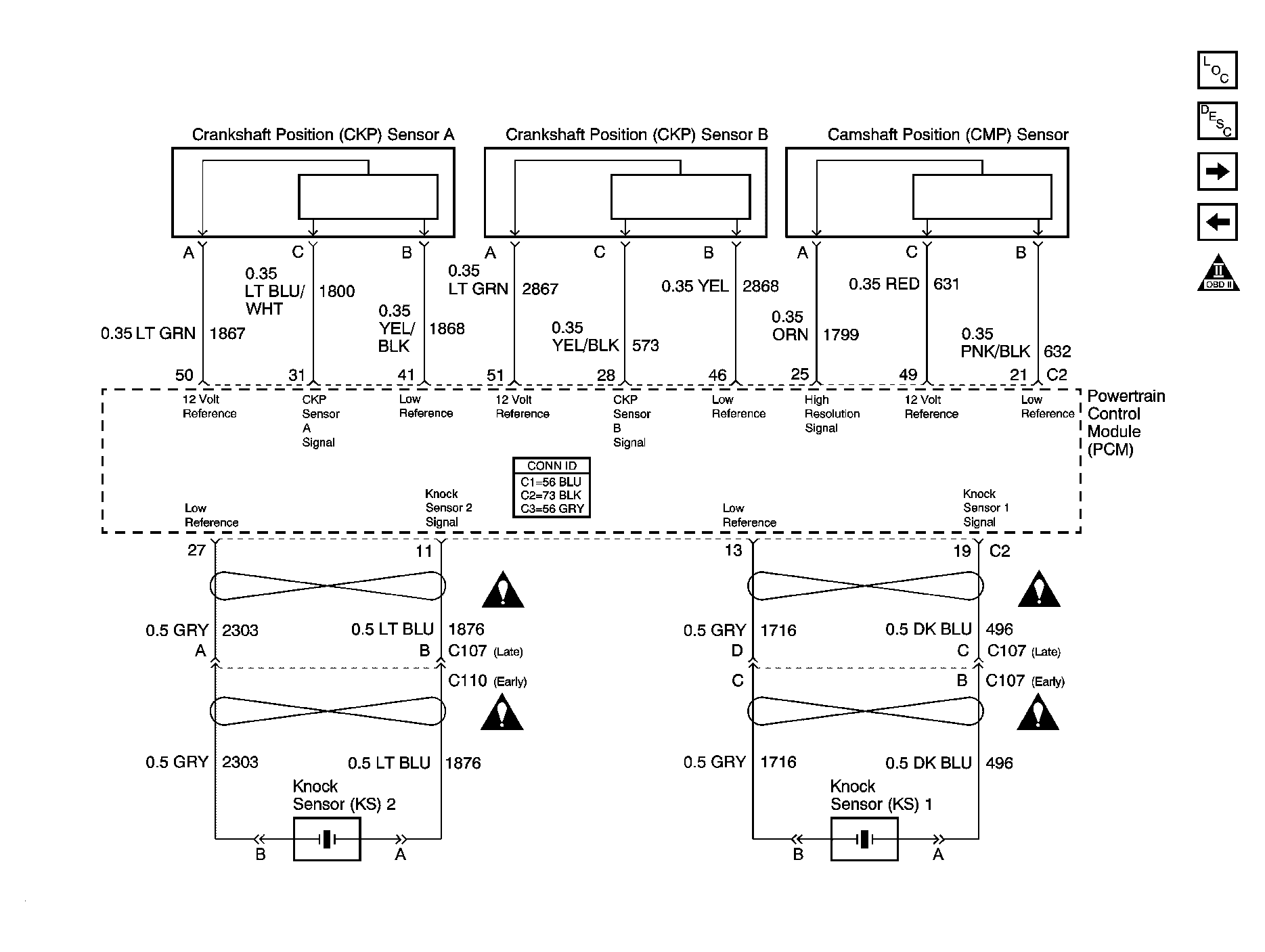

Fig 7: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

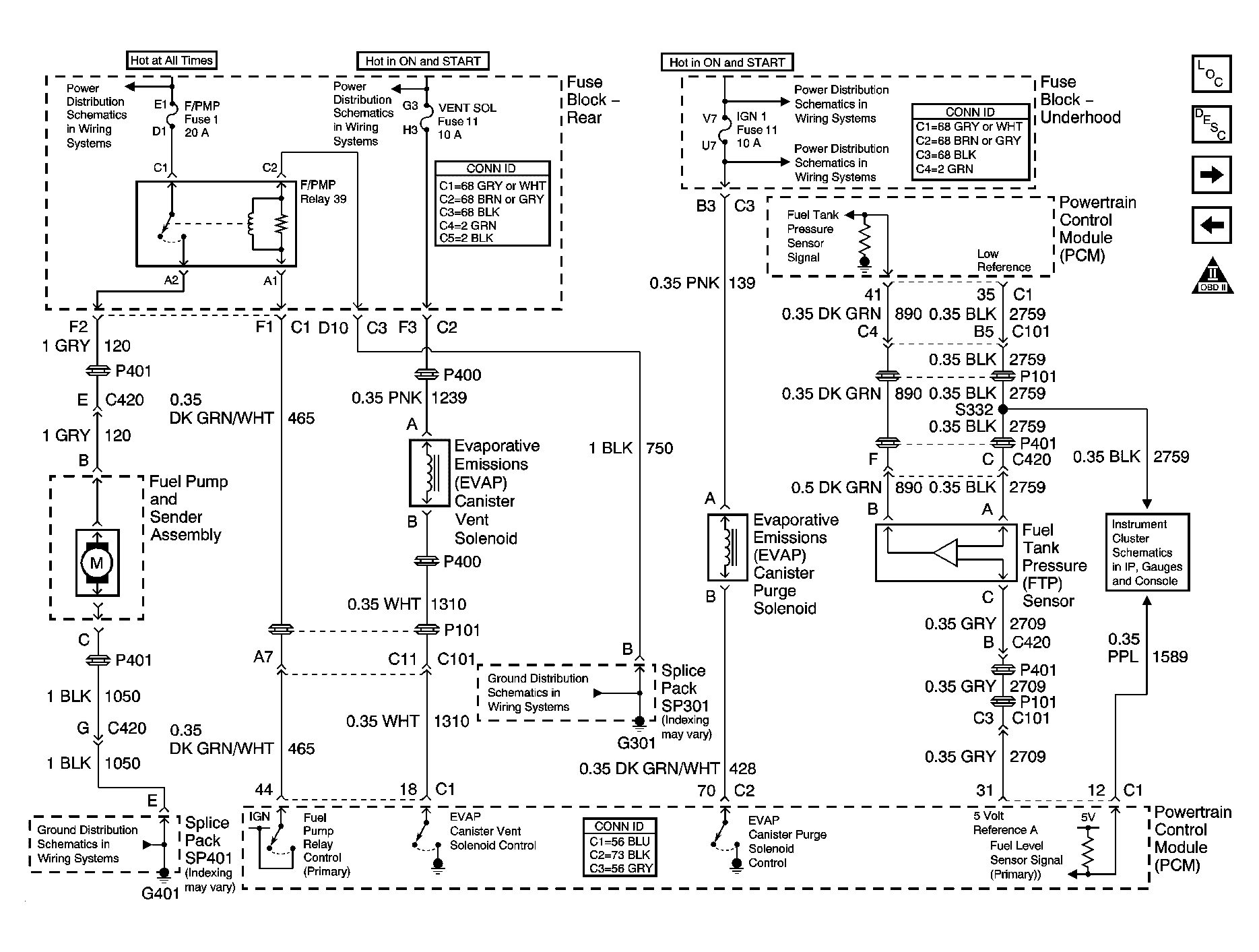

Fig 8: Fuel Controls - Fuel Pump and EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

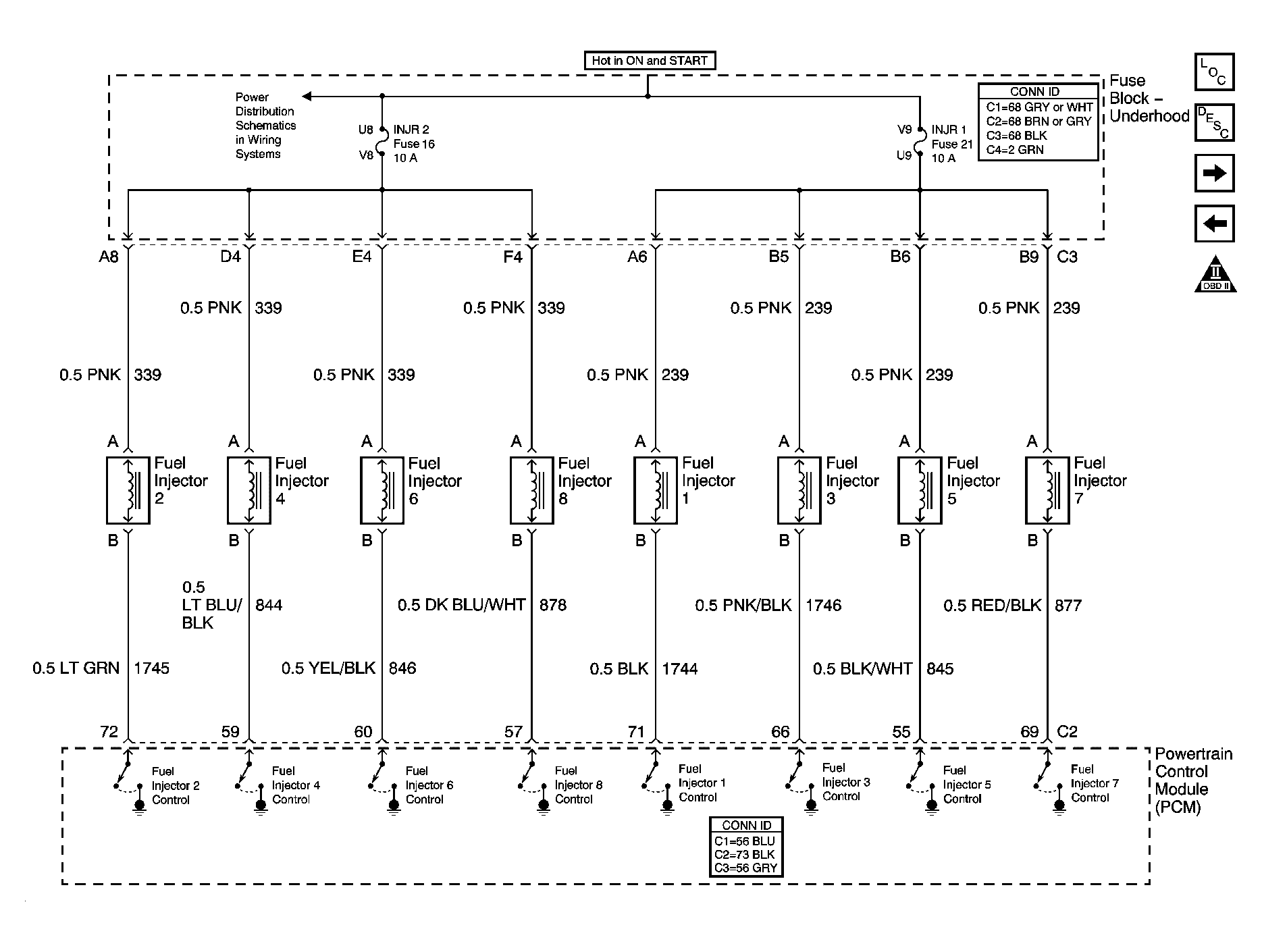

Fig 9: Fuel Controls - Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

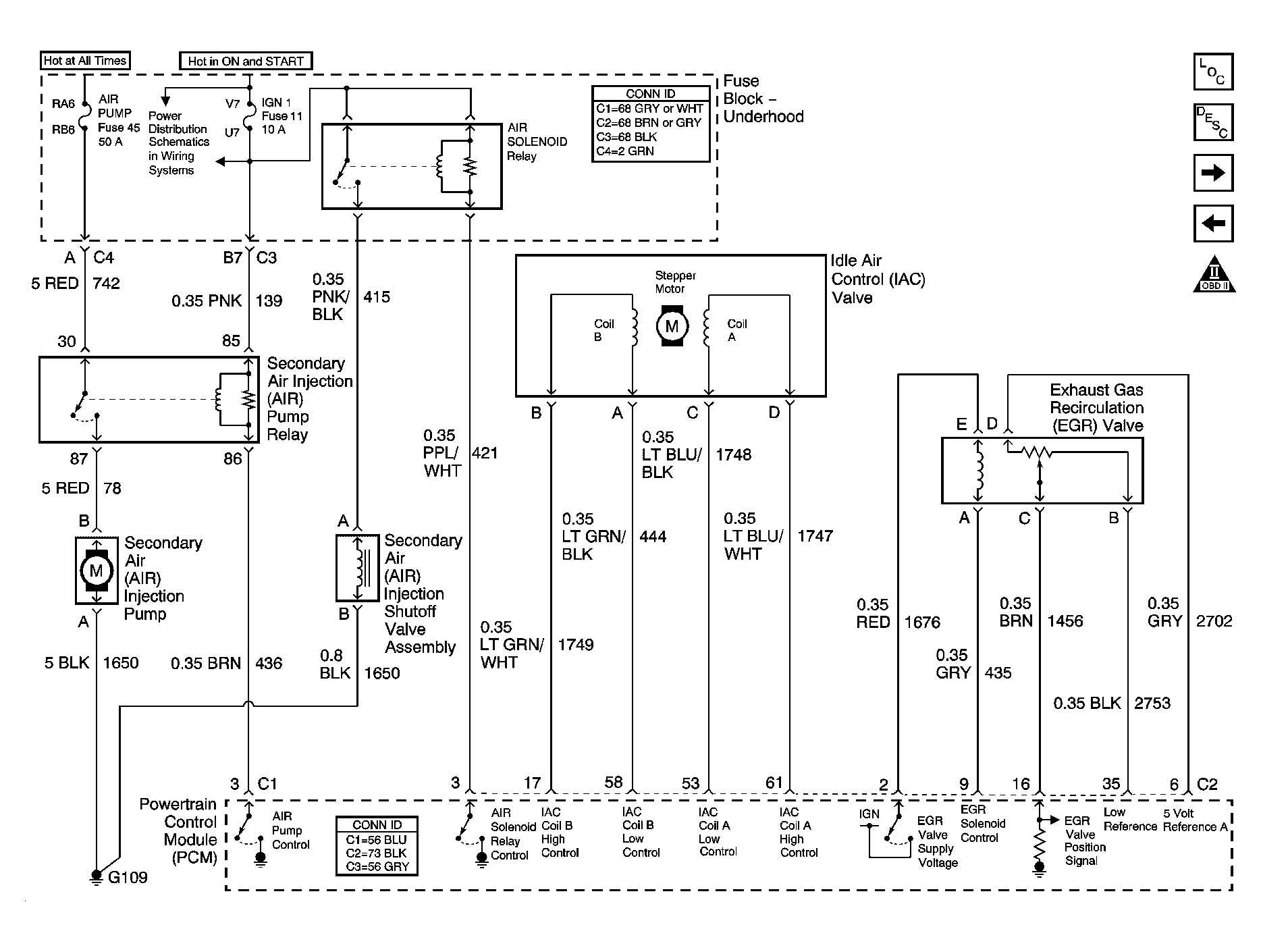

Fig 10: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

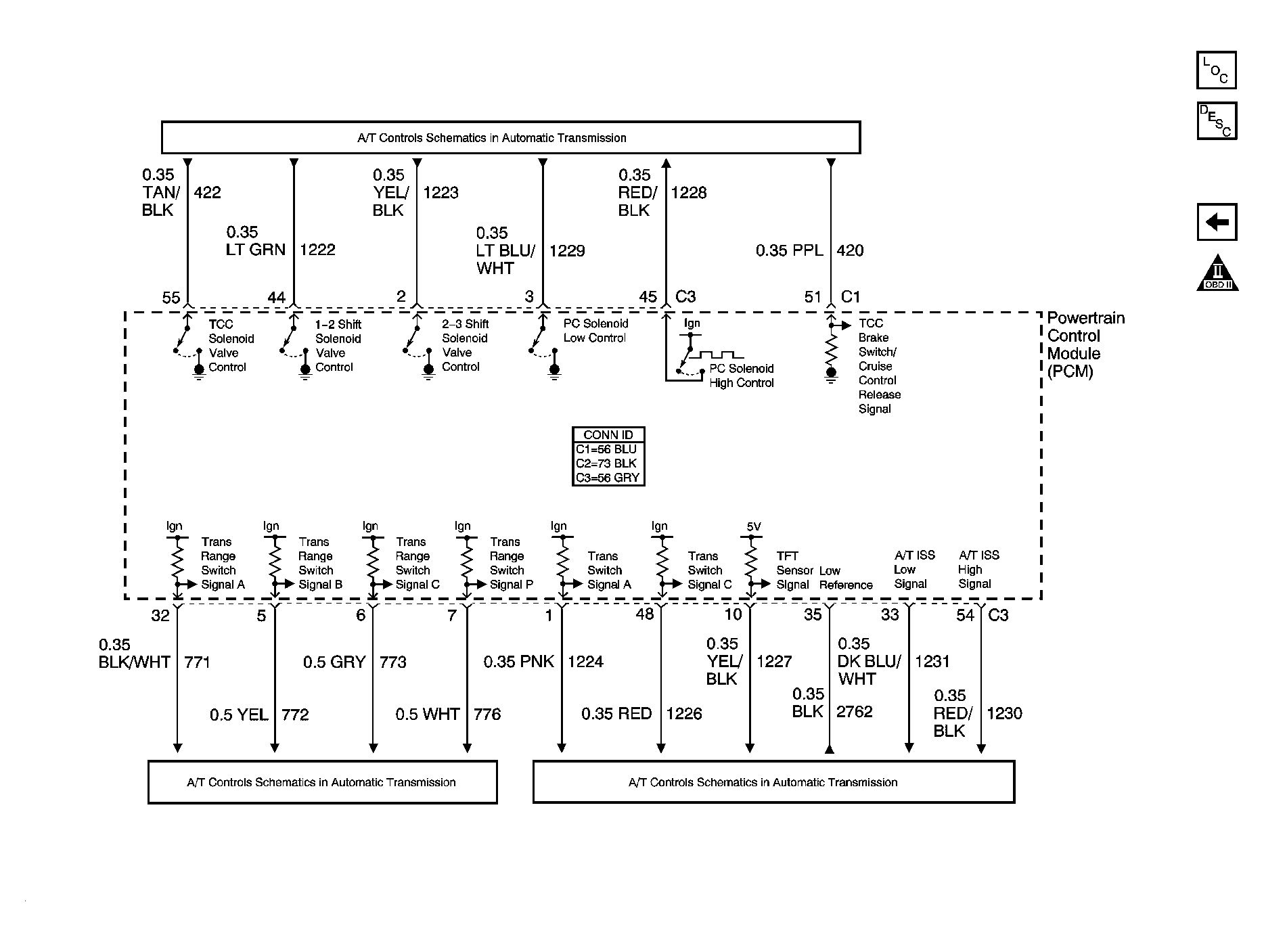

Fig 12: Transmission Controls - A/T Schematic

Courtesy of GENERAL MOTORS CORP.
