Seat Belt Component Views

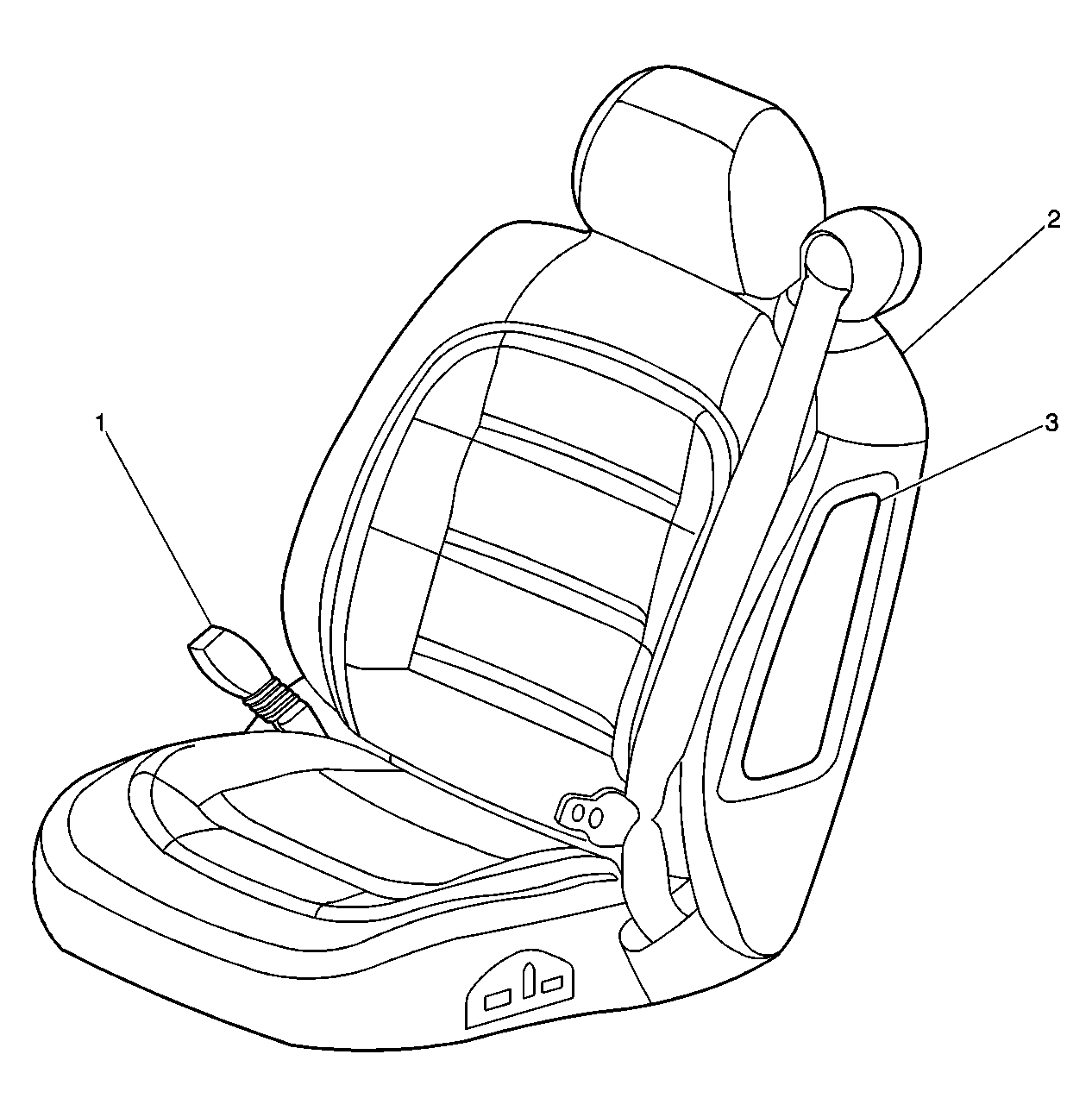

Fig 1: Passenger Compartment, On the Left Front Seat Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Seat Belt Pretensioner - LF with Seat Belt Switch Internal (RF similar)
2
Driver Seat (Passenger similar)
3
Inflatable Restraint Side Impact Module - LF (RF similar)
