Removal Procedure

  1. Remove the rear shelf panel. Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.

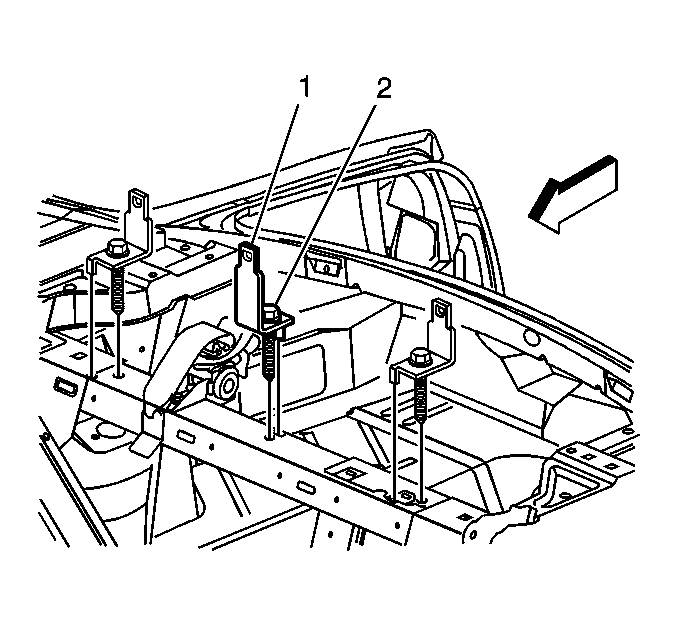

    2. Fig 1: Identifying Child Tether Anchor & Fastener
    GM604627Courtesy of GENERAL MOTORS CORP.
  2. Remove the fastener (1) that retains the child tether anchor (2) that is being serviced.
  3. Remove the child tether anchor (2) from the vehicle.
