Power Steering Pump Disassembled View

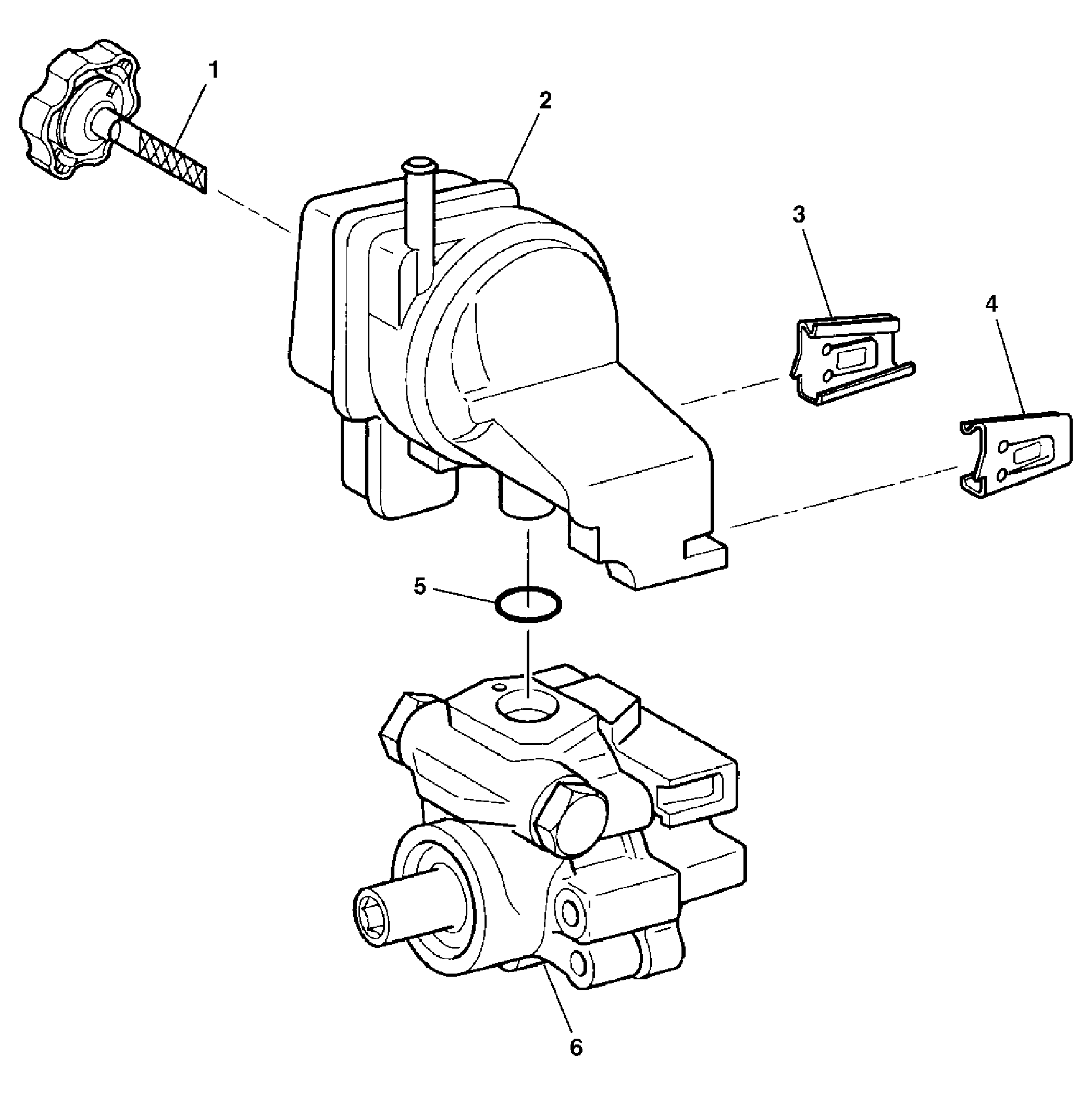

Fig 1: Power Steering Pump Components Disassembled View
GM296220Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Reservoir Assembly Cap
2 Reservoir Assembly
3 Retaining Clip
4 Retaining Clip
5 O-ring Seal
6 Hydraulic Pump Assembly
