Automatic Transmission Shift Lock Control Schematics

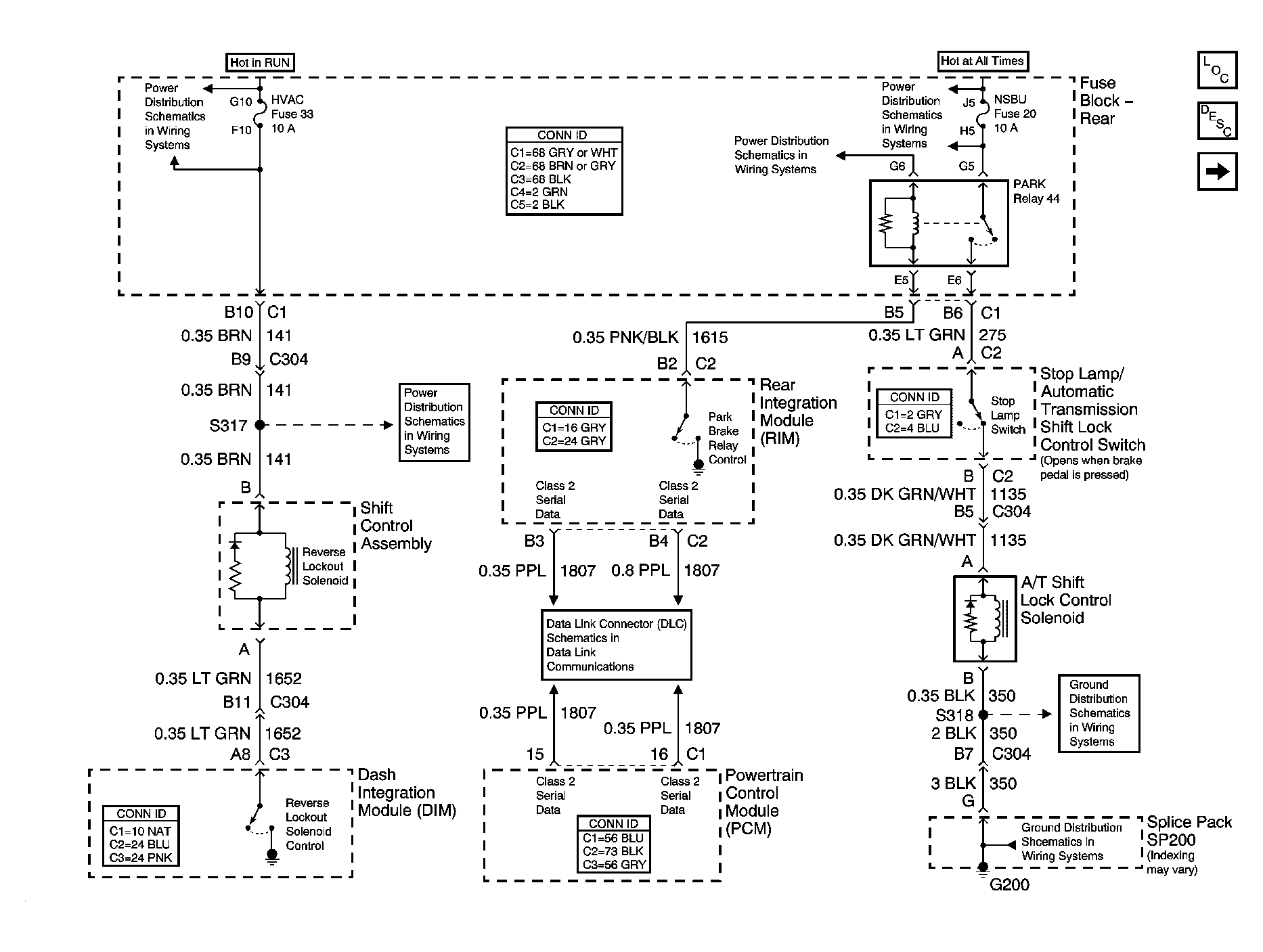

Fig 1: Reverse Lockout and A/T Shift Lock Control Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

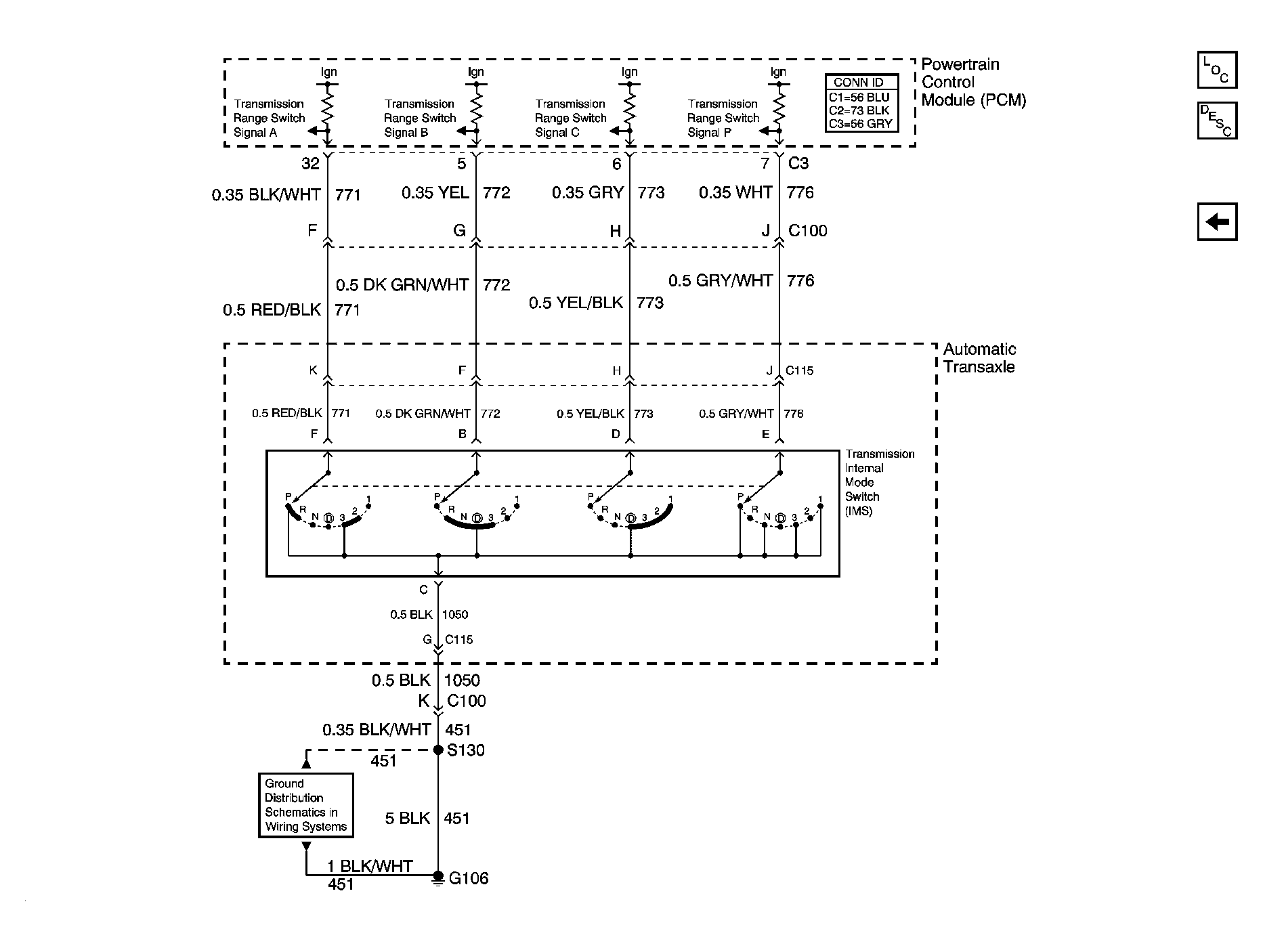

Fig 2: Automatic Transaxle Fluid Pressure Manual Valve Position Switch Schematic

Courtesy of GENERAL MOTORS CORP.
