Automatic Transmission Shift Lock Control Connector End Views

Automatic Transmission Shift Lever Connector End Views

Courtesy of GENERAL MOTORS CORP.

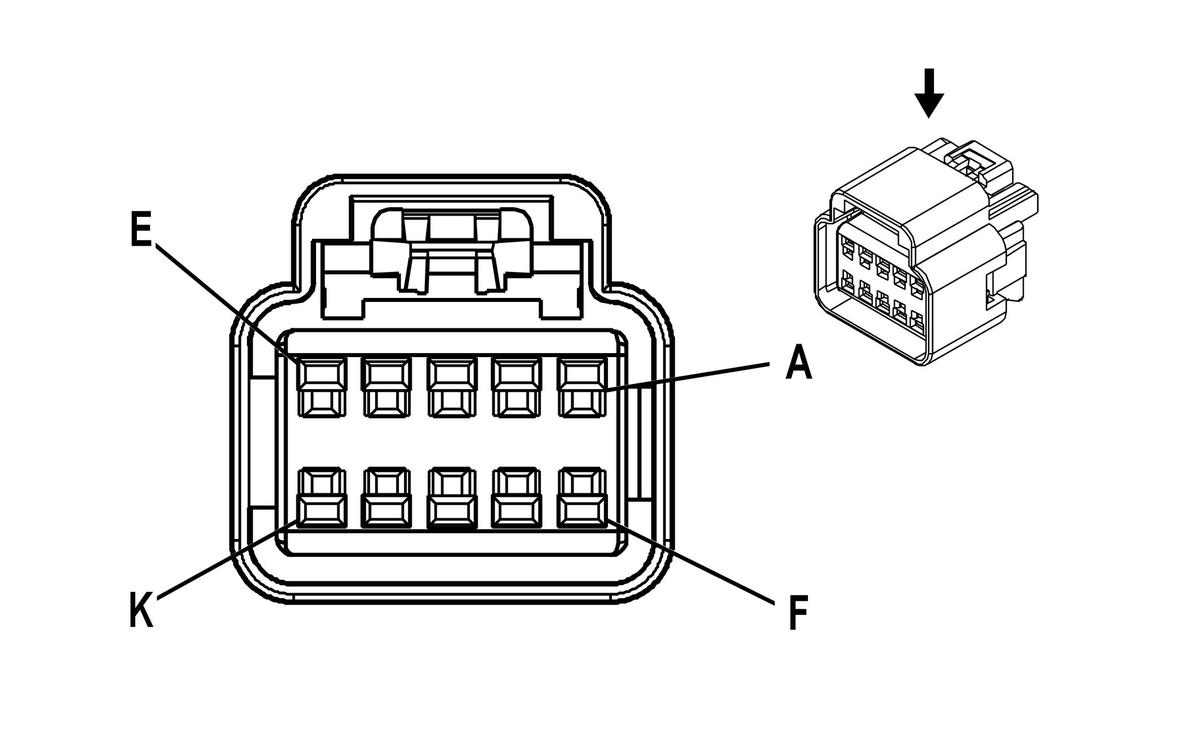

Connector Part Information		OEM: 15332153 Service: 88986440 10 Way F GT 150 (BK)
Pin	Wire Color	Circuit Number	Function
A	D-GN	1399	RAP Relay Coil Supply Voltage
	YE	843	Accessory Voltage (Export)
B	D-GN	5525	Tap Up/Tap Down Enable Signal
C	GY/BK	1458	Instrument Panel Lamp Supply Voltage (4)
D	PK	1039	Run/Crank Ignition 1 Voltage
E	RD/WH	840	Battery Positive Voltage
F	D-GN/WH	1932	Shift Select Switch Park Signal
	D-GN/WH	1932	Shift Select Switch Park Signal (Export)
G	BK	1550	Ground
H	PU	5526	Tap Up/Tap Down Switch Signal
J	GY/BK	1357	Instrument Panel Lamp Control
K	D-GN/WH	1135	Brake Transmission Shift Interlock Solenoid Supply Voltage
