Installation Procedure

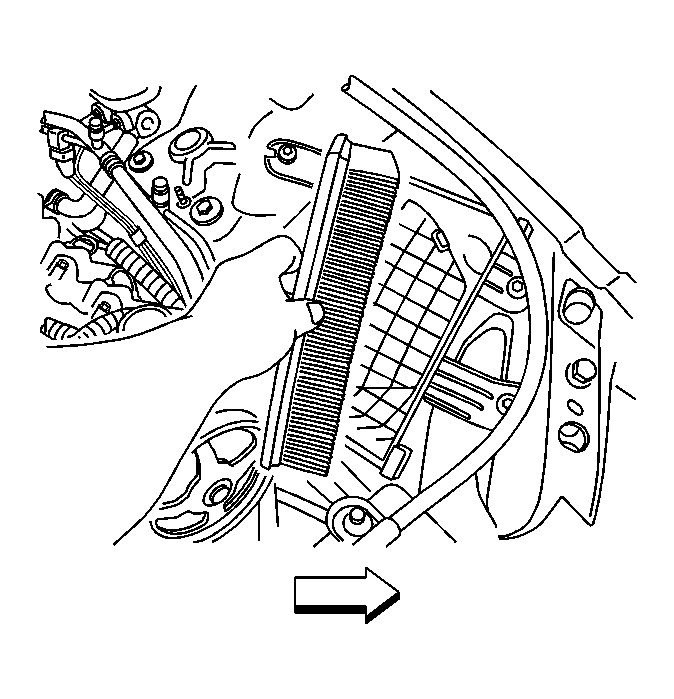

Fig 1: View Of Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

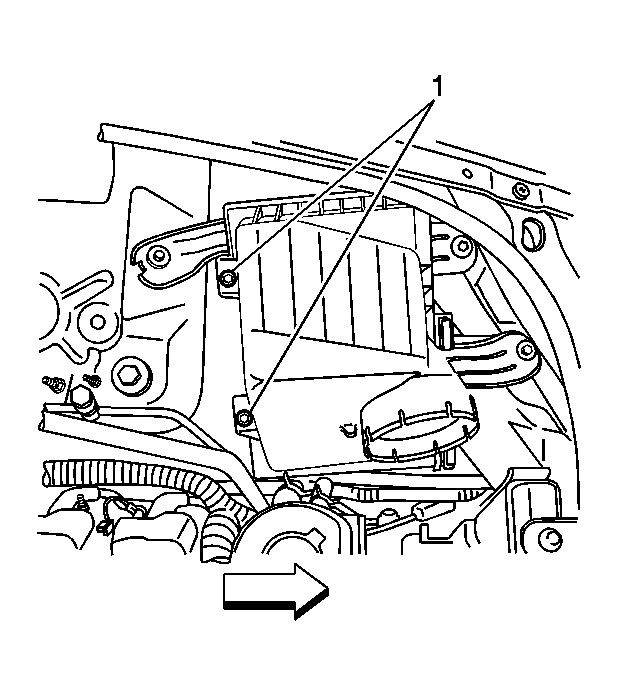

Fig 2: View Of Air Cleaner Housing Cover Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the air cleaner housing cover screws (1).
Tighten: Tighten the air cleaner housing cover screws to 3 N.m (27 lb in).

Fig 3: Loosening Air Cleaner Outlet Duct Clamps

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet duct and screw clamps (1,2). Refer to Air Cleaner Outlet Duct Replacement .
