Installation Procedure

    Fig 1: Locating Fuel Injector Assembly Identification, Manufacturing Date And Week Code Part Number
    GM69058Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When ordering new fuel injectors, be sure to order the correct injector for the application being serviced.
  1. The fuel injector assembly is stamped with a part number identification (2), a manufacturing date (3), a week code (1), and a production plant number (4).

    Inspect the new injectors in order to ensure installation of the correct part.

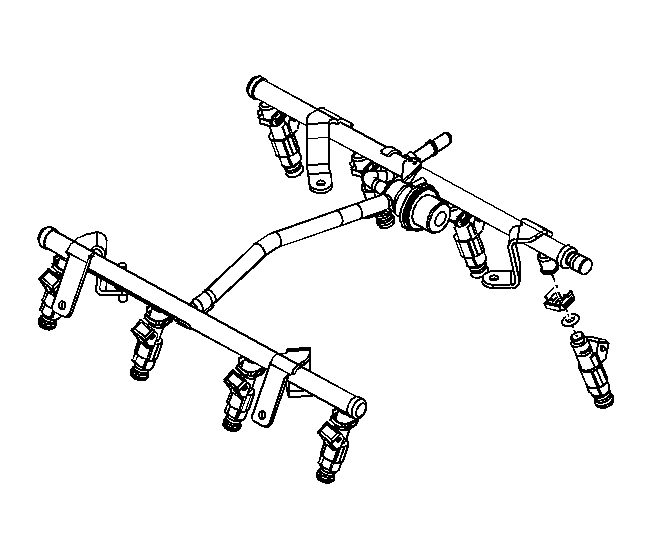

    2. Fig 2: View Of Fuel Injector
    GM217114Courtesy of GENERAL MOTORS CORP.
  2. Lubricate the new injector O-ring seals with clean engine oil.
  3. Install the new injector O-ring seals on the injector.
  4. Install a new retainer clip on the injector.
  5. Push the fuel injector into the fuel rail injector socket with the electrical connector facing outward.

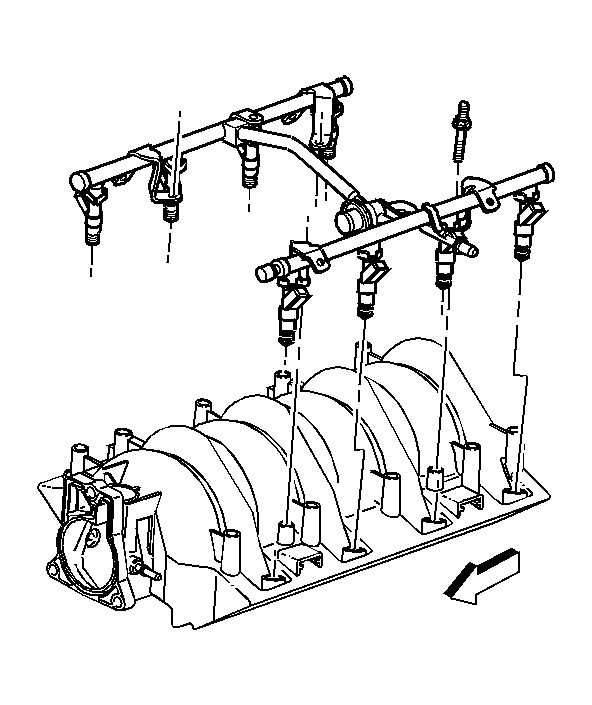

    6. Fig 3: Fuel Rail Assembly & Bolts
    GM222050Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel rail assembly. Refer to Fuel Rail Assembly Replacement .
  7. Tighten the fuel filler cap.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  9. Inspect for leaks.
    1. Turn the ignition switch ON for 2 seconds.
    2. Turn the ignition switch OFF for 10 seconds.
    3. Turn the ignition switch ON.
    4. Inspect for fuel leaks.
