Installation Procedure

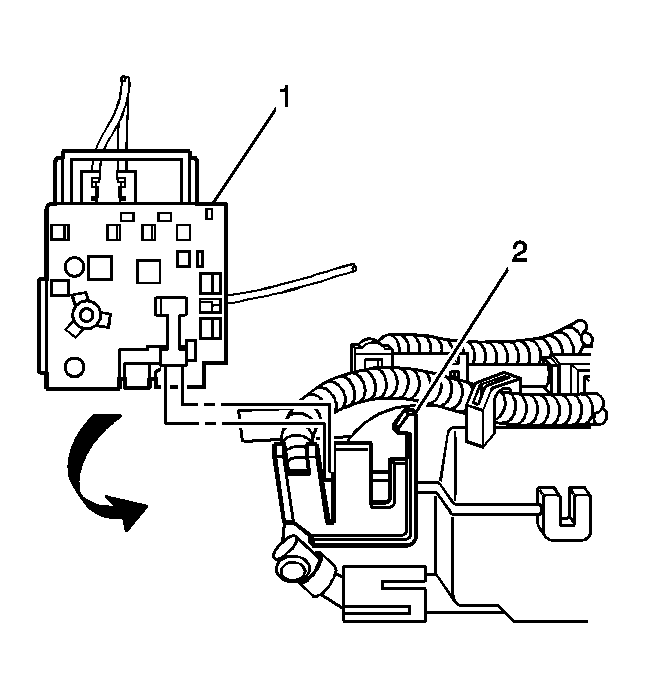

Fig 1: View Of Fuel Level Sensor & Locking Tab

Courtesy of GENERAL MOTORS CORP.

Complete the following in order to install the fuel level sensor (1) to the module assembly:
1. Align the tabs of the sensor (1) with the slots in the module assembly.
2. Slide the sensor (1) fully into position, ensure the locking tab (2) is engaged.

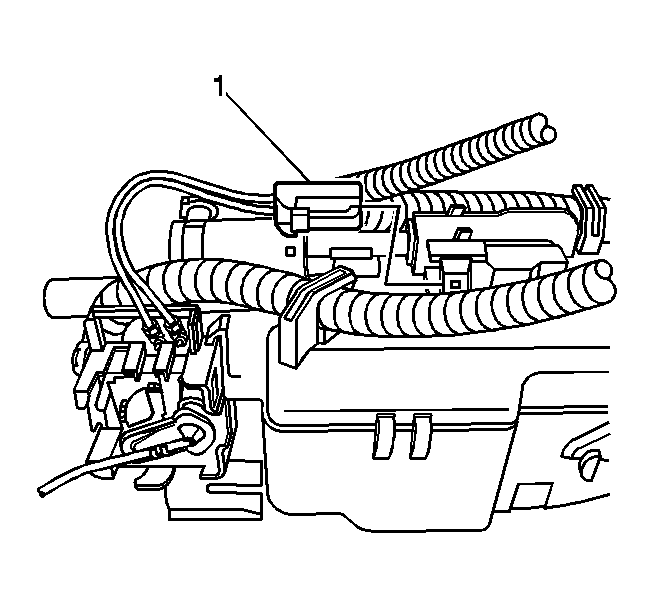

Fig 2: View Of Primary Fuel Level Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the fuel level sensor electrical connector (1) to the module.
Install the primary fuel tank module. Refer to Fuel Tank Module Replacement - Primary .
