Installation Procedure

    Fig 1: View Of Fuel Tank Module Seal
    GM820624Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the seal bead is facing the fuel tank.
  1. Place the new secondary fuel tank module seal (1) over the module (2).

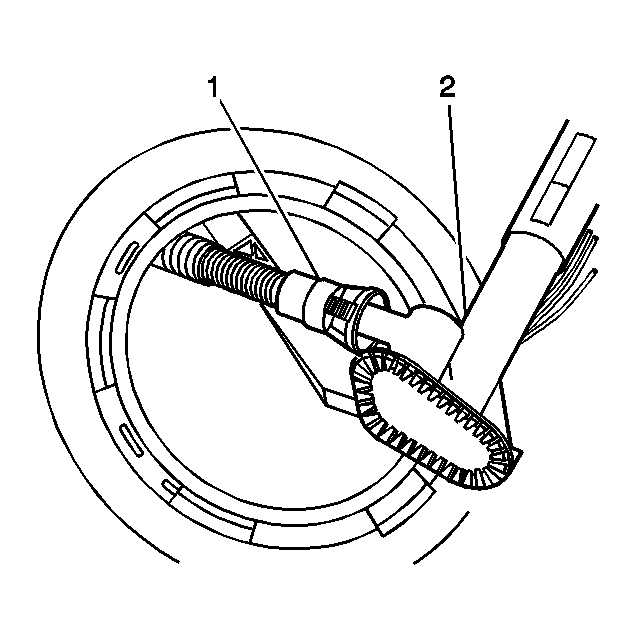

    2. Fig 2: View Of Secondary Fuel Tank Module & Transfer Tube
    GM820620Courtesy of GENERAL MOTORS CORP.
  2. Complete the following in order to connect the transfer tube (1) to the secondary fuel tank module (2).
    1. Grasp the transfer tube (1) from inside the fuel tank.
    2. Position the module (2) near the module opening.
    3. Connect the transfer tube (1) to the module (2).
    3. IMPORTANT: Ensure the fuel level float is free from binding while inserting the module (2).
  3. Carefully insert the secondary fuel tank module (2) into the fuel tank.
  4. Press the secondary fuel tank module (2) downward, aligning the module to the encapsulated ring.
  5. Position the cam lock ring to the fuel tank.

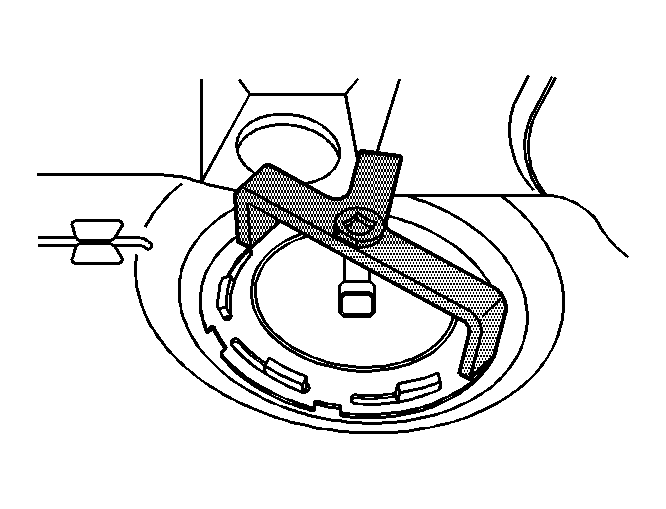

    6. Fig 3: Rotating Cam Lock Ring Using Special Tool
    GM820626Courtesy of GENERAL MOTORS CORP.
  6. Rotate the cam lock ring clockwise using the J 45747  until fully seated.

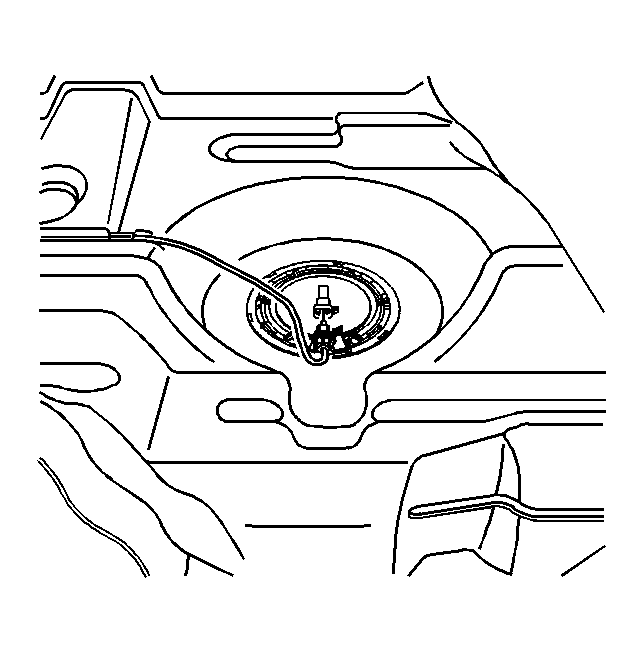

    7. Fig 4: View Of Secondary Fuel Tank Module Electrical Connector
    GM820625Courtesy of GENERAL MOTORS CORP.
  7. Connect the electrical connector to the secondary fuel tank module.
  8. Install the fuel tank. Refer to Fuel Tank Replacement .
