Installation Procedure

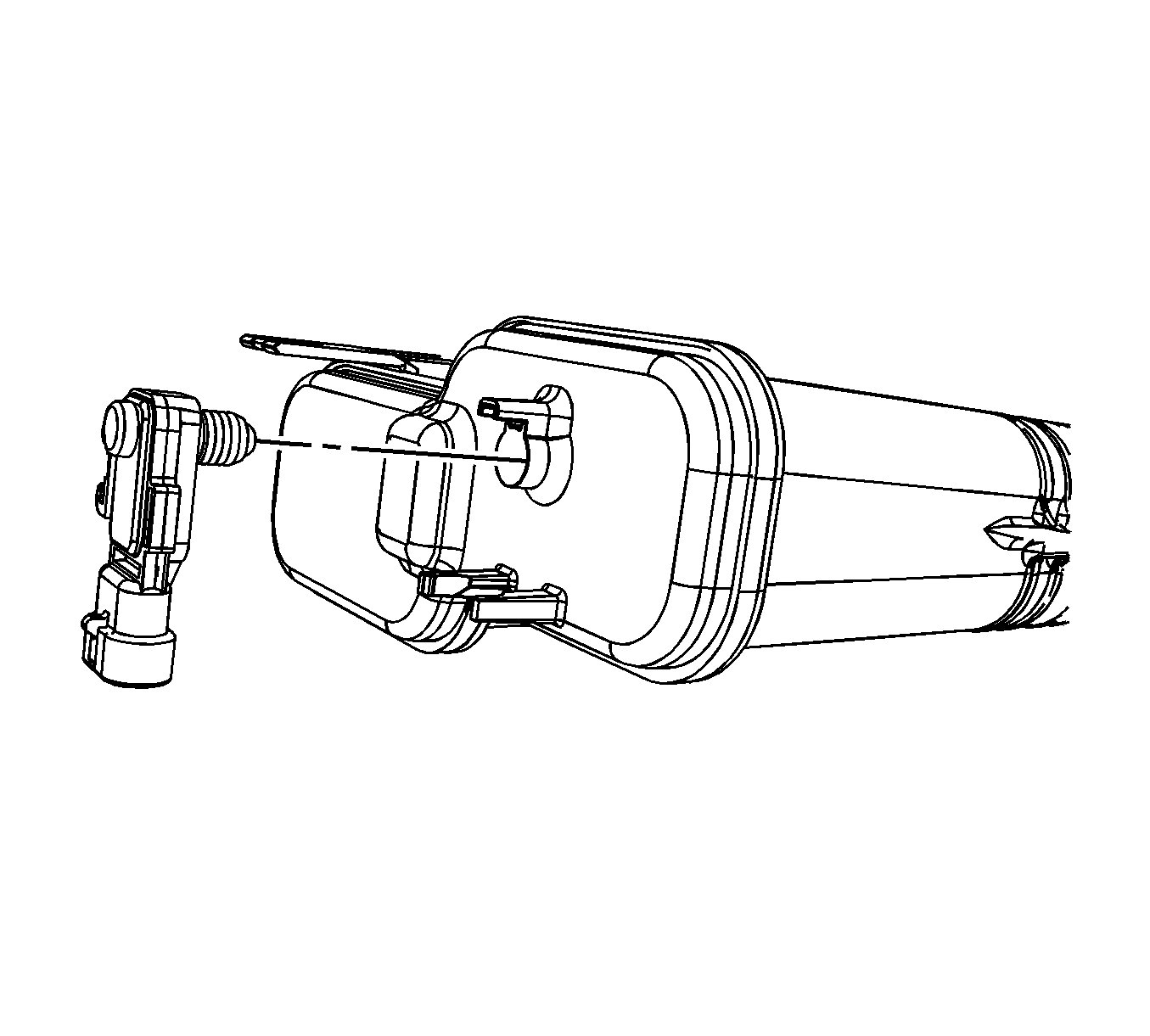

    Fig 1: Removing/Installing Fuel Tank Pressure Sensor
    GM1558061Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: There are alignment features on the canister, however, there are no locking tabs on the sensor/canister. The sensor is held into the canister by the tight fit of the multi-lip seal.
  1. Install the fuel tank pressure sensor to the EVAP canister until fully seated.

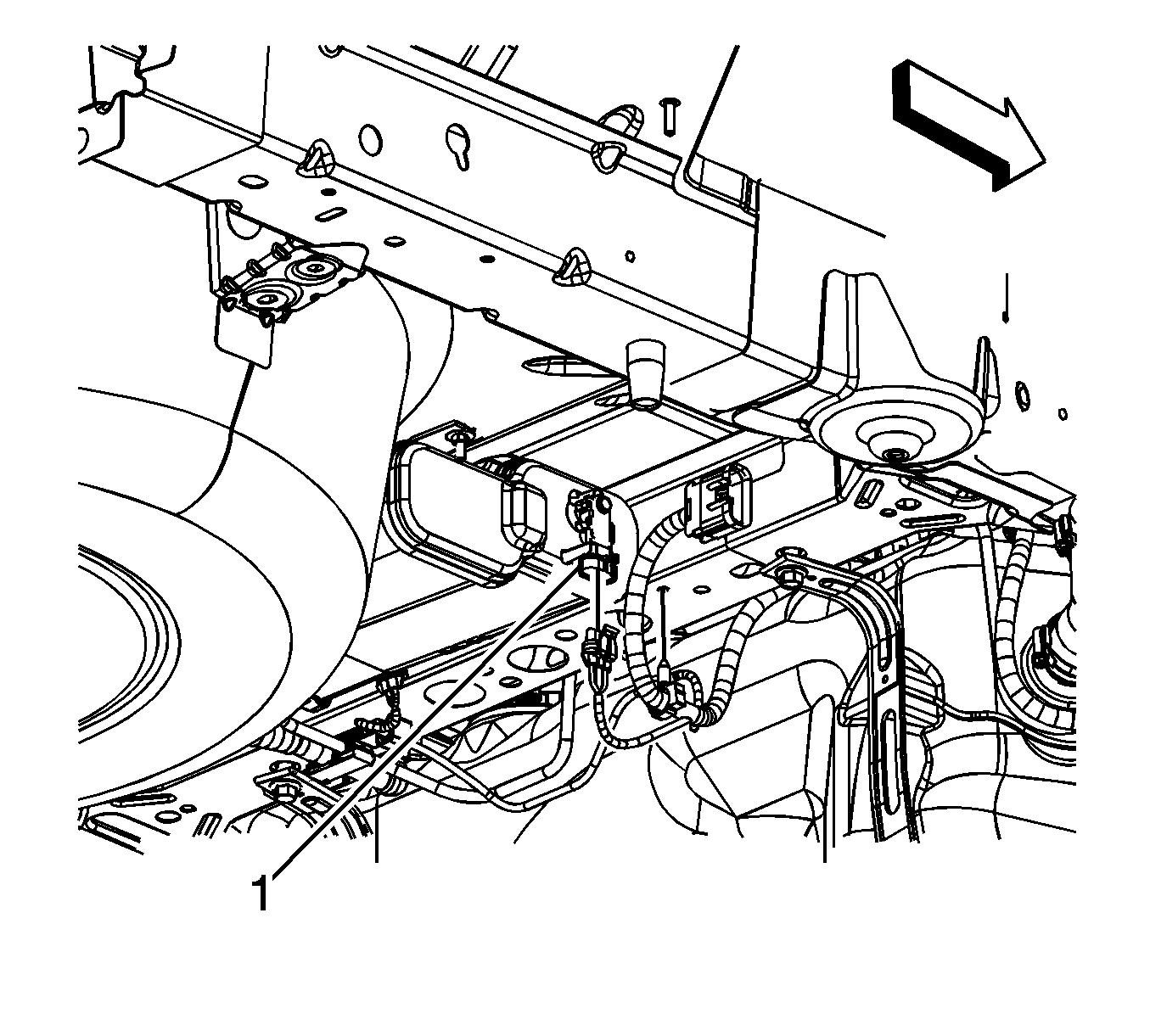

    2. Fig 2: View Of Fuel Tank Pressure Sensor Electrical Connector
    GM1558059Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel tank pressure sensor electrical connector (1).
  3. Lower the vehicle.
