Engine Controls Connector End Views
Camshaft Position (CMP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | ORN | 1799 | High Resolution Signal |
| B | PNK/BLK | 632 | Low Reference |
| C | RED | 631 | 12-Volt Reference |
Crankshaft Position (CKP) Sensor A
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT GRN | 1867 | 12-Volt Reference |
| B | YEL/BLK | 1868 | Low Reference |
| C | LT BLU/WHT | 1800 | CKP Sensor A Signal |
Crankshaft Position (CKP) Sensor B
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT GRN | 2867 | 12-Volt Reference |
| B | YEL | 2868 | Low Reference |
| C | YEL/BLK | 573 | CKP Sensor B Signal |
Engine Coolant Temperature (ECT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 2761 | Low Reference |
| B | YEL | 410 | ECT Sensor Signal |
Evaporative Emissions (EVAP) Canister Purge Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 139 | Ignition 1 Voltage |
| B | DK GRN/ WHT |
428 | EVAP Canister Purge Solenoid Control |
Evaporative Emissions (EVAP) Canister Vent Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 1239 | Ignition 1 Voltage |
| B | WHT | 1310 | EVAP Canister Vent Solenoid Control |

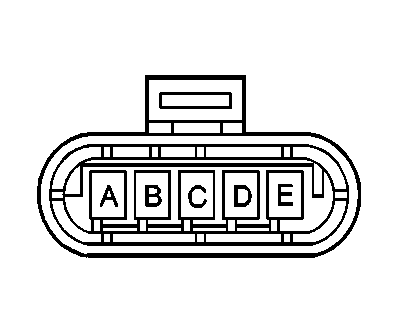

Exhaust Gas Recirculation (EGR) Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GRY | 435 | EGR Solenoid Control |
| B | BLK | 2753 | Low Reference |
| C | BRN | 1456 | EGR Valve Position Signal |
| D | GRY/WHT | 2702 | 5-Volt Reference |
| E | RED | 1676 | EGR Solenoid High Control |
Fuel Injector 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 239 | Ignition 1 Voltage |
| B | BLK | 1744 | Fuel Injector 1 Control |
Fuel Injector 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 339 | Ignition 1 Voltage |
| B | LT GRN | 1745 | Fuel Injector 2 Control |
Fuel Injector 3
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 239 | Ignition 1 Voltage |
| B | PNK/BLK | 1746 | Fuel Injector 3 Control |
Fuel Injector 4
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 339 | Ignition 1 Voltage |
| B | LT BLU/BLK | 844 | Fuel Injector 4 Control |
Fuel Injector 5
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 239 | Ignition 1 Voltage |
| B | BLK/WHT | 845 | Fuel Injector 5 Control |
Fuel Injector 6
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 339 | Ignition 1 Voltage |
| B | YEL/BLK | 846 | Fuel Injector 6 Control |
Fuel Injector 7
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 239 | Ignition 1 Voltage |
| B | RED/BLK | 877 | Fuel Injector 7 Control |
Fuel Injector 8
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 339 | Ignition 1 Voltage |
| B | DK BLU/WHT | 878 | Fuel Injector 8 Control |
Fuel Pump and Sender Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PPL | 1589 | Fuel Level Sensor Signal |
| B | GRY | 120 | Fuel Pump Supply Voltage |
| C | BLK | 850 | Ground |
| D | BLK/WHT | 2759 | Low Reference |
Fuel Tank Pressure Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 2759 | Low Reference |
| B | DK GRN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GRY | 2709 | 5-Volt Reference |

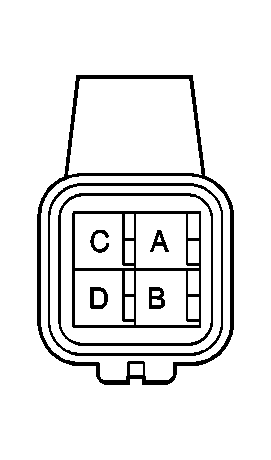

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN/WHT | 3111 | HO2S Low Signal (Bank 1 Sensor 1) |
| B | PPL/WHT | 3110 | HO2S High Signal (Bank 1 Sensor 1) |
| C | BLK/WHT | 3113 | HO2S Heater Low Control (Bank 1 Sensor 1) |
| D | PNK | 539 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN/WHT | 3121 | HO2S Low Signal (Bank 1 Sensor 2) |
| B | PPL | 3120 | HO2S High Signal (Bank 1 Sensor 2) |
| C | BRN | 3122 | HO2S Heater Low Control (Bank 1 Sensor 2) |
| D | PNK | 539 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN/WHT | 3211 | HO2S Low Signal (Bank 2 Sensor 1) |
| B | PPL/WHT | 3210 | HO2S High Signal (Bank 2 Sensor 1) |
| C | LT GRN | 3212 | HO2S Heater Low Control (Bank 2 Sensor 1) |
| D | PNK | 539 | Ignition 1 Voltage |
Idle Air Control (IAC) Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT GRN/BLK | 444 | IAC Coil B Low Control |
| B | LT GRN/WHT | 1749 | IAC Coil B High Control |
| C | LT BLU/BLK | 1748 | IAC Coil A Low Control |
| D | LT BLU/WHT | 1747 | IAC Coil A High Control |
Ignition Coil/Modules
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 839 | Ignition 1 Voltage |
| B | RED | 2121 | IC 1 Control (Ignition Coil/Module 1) |
| PPL | 2122 | IC 2 Control (Ignition Coil/Module 2) | |
| DK GRN | 2123 | IC 3 Control (Ignition Coil/Module 3) | |
| LT BLU | 2124 | IC 4 Control (Ignition Coil/Module 4) | |
| LT BLU | 2125 | IC 5 Control (Ignition Coil/Module 5) | |
| DK GRN | 2126 | IC 6 Control (Ignition Coil/Module 6) | |
| PPL | 2127 | IC 7 Control (Ignition Coil/Module 7) | |
| RED | 2128 | IC 8 Control (Ignition Coil/Module 8) | |
| C | BRN | 2129 | Low Reference (bank 1) |
| BRN | 2130 | Low Reference (bank 2) | |
| D | BLK | 1551 | Ground |
Knock Sensor (KS) 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | DK BLU | 496 | Knock Sensor 1 Signal |
| B | GRY | 1716 | Low Reference |
Knock Sensor (KS) 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT BLU | 1876 | Knock Sensor 2 Signal |
| B | GRY | 2303 | Low Reference |
Manifold Absolute Pressure (MAP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | ORN/BLK | 469 | Low Reference |
| B | LT GRN | 432 | MAP Sensor Signal |
| C | GRY | 2704 | 5-Volt Reference |
Mass Air Flow (MAF) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 2760 | Low Reference |
| B | TAN | 472 | IAT Sensor Signal |
| C | BLK/WHT | 451 | Ground |
| D | PNK | 139 | Ignition 1 Voltage |
| E | YEL | 492 | MAF Sensor Signal |
Secondary Air Injection (AIR) Shutoff Valve Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK/BLK | 415 | Secondary Air Injection (AIR) Check Valve Supply Voltage |
| B | BLK | 1650 | Ground |
Secondary Air Injection (AIR) Pump
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 1650 | Ground |
| B | RED | 78 | AIR Pump Supply Voltage |
Secondary Air Injection (AIR) Pump Relay
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 30 | RED | 742 | Battery Positive Voltage |
| 85 | PNK | 139 | Ignition 1 Voltage |
| 86 | BRN | 436 | AIR Pump Relay Control |
| 87 | RED | 78 | AIR Pump Supply Voltage |
Throttle Position (TP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GRY | 2701 | 5-Volt Reference |
| B | BLK | 2752 | Low Reference |
| C | DK BLU | 417 | TP Sensor Signal |
Vehicle Speed Sensor (VSS)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PPL | 401 | Signal Low - Front |
| B | YEL | 400 | Signal High - Front |
