Installation Procedure

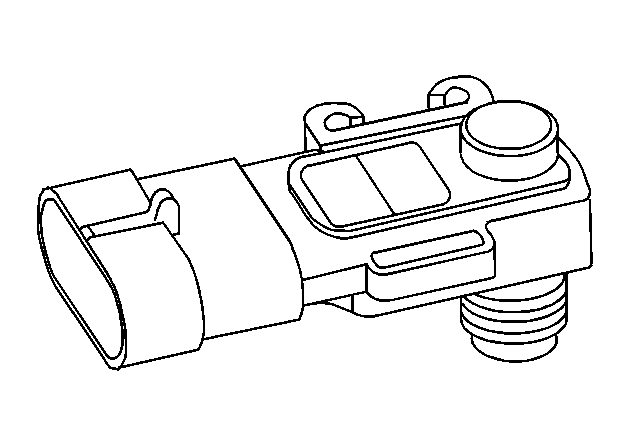

    Fig 1: Identifying Fuel Tank Pressure Sensor
    GM18839Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor.
  2. Connect the fuel tank pressure sensor electrical connector.
    3. Fig 2: View Of Fuel Sender Access Panel & Bolts
    GM32756Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel sender access panel.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fuel sender access panel bolts.

    Tighten:  Tighten the fuel sender access panel bolts to 2 N.m (18 lb. in.).

  5. Install the rear compartment trim panel. Refer to Compartment Side Trim Replacement - RH Rear in Body Rear End.
