Removal Procedure

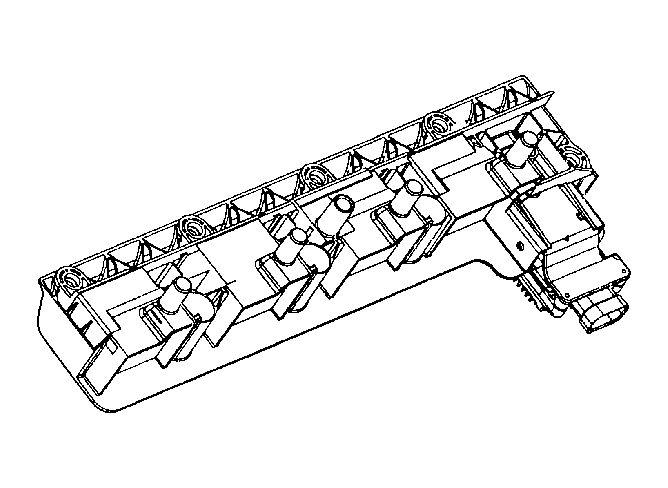

    Fig 1: Ignition Control Module
    GM602331Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil cassette. Refer to Ignition Coil(s) Replacement - Bank 1 .
  2. Remove the ignition control module retaining screws.
  3. Remove the ignition control module.
