Installation Procedure

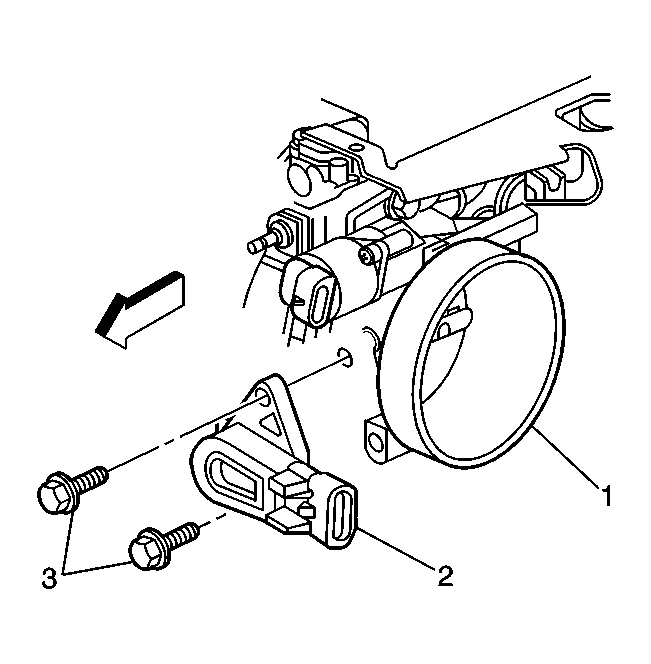

    Fig 1: Identifying TP Sensor & Throttle Body
    GM595108Courtesy of GENERAL MOTORS CORP.
  1. Install the new O-ring on to the TP sensor.
  2. Connect the TP Sensor electrical connector (2) to the TP sensor (3).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the TP sensor (2) on to the throttle body (1).

    Tighten:  Tighten the TP sensor screws to 2.3 N.m (20 lb. in.).

  4. Connect the IAC electrical connector (1) to the IAC sensor (4).
  5. Connect the MAP sensor electrical connector to the MAP sensor.
  6. Install the water pump belt and tensioner cover.
  7. Perform the TP Sensor learn procedure:
    1. Turn the ignition to the RUN/ON position.
    2. Wait 1 minute.
    3. Turn the ignition to the LOCK/OFF position.
    4. Wait 15 seconds.
