Engine Controls Schematics

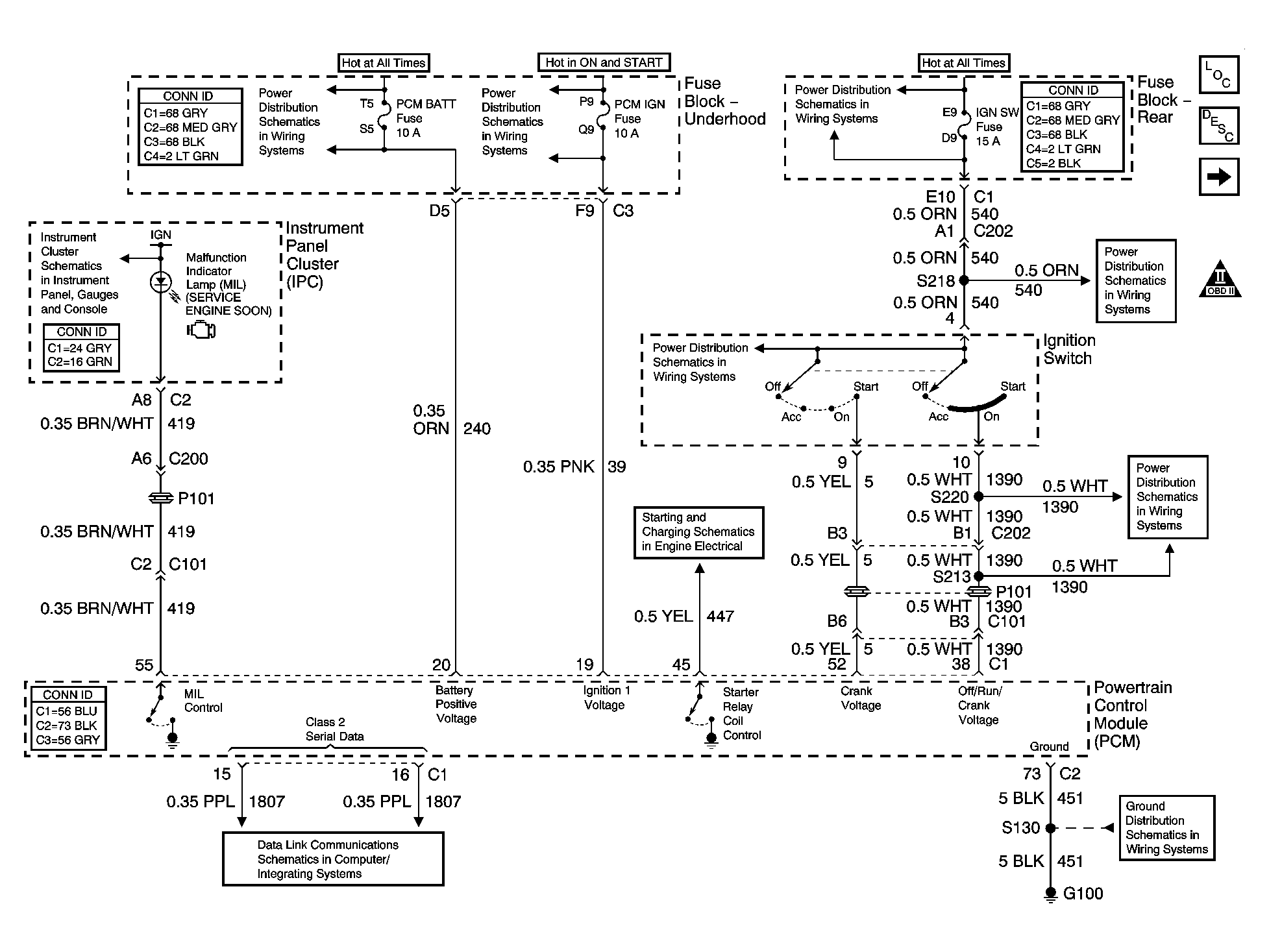

Fig 1: PCM Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

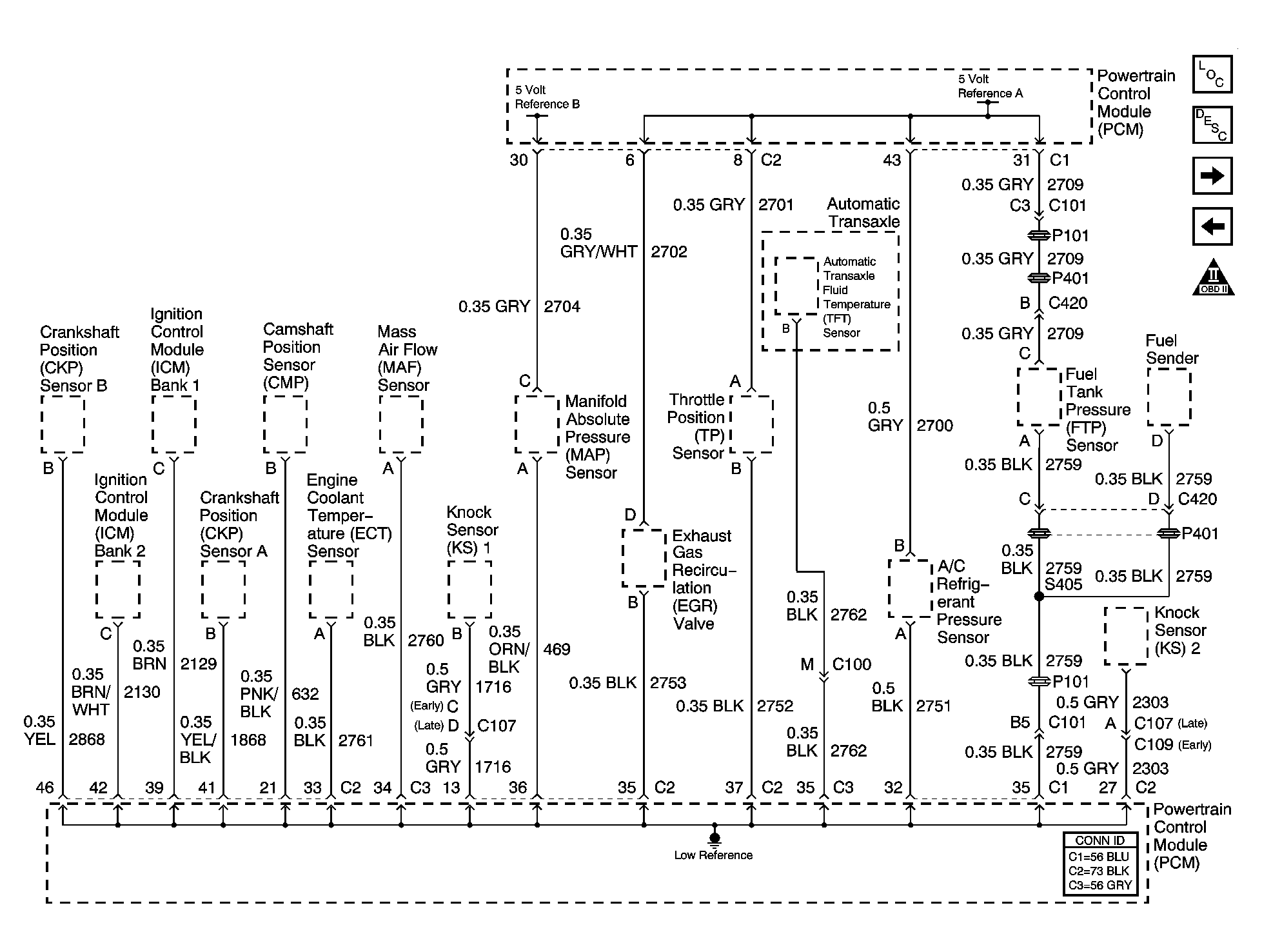

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

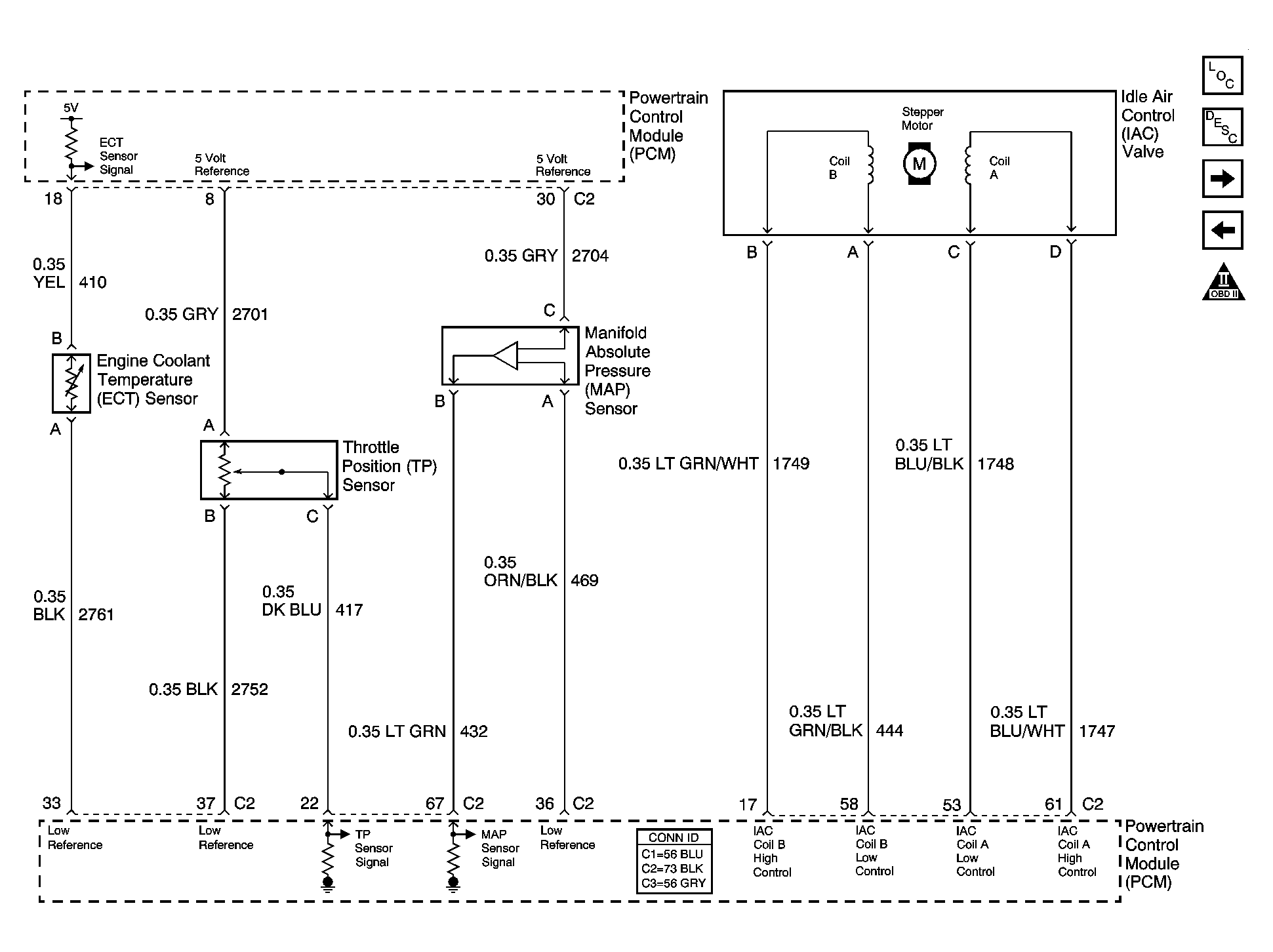

Fig 3: Pressure and Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

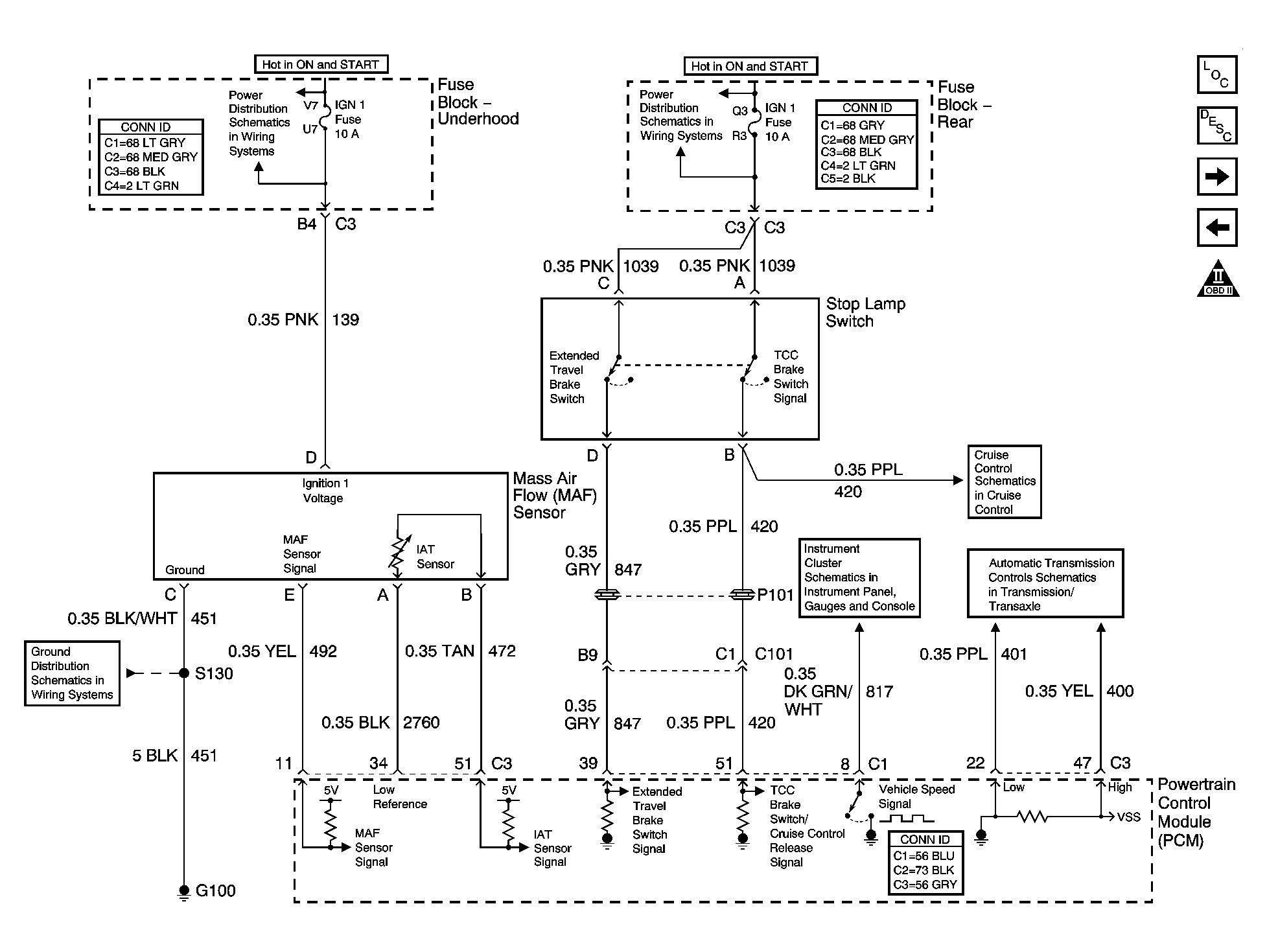

Fig 4: MAF, VSS, and Extended Brake Travel Switch Sensors

Courtesy of GENERAL MOTORS CORP.

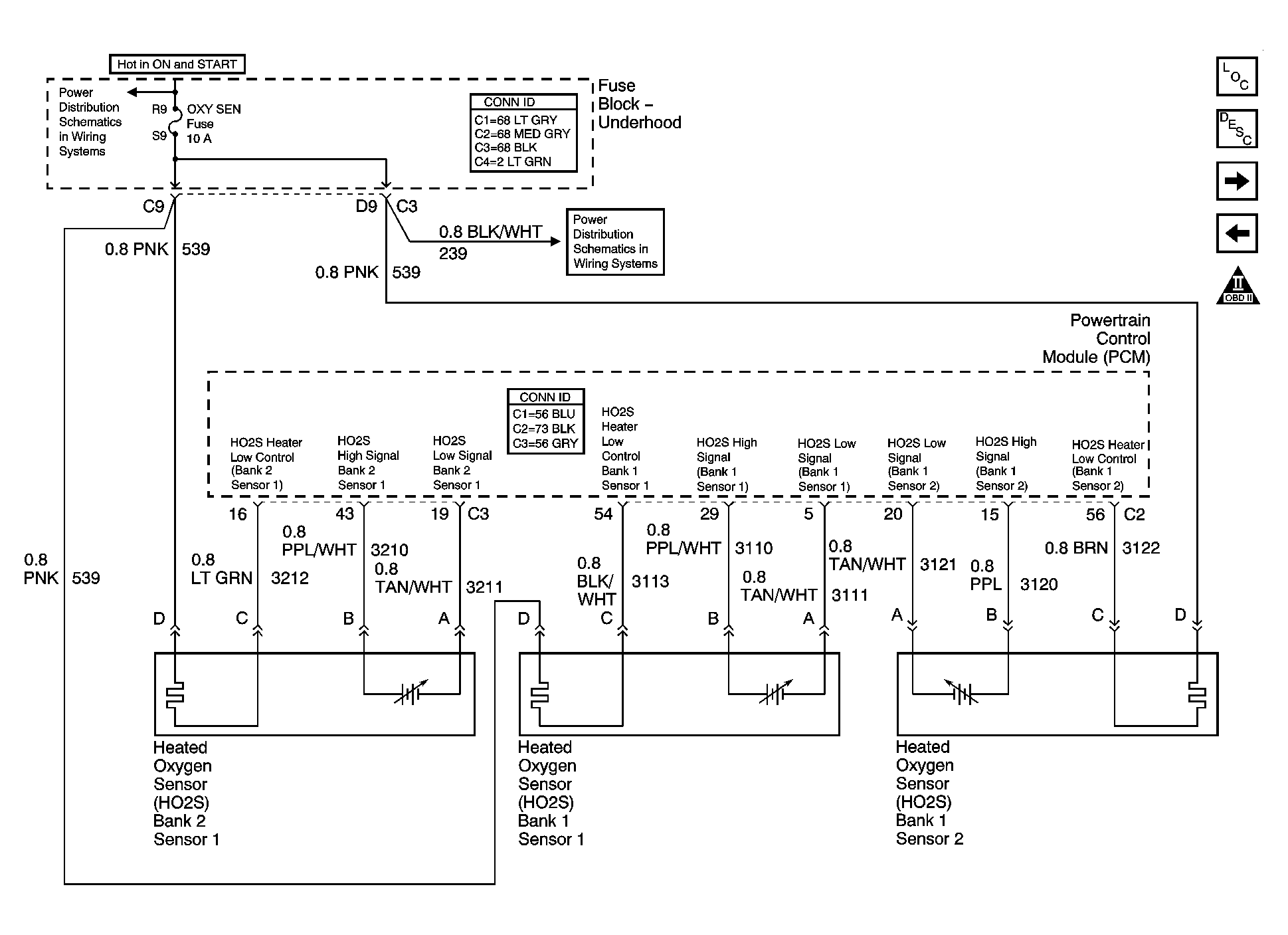

Fig 5: HO2S Sensors

Courtesy of GENERAL MOTORS CORP.

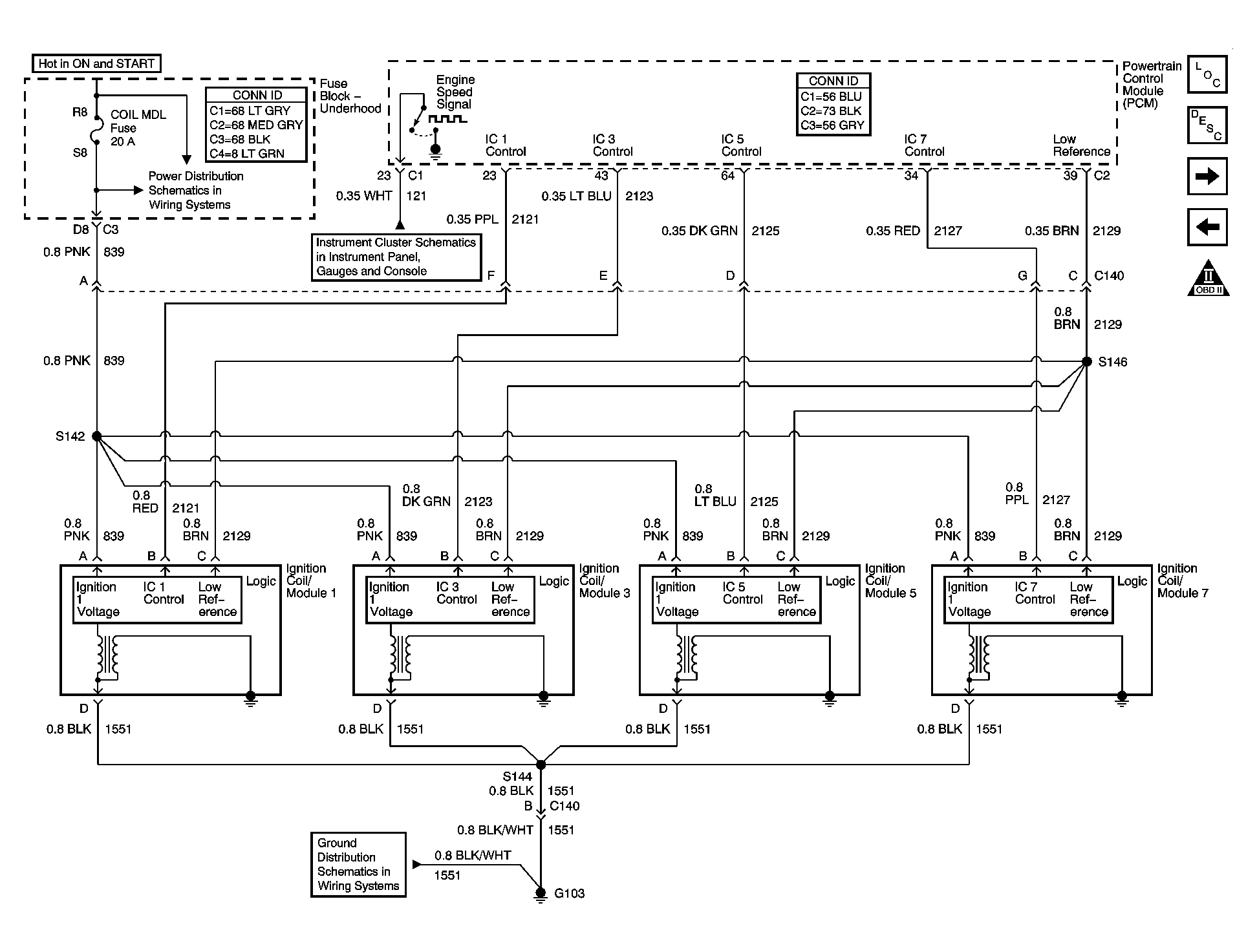

Fig 6: Ignition Controls - Ignition Coil/Modules 1, 3, 5 and 7

Courtesy of GENERAL MOTORS CORP.

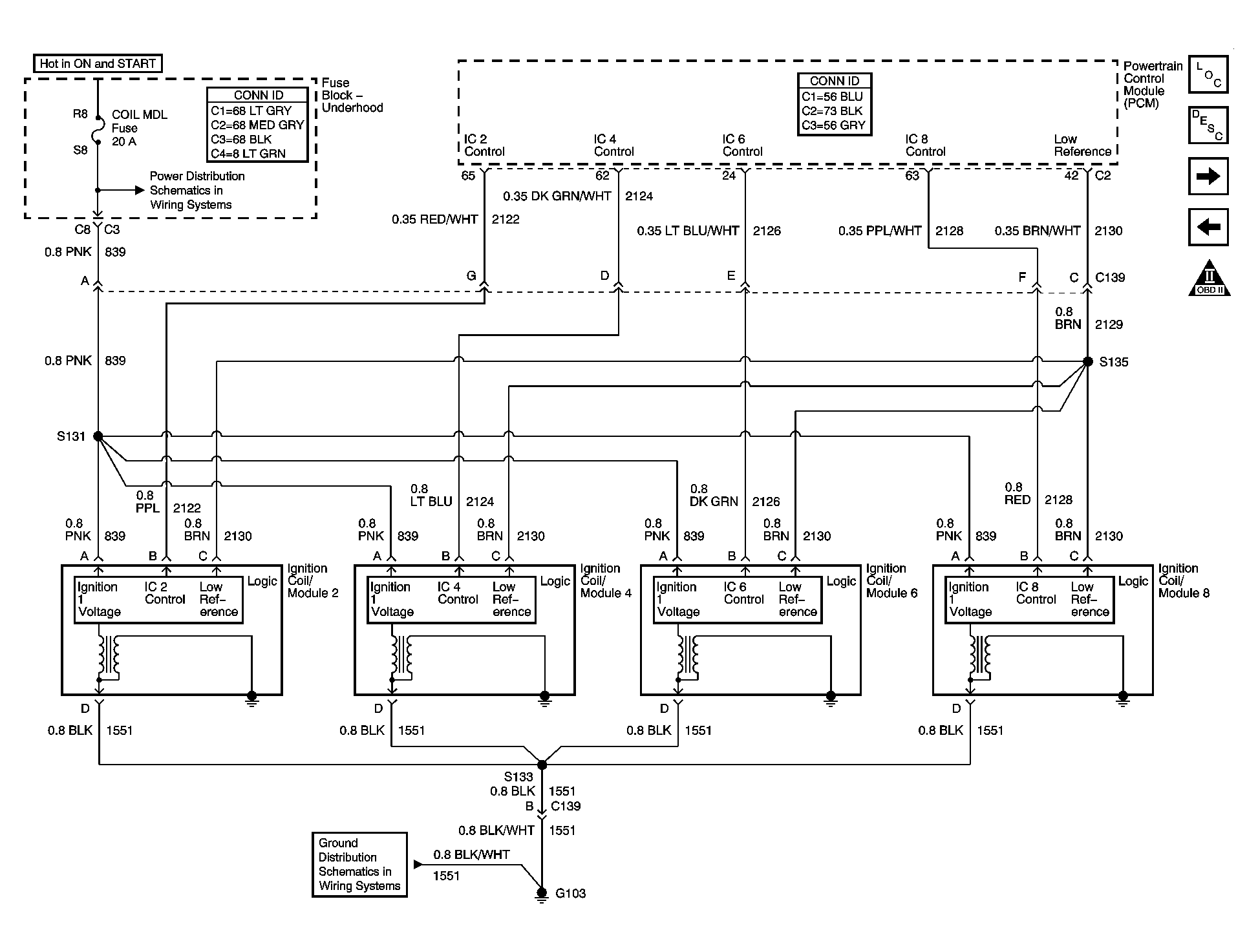

Fig 7: Ignition Controls - Ignition Coil/Modules 2, 4, 6 and 8

Courtesy of GENERAL MOTORS CORP.

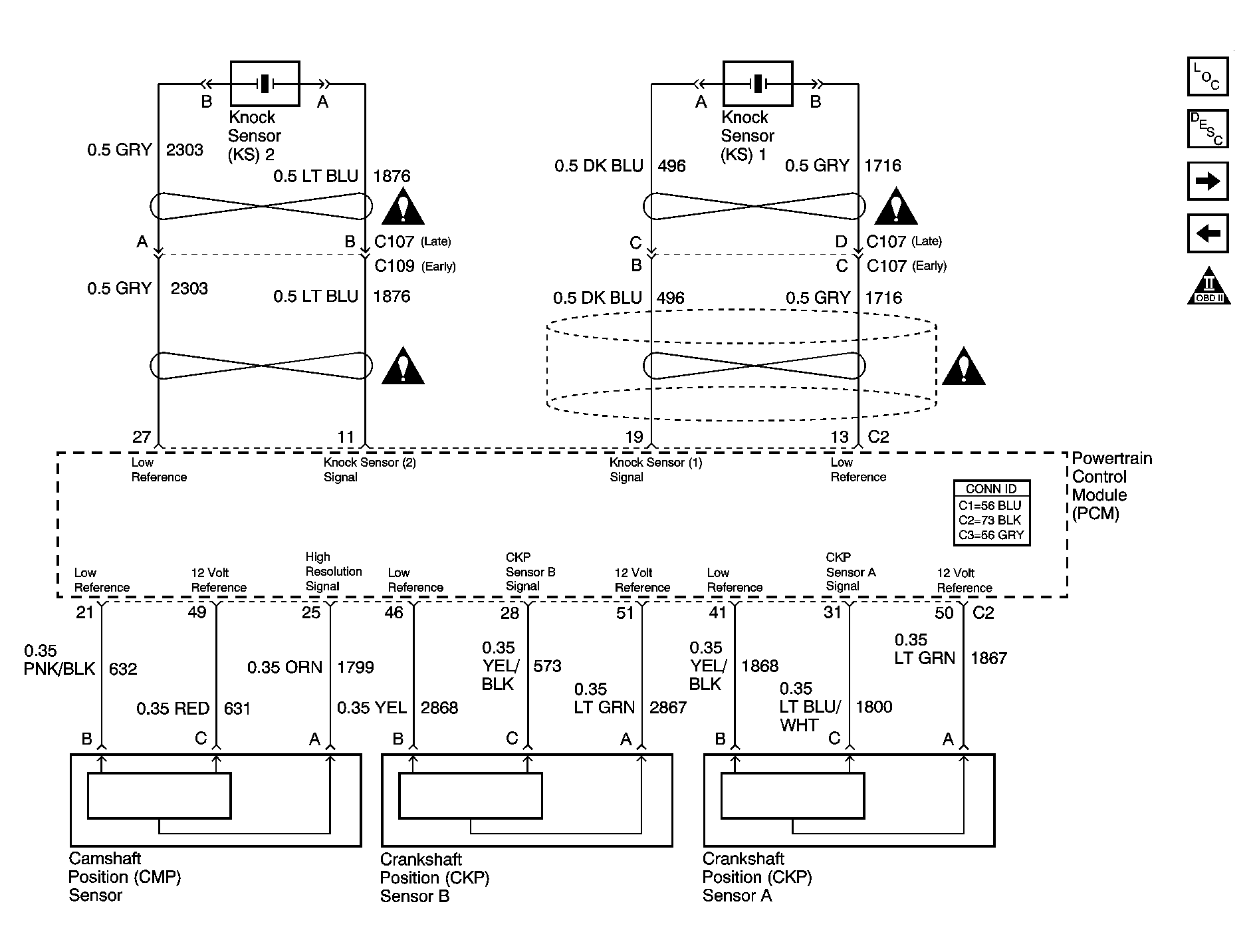

Fig 8: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

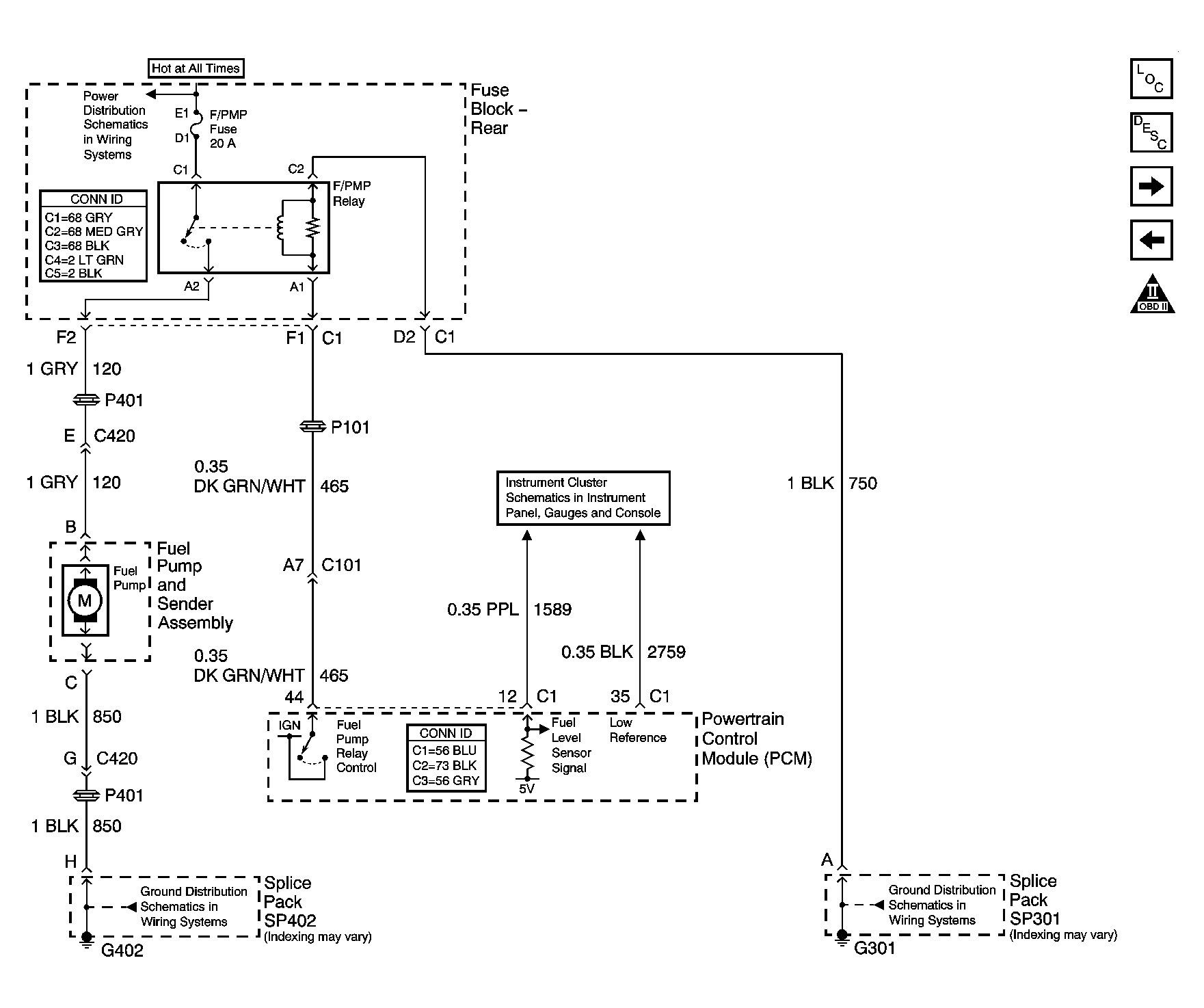

Fig 9: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

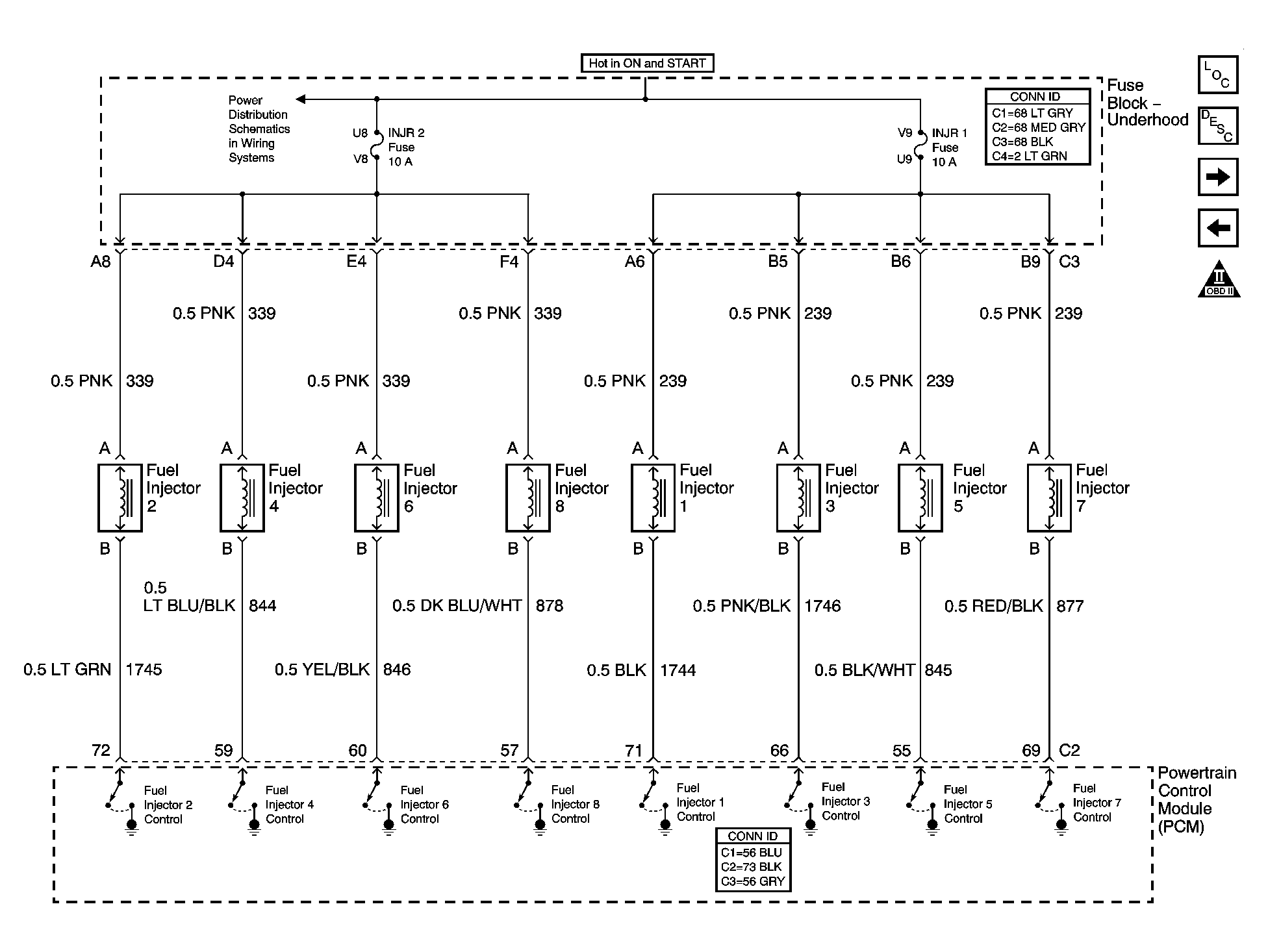

Fig 10: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

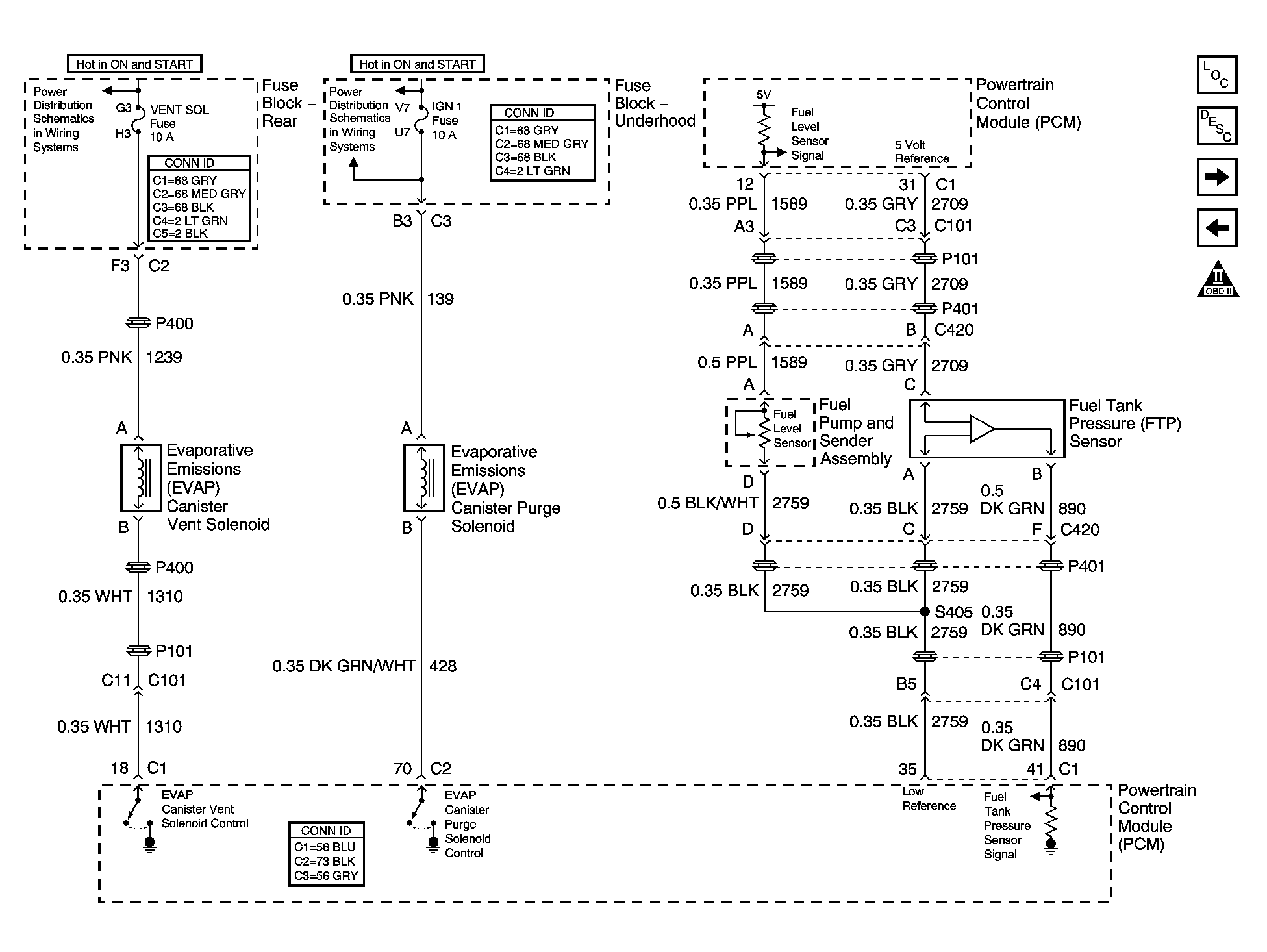

Fig 11: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

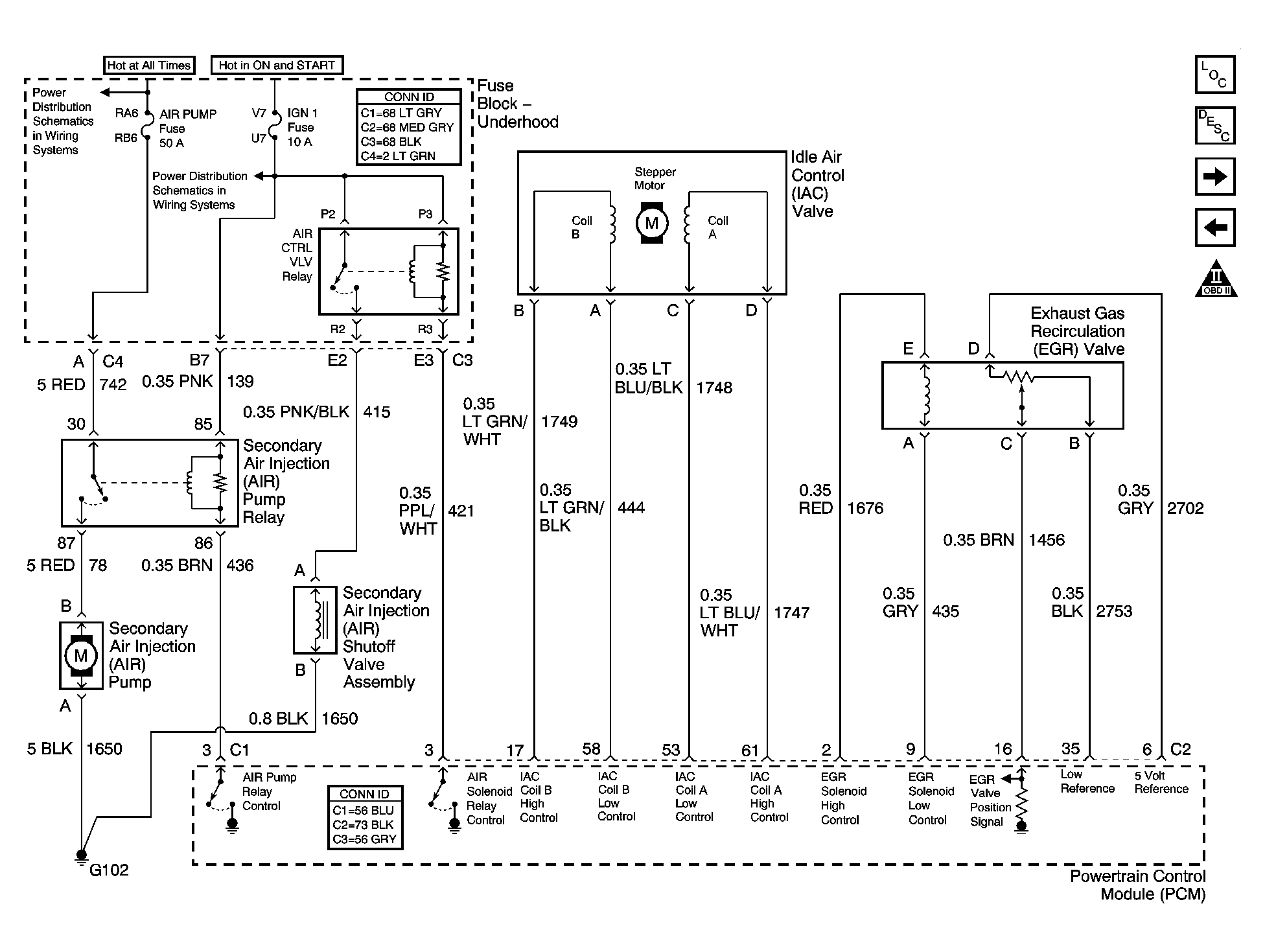

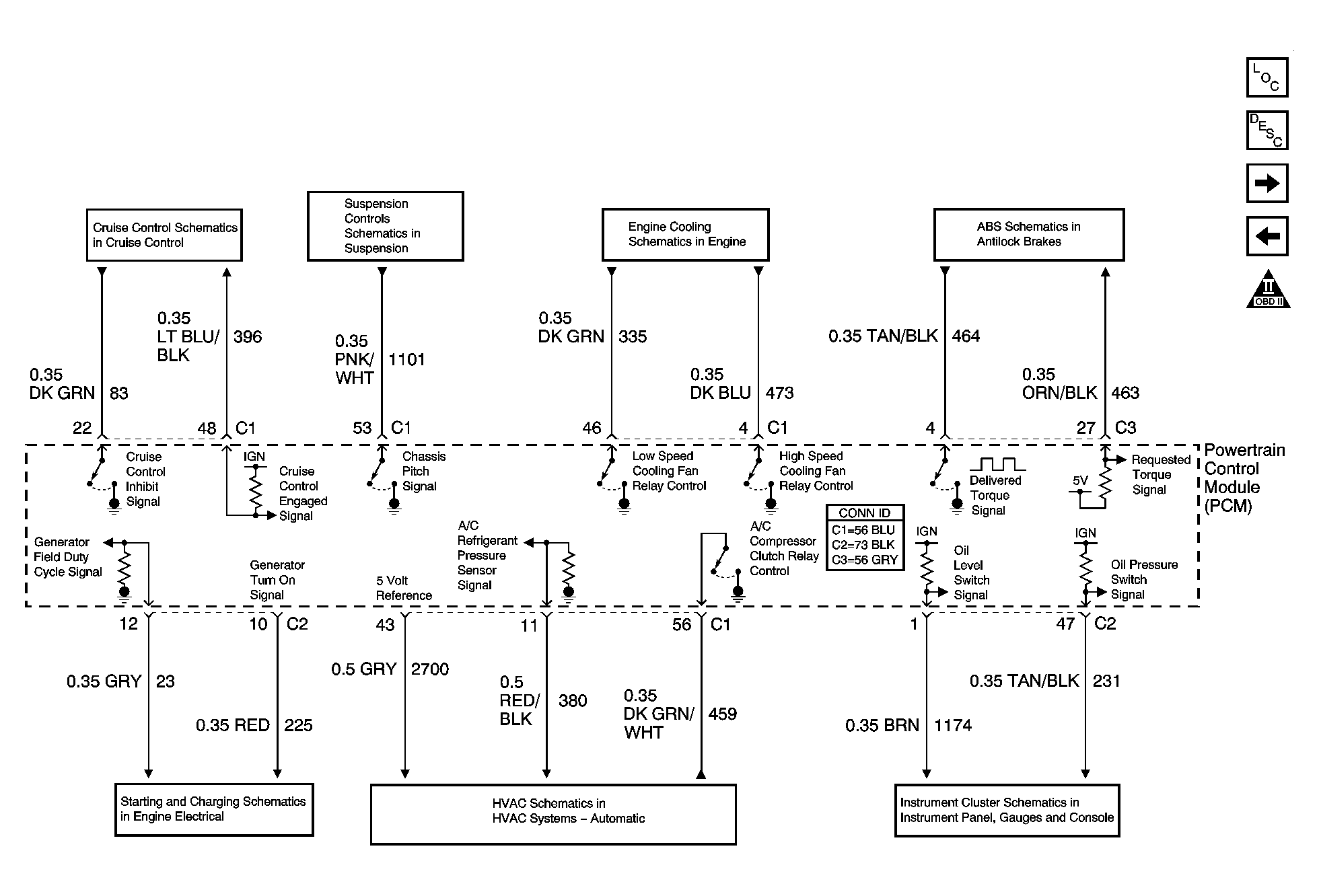

Fig 12: Device Controls

Courtesy of GENERAL MOTORS CORP.

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

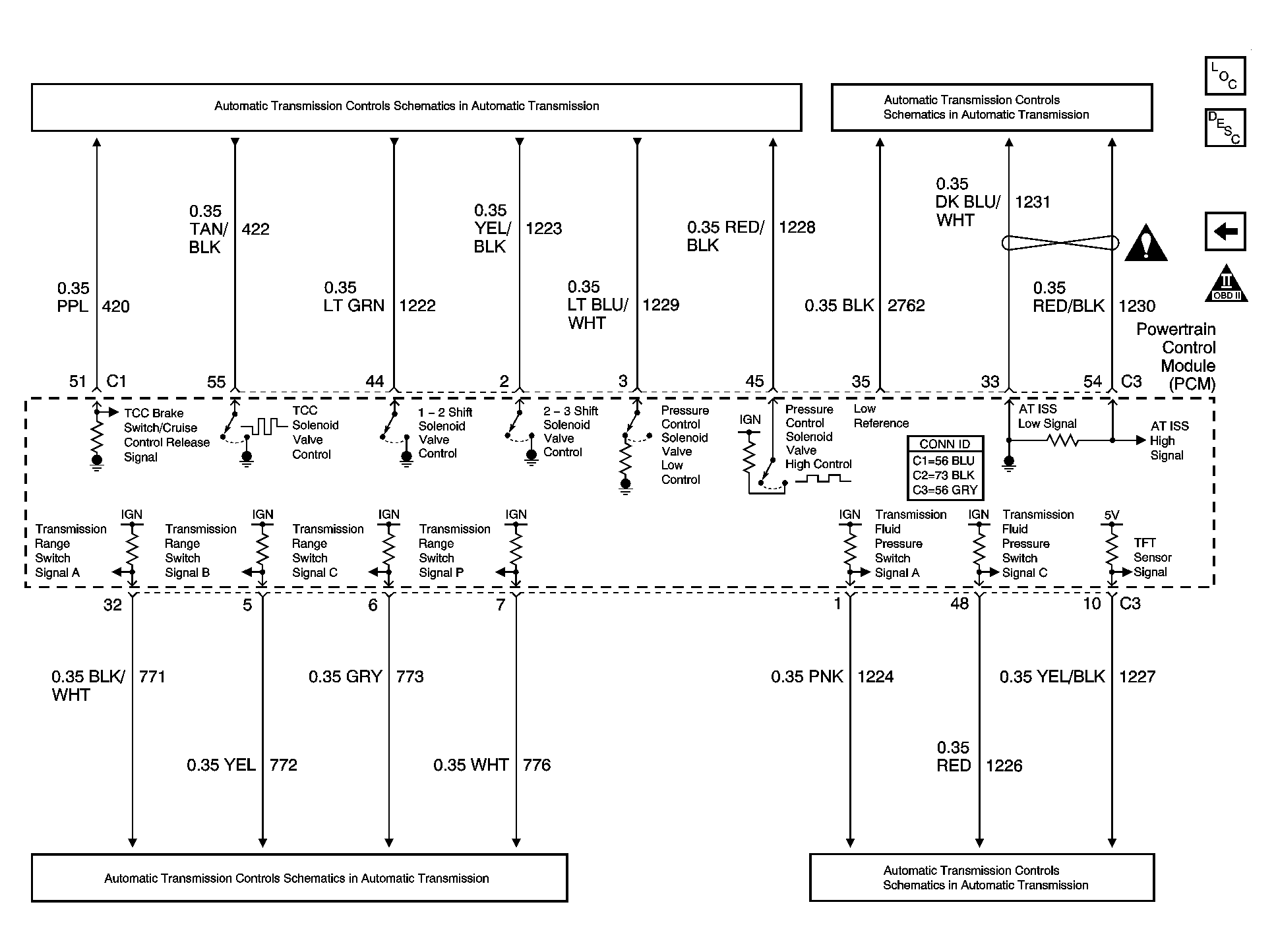

Fig 14: Transmission Controls References

Courtesy of GENERAL MOTORS CORP.
