Automatic Transmission Shift Lock Control Component Views

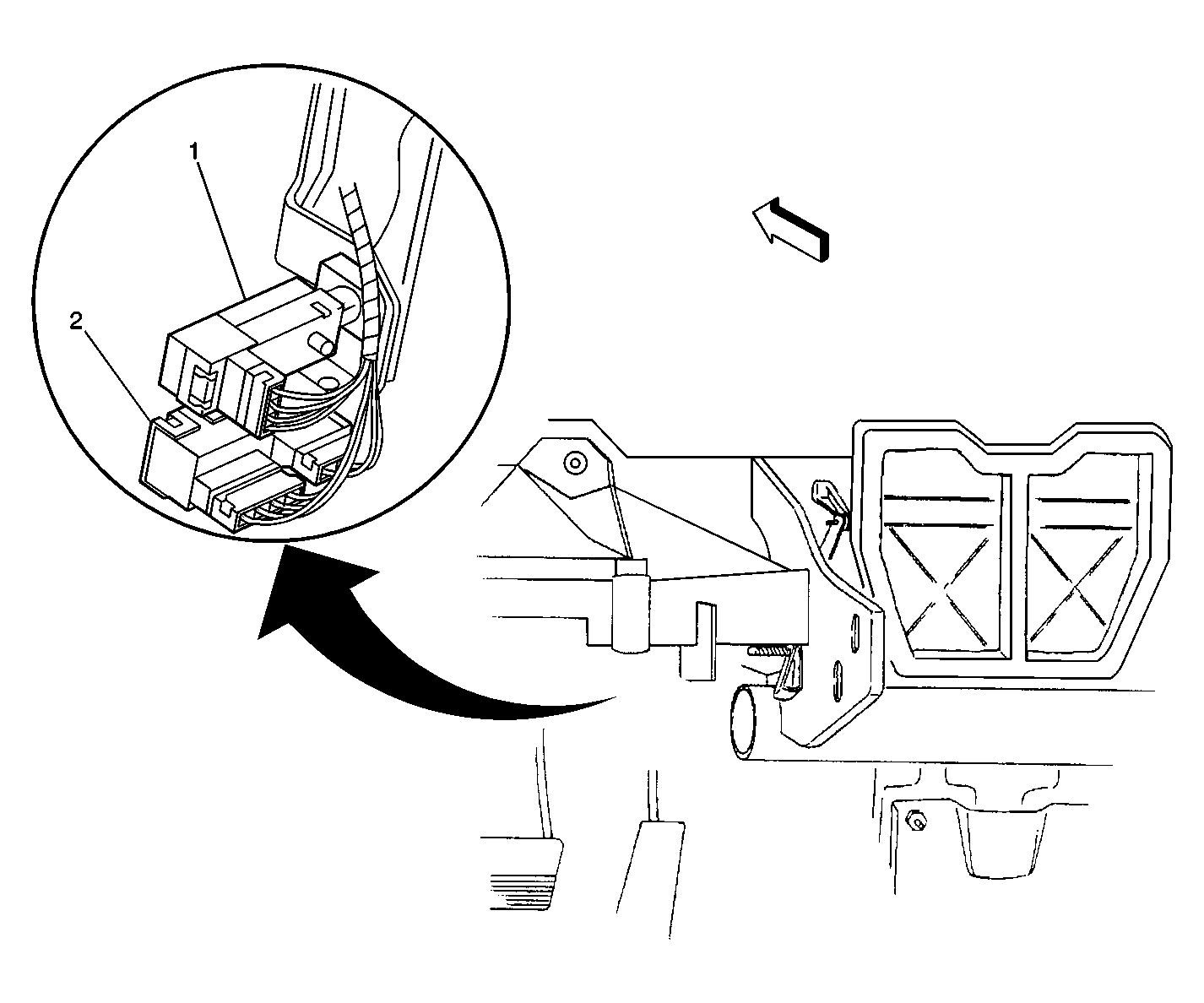

Fig 1: Passenger Compartment, Below The Left Side Of The Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp/AT Shift Lock Control Switch
2	Stop Lamp Switch

Fig 2: Beneath The Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lock Cable Assembly
2	A/T Shift Lock Control Solenoid Connector
