Installation Procedure

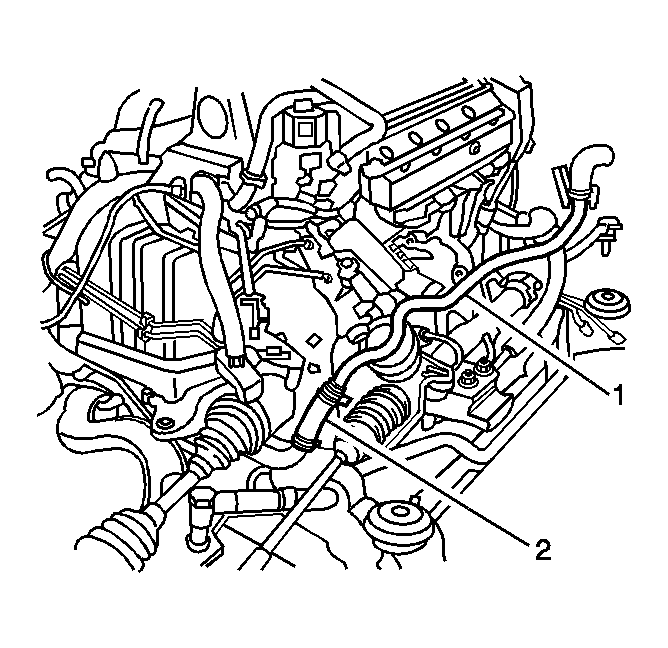

    Fig 1: View Of AIR Crossover Pipe/Hose To Bank 1 Intermediate Pipe/Hose Pinch Clamp
    GM707261Courtesy of GENERAL MOTORS CORP.
  1. Install the crossover pipe/hose (2) to the bank 1 intermediate pipe/hose (1).
  2. Install the crossover pipe/hose to intermediate pipe/hose pinch clamp.
    3. Fig 2: View Of AIR Pump & Outlet Hose
    GM707270Courtesy of GENERAL MOTORS CORP.
  3. Install the crossover pipe/hose (1) to the AIR pump outlet hose (3).
  4. Install the clamp connecting the crossover pipe/hose (1) to the AIR outlet hose (3).
  5. Install the tie straps to secure the crossover pipe/hose to the engine cradle.
  6. Lower the vehicle.
