Computer/Integrating Systems Component Views

Fig 1: Component Views - Body Control Module (BCM)
GM886494Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - I/P
2 Instrument Panel
3 Body Control Module (BCM)
4 Body Harness to Body Control Module (BCM)

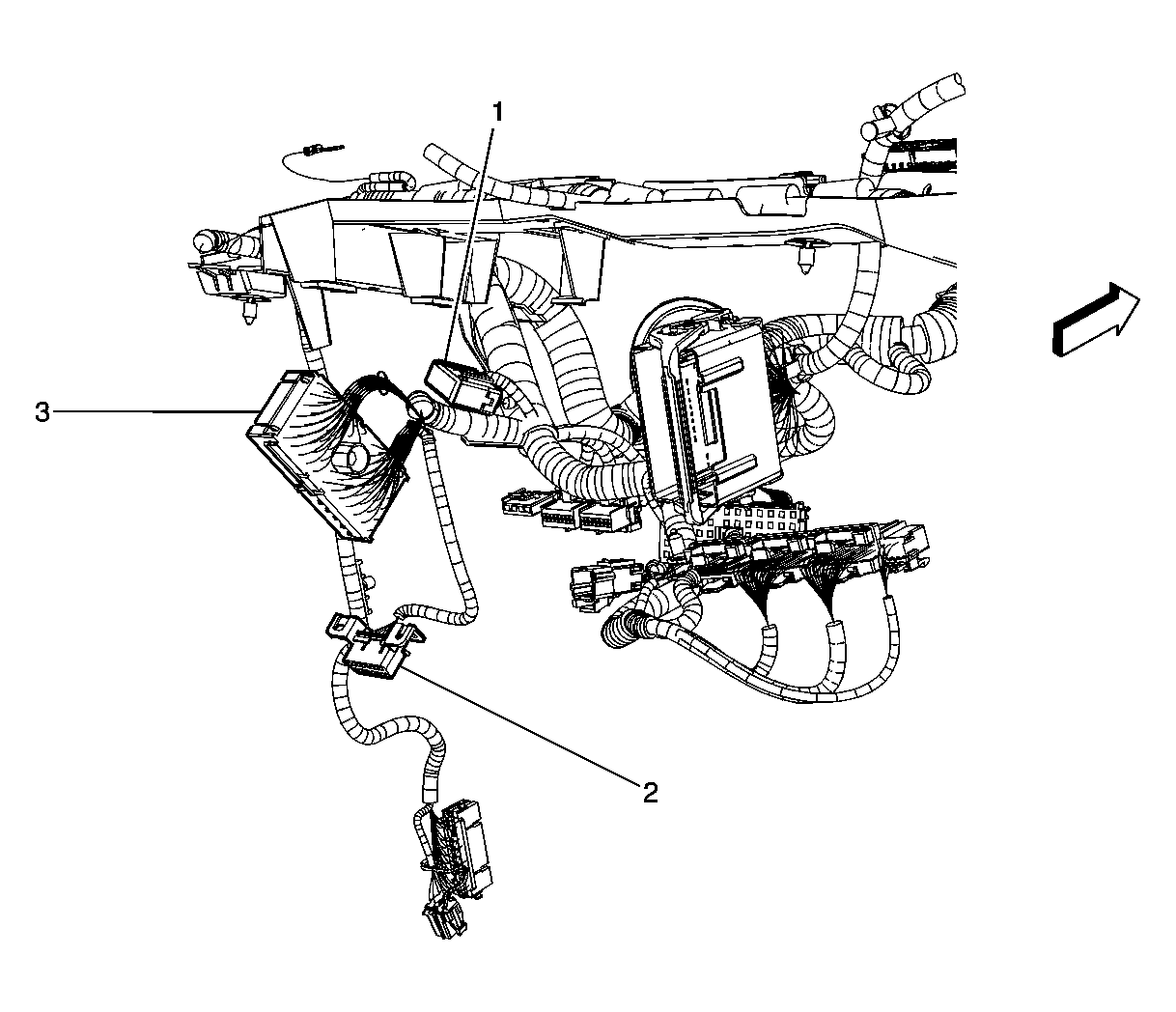

Fig 2: Left Side Of I/P Component View
GM1410102Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP207
2 Splice Pack SP205
3 Fuse Block - I/P C1

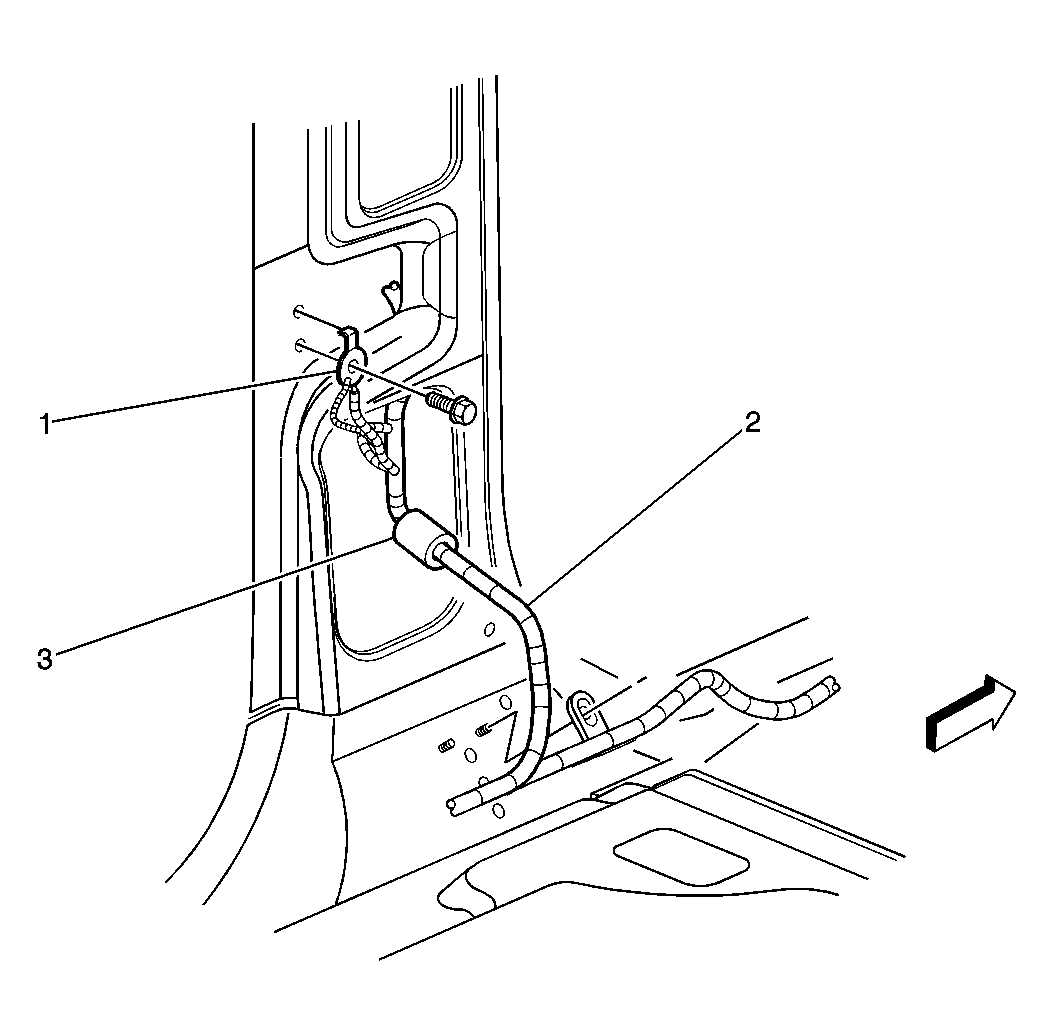

Fig 3: Splice Pack - SP206 Component View
GM901886Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G305
2 Body Harness
3 Splice Pack - SP206

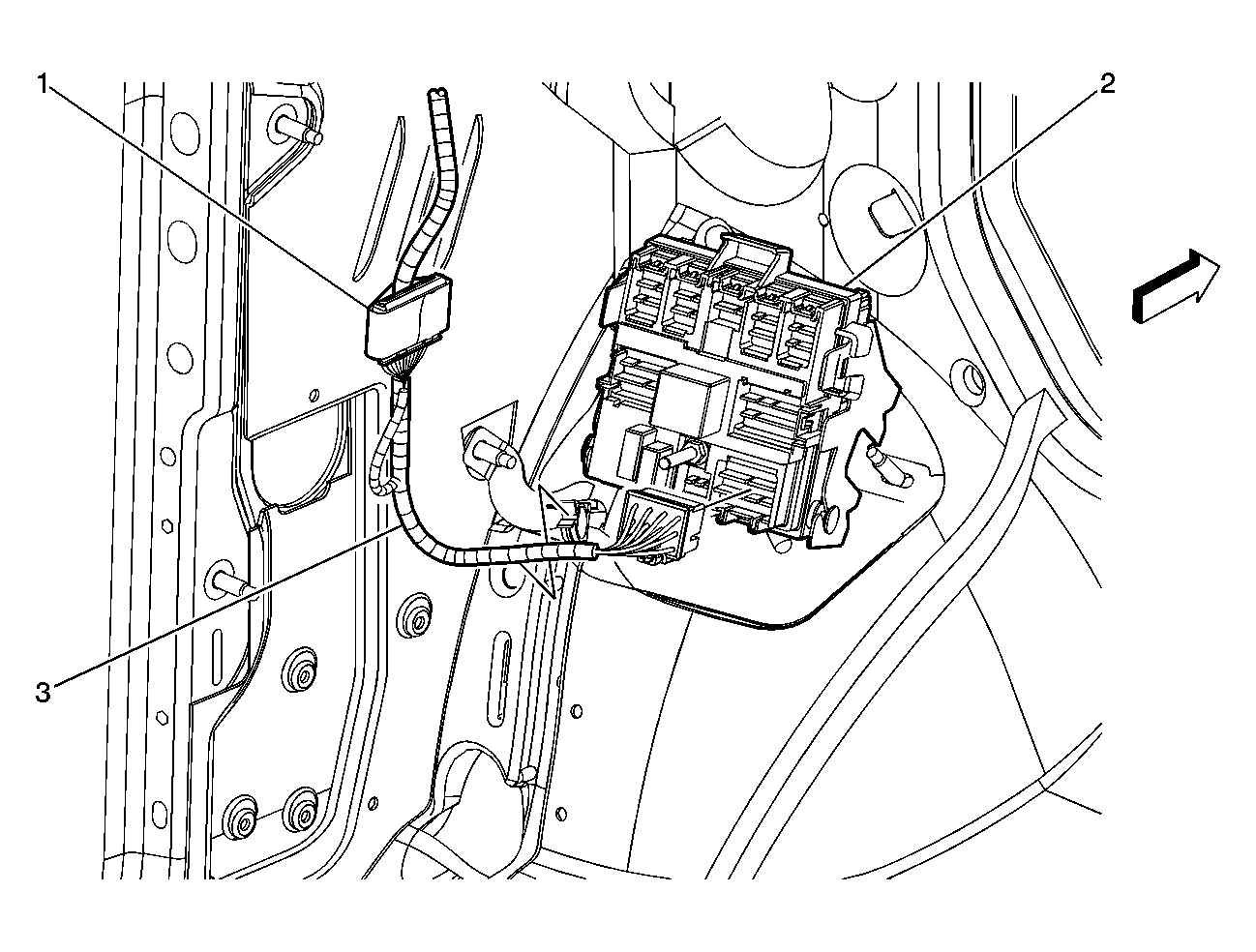

Fig 4: Component Views - Splice Pack, SP207
GM901879Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack - SP207
2 Relay Block - I/P
3 I/P Extension Harness
