Door Control Module Schematics

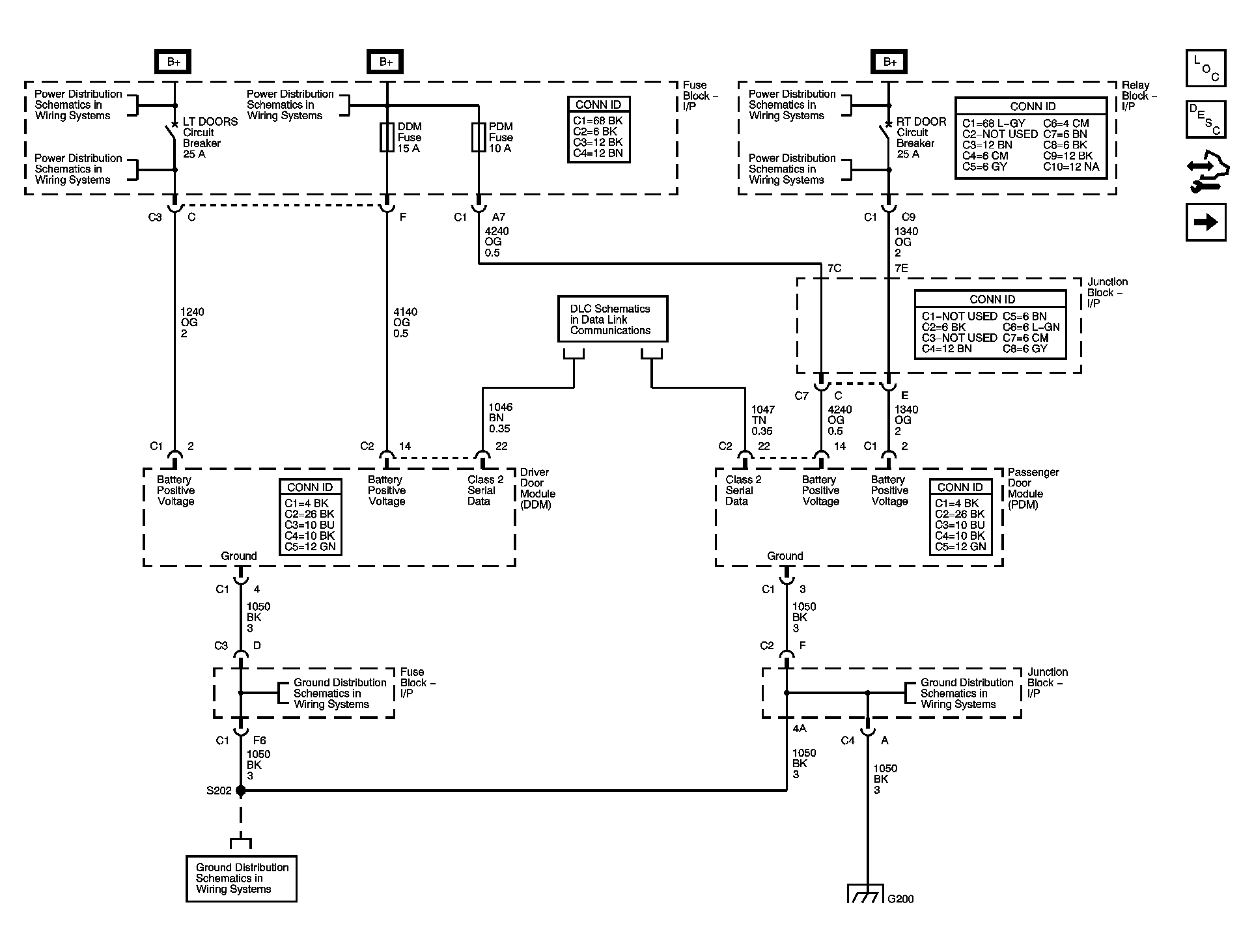

Fig 1: Power, Ground, and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

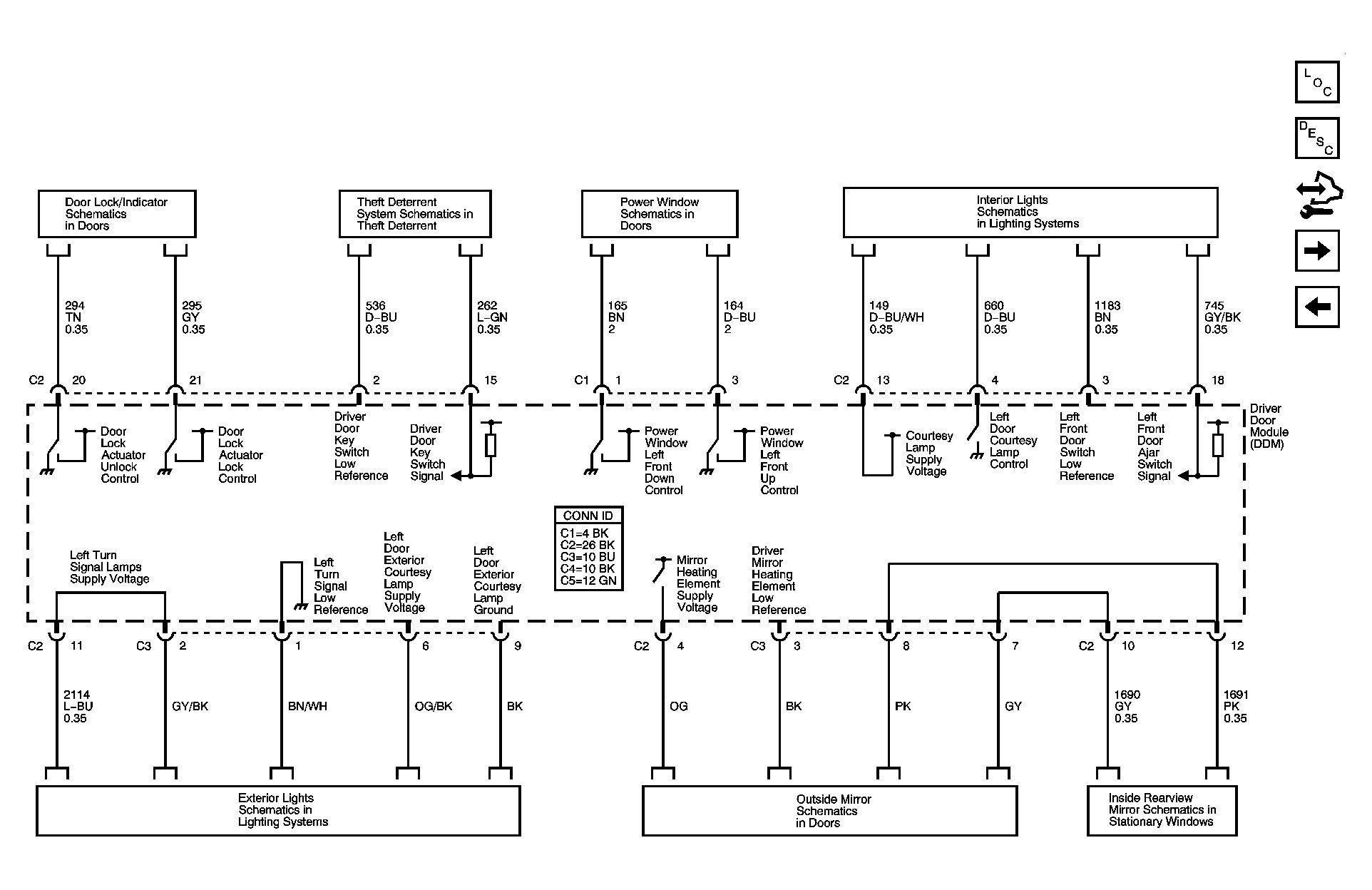

Fig 2: Driver Door Module References Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

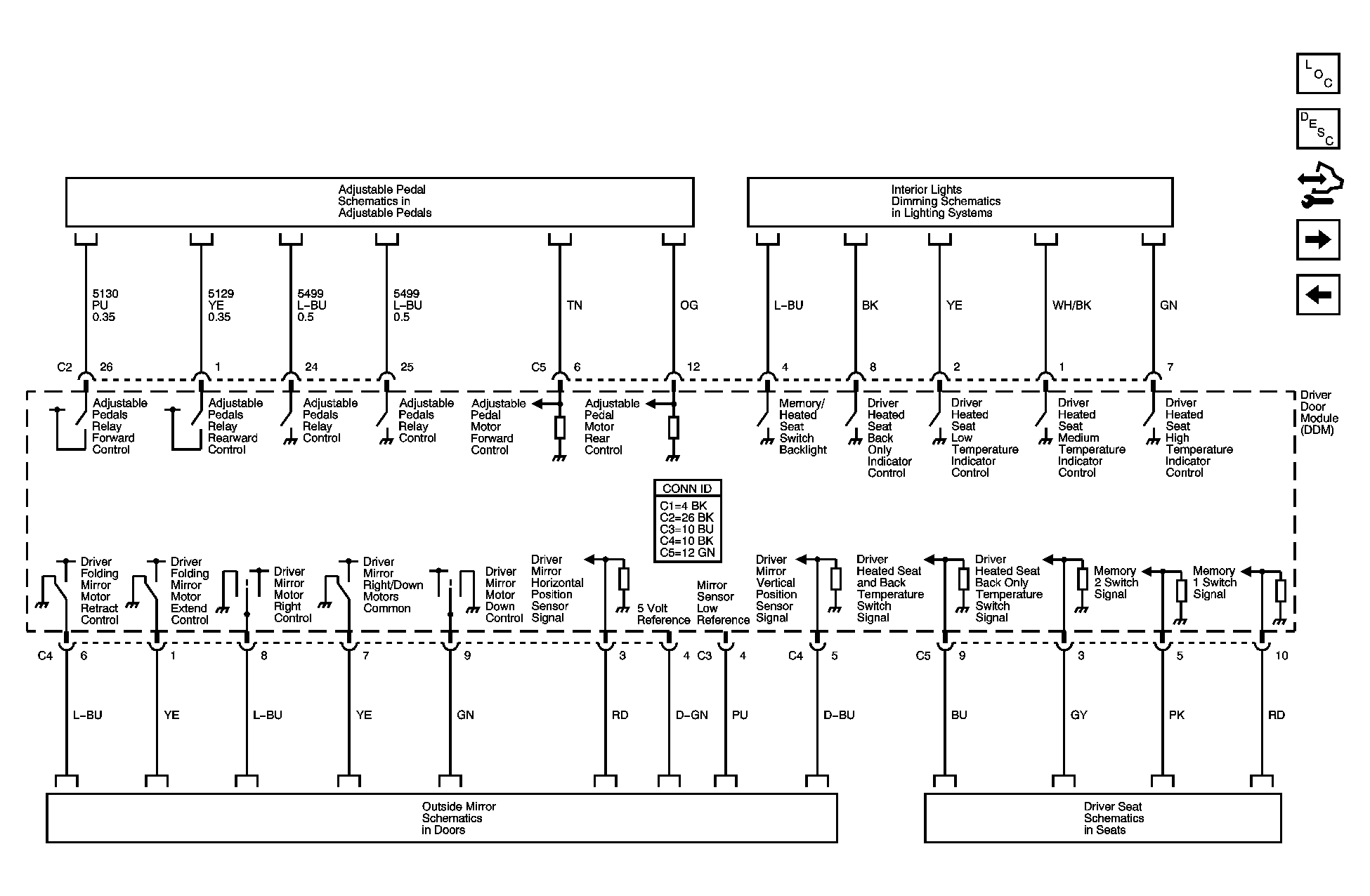

Fig 3: Driver Door Module References Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 4: Front Passenger Door Module References Schematics 1 of 2

Courtesy of GENERAL MOTORS CORP.

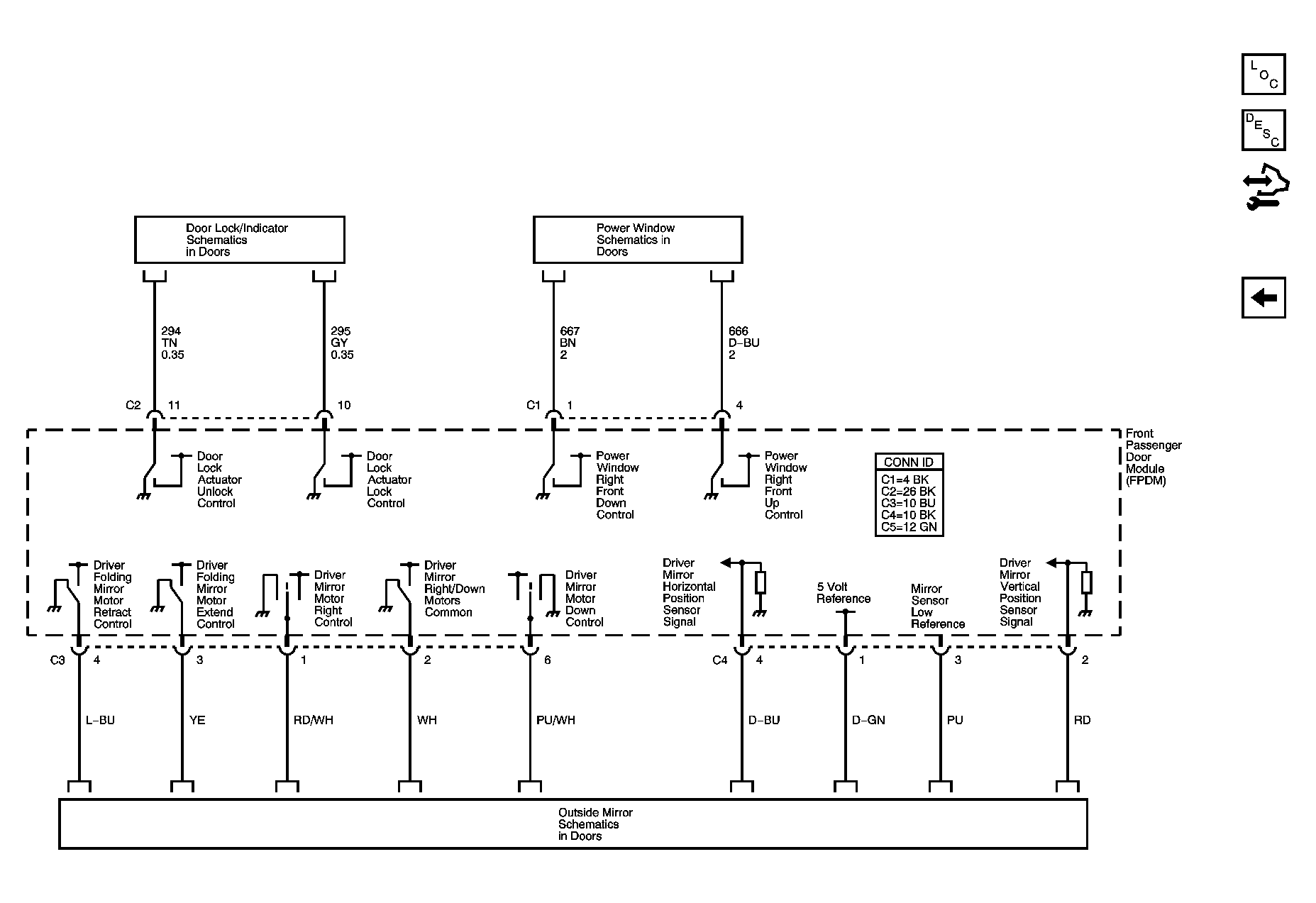

Fig 5: Front Passenger Door Module References Schematics 2 of 2

Courtesy of GENERAL MOTORS CORP.
