Engine Controls Connector End Views

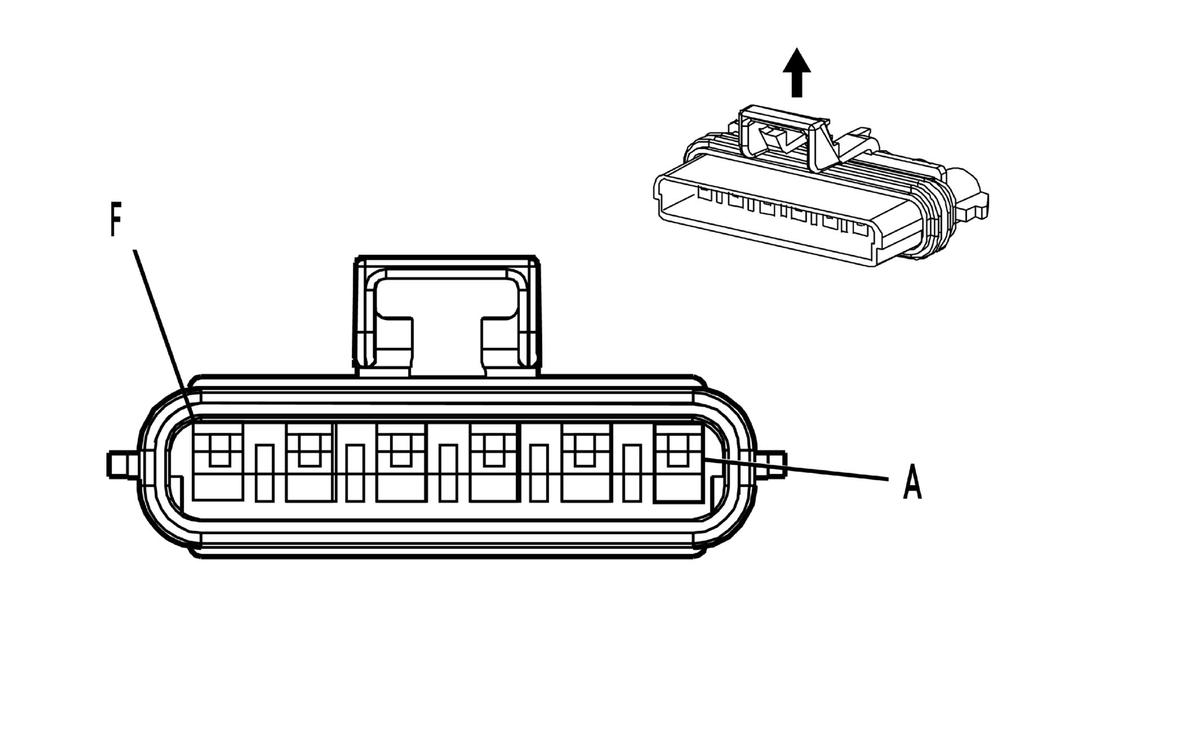

Accelerator Pedal Position (APP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PU | 1272 | Accelerator Pedal Position Low Reference (2) |
| B | L-BU | 1162 | Accelerator Pedal Position Signal (2) |
| C | TN | 1274 | Accelerator Pedal Position 5-Volt Reference (2) |
| D | BN | 1271 | Accelerator Pedal Position Low Reference (1) |
| E | D-BU | 1161 | Accelerator Pedal Position Signal (1) |
| F | WH/BK | 1164 | Accelerator Pedal Position 5-Volt Reference (1) |

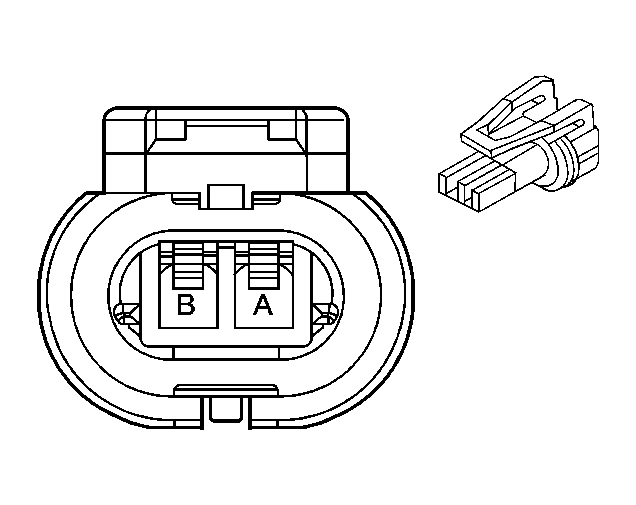

Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 451 | Ground |
| B | L-GN | 5282 | CMP Actuator Solenoid Bank 1 Exhaust |
Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 451 | Ground |
| B | PU | 5284 | CMP Actuator Solenoid Bank 1 Intake |
Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 451 | Ground |
| B | WH/BK | 5283 | CMP Actuator Solenoid Bank 2 Exhaust |
Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 451 | Ground |
| B | OG/BK | 5272 | CMP Actuator Solenoid Bank 2 Intake |

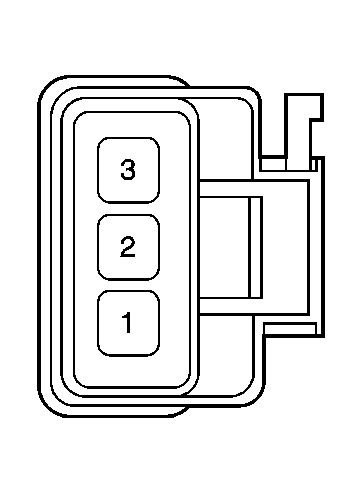

Camshaft Position (CMP) Sensor Bank 1 Exhaust Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN | 5273 | Camshaft Position Exhaust Sensor (1) |
| 2 | GY | 5296 | Camshaft Position Exhaust Sensor Low Reference (1) |
| 3 | YE/BK | 5297 | Camshaft Position Exhaust Sensor Supply Voltage (1) |
Camshaft Position (CMP) Sensor Bank 1 Intake Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 5275 | Camshaft Position Intake Sensor (1) |
| 2 | TN | 5301 | Camshaft Position Intake Sensor Low Reference (1) |
| 2 | BN/WH | 5303 | Camshaft Position Intake Sensor Low Reference (2) |
| 3 | D-BU | 5300 | Camshaft Position Intake Sensor Supply Voltage (1) |
Camshaft Position (CMP) Sensor Bank 2 Exhaust Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 5274 | Camshaft Position Exhaust Sensor (2) |
| 2 | BN | 5299 | Camshaft Position Exhaust Sensor Low Reference (2) |
| 3 | L-GN | 5298 | Camshaft Position Exhaust Sensor Supply Voltage (2) |
Camshaft Position (CMP) Sensor Bank 2 Intake Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 5276 | Camshaft Position Intake Sensor (2) |
| 2 | BN/WH | 5303 | Camshaft Position Intake Sensor Low Reference (2) |
| 3 | L-BU | 5302 | Camshaft Position Intake Sensor Supply Voltage (2) |
Crankshaft Position (CKP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-GN | 1867 | 12-Volt Reference |
| 2 | YE | 573 | CKP Sensor Signal |
| 3 | PU | 574 | Low Reference |

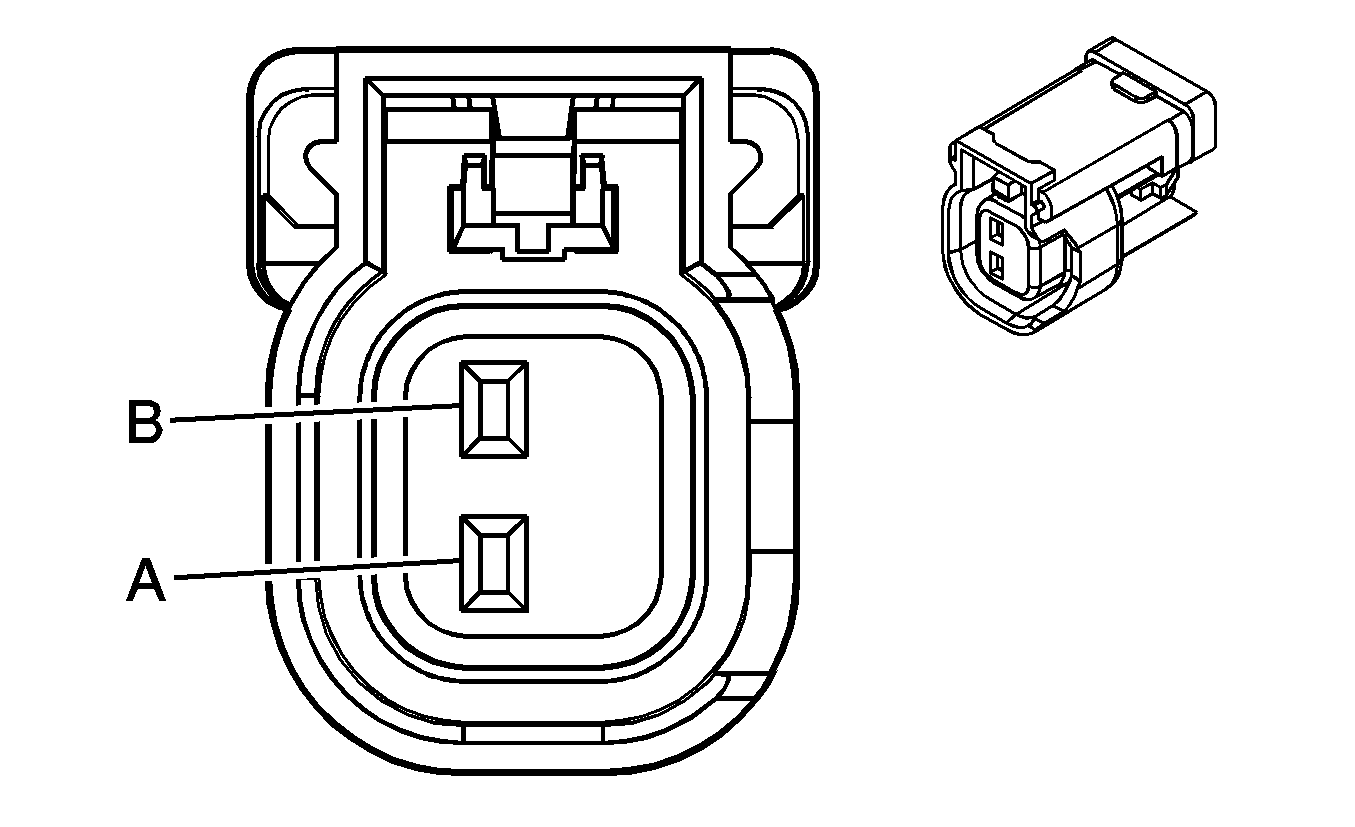

Engine Coolant Temperature (ECT) Sensor (Early) Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE | 410 | Engine Coolant Temperature Sensor Signal |
| B | TN | 2761 | Coolant Temperature Sensor Low Reference |
Engine Coolant Temperature (ECT) Sensor (Late) Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE | 410 | Engine Coolant Temperature Sensor Signal |
| B | TN | 2761 | Coolant Temperature Sensor Low Reference |
Evaporative Emissions (EVAP) Canister Purge Valve Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 539 | Run/Crank Ignition 1 Voltage |
| B | D-GN/WH | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emissions (EVAP) Canister Vent Solenoid Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RD/WH | 2840 | Battery Positive Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |
Fuel Injector 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Run/Crank Ignition 1 Voltage |
| B | TN | 1744 | Fuel Injector Control (1) |
Fuel Injector 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 139 | Run/Crank Ignition 1 Voltage |
| B | L-GN/BK | 1745 | Fuel Injector Control (2) |
Fuel Injector 3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Run/Crank Ignition 1 Voltage |
| B | PK/BK | 1746 | Fuel Injector Control (3) |
Fuel Injector 4 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 139 | Run/Crank Ignition 1 Voltage |
| B | L-BU/BK | 844 | Fuel Injector Control (4) |
Fuel Injector 5 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Run/Crank Ignition 1 Voltage |
| B | TN/WH | 845 | Fuel Injector Control (5) |
Fuel Injector 6 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 139 | Run/Crank Ignition 1 Voltage |
| B | YE/BK | 846 | Fuel Injector Control (6) |
Fuel Injector 7 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Run/Crank Ignition 1 Voltage |
| B | OG/BK | 877 | Fuel Injector Control (7) |
Fuel Injector 8 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 139 | Run/Crank Ignition 1 Voltage |
| B | D-BU/WH | 878 | Fuel Injector Control (8) |

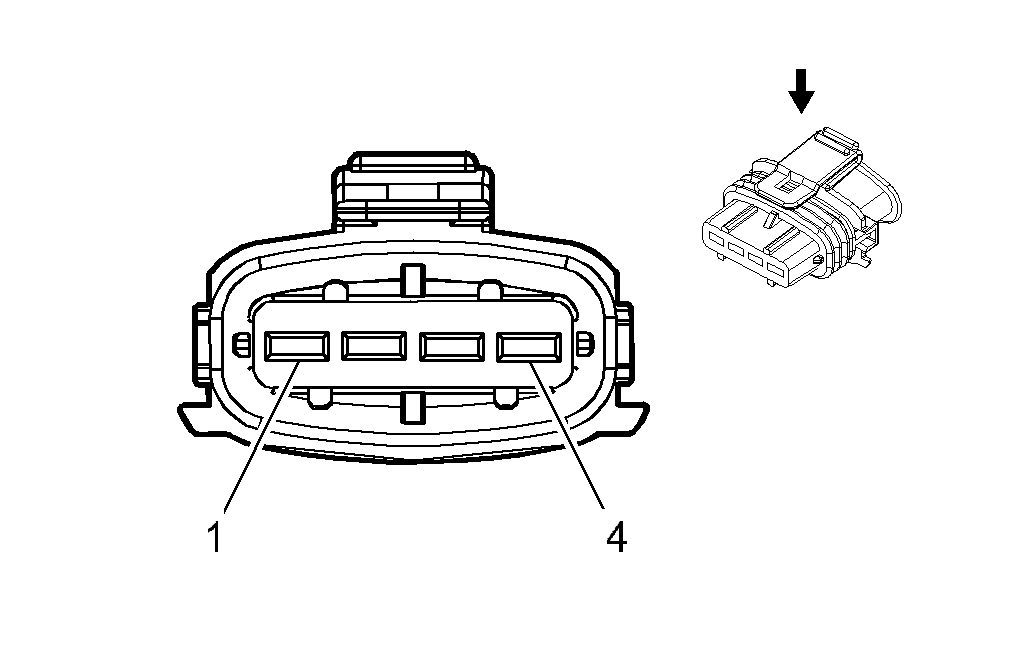

Fuel Pump and Sender Assembly Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | 1936 | Fuel Level Sensor Signal - Secondary |
| 2 | GY | 120 | Fuel Pump Speed Output Circuit |
| 3 | BK | 9531 | Fuel Pump Motor Low Reference |
| 4 | BK | 808 | Low Reference |
Fuel Pump Control Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 239 | Ignition 1 Voltage |
| B | GY | 120 | Fuel Pump Speed Output Circuit |
| C | D-GN/WH | 465 | Fuel Pump Relay Control |
| D | BN | 5546 | Fuel Pump Speed Control Feedback Signal |
| E | PK | 1580 | Fuel Pump Motor Low Reference |
| F | BK | 850 | Ground |
Fuel Tank Pressure Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 808 | Low Reference |
| B | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GY | 2709 | 5-Volt Reference |

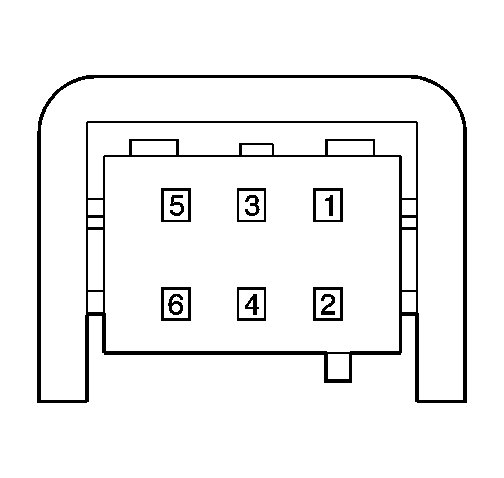

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 3110 | HO2S Reference Voltage Bank 1 Sensor 1 |
| 2 | PU/WH | 5281 | HO2S Output Pump Current Bank 1 Sensor 1 |
| 3 | PK | 339 | Ignition 1 Voltage |
| 4 | GY/WH | 3113 | HO2S Heater Low Control Bank 1 Sensor 1 |
| 5 | TN/WH | 3111 | HO2S Low Reference Bank 1 Sensor 1 |
| 6 | OG | 5280 | HO2S Input Pump Current Bank 1 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 3121 | HO2S Low Signal Bank 1 Sensor 2 |
| B | PU | 3120 | HO2S High Signal Bank 1 Sensor 2 |
| C | - | - | Not Available |
| D | PK | 339 | Ignition 1 Voltage |
| E | GY/WH | 3122 | HO2S Heater Low Control Bank 1 Sensor 2 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 3210 | HO2S Reference Voltage Bank 2 Sensor 1 |
| 2 | WH | 5279 | HO2S Output Pump Current Bank 2 Sensor 1 |
| 3 | PK | 339 | Ignition 1 Voltage |
| 4 | L-GN | 3212 | HO2S Heater Low Control Bank 2 Sensor |
| 5 | TN/WH | 3211 | HO2S Low Reference Bank 2 Sensor 1 |
| 6 | L-GN | 5278 | HO2S Input Pump Current Bank 2 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 3221 | HO2S Low Signal Bank 2 Sensor 2 |
| B | PU | 3220 | HO2S High Signal Bank 2 Sensor 2 |
| C | - | - | Not Available |
| D | PK | 339 | Ignition 1 Voltage |
| E | OG/BK | 3223 | HO2S Heater Low Control Bank 2 Sensor 2 |
Ignition Coil/Module 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | PU | 2121 | IC 1 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | OG | 2127 | IC 2 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | L-BU | 2123 | IC 3 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 4 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | D-GN | 2125 | IC 4 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 5 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | D-GN | 2125 | IC 5 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 6 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | L-BU | 2123 | IC 6 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 7 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | OG | 2127 | IC 7 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Ignition Coil/Module 8 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 39 | Ignition 1 Voltage |
| B | PU | 2121 | IC 8 Control |
| C | BN | 2129 | Low Reference |
| D | BK | 151 | Ground |
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN/BK | 472 | Intake Air Temperature Sensor Signal |
| 2 | TN | 2760 | Intake Air Temperature Sensor Low Reference |
| 3 | YE | 492 | Mass Air Flow Sensor Signal |
| 4 | OG/BK | 812 | 12-Volt Reference |
Knock Sensor (KS) Bank 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 496 | KS Signal Bank 1 |
| B | GY | 1716 | KS Low Reference Bank 1 |
Knock Sensor (KS) Bank 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 1876 | KS Signal Bank 2 |
| B | GY | 2303 | KS Low Reference Bank 2 |
Manifold Absolute Pressure (MAP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | OG/BK | 469 | Manifold Absolute Pressure Sensor Low Reference |
| B | L-GN | 432 | Manifold Absolute Pressure Sensor Signal |
| C | GY | 2704 | Manifold Absolute Pressure Sensor 5-Volt Reference |
Throttle Actuator Control Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN | 485 | Throttle Position Sensor Signal (1) |
| 2 | PU | 486 | Throttle Position Sensor Signal (2) |
| 3 | GY | 2701 | Throttle Position Sensor 5-Volt Reference |
| 4 | YE | 581 | Throttle Actuator Control Open |
| 5 | TN | 2752 | Throttle Position Sensor Low Reference |
| 6 | BN | 582 | Throttle Actuator Control Close |
